Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

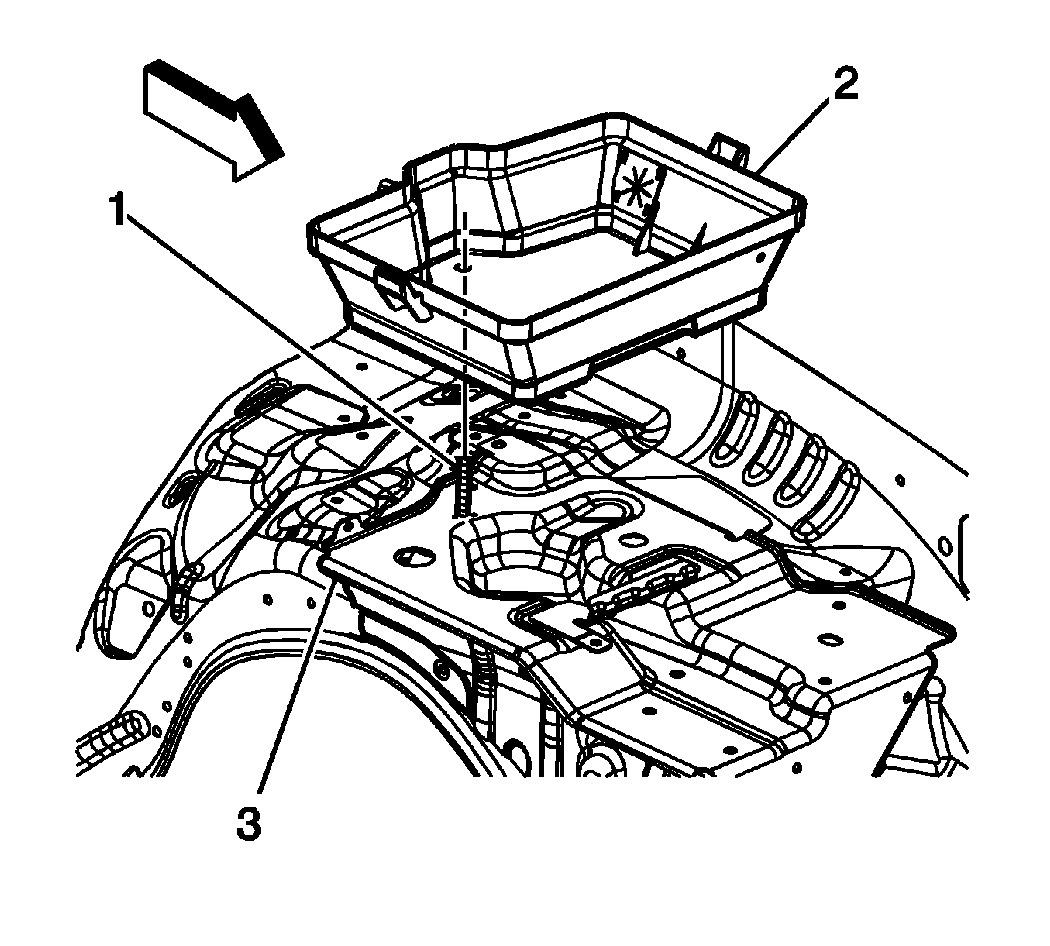

    Fig 1: View Of Lower Battery Box
    GM1313645Courtesy of GENERAL MOTORS CORP.
  1. Install the lower battery box (2) to the retainer stud (1) and battery tray (3).
    2. Fig 2: View Of Battery Tray, Battery Box & Battery Cable Harness Retainers
    GM1313637Courtesy of GENERAL MOTORS CORP.
  2. Connect the following to the lower battery box (2):
    • The battery cables harness retainer (3)
    • The engine wiring harness retainer
  3. Install the battery. Refer to Battery Replacement .
