Park/Neutral Position (PNP) Switch (M30)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

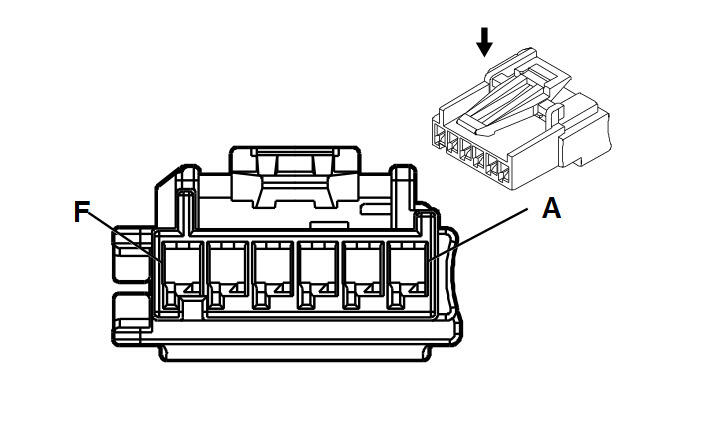

Fig 1: Park/Neutral Position (PNP) Switch (M30)
GM2127938Courtesy of GENERAL MOTORS CORP.
Park/Neutral Position (PNP) Switch (M30)

Pin Wire Circuit Function
A 0.5 OG/BK 1786 Ignition Lock Cylinder Control Actuator Signal
B 0.5 YE/BK 773 Transmission Range Switch Signal C
C 0.5 RD/BK 771 Transmission Range switch Signal A
D 0.5 D-GN/WH 772 Transmission Range Switch Signal B
E 0.5 GY/WH 776 Transmission Range Switch Signal P
F 0.5 BK/WH 1050 Ground
Connector Part Information
  • Harness: Transmission
  • OEM: 13540209
  • Service:Service by Harness - See Part Catalog
  • Description: 6-Way F Metri-Pack 150.2 Series Sealed (BU)

Terminal Part Information
  • Terminal/Tray: 12124075/5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12180559-1/J-35616-14 (GN)
