Special Tools

Special Tools

Illustration Tool Number/Description
GM133Courtesy of GENERAL MOTORS CORP.
 J 24319-B
Universal Steering Linkage Puller
GM134Courtesy of GENERAL MOTORS CORP.
 J 29107-A
Pitman Arm Puller

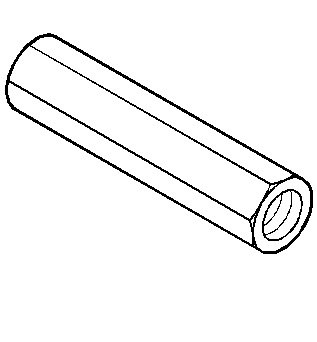

GM136Courtesy of GENERAL MOTORS CORP.
 J 29193
Steering Linkage Installer (12mm)

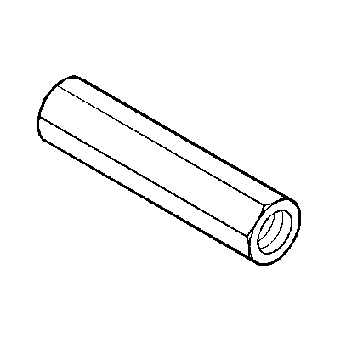

GM246309Courtesy of GENERAL MOTORS CORP.
 J 29194
Steering Linkage Installer (14mm)
GM283638Courtesy of GENERAL MOTORS CORP.
 J 34028
Inner Tie Rod Wrench
GM157140Courtesy of GENERAL MOTORS CORP.
 J 35999
Spring Scale
GM261779Courtesy of GENERAL MOTORS CORP.
 J 42640
Steering Column Anti-Rotation Pin
GM891822Courtesy of GENERAL MOTORS CORP.
 J 45101
Hub and Wheel Runout Gage
GM245882Courtesy of GENERAL MOTORS CORP.
 J 6632-01
Pitman Arm Puller
