Central Control Module: Locations

Entertainment/Communication Component Views

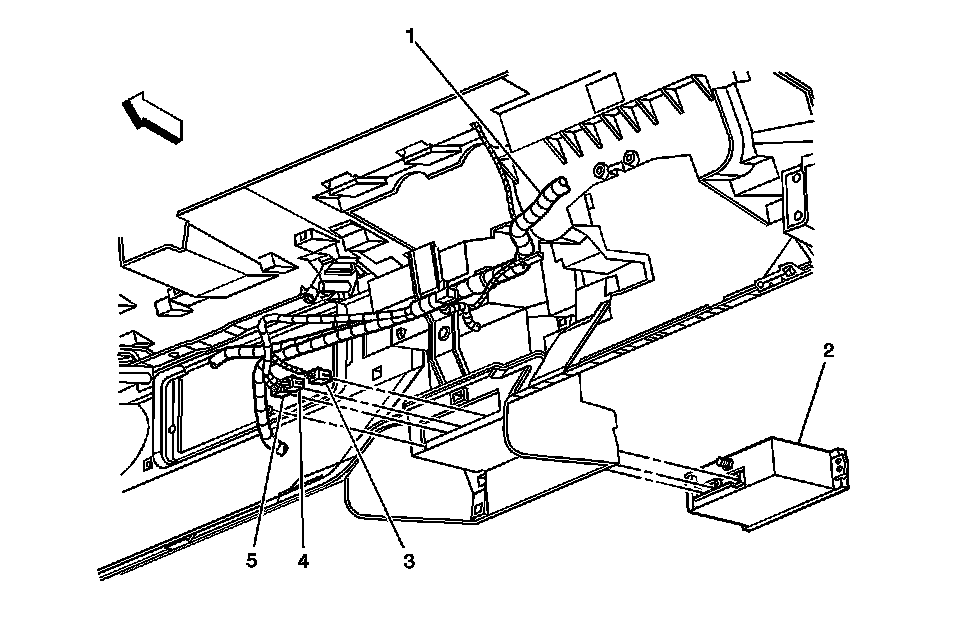

Vehicle Communication Interface Module




1 - I/P Harness
2 - Vehicle Communication Interface Module
3 - Vehicle Communication Interface Module-C3
4 - Vehicle Communication Interface Module-C2
5 - Vehicle Communication Interface Module-C1
