Components

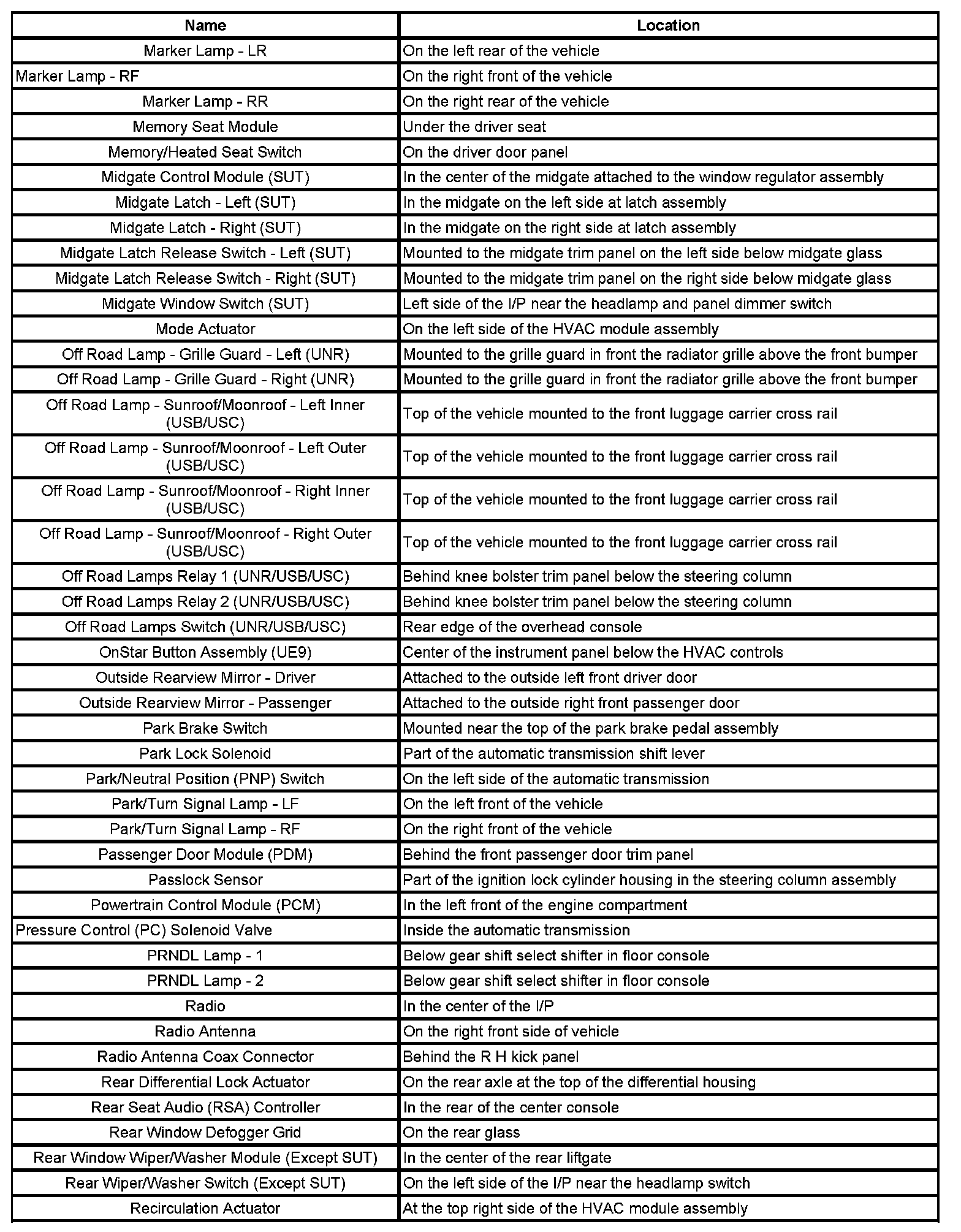

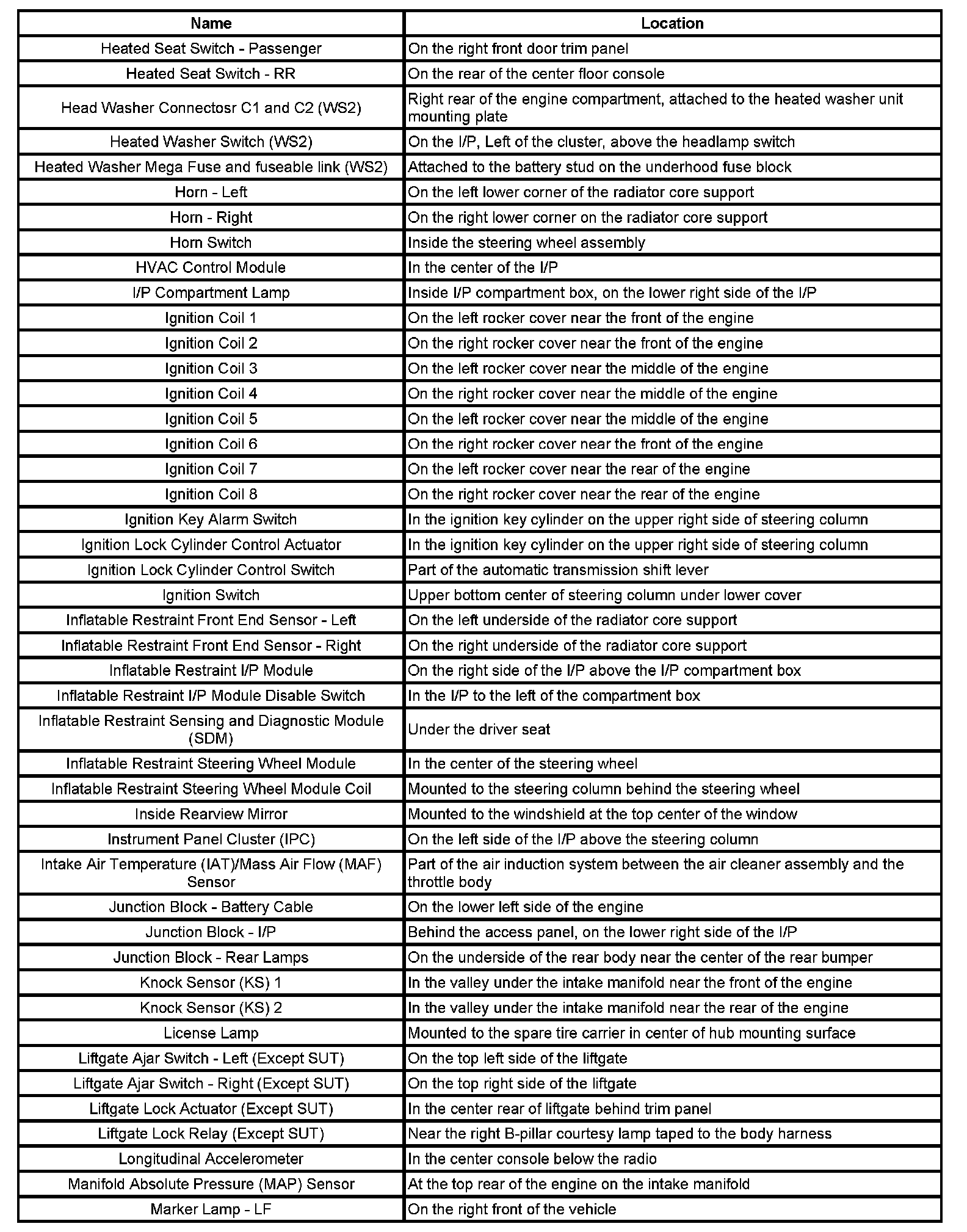

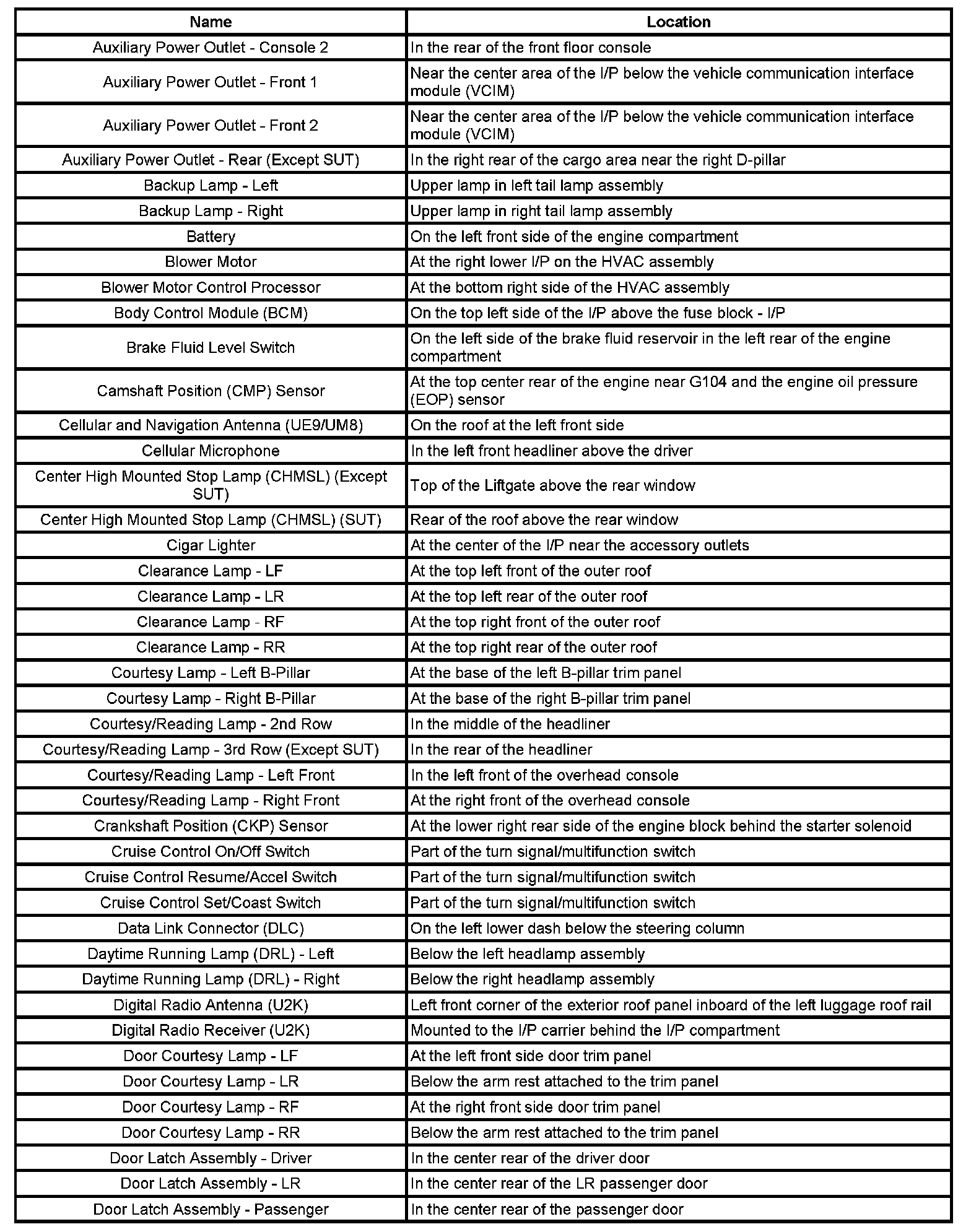

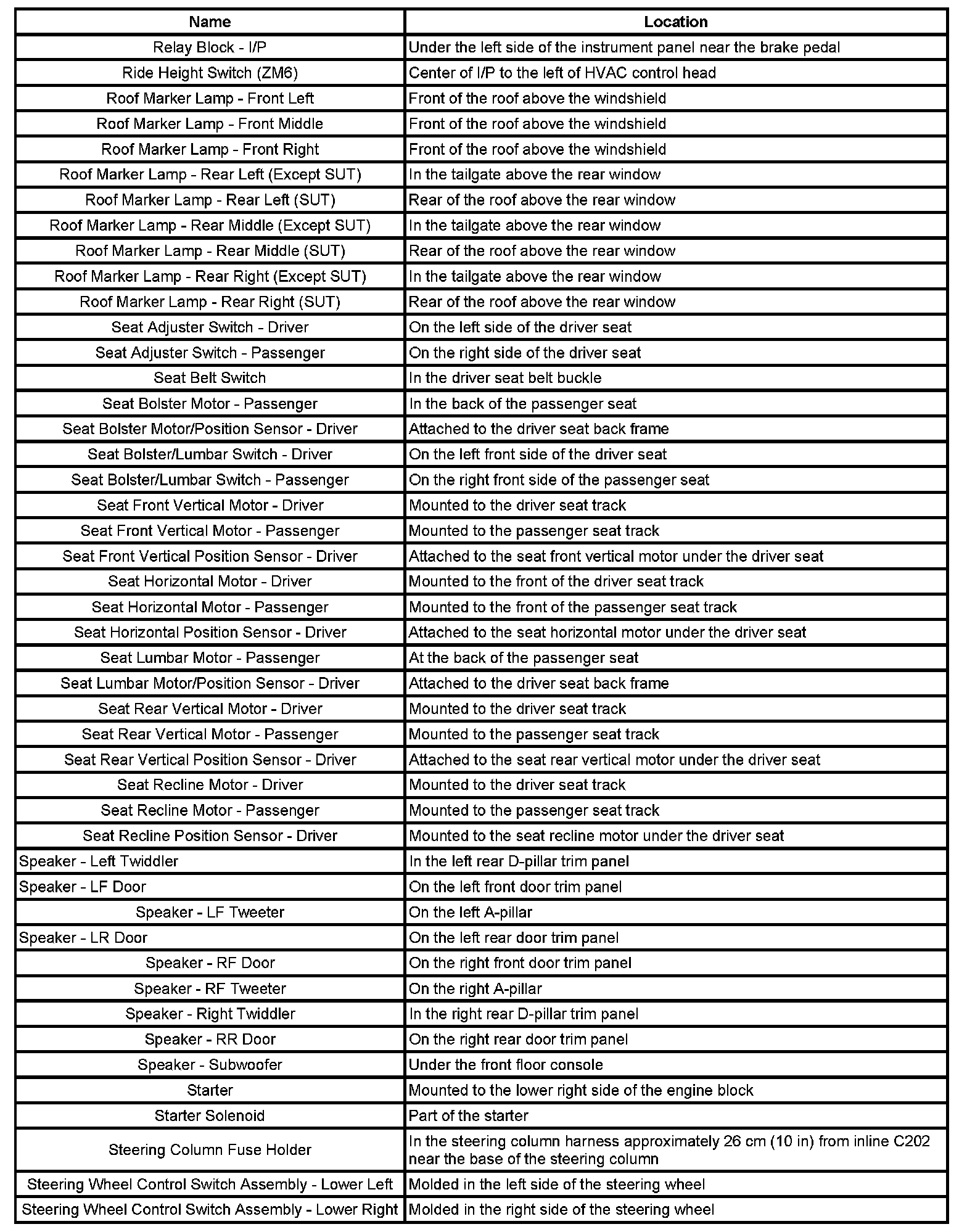

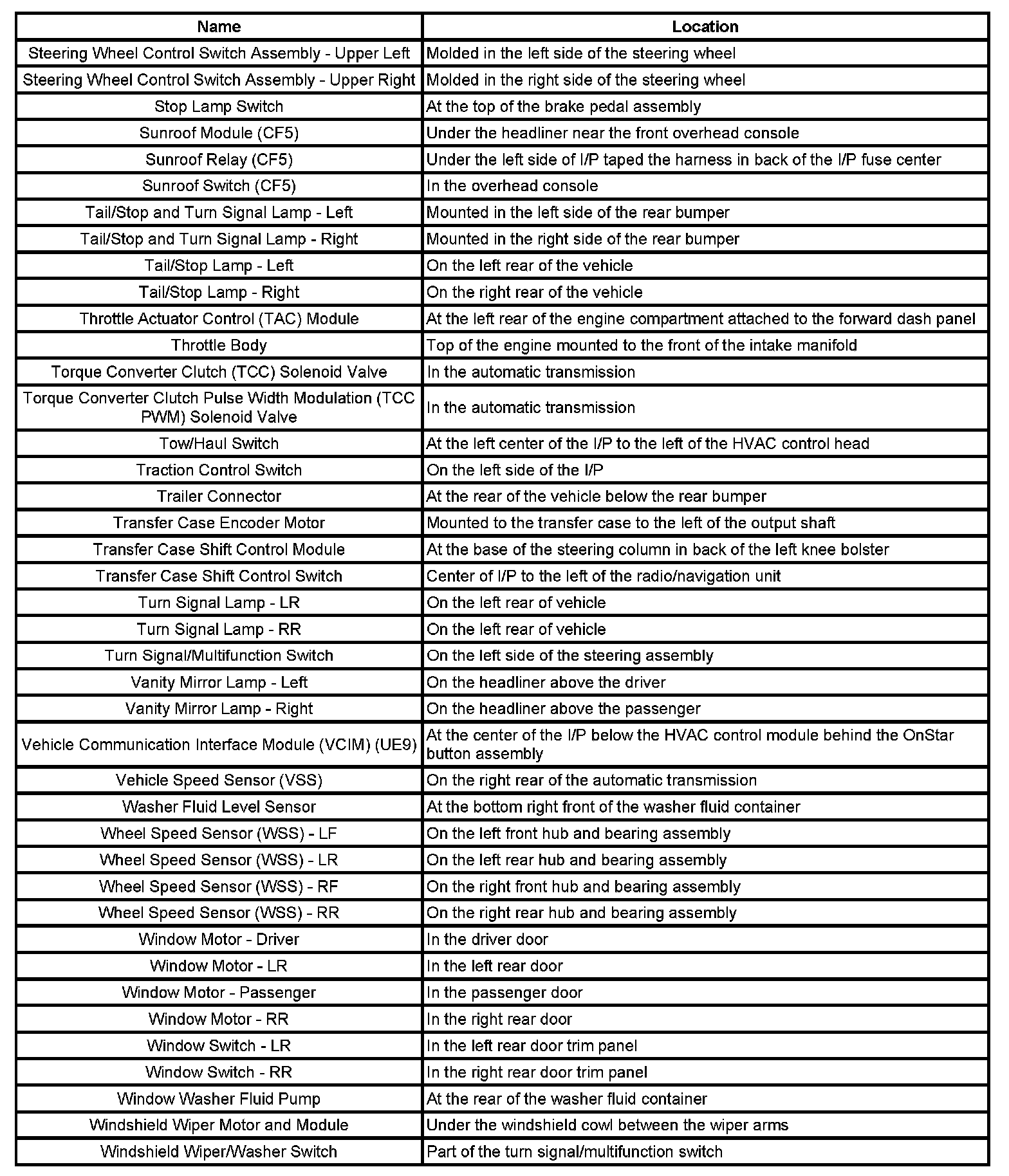

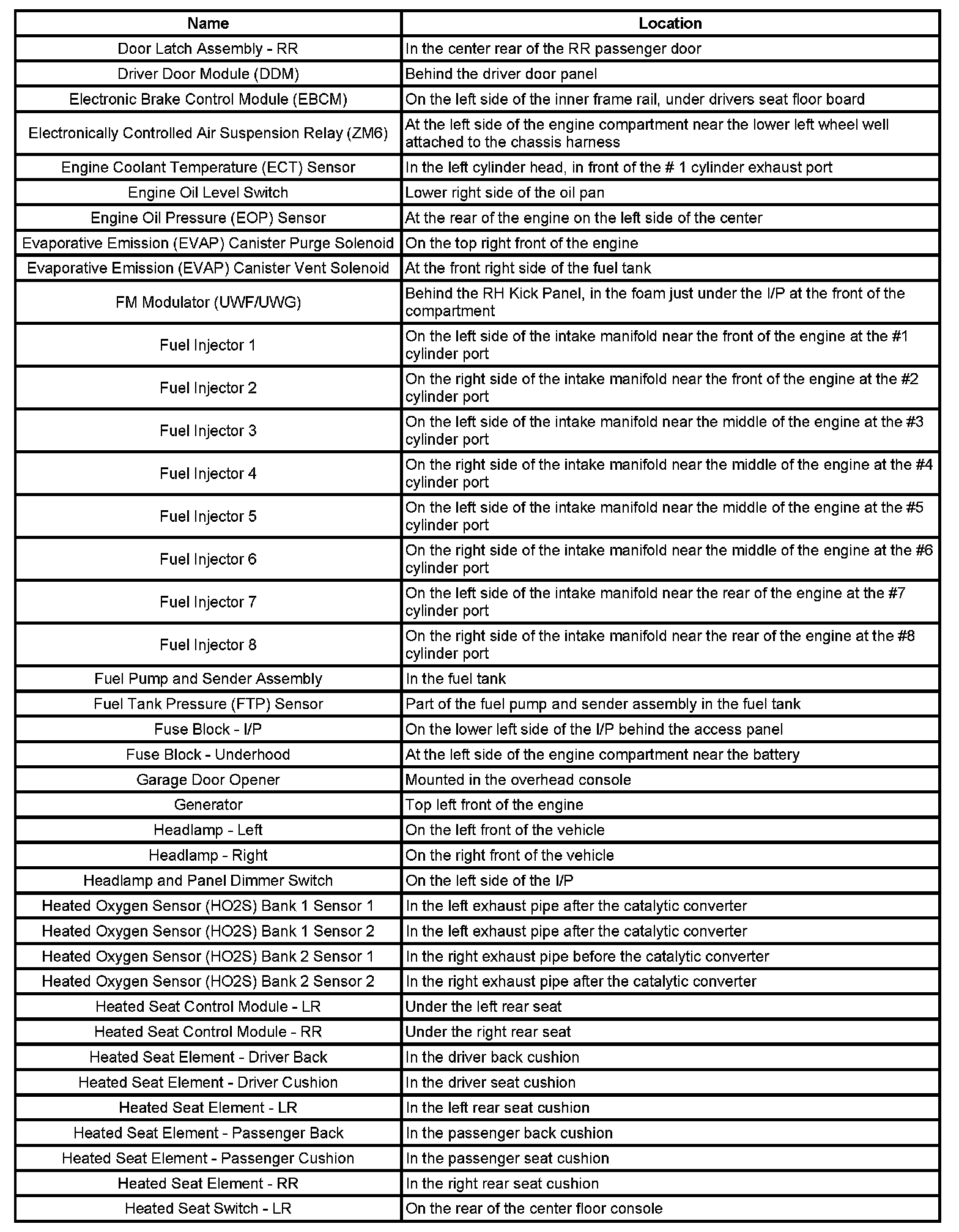

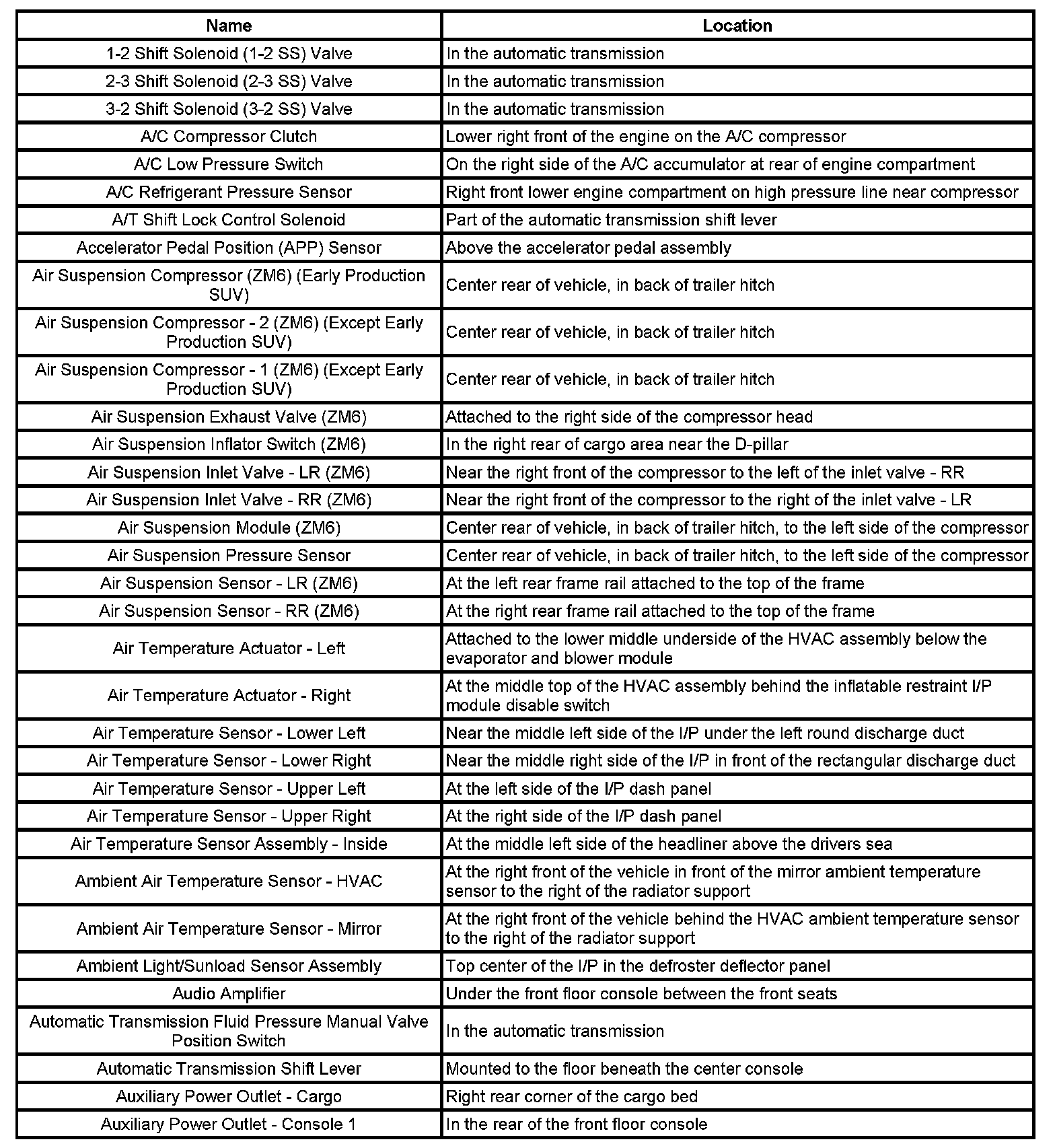

Master Electrical Component List
1-2 Sh - Au:
Au - Do:
Do - He:
He - Ma:
Ma - Re:
Re - St:
St - Wi:
