Home
>>
Hummer
>>
2007
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components

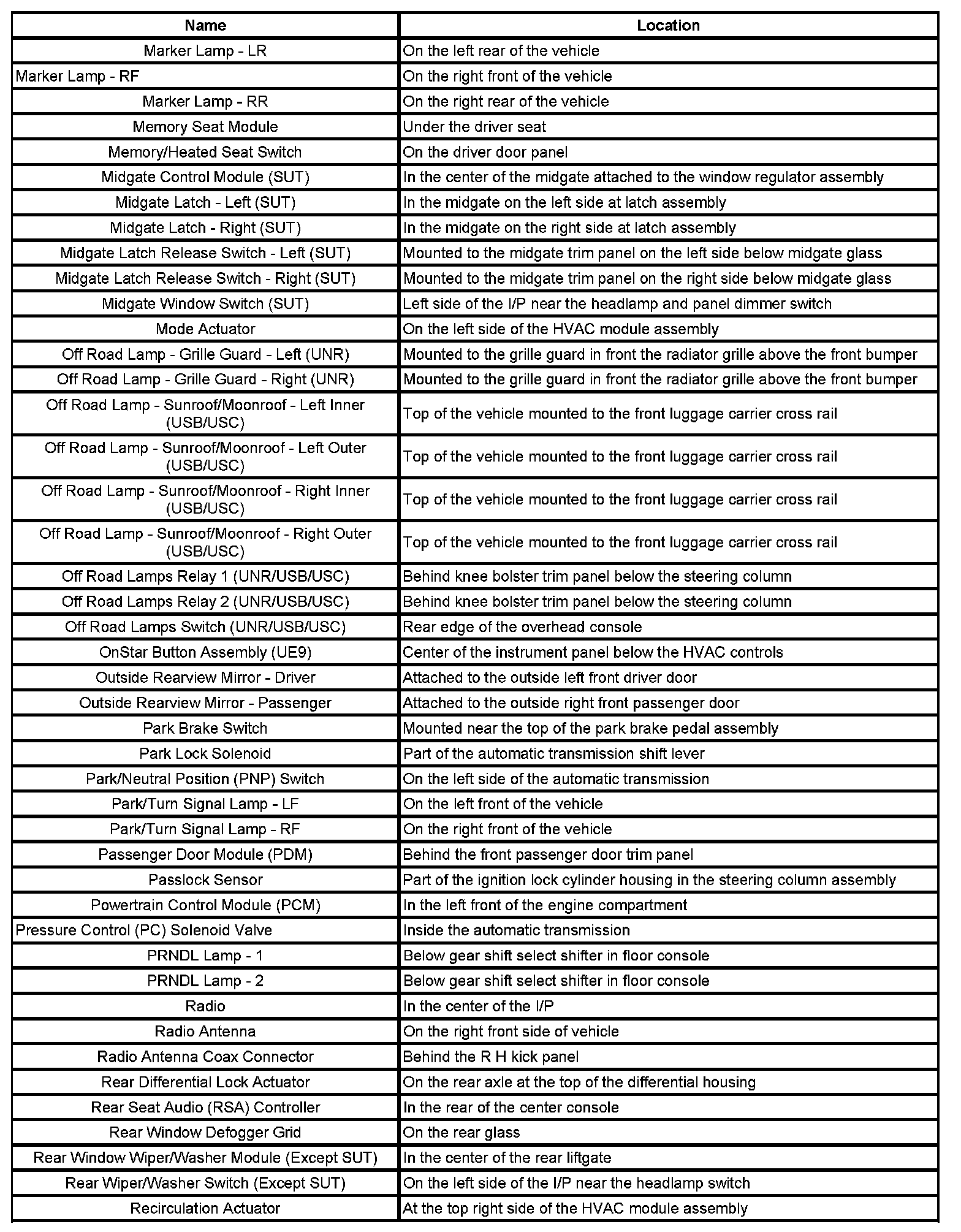

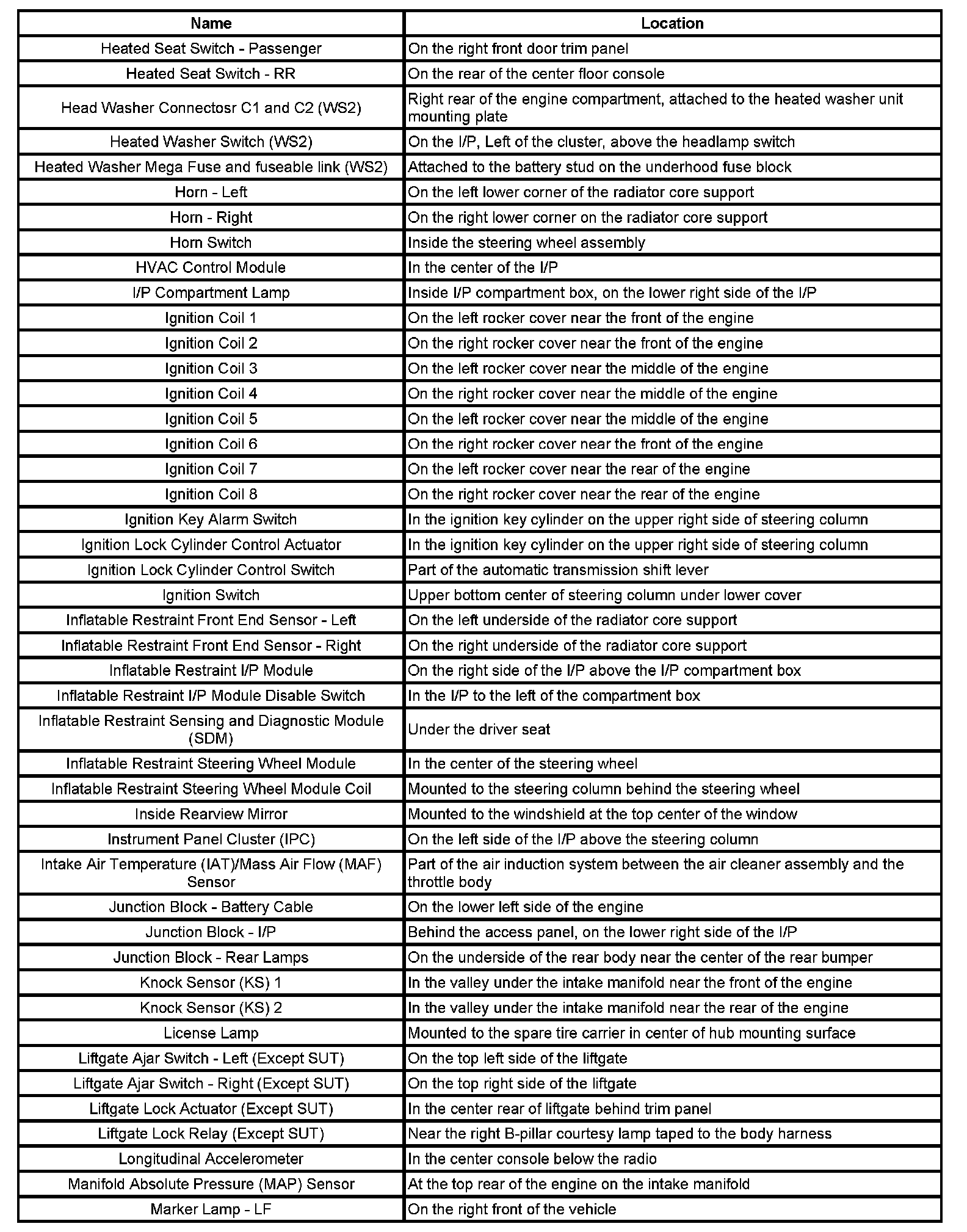

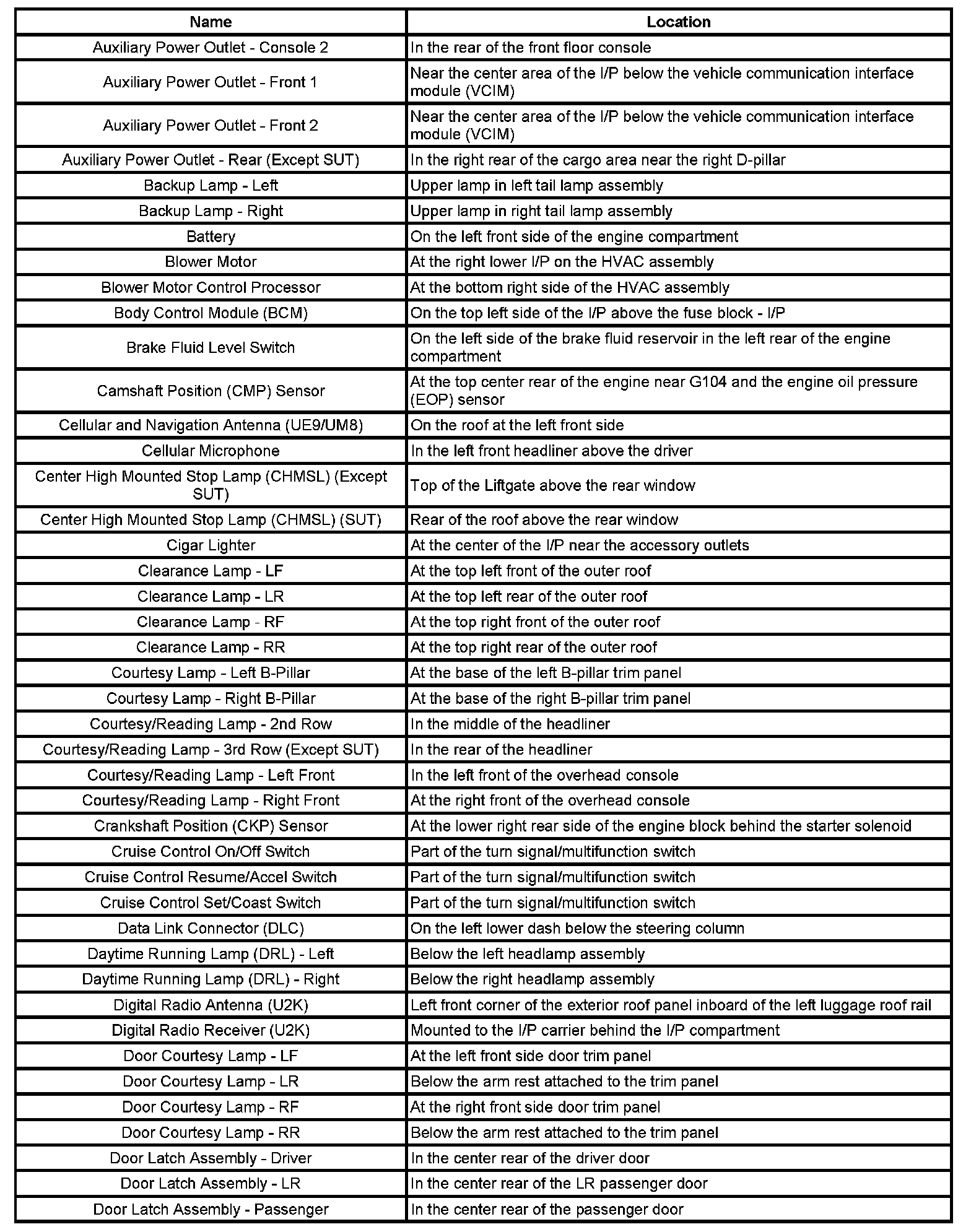

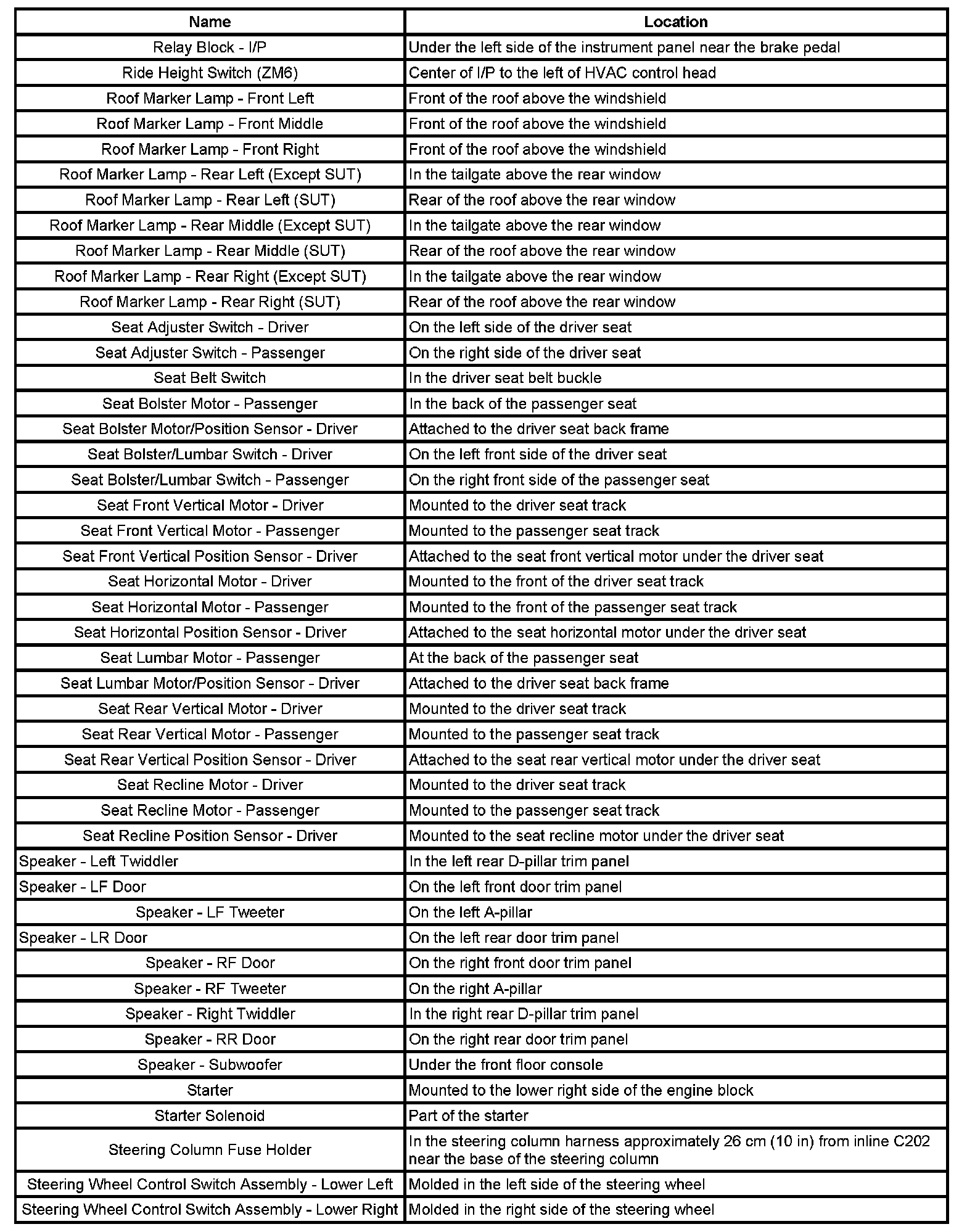

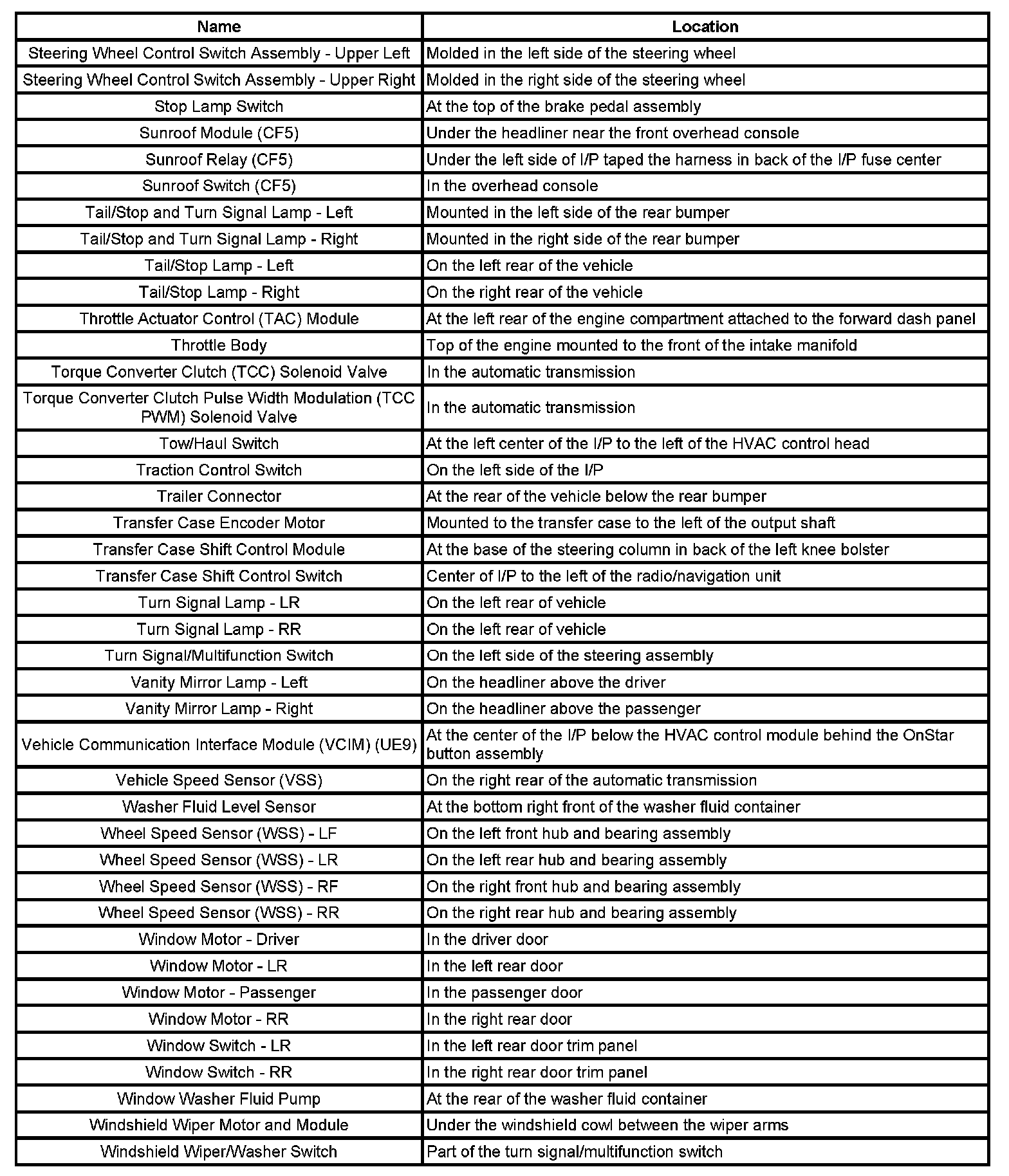

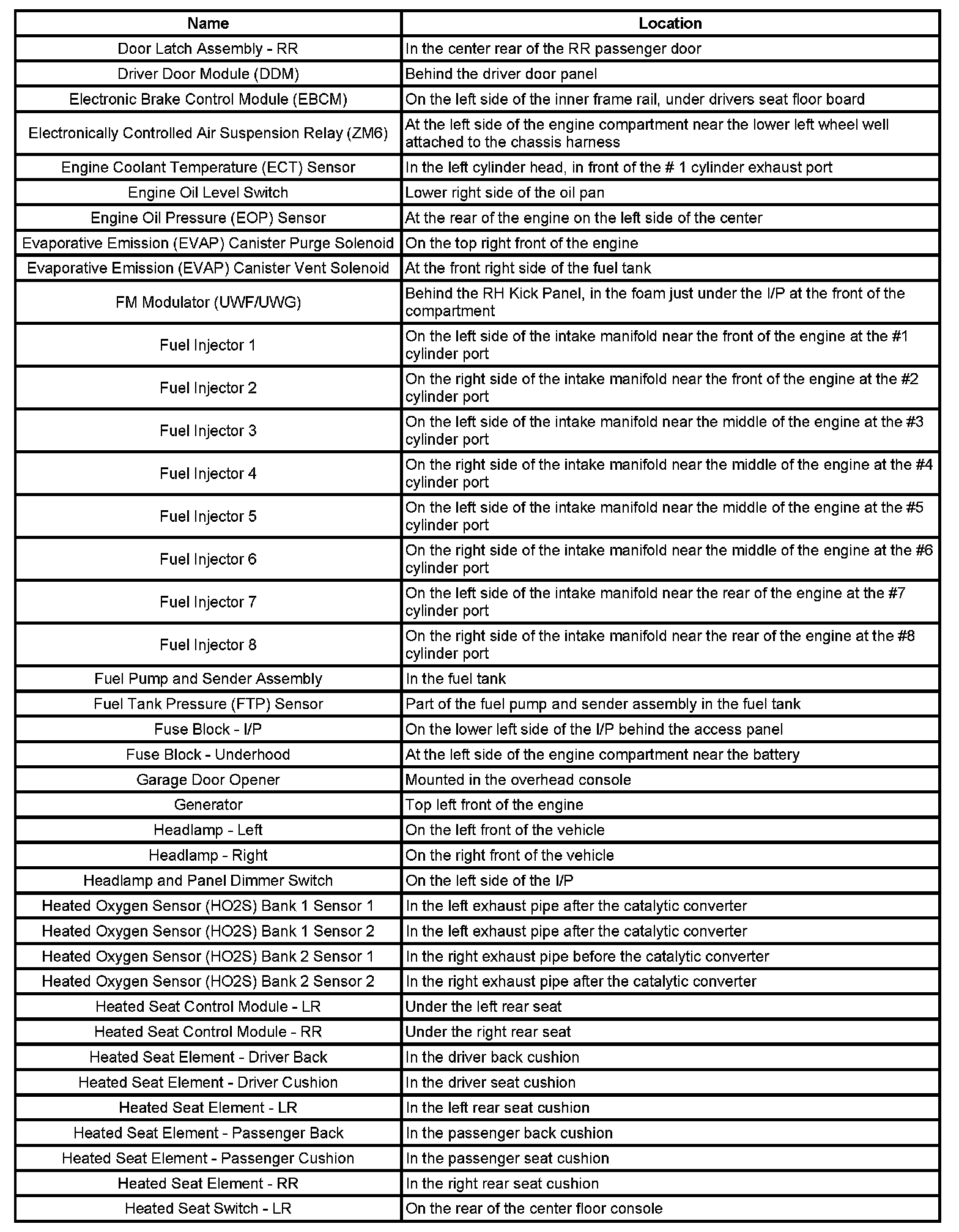

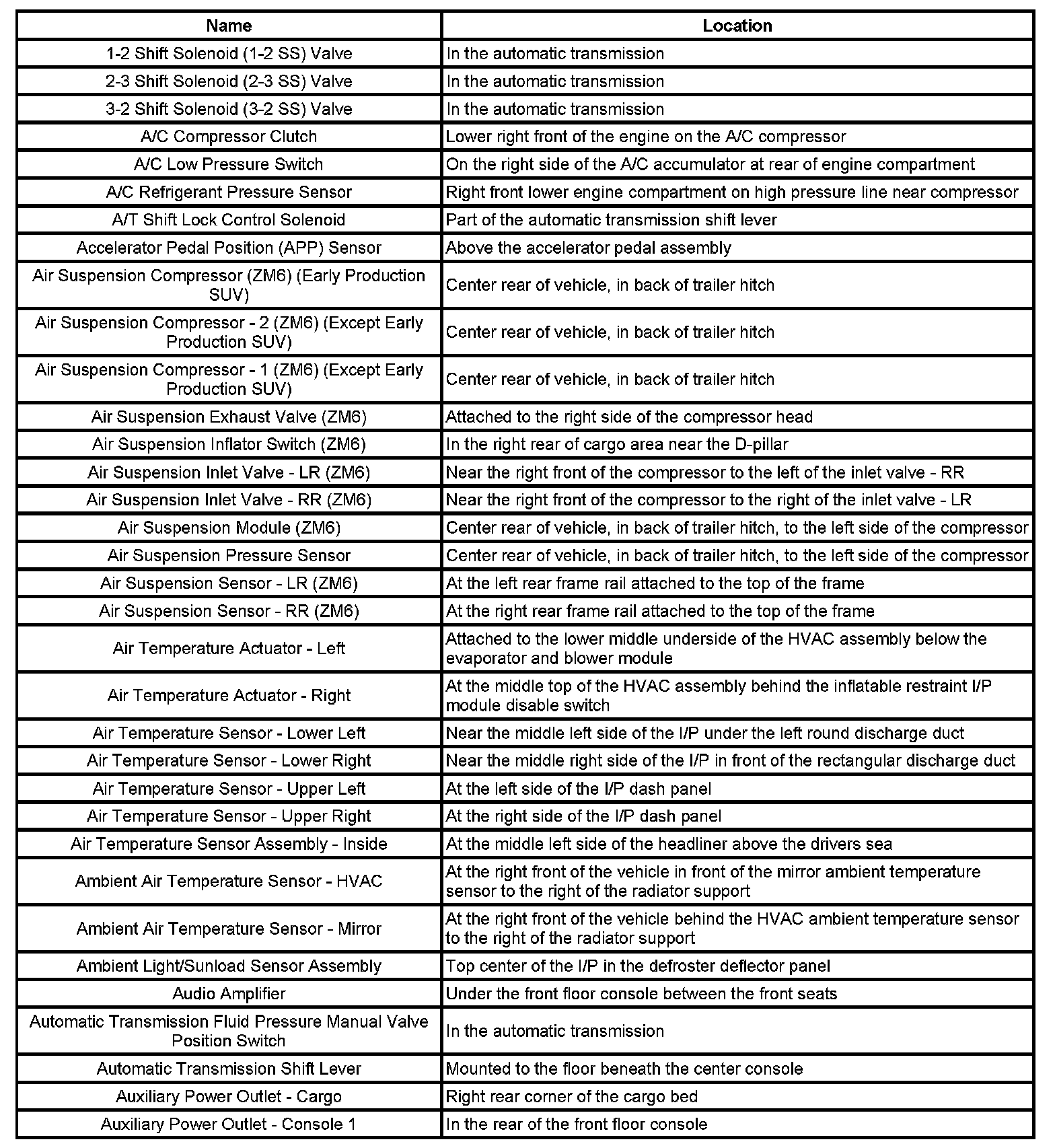

Master Electrical Component List
1-2 Sh - Au:
Au - Do:
Do - He:
He - Ma:
Ma - Re:
Re - St:
St - Wi:
