Auxiliary Power Outlet: Locations

Power Outlet Component Views

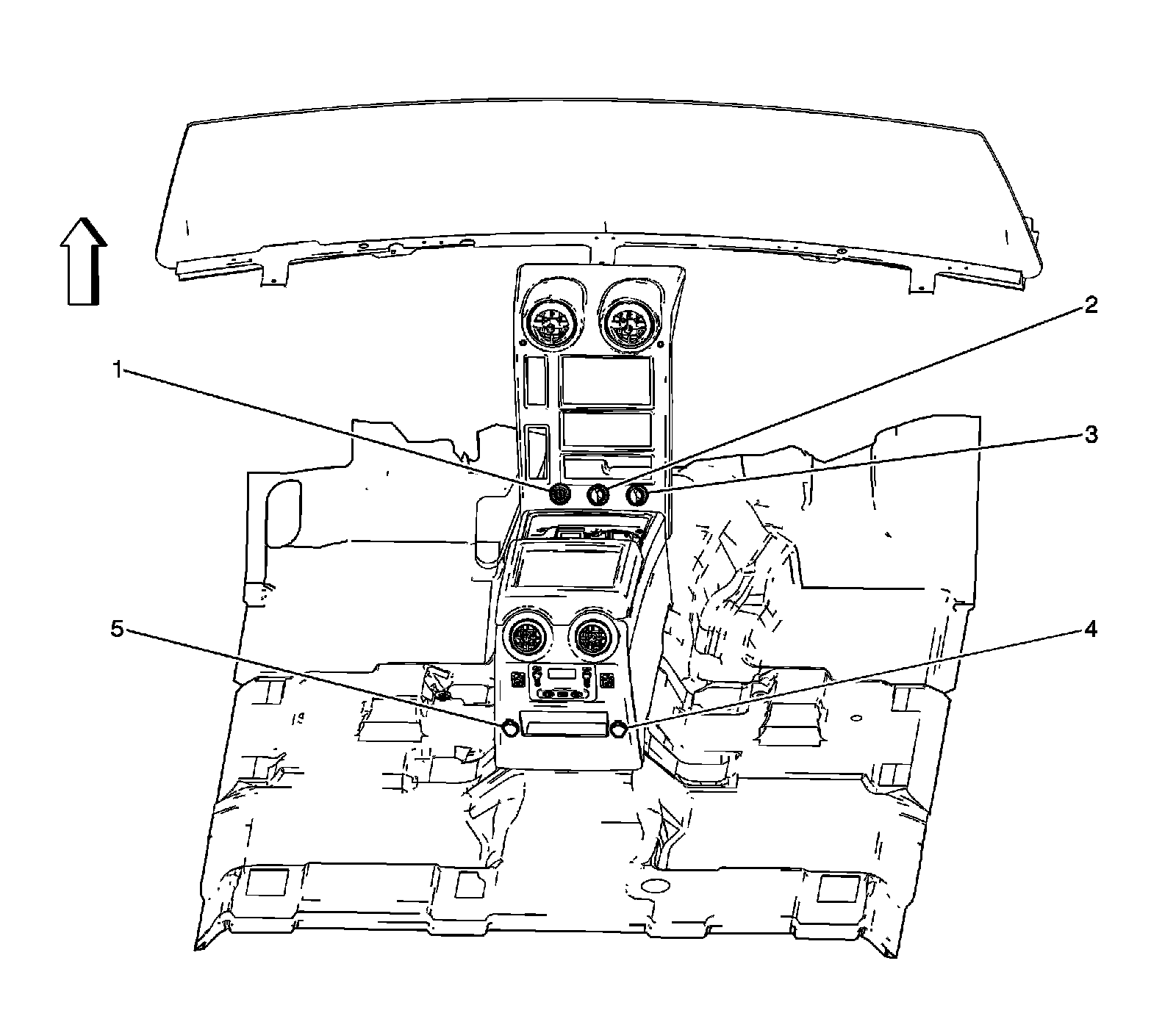

Interior Auxiliary Power Outlets




1 - Cigar Lighter
2 - Auxiliary Power Outlet - Front 1
3 - Auxiliary Power Outlet - Front 2
4 - Auxiliary Power Outlet - Console 1
5 - Auxiliary Power Outlet - Console 2

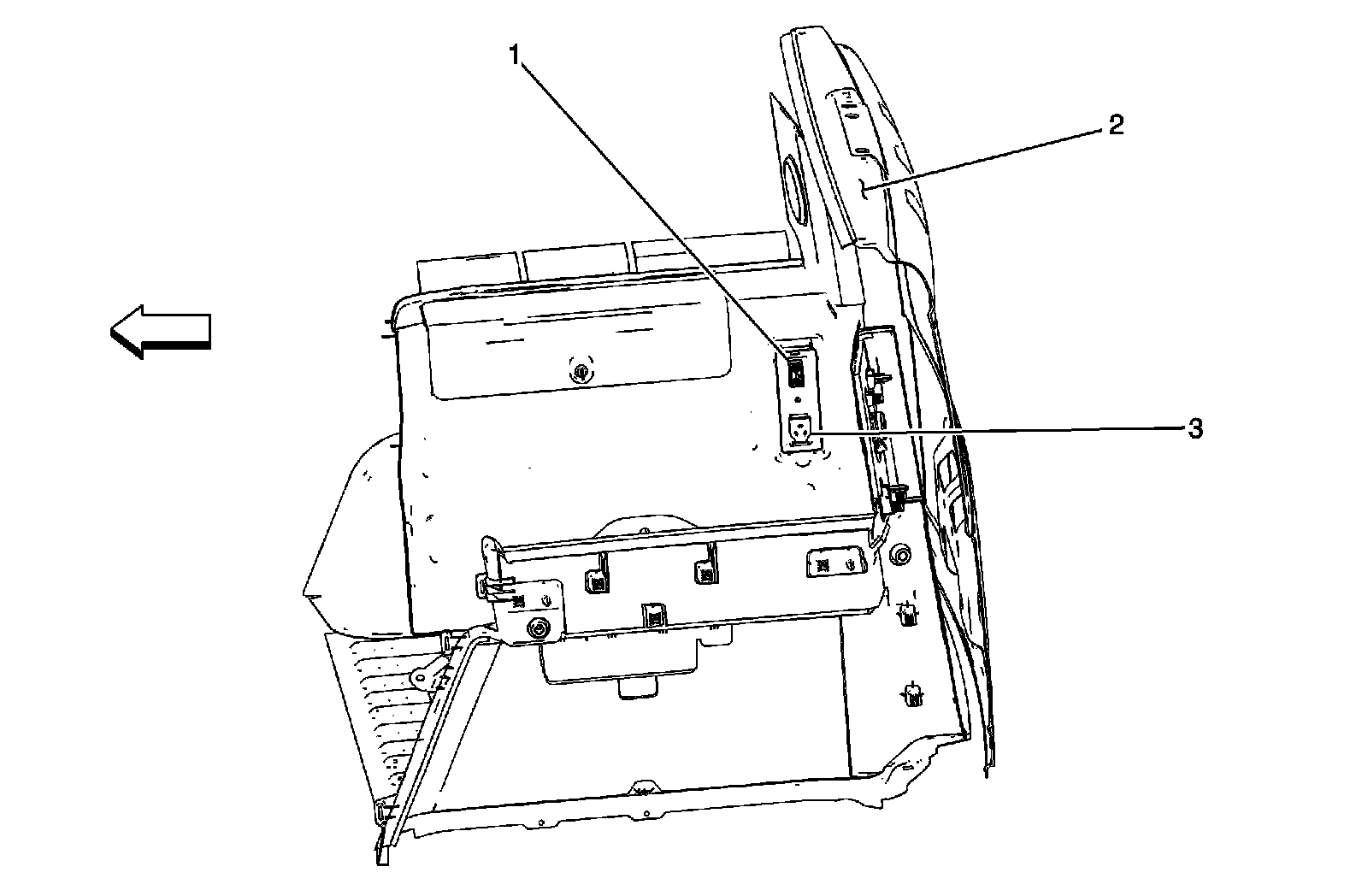

Right Rear Corner of Cargo Area (Except SUT)




1 - Air Inflator Switch (ZM6)
2 - Liftgate
3 - Auxiliary Power Outlet - Rear

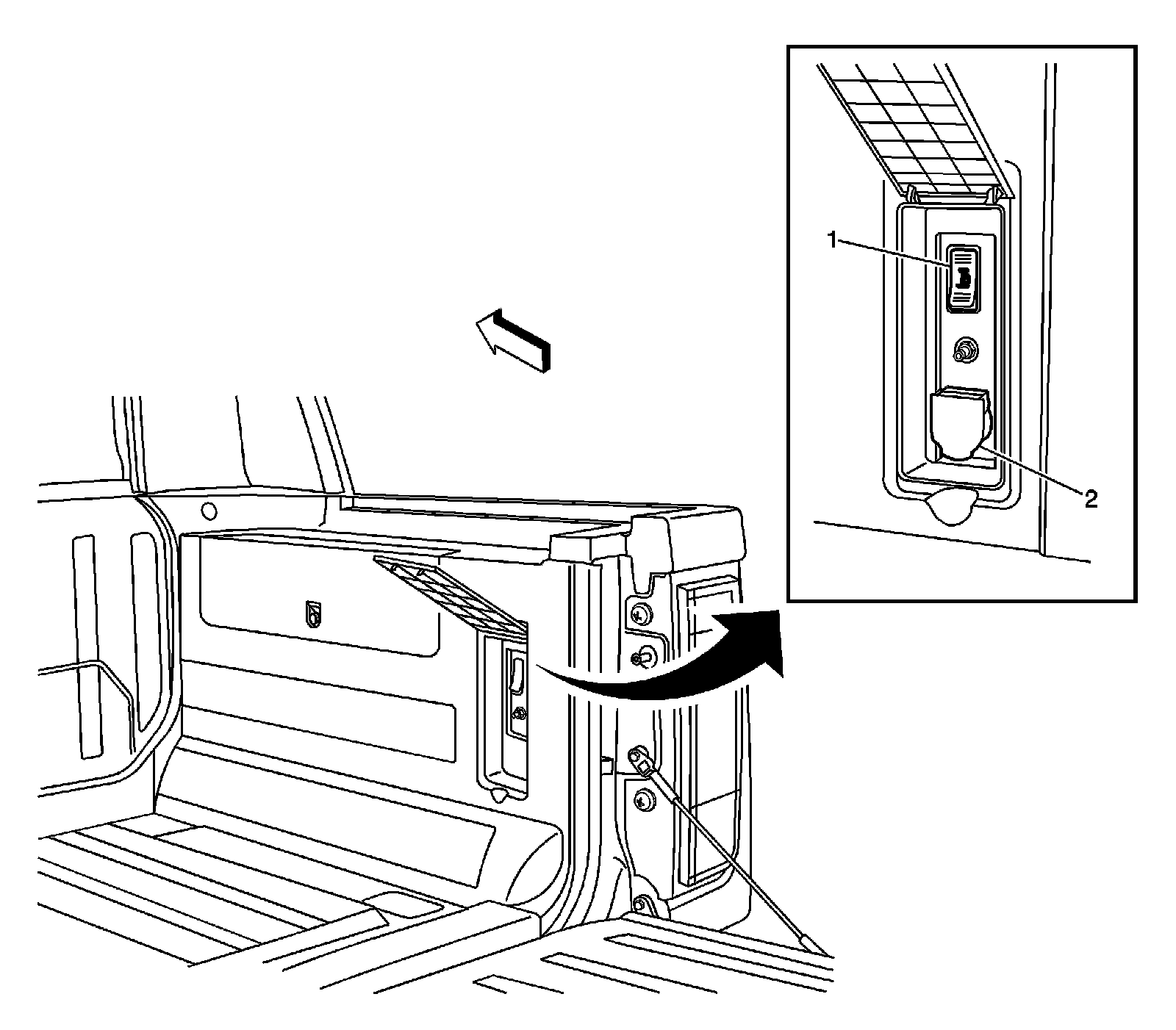

Right Rear Corner of Cargo Bed (SUT)

Right Rear Corner of Cargo Bed (SUT):

1 - Air Inflator Switch (ZM6)
2 - Auxiliary Power Outlet - Cargo (SUT)
