Knock Sensor: Locations

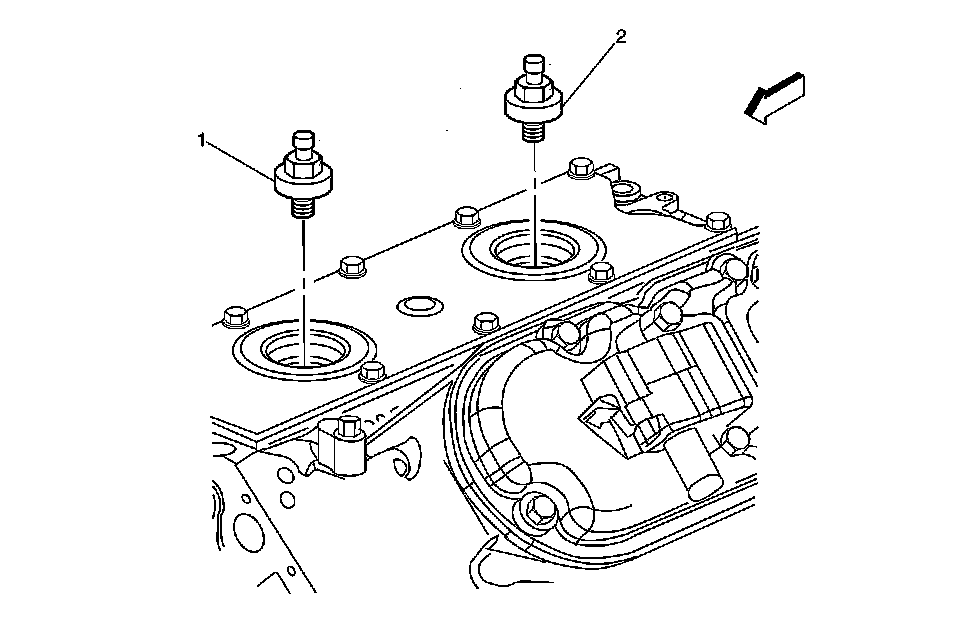

Engine Controls Component Views

Knock Sensors




1 - Knock Sensor (KS) 1
2 - Knock Sensor (KS) 2
