Window Systems Component Views

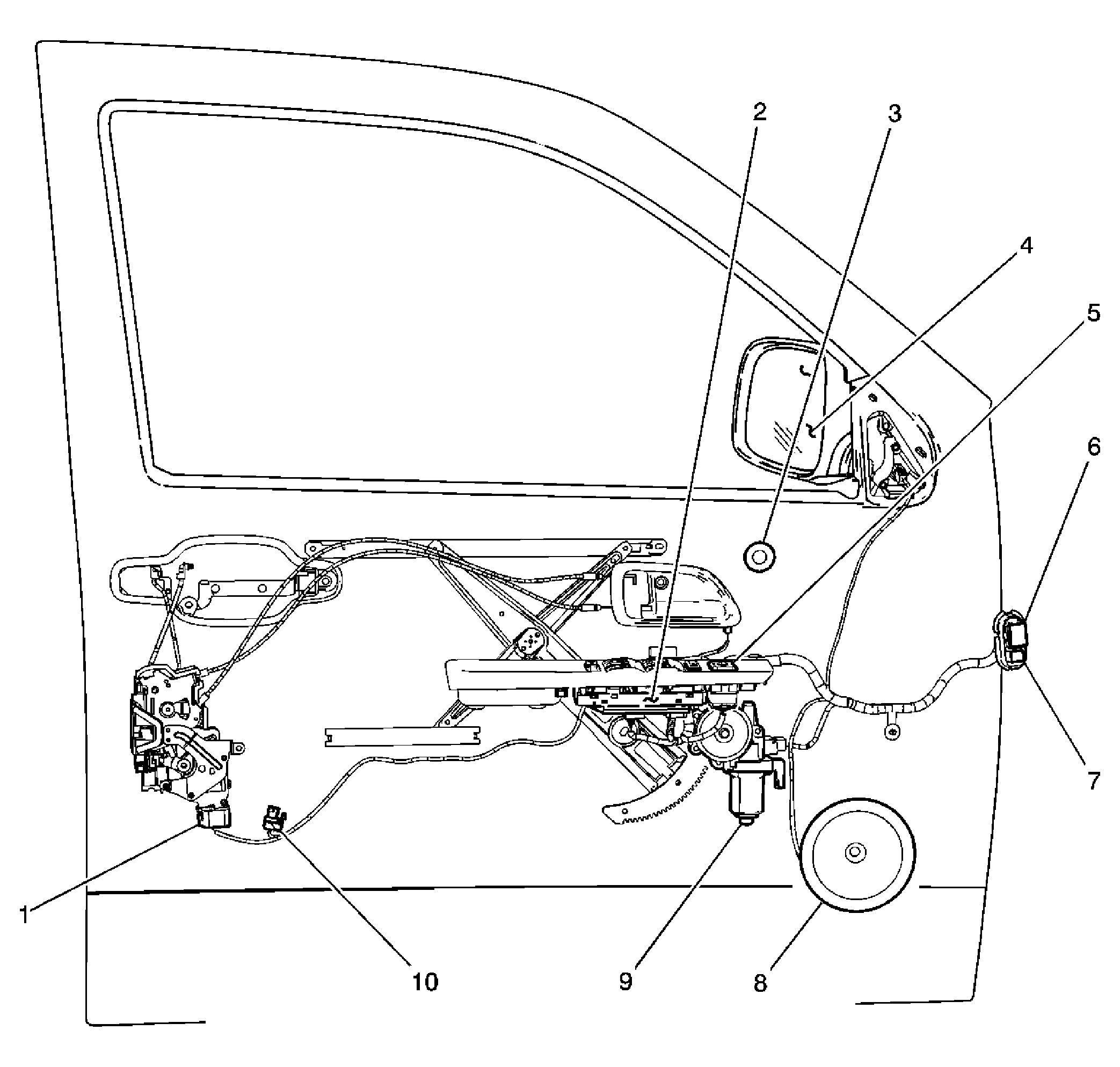

Fig 1: Driver Door Component View

GM1360610

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Driver
2	Door Lock and Window Switch - Driver
3	Speaker - LF Door Tweeter (UQ2)
4	Outside Rearview Mirror - Driver
5	Outside Rearview Mirror Switch
6	C202
7	C209
8	Speaker - LF Door
9	Window Motor - Driver
10	Inflatable Restraint Side Impact Sensor (SIS) - Left Connector (ASF)

Fig 2: Front Passenger Door Component View

GM1360617

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Front Passenger
2	Speaker - RF Door Tweeter (UQ2)
3	Door Lock and Window Switch - Front Passenger
4	Door Lock Actuator - Front Passenger
5	Inflatable Restraint Side Impact Sensor (SIS) - Right Connector (ASF)
6	Window Motor - Front Passenger
7	Speaker - RF Door
8	C211
9	C210

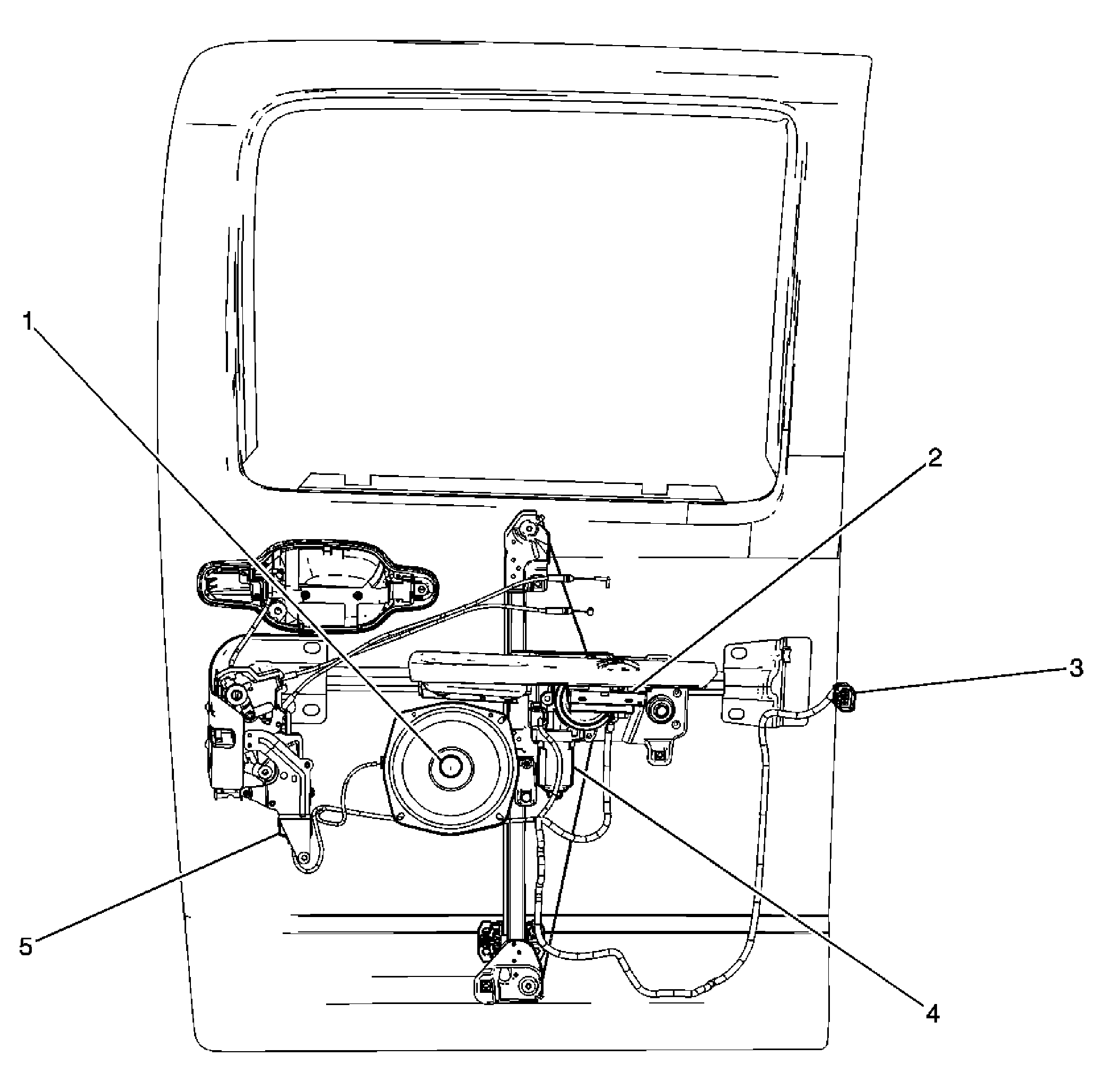

Fig 3: Left Rear Door (Crew Cab) Component View

GM1361614

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Door
2	Door Lock and Window Switch - LR
3	C316
4	Window Motor - LR
5	Door Lock Actuator - LR

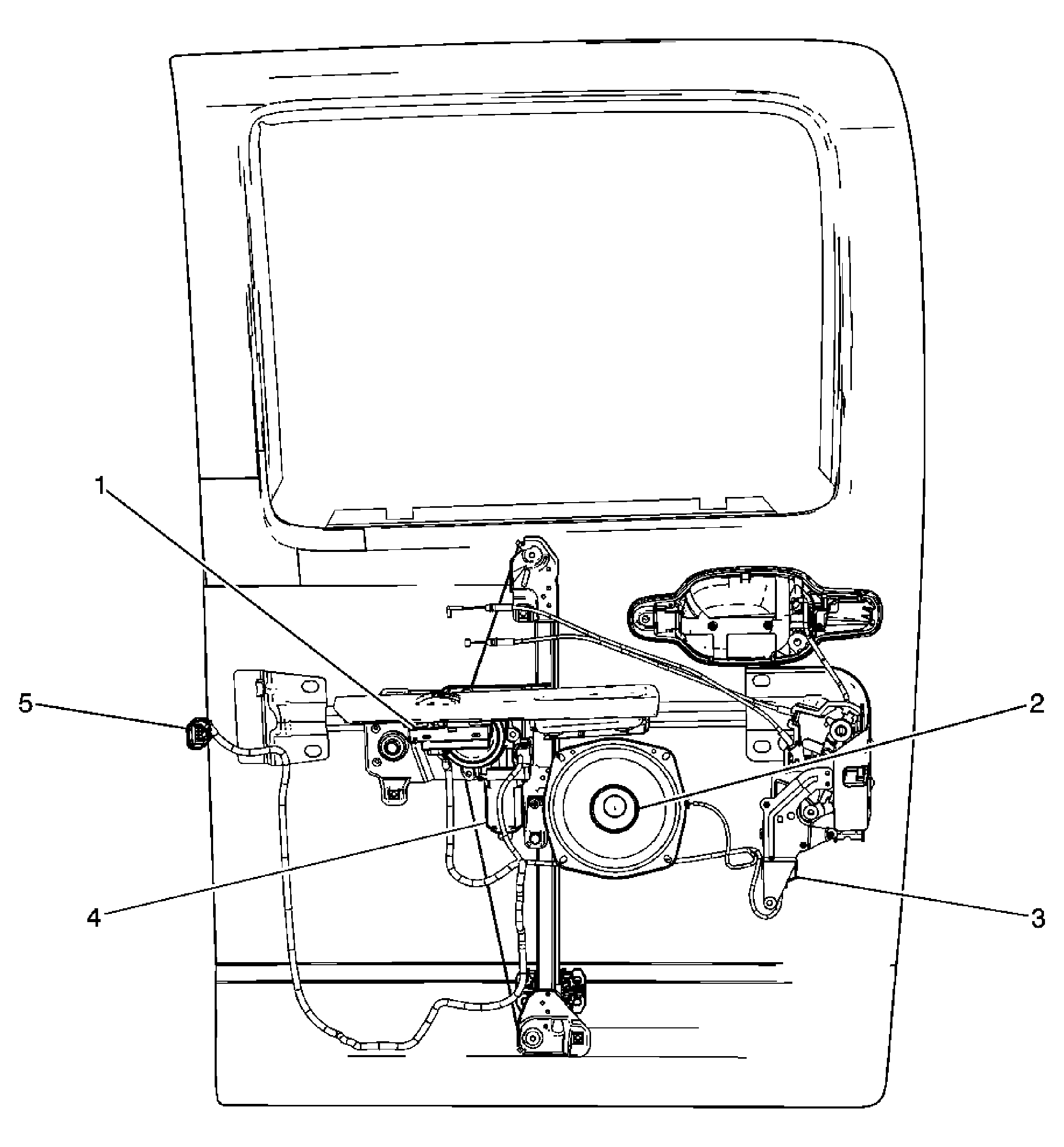

Fig 4: Right Rear Door (Crew Cab) Component View

GM1390861

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock and Window Switch - RR
2	Speaker - RR Door
3	Door Lock Actuator - RR
4	Window Motor - RR
5	C317
