Inflatable Restraint Roof Rail Module - Left Front

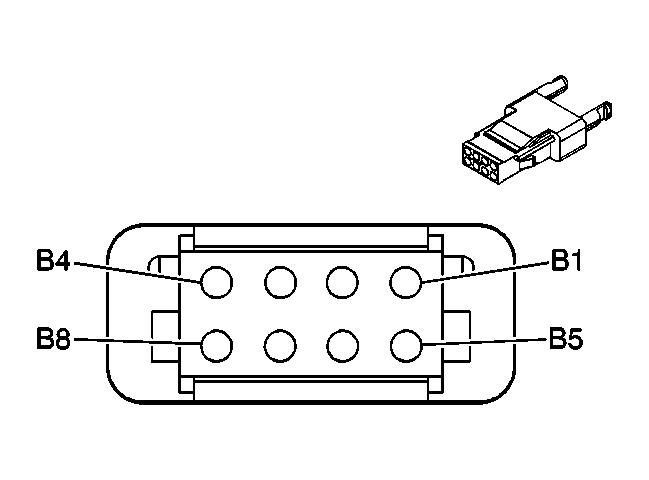

Fig 1: Inflatable Restraint Roof Rail Module - Left Front Connector End View
GM655869Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15356801
  • Service: See Catalog
  • Description: 8-Way F Micro-Pack 100W 2,54CL (NA)
Terminal Part Information
  • Pins: A, B
  • Terminal/Tray: Service with Pigtail
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: 12094429/J-35616-5 (PU)
Pin Wire Circuit Function
A 0.5 PK 5020 Roof Rail Module - Left - Low Control
B 0.5 PU/WH 5019 Roof Rail Module - Left - High Control
C-H - - Not Used
