Blower Motor Control Processor Replacement

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

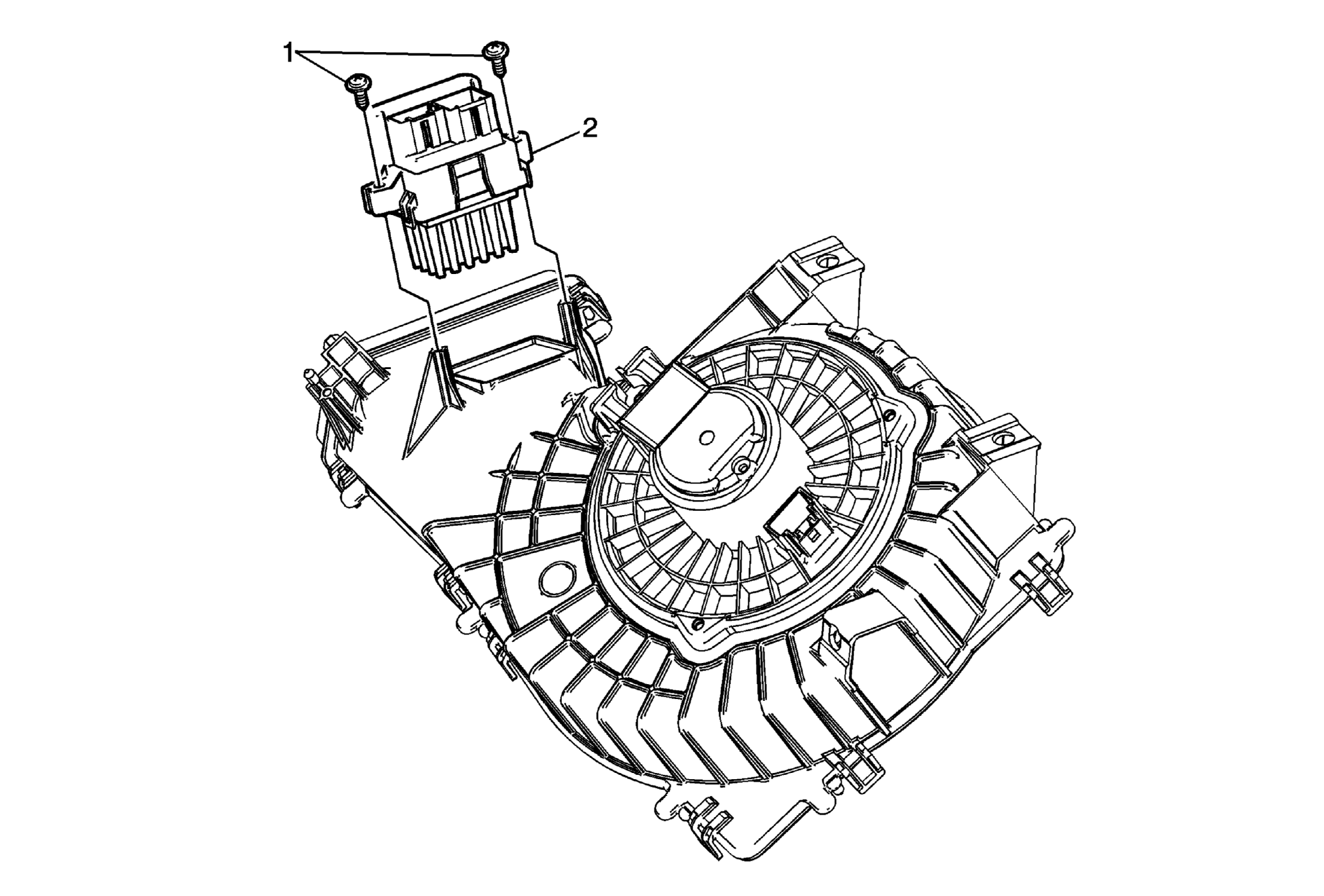

Fig 1: View Of Blower Motor Control Processor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove right sound insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side . Remove the electrical connectors from the blower motor control processor.
1	Blower Motor Control Processor Screws NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Blower Motor Control Processor

Callout

Component Name

Preliminary Procedure

Remove right sound insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
Remove the electrical connectors from the blower motor control processor.

Blower Motor Control Processor Screws

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Blower Motor Control Processor
