Ground Distribution Schematics

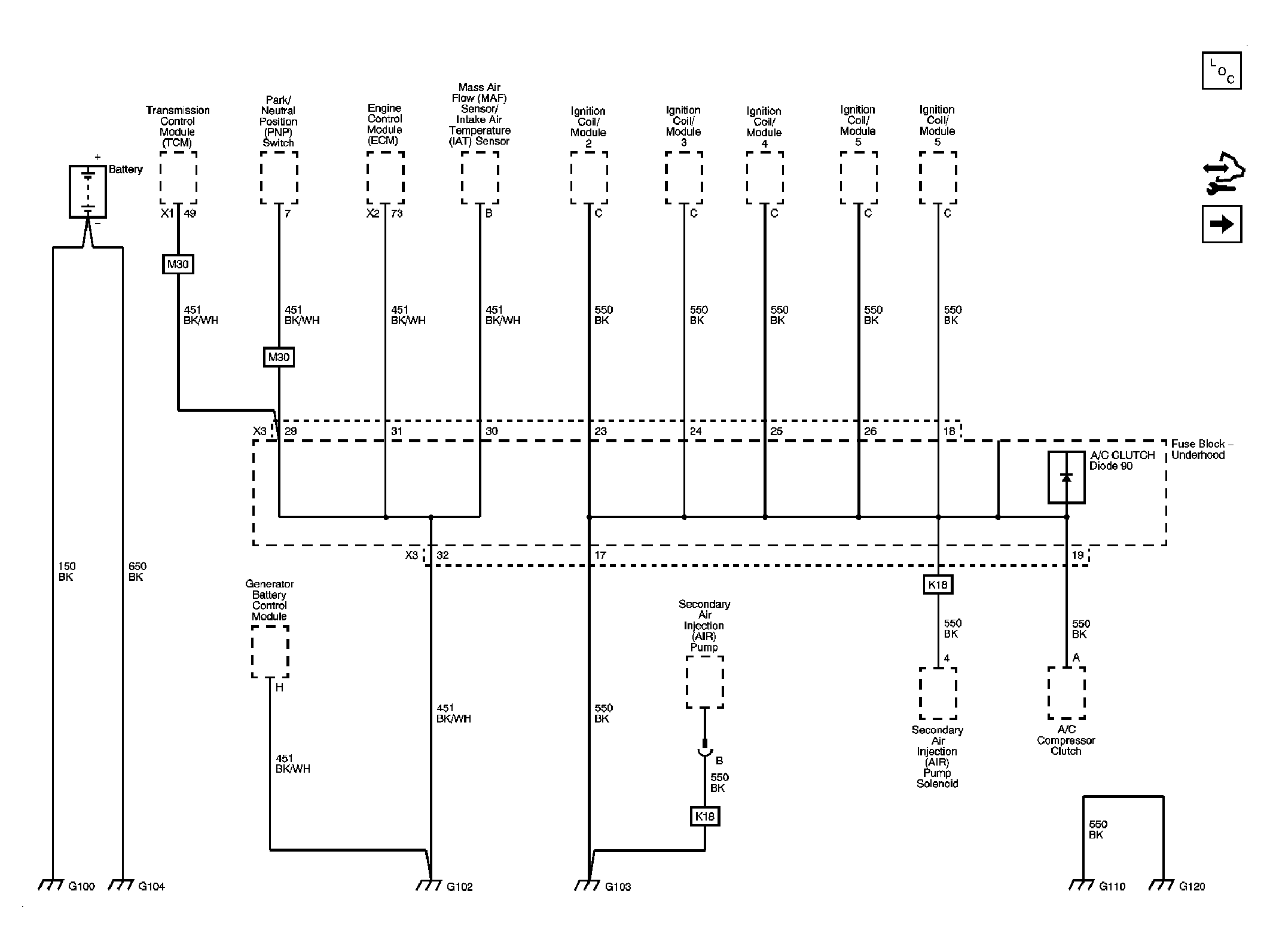

Fig 1: G100, G102, G103, G104, G110, and G120

GM1911798

Courtesy of GENERAL MOTORS CORP.

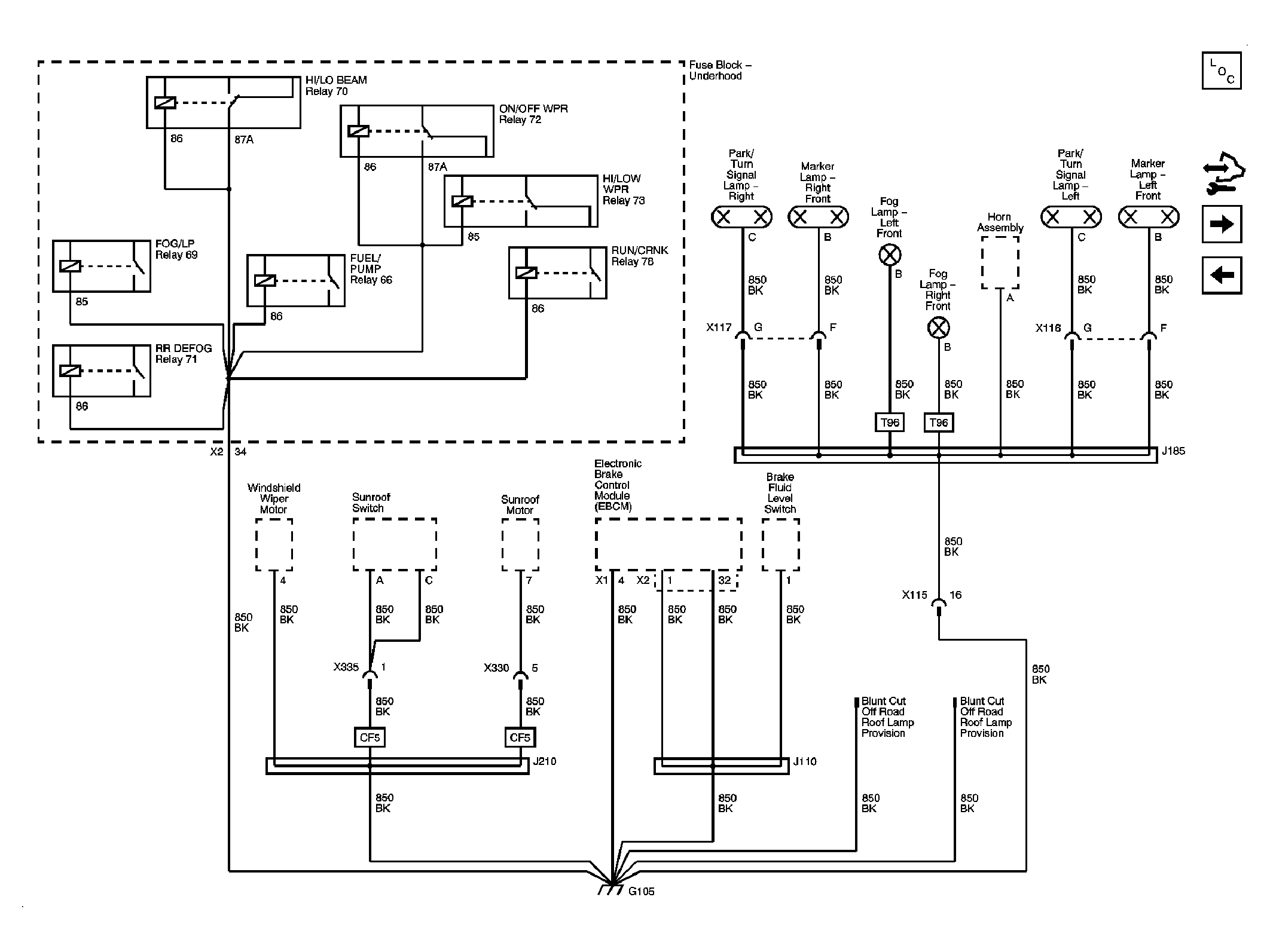

Fig 2: G105 - LHD

GM1911799

Courtesy of GENERAL MOTORS CORP.

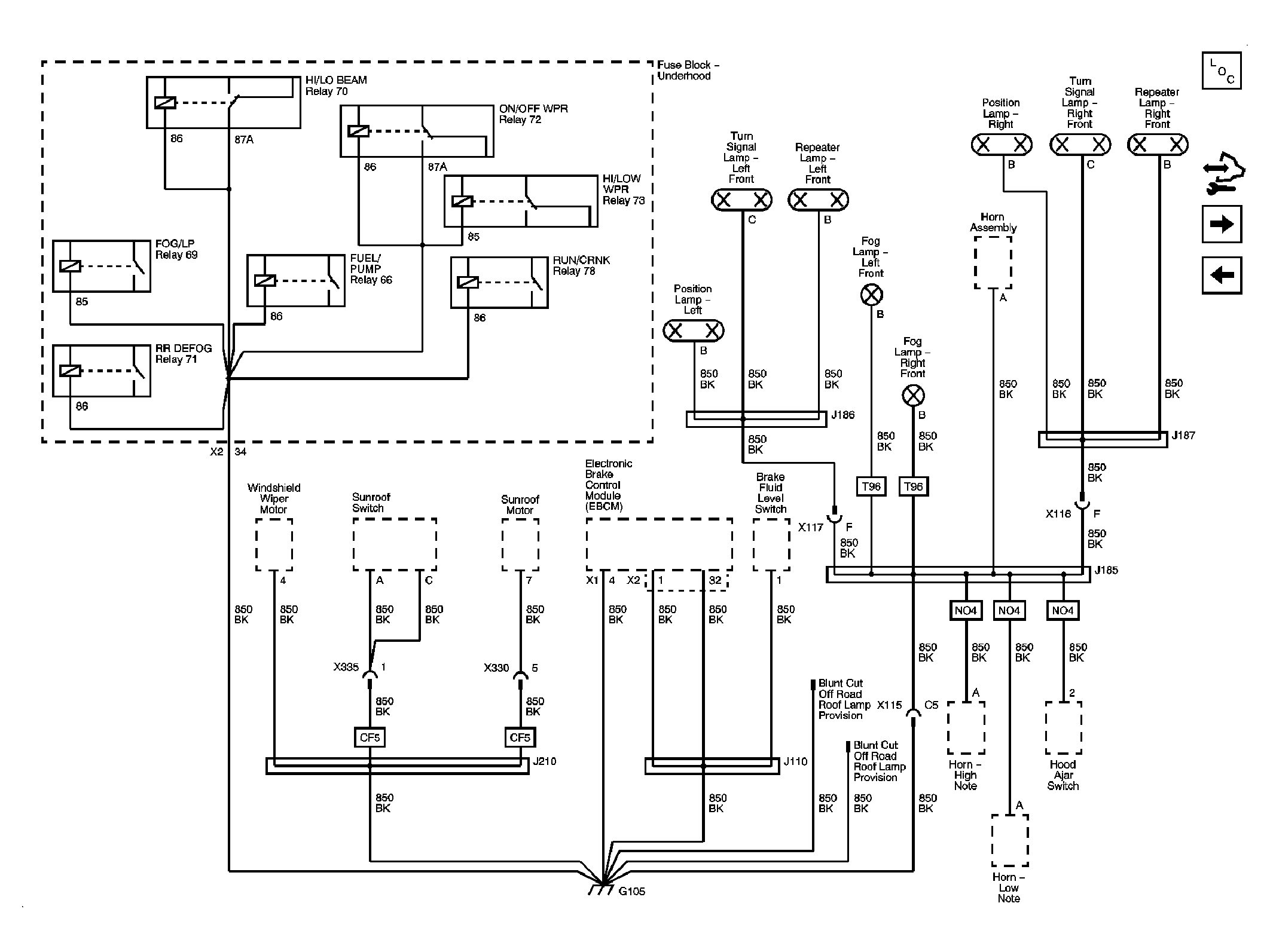

Fig 3: G105 - Export LHD

GM1911800

Courtesy of GENERAL MOTORS CORP.

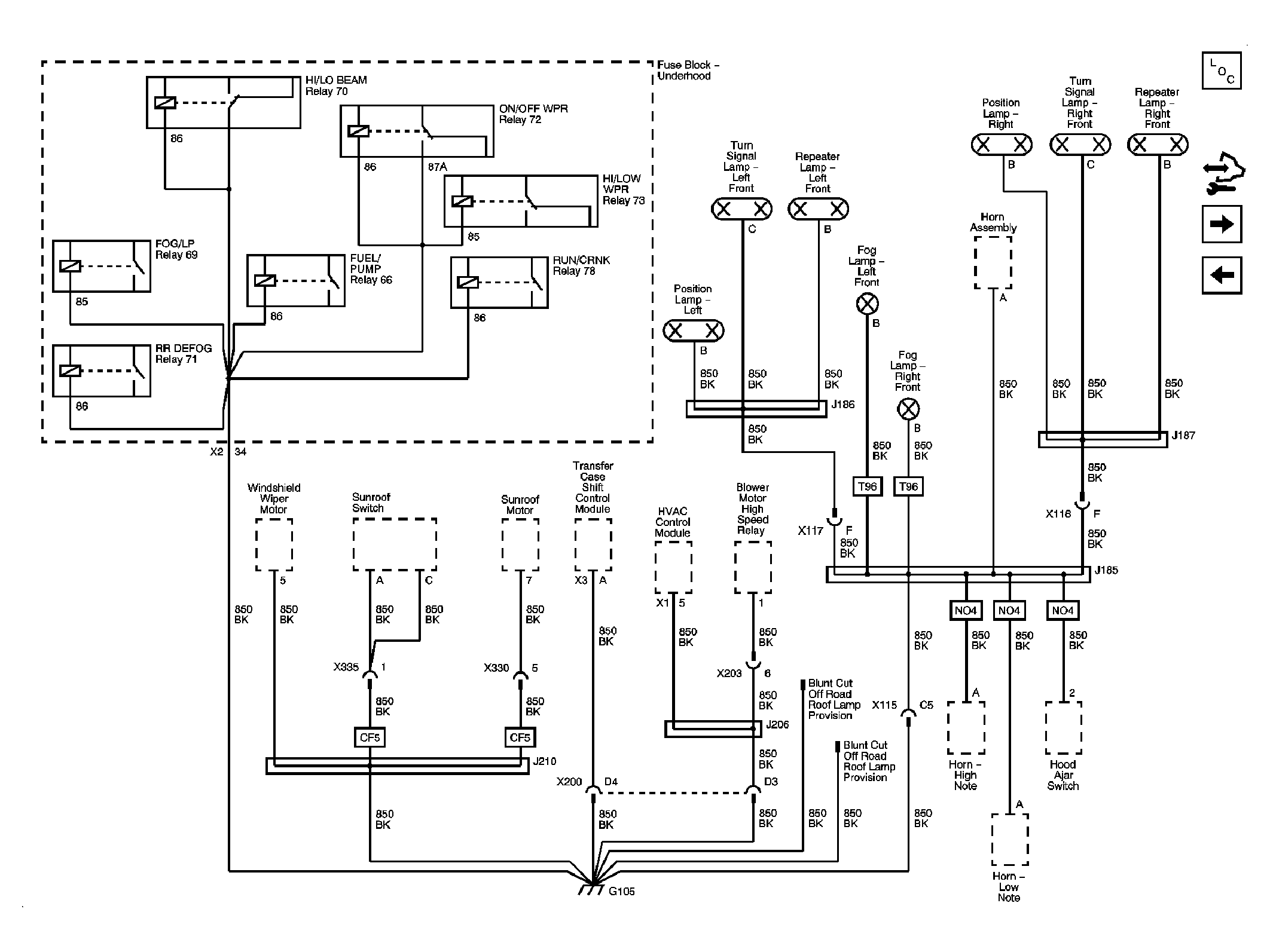

Fig 4: G105 - RHD

GM1911802

Courtesy of GENERAL MOTORS CORP.

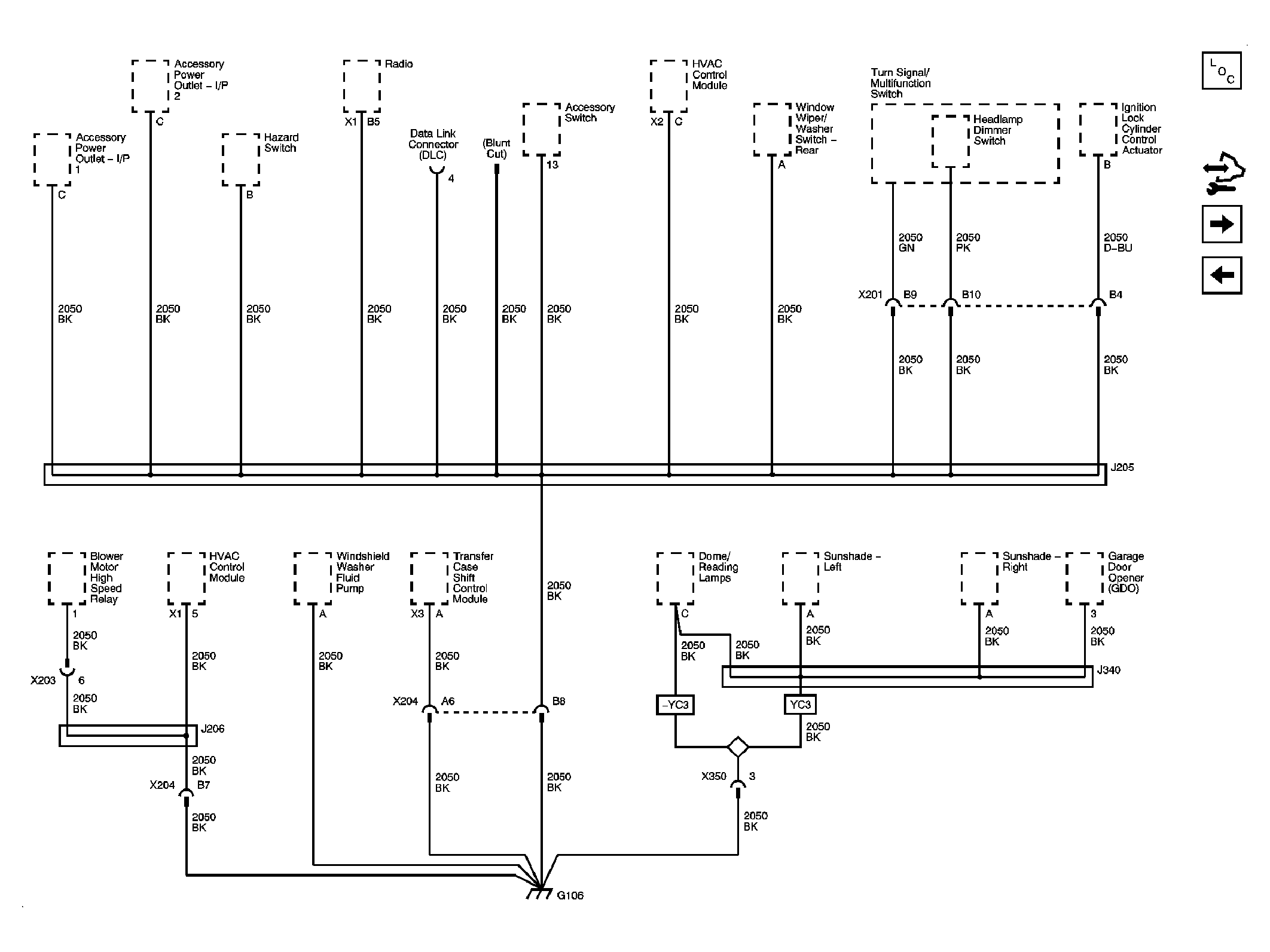

Fig 5: G106 - LHD

GM1911804

Courtesy of GENERAL MOTORS CORP.

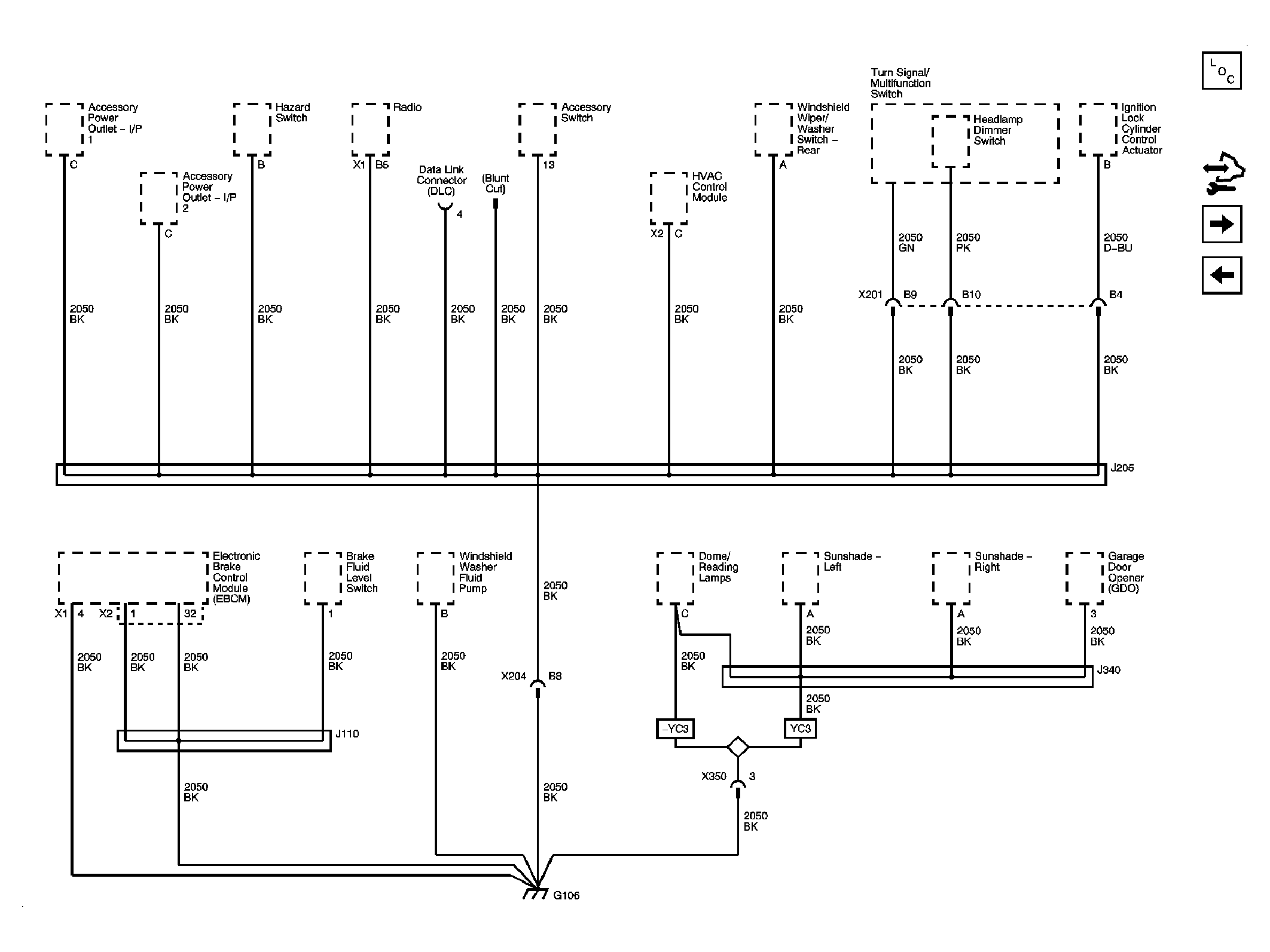

Fig 6: G106 - RHD

GM1911805

Courtesy of GENERAL MOTORS CORP.

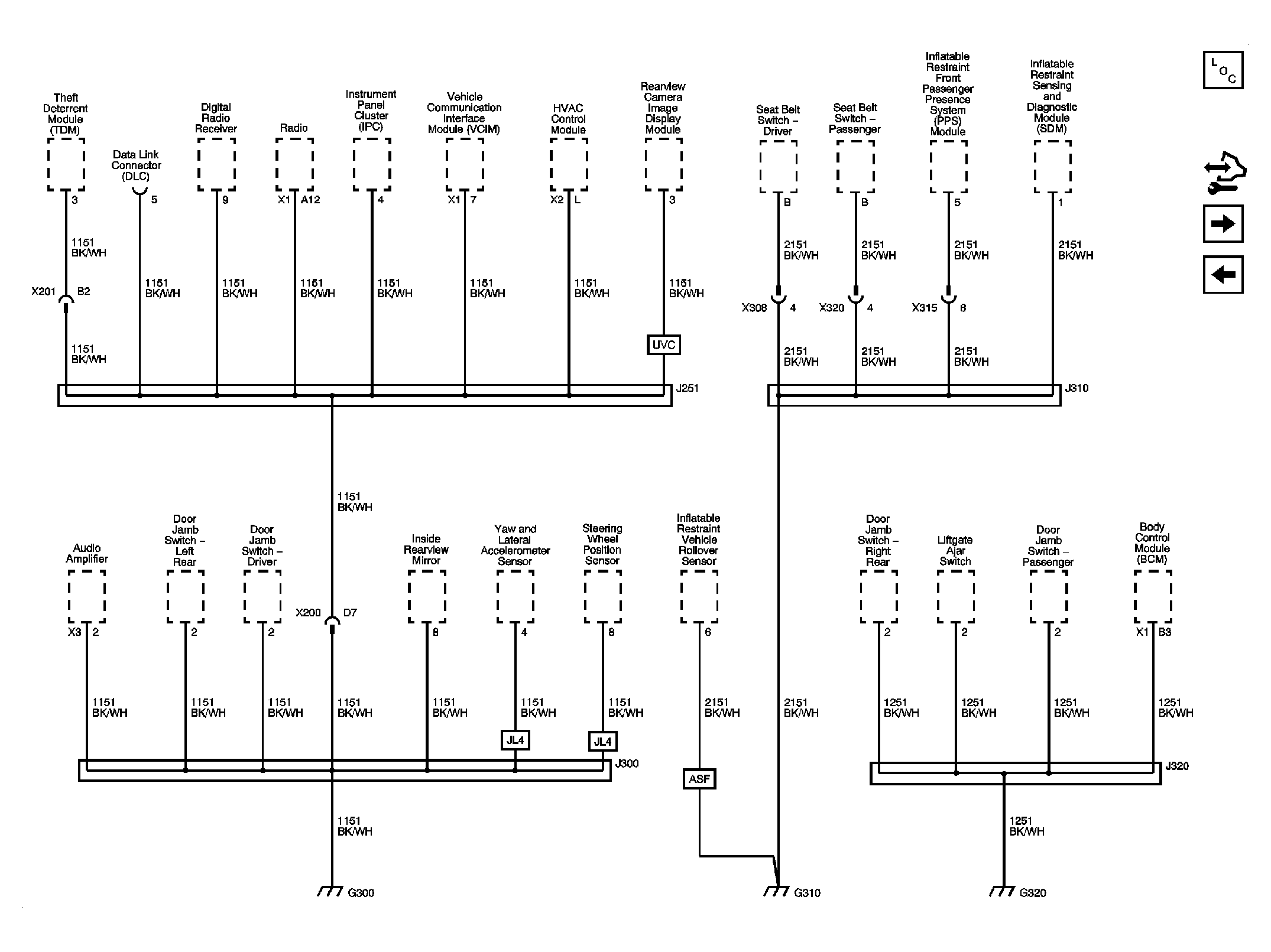

Fig 7: G300, G310, G320

GM1911806

Courtesy of GENERAL MOTORS CORP.

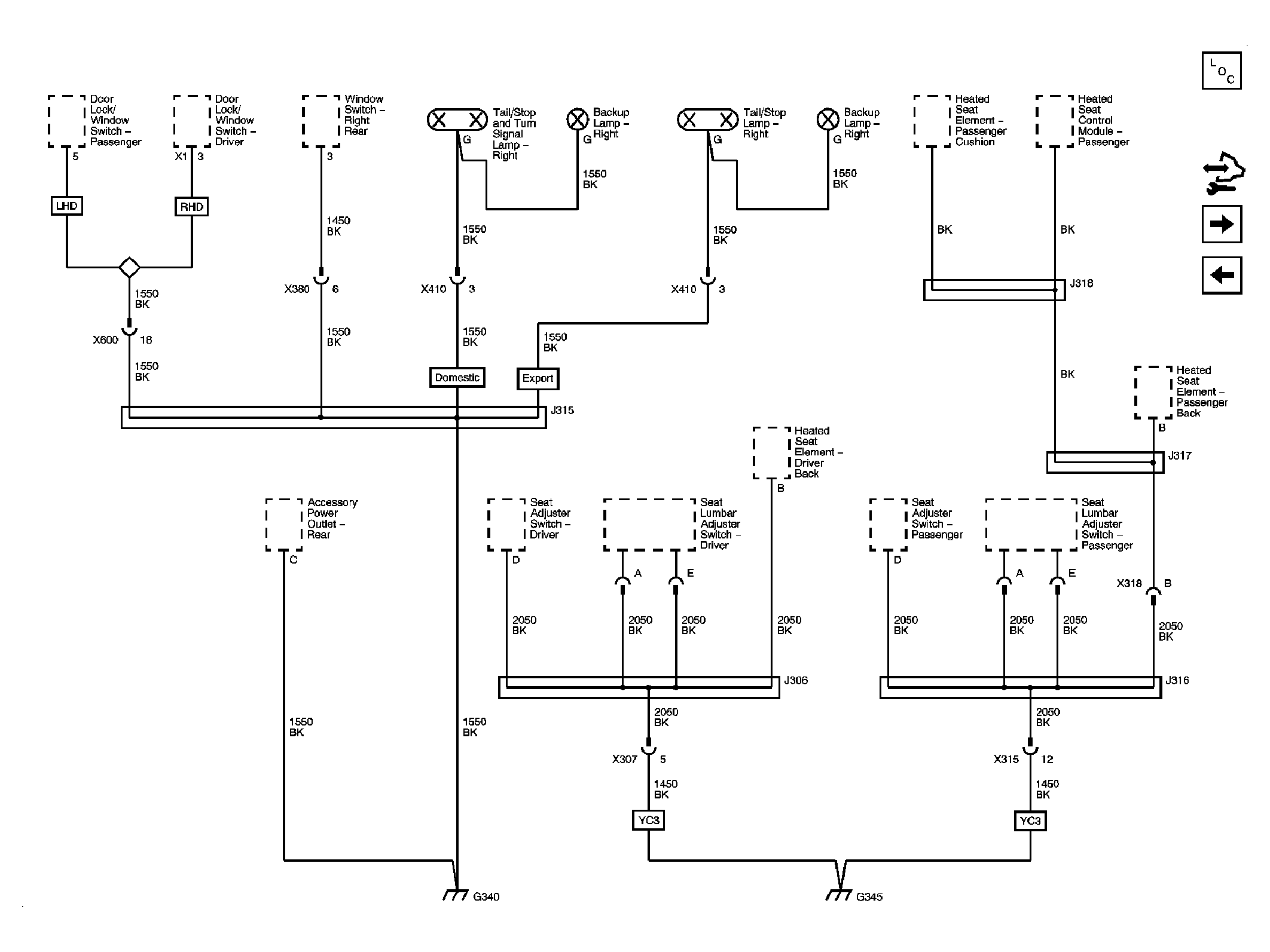

Fig 8: G340 and G345

GM1911807

Courtesy of GENERAL MOTORS CORP.

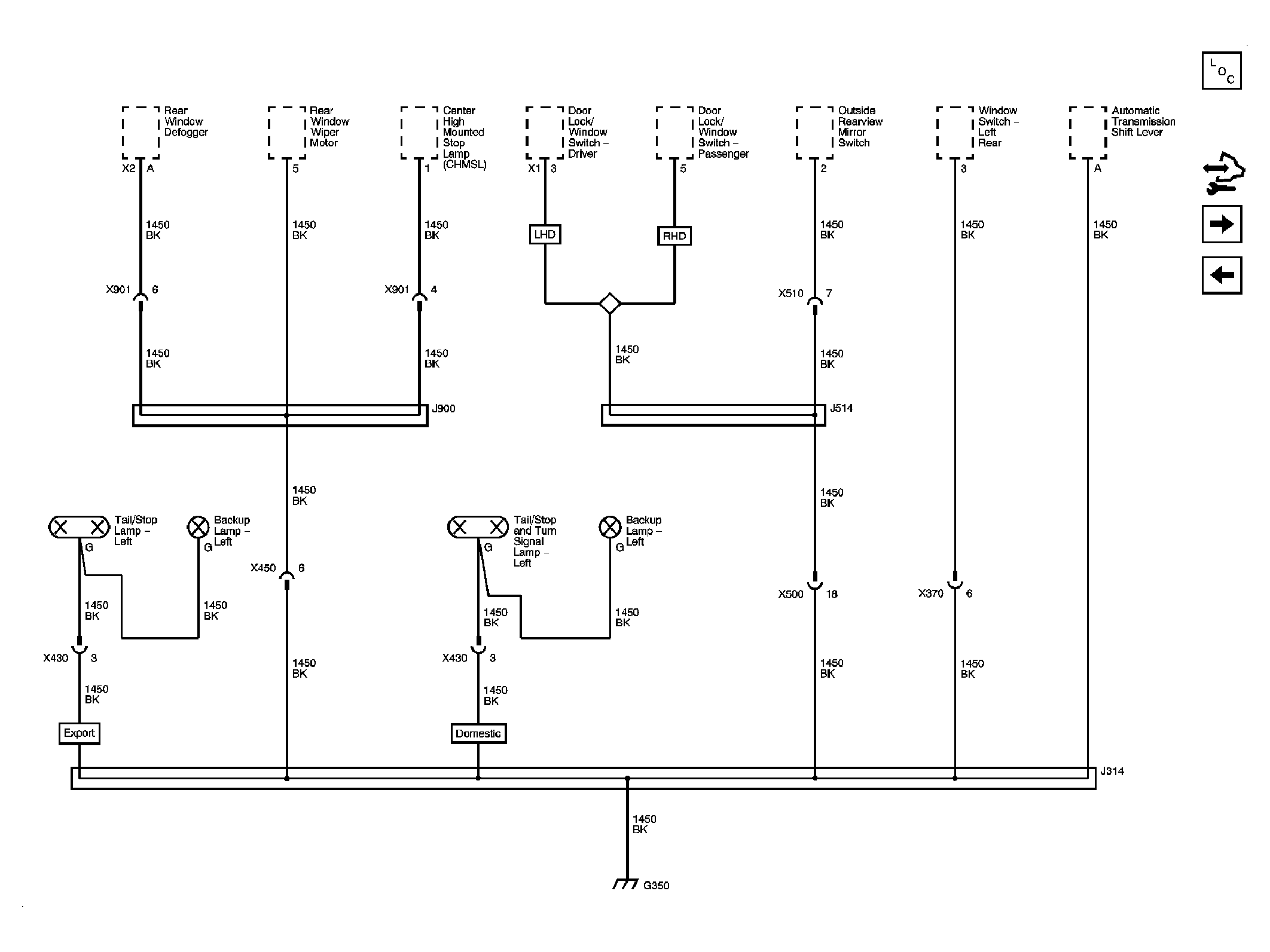

Fig 9: G350

GM1911808

Courtesy of GENERAL MOTORS CORP.

Fig 10: G420 - Domestic

GM1911810

Courtesy of GENERAL MOTORS CORP.

Fig 11: G420 - Export

GM1911812

Courtesy of GENERAL MOTORS CORP.
