Trailer Connector/Provision Schematics

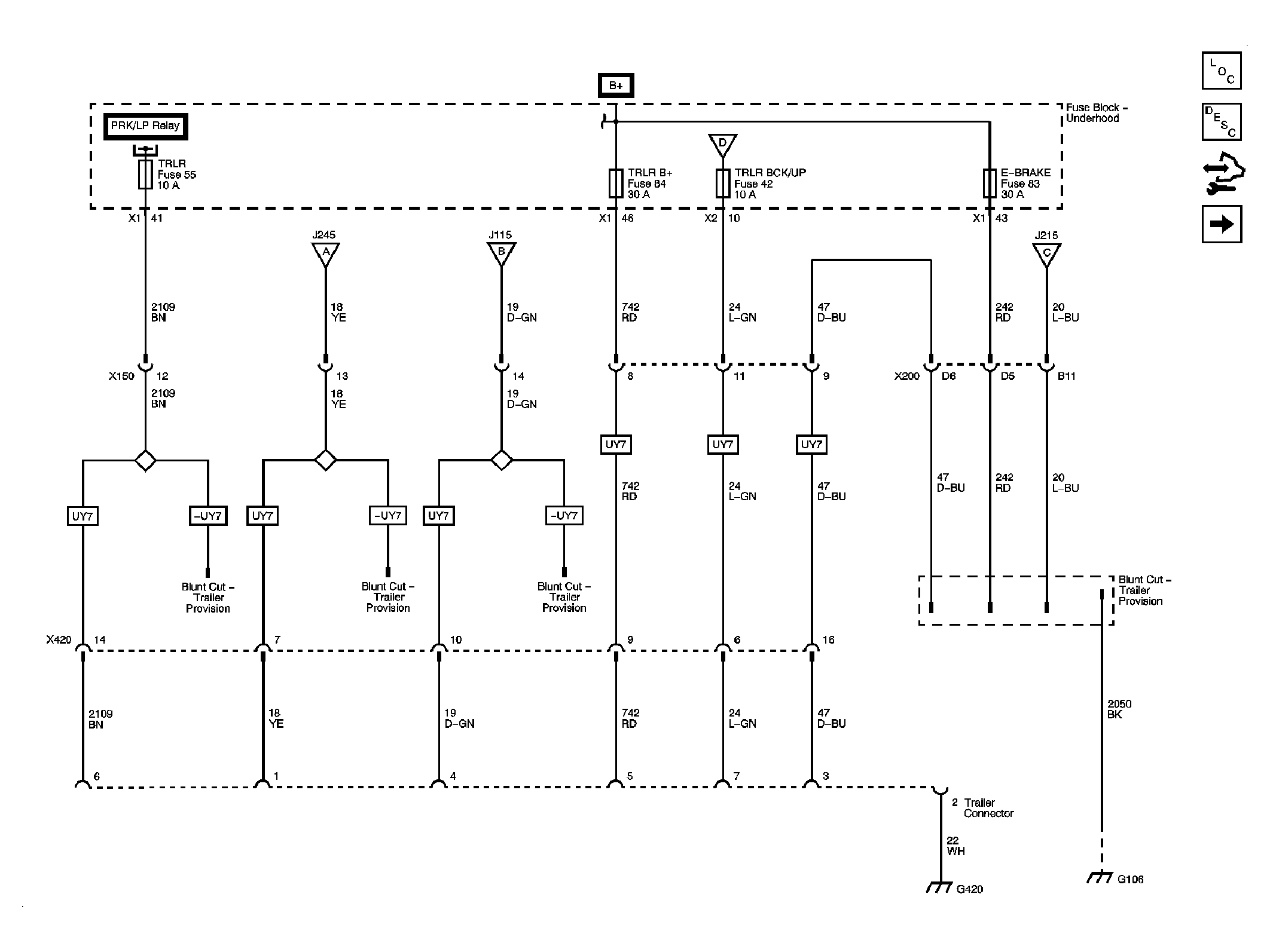

Fig 1: Trailer Wiring - Domestic
GM1911973Courtesy of GENERAL MOTORS CORP.

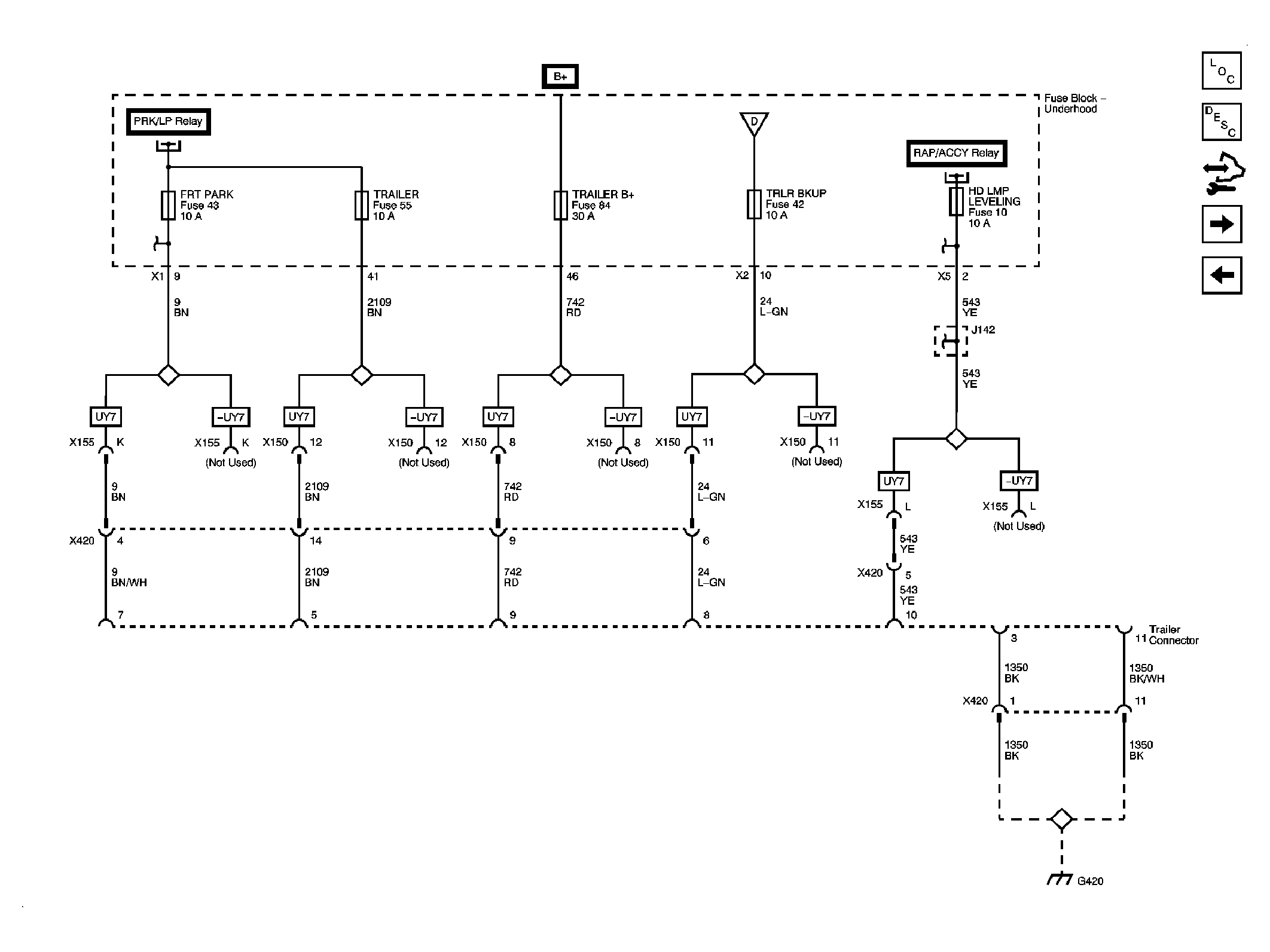

Fig 2: Export Trailer Wiring - 1 of 2
GM1911975Courtesy of GENERAL MOTORS CORP.

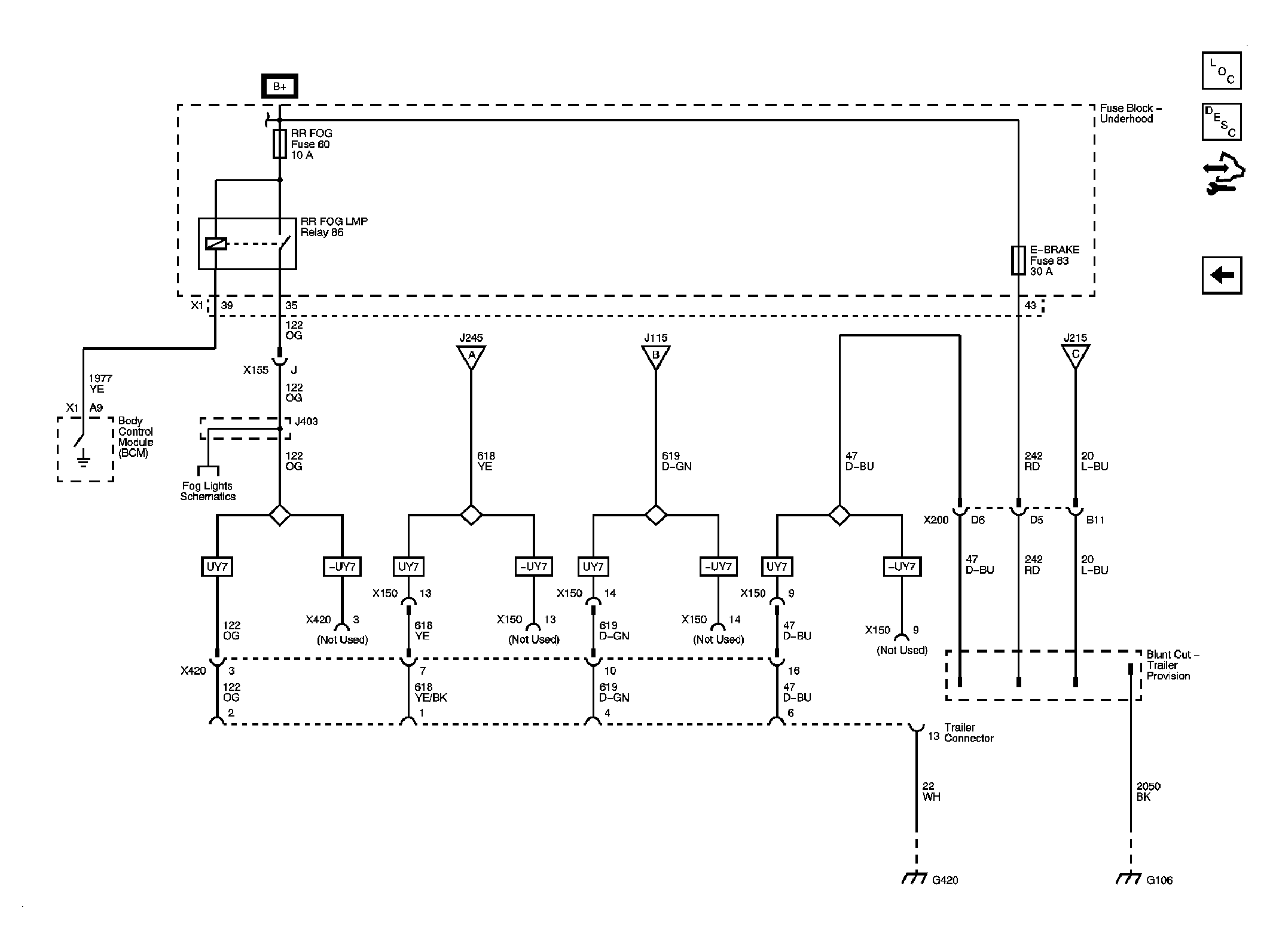

Fig 3: Export Trailer Wiring - 2 of 2
GM1911976Courtesy of GENERAL MOTORS CORP.
