Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

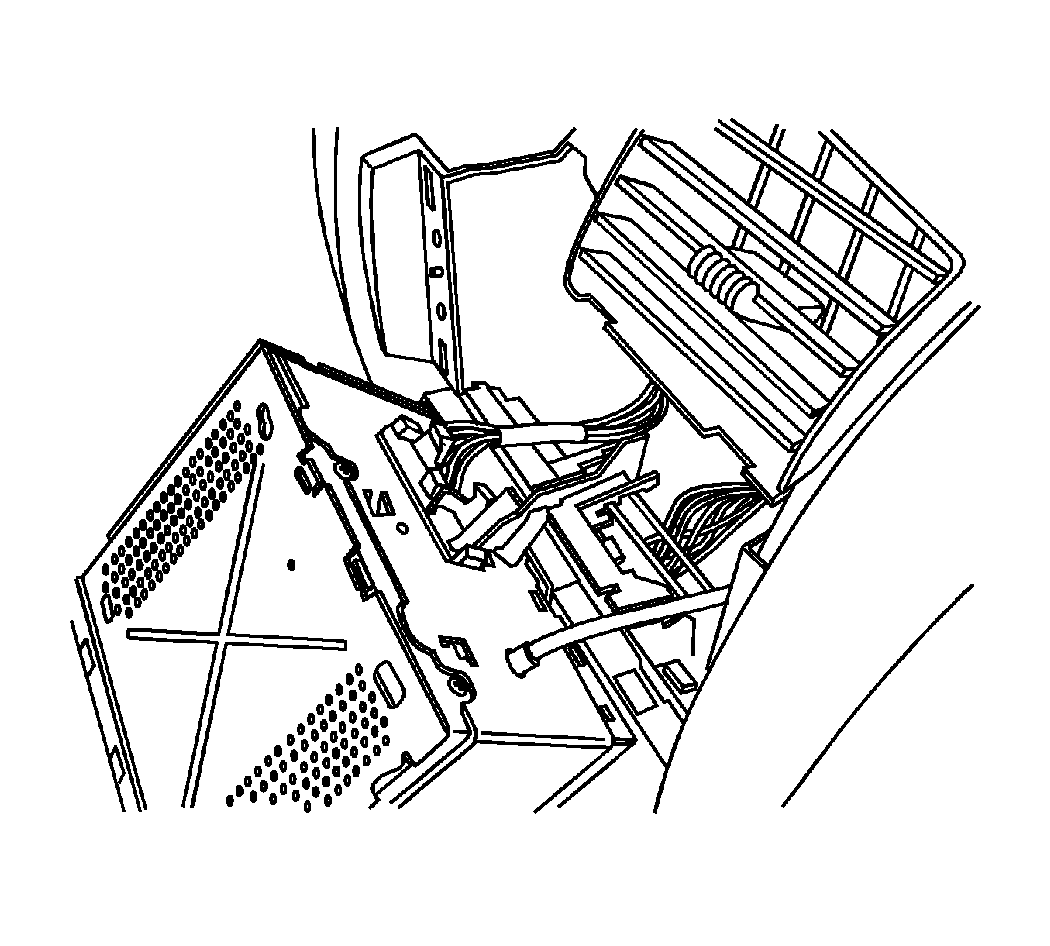

Fig 1: View Of Radio Cables

Courtesy of GENERAL MOTORS CORP.

Position the radio to the I/P.
Connect the electrical connectors to the radio.
Connect the radio antenna cable to the radio.
Position the radio rear alignment locator into the I/P substrate installing the radio to the I/P.

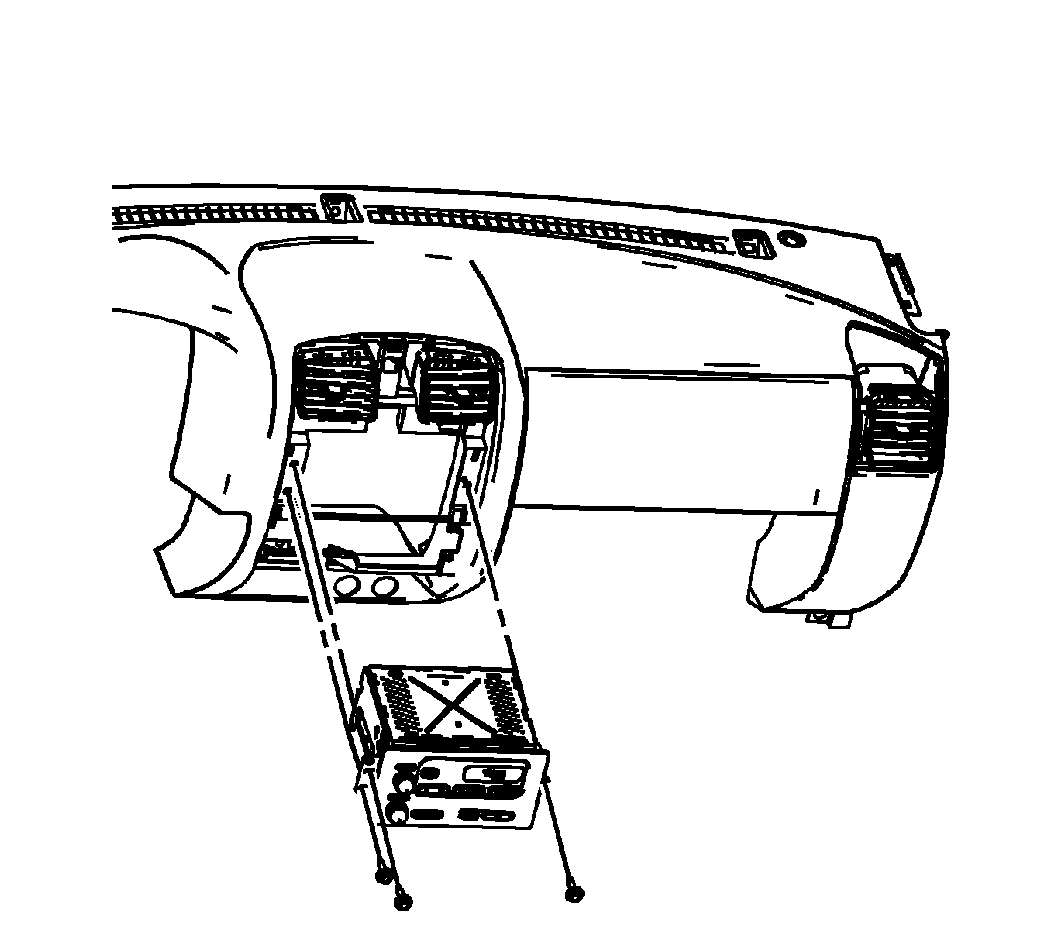

Fig 2: View Of Radio

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the 3 screws that retain the radio to the I/P.
Tighten: Tighten the screws to 2 N.m (18 lb in).
Install the accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
Program the replacement radio. Refer to Control Module References .
