Passenger Compartment/Roof Component Views

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Sunroof Components (ZRX, Extreme w/ CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch X2
2	Sunroof Opening
3	G300
4	Sunroof Motor
5	Sunroof Switch
6	Sunroof Switch X1
7	Sunroof Ground Lead

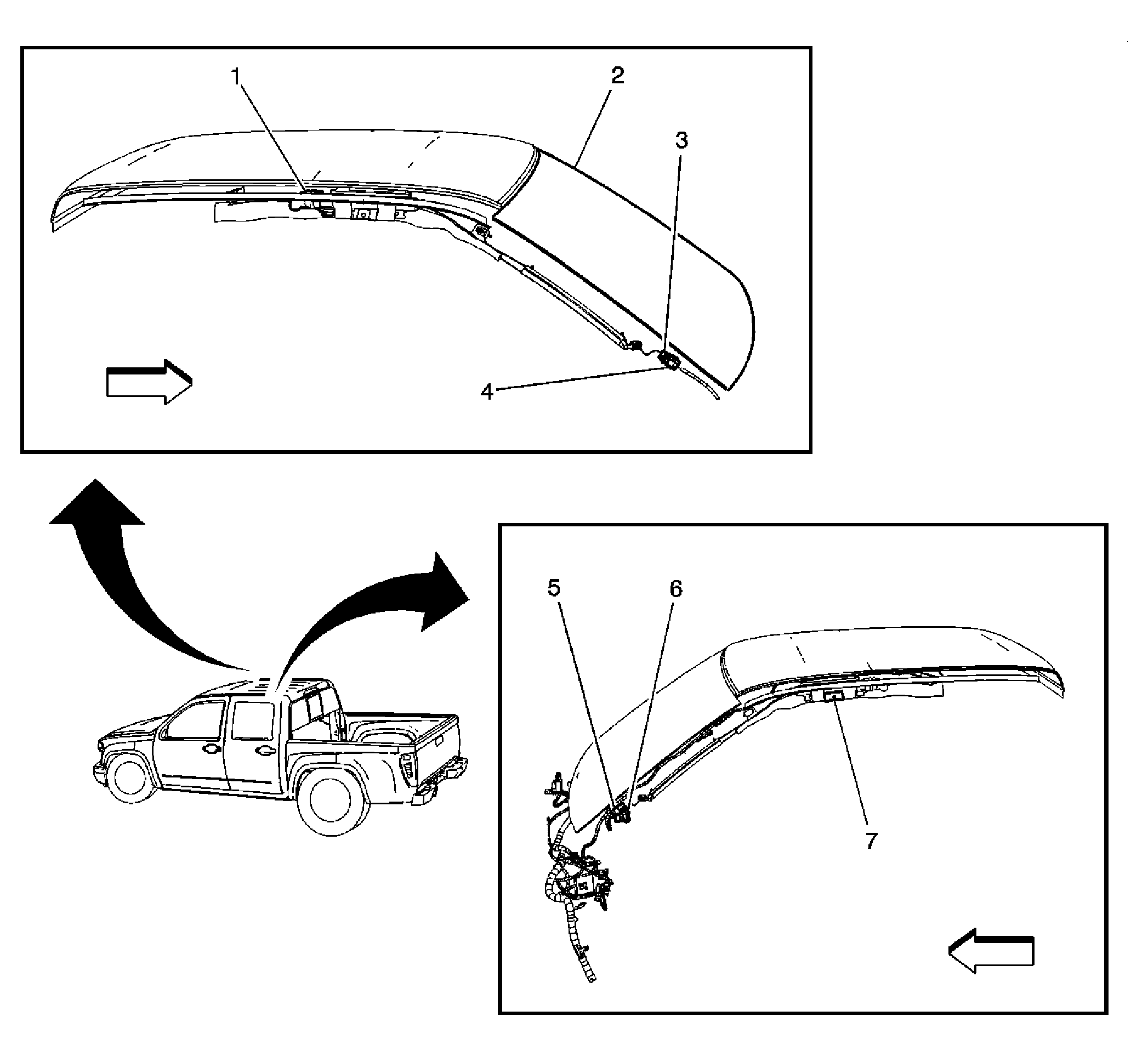

Fig 2: Identifying Inflatable Restraint Components (ASF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Right
2	Windshield
3	Inflatable Restraint Roof Rail Module -Right Connector
4	Inflatable Restraint Roof Rail Module - Right Connector Body Harness Side
5	Inflatable Restraint Roof Rail Module - Left Connector Body Harness Side
6	Inflatable Restraint Roof Rail Module - Left Connector
7	Inflatable Restraint Roof Rail Module - Left

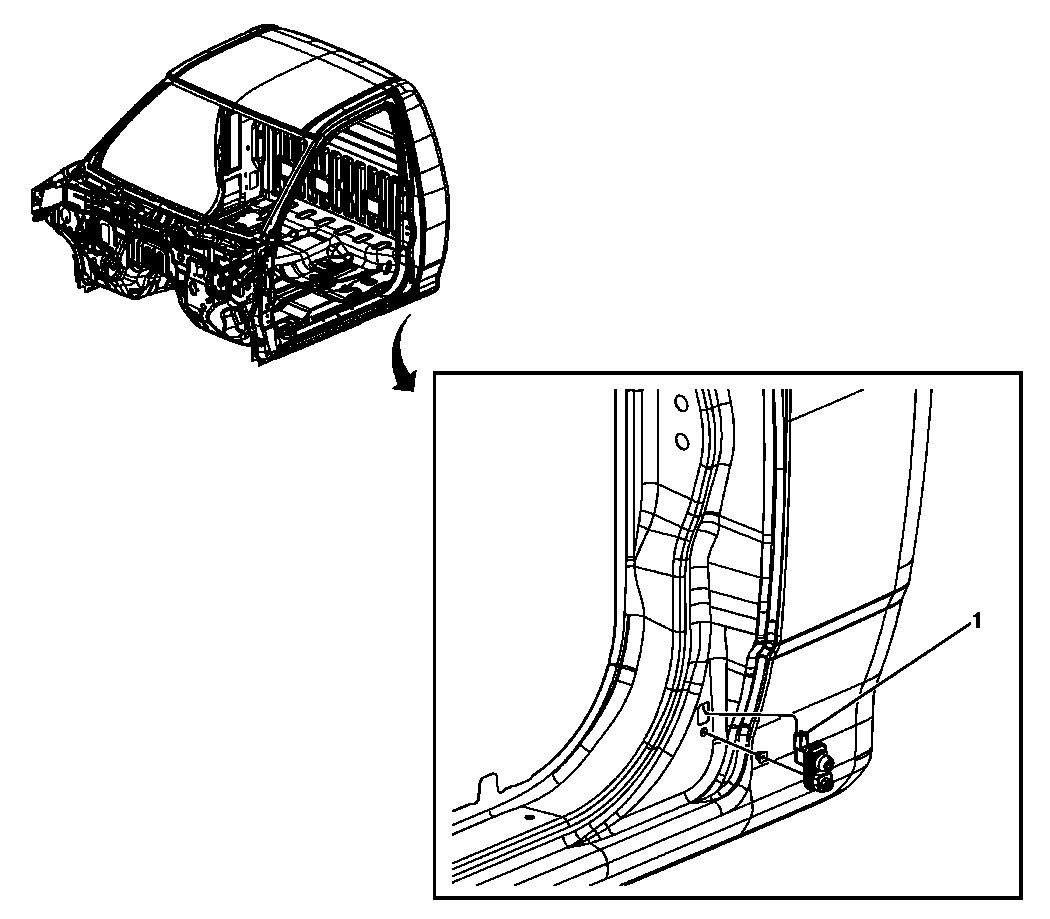

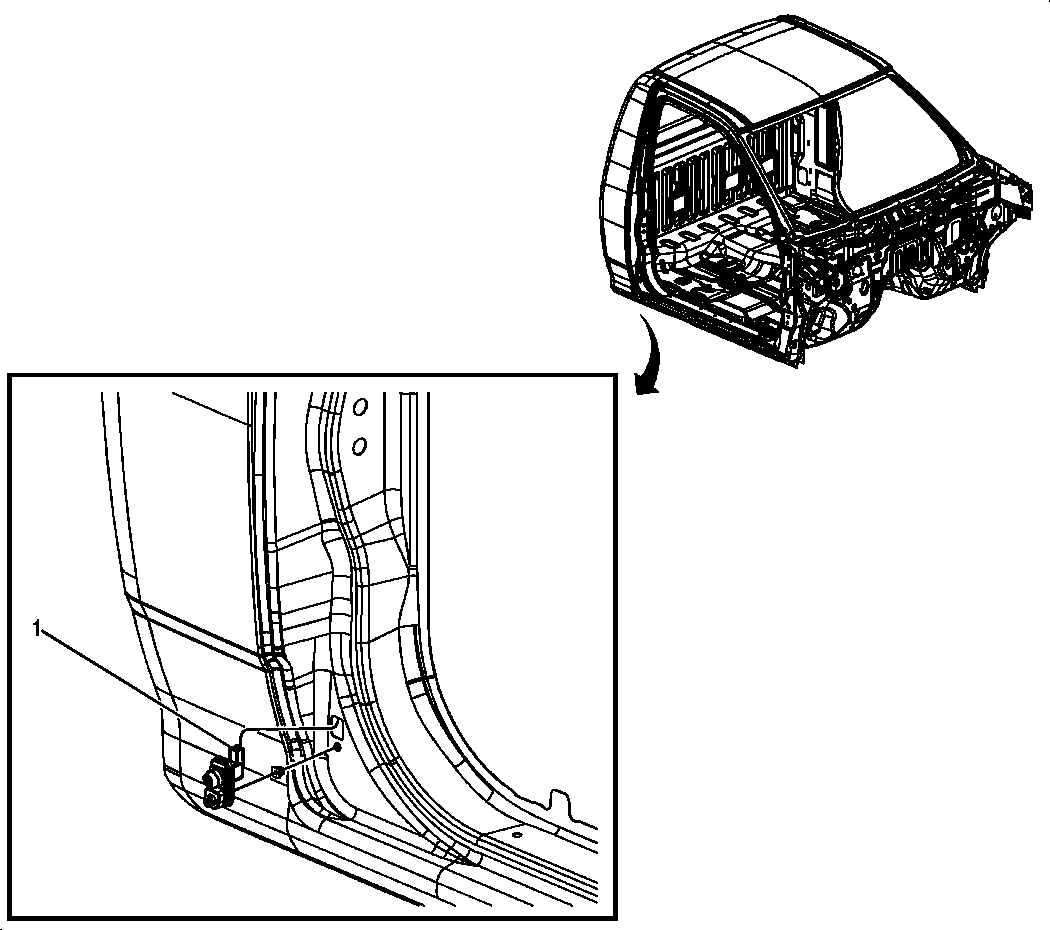

Fig 3: Door Jamb Switch - Driver (Regular Cab) Front Passenger Similar Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Driver

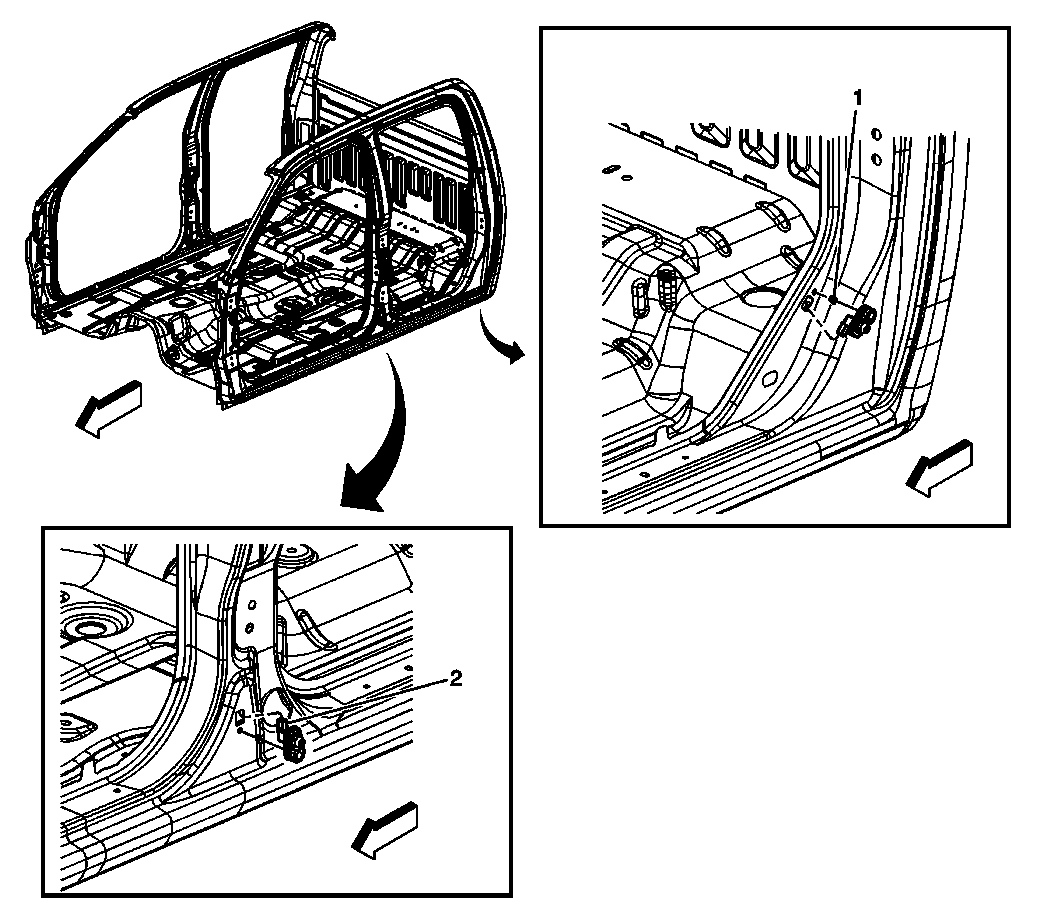

Fig 4: Left Door Jamb Switches (Crew Cab) Right Similar Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Left Rear
2	Door Jamb Switch - Driver

Fig 5: Door Jamb Switch (Regular Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Front Passgener

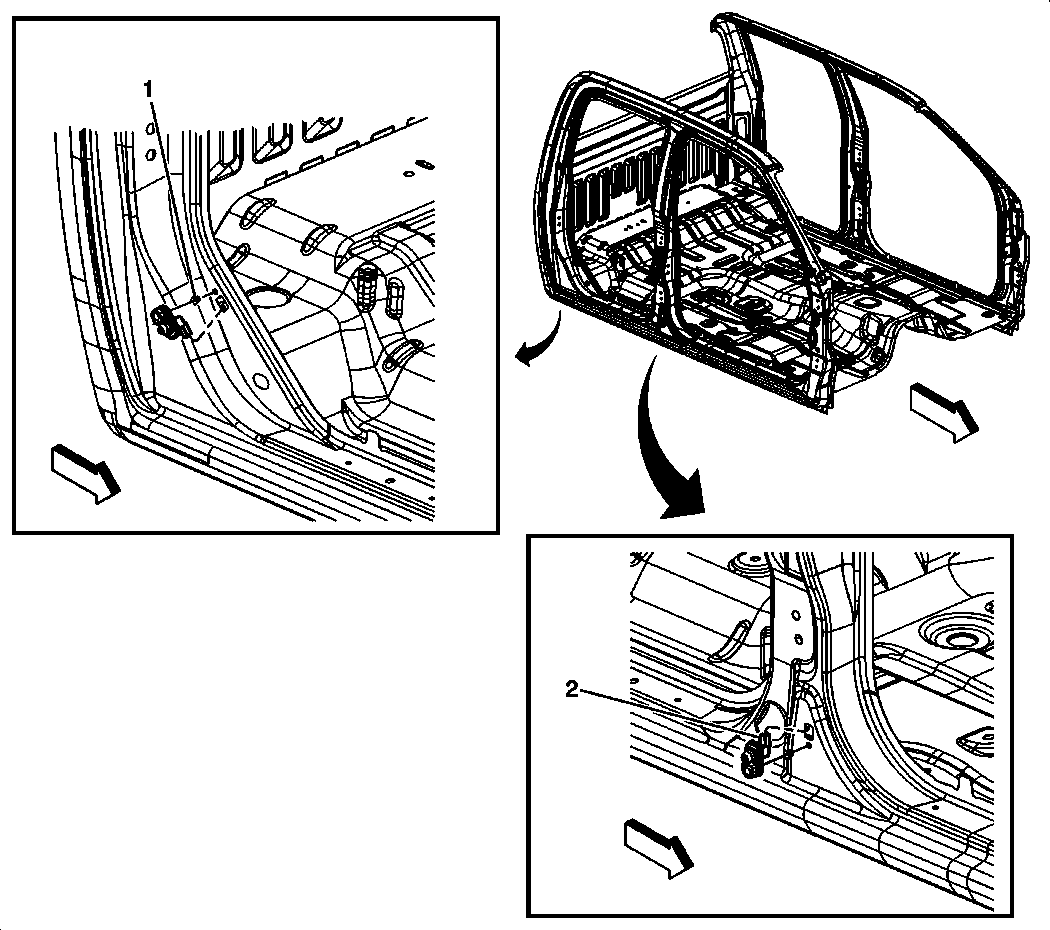

Fig 6: Door Jamb Switches (Crew Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Right Rear
2	Door Jamb Switch - Front Passenger

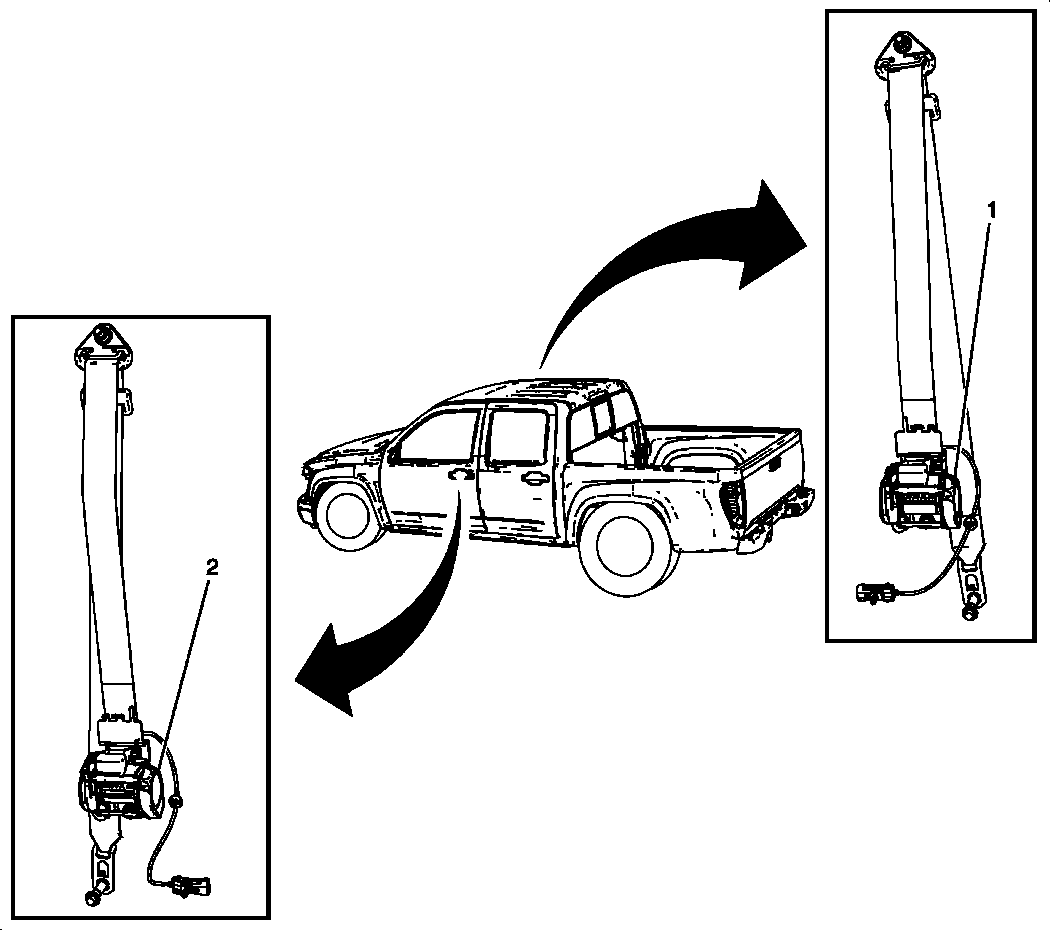

Fig 7: Seat Belt Pretensioners (Crew Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Right Front
2	Seat Belt Pretensioner - Left Front

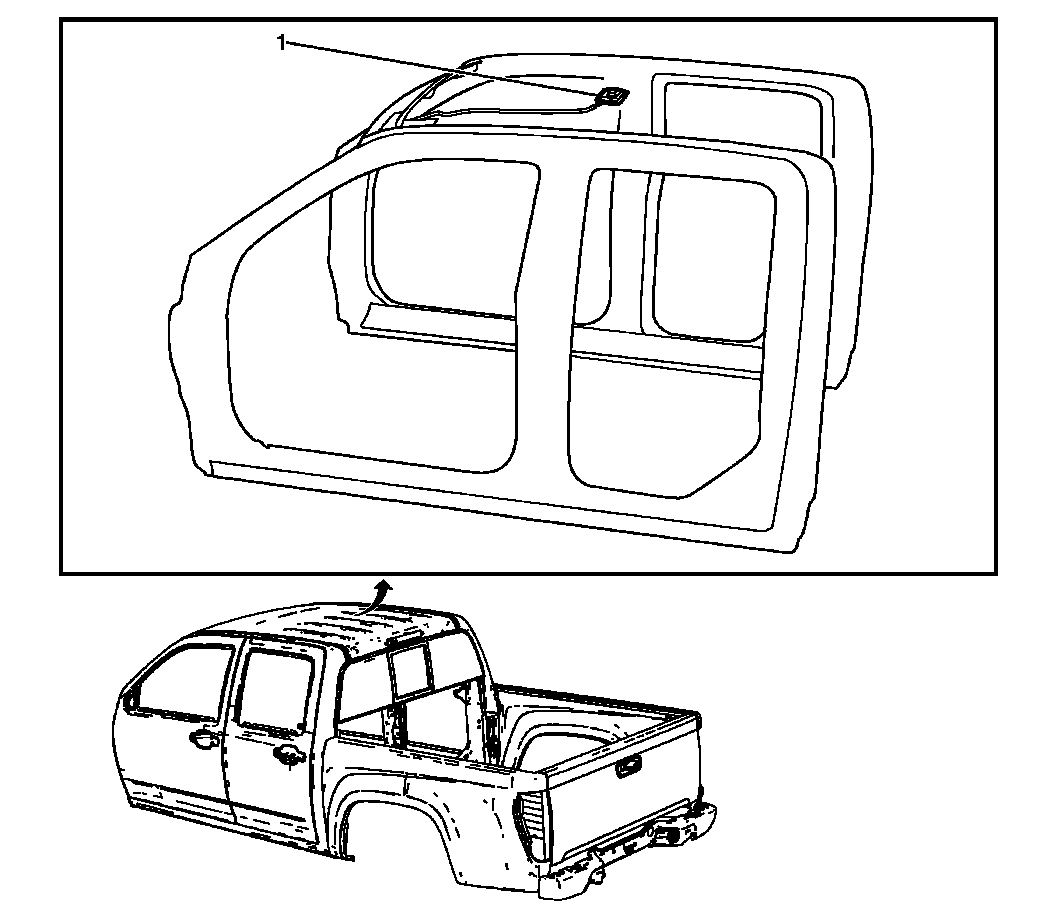

Fig 8: Dome Lamp Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp

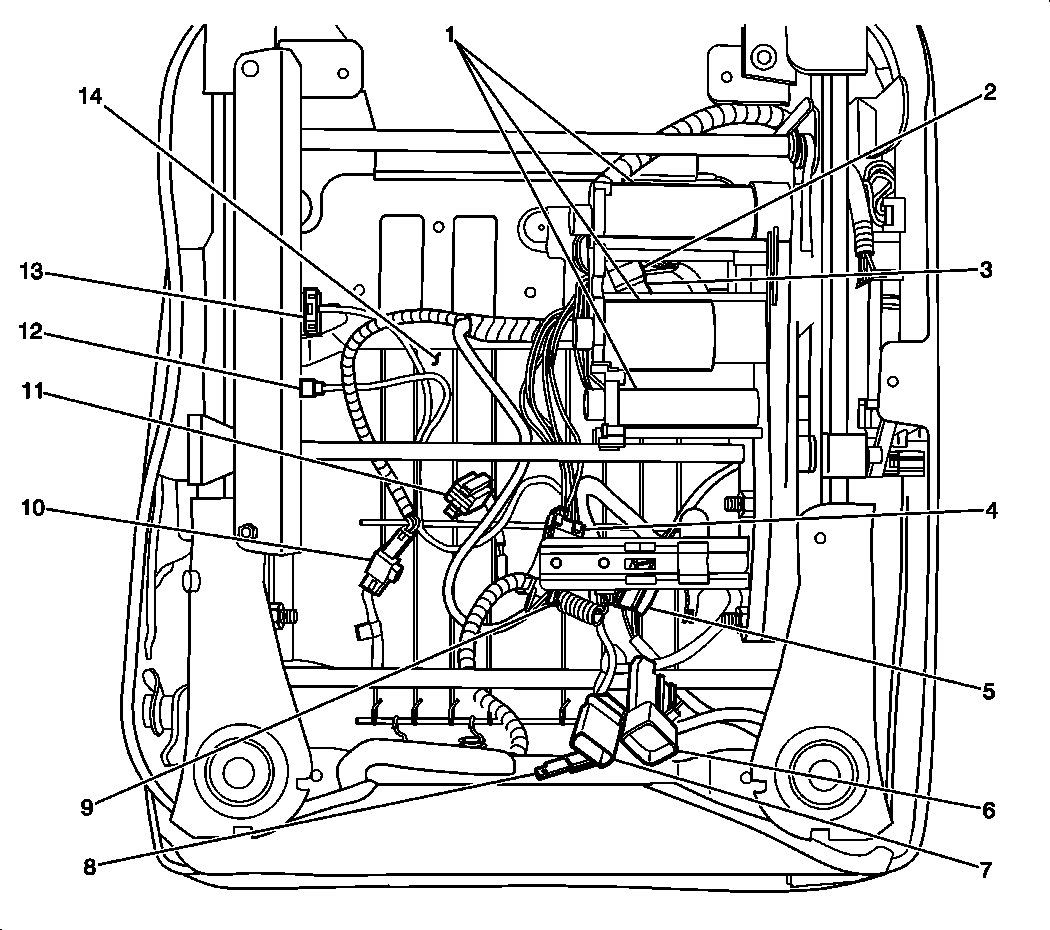

Fig 9: Under Driver Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Motors - Driver (AG1)
2	Seat Adjuster Switch - Driver X1 (AG1)
3	Seat Adjuster Switch - Driver X2 (AG1)
4	Seat Motors - Driver Connector (AG1)
5	Lumbar Pump Motor - Driver (AG1)
6	X307 (AG1)
7	X314
8	Heater Element Seat Back - Driver (KA1)
9	X319 (KA1)
10	Recliner Motor
11	Heated Seat Module - Driver (KA1)
12	Seat Belt Buckle - Driver
13	Inflatable Restraint Seat Position Sensor (SPS) - Left

Fig 10: Longitudinal Accelerometer Sensor (4WD) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Longitudinal Accelerometer Sensor

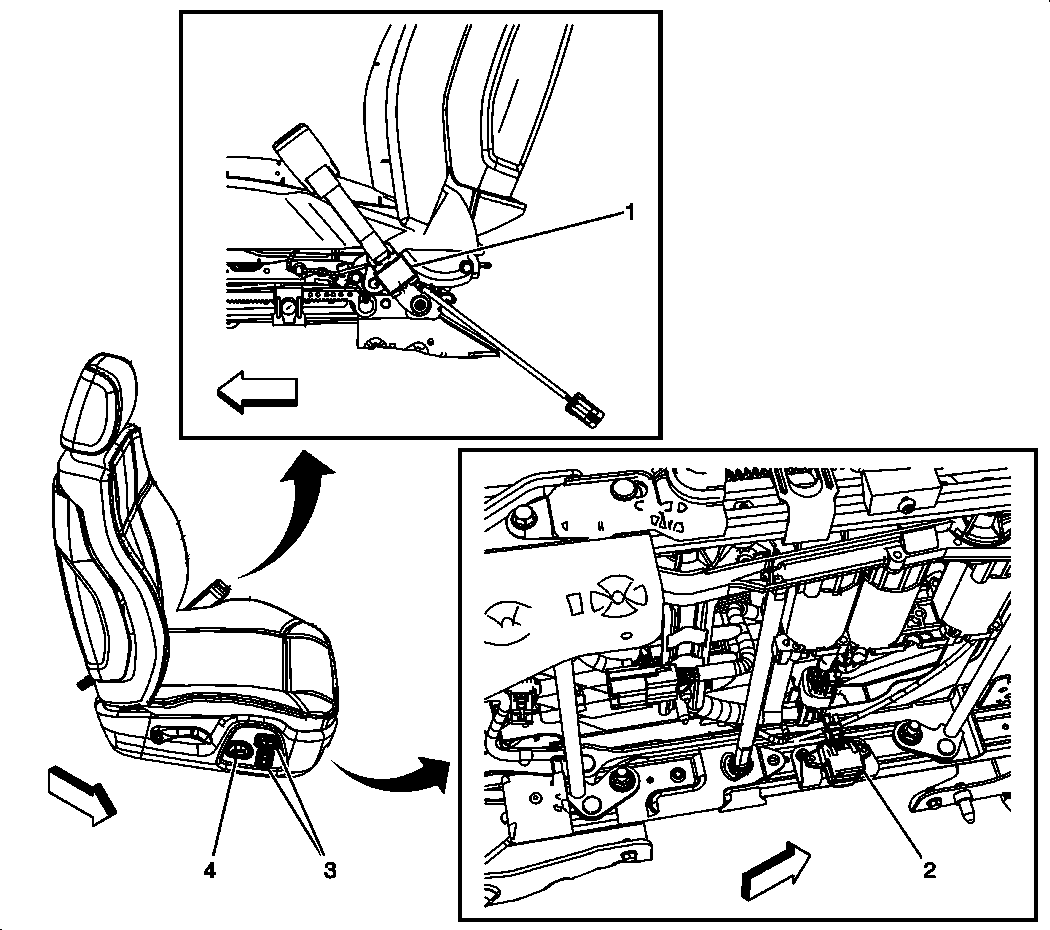

Fig 11: Identifying Passenger Seat Components - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Passenger Seat Belt Tension Sensor
2	Inflatable Restraint Seat Position Sensor (SPS) - Right

Fig 12: Identifying Passenger Seat Components - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heater Element Seat Cushion - Passenger (KA1)
2	Inflatable Restraint Passenger Presence System (PPS) Module
3	Lumbar Pump Motor - Passenger (AG2)
4	Heater Element Seat Back - Passenger (KA1)
5	C315 Passenger Seat Harness to Body Harness
6	Seat Motors - Passenger (AG2)
7	Seat Belt Buckle - Passenger
8	Seat Adjuster Switch - Passenger (AG2)

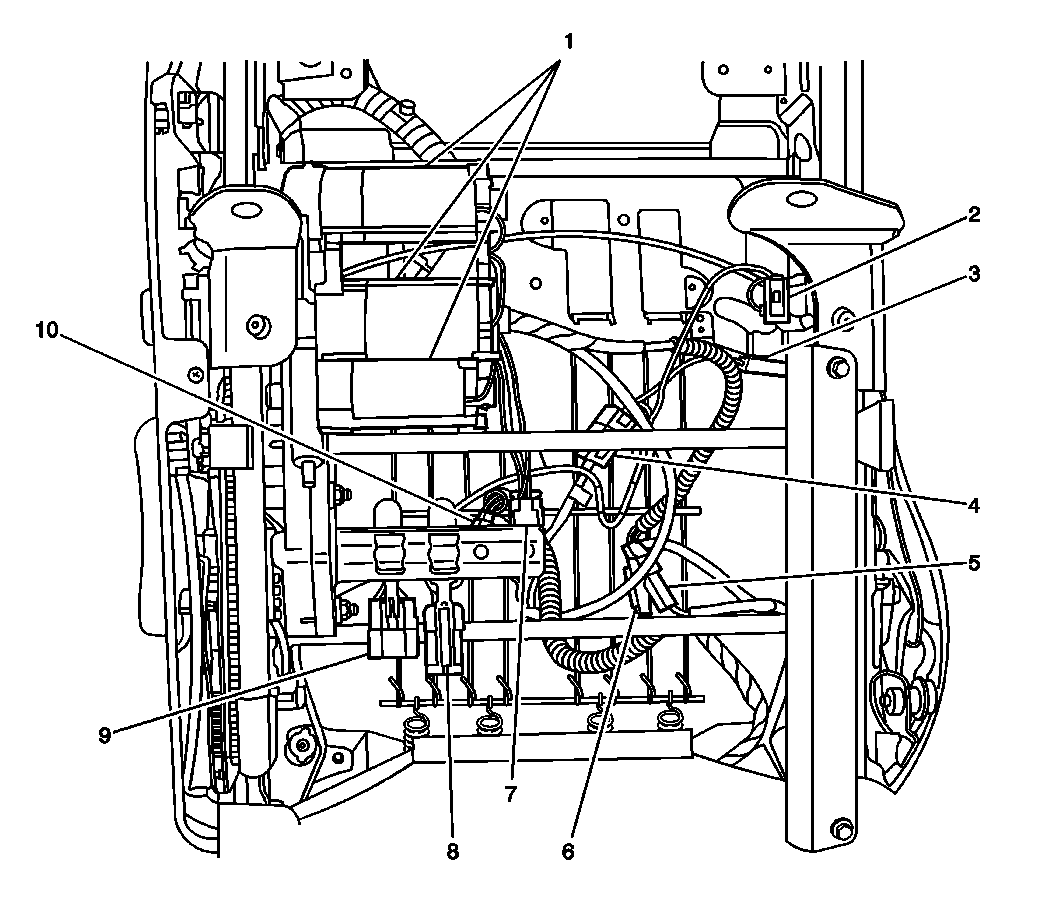

Fig 13: Identifying Under the Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Motors - Passenger (AG2)
2	Inflatable Restraint Seat Position Sensor (SPS) - Right
3	Seat Belt Buckle - Passenger
4	Heated Seat Module - Passenger (KA1)
5	Lumbar Pump Motor - Passenger (AG2)
6	Heater Element Seat Back Passenger (KA1)
7	Seat Motors - Passenger Connector (AG2)
8	X313
9	X315 (AG2)
10	X318 (KA1)
