Transfer Case Control Schematics

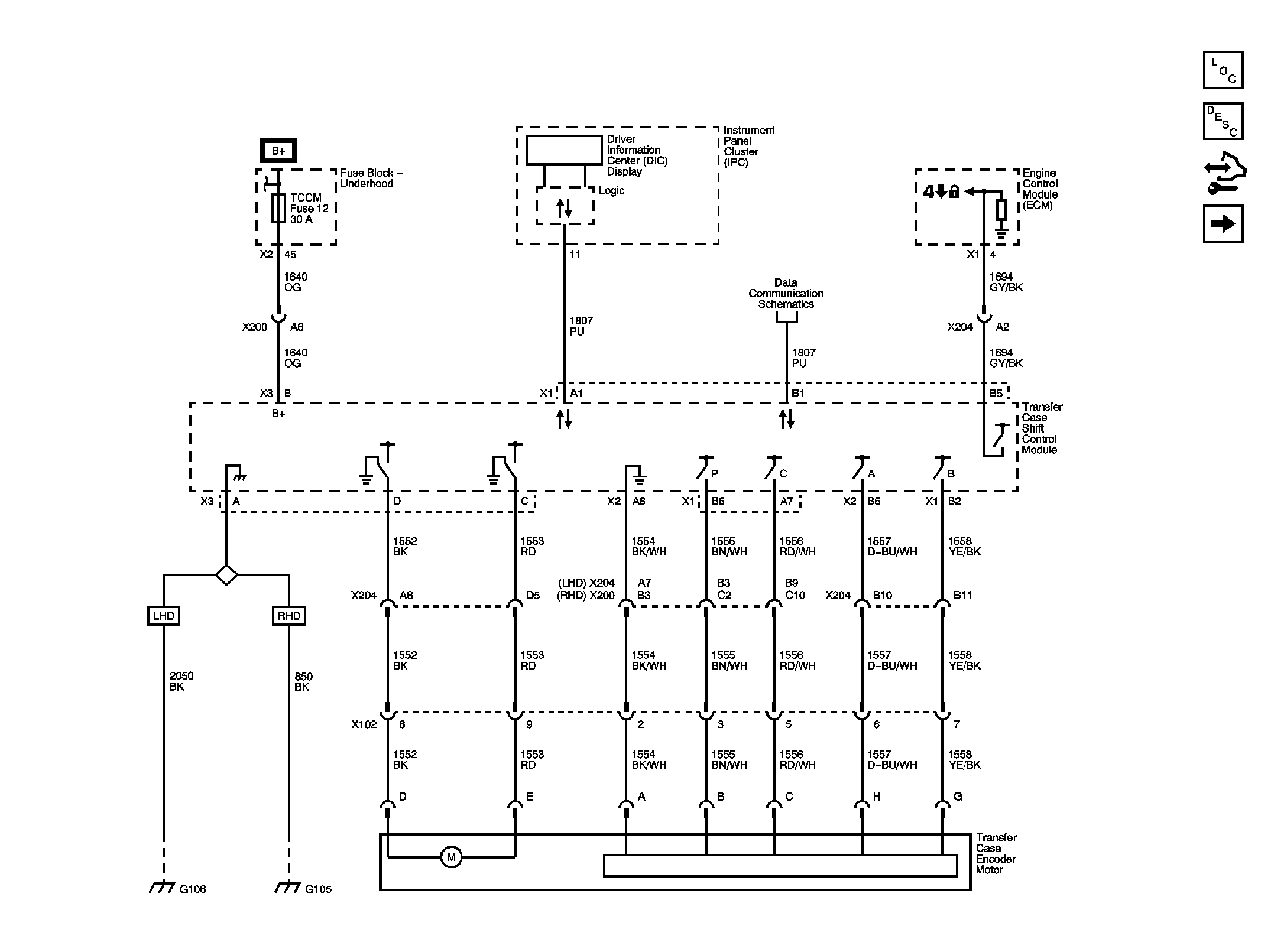

Fig 1: Power, Ground, Serial Data, and Front Axle Controls
GM1911844Courtesy of GENERAL MOTORS CORP.

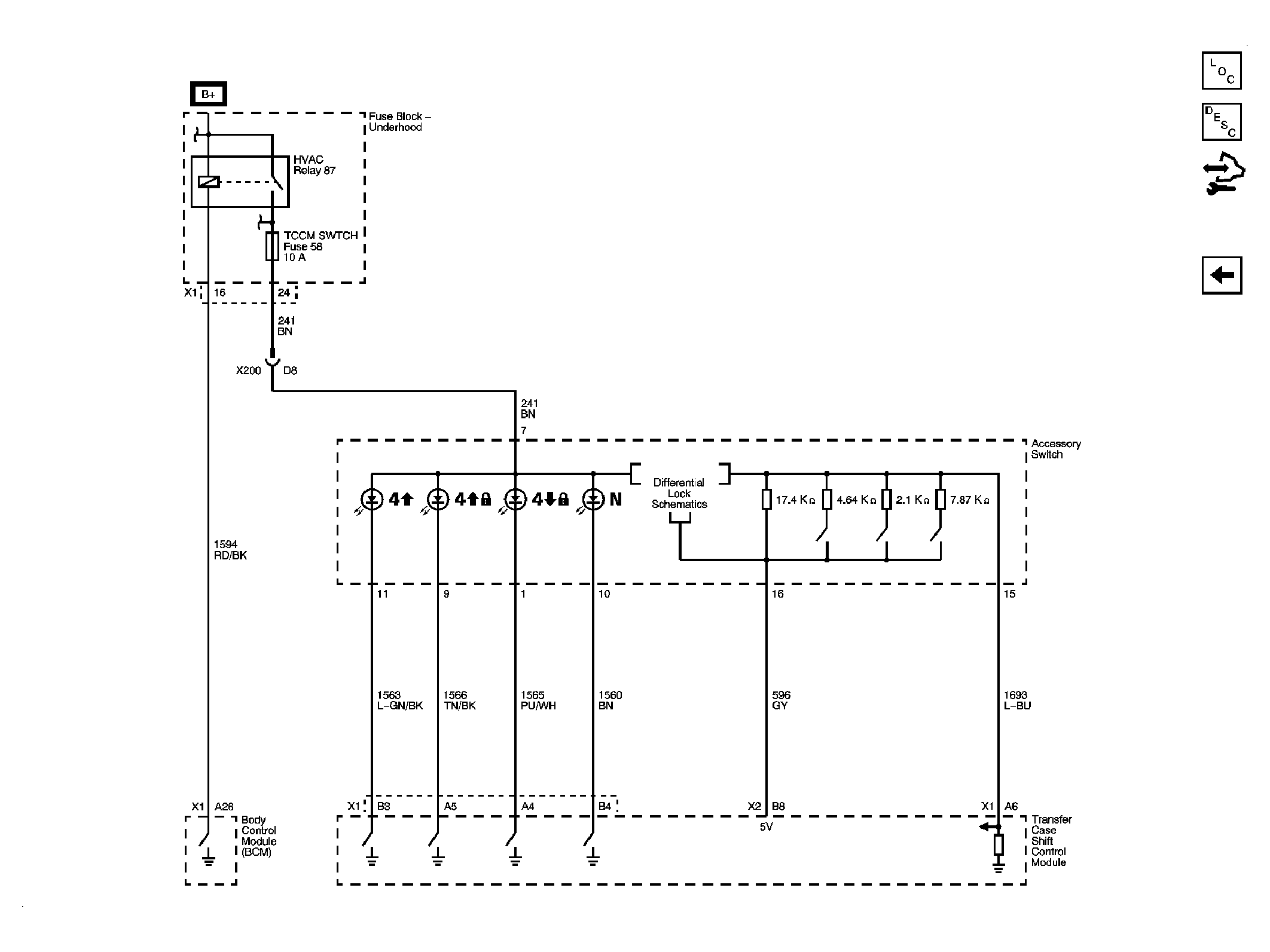

Fig 2: Shift Controls
GM1911847Courtesy of GENERAL MOTORS CORP.
