Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

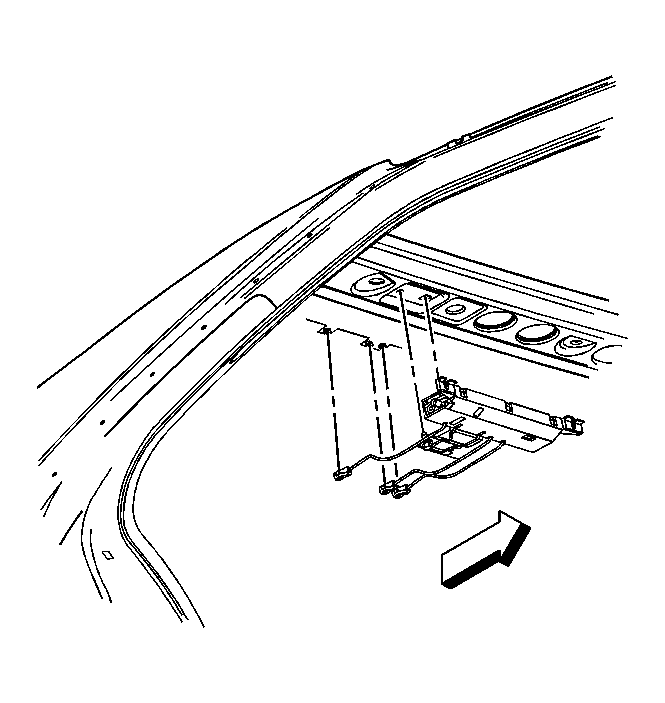

    Fig 1: View Of Antenna Module
    GM1463648Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bolt securing the antenna module to the roof.

    Tighten:  Tighten the bolts (1) to 9 N.m (80 lb in).

  3. Install the headliner. Refer to Headlining Trim Panel Replacement .
