Impact Sensor

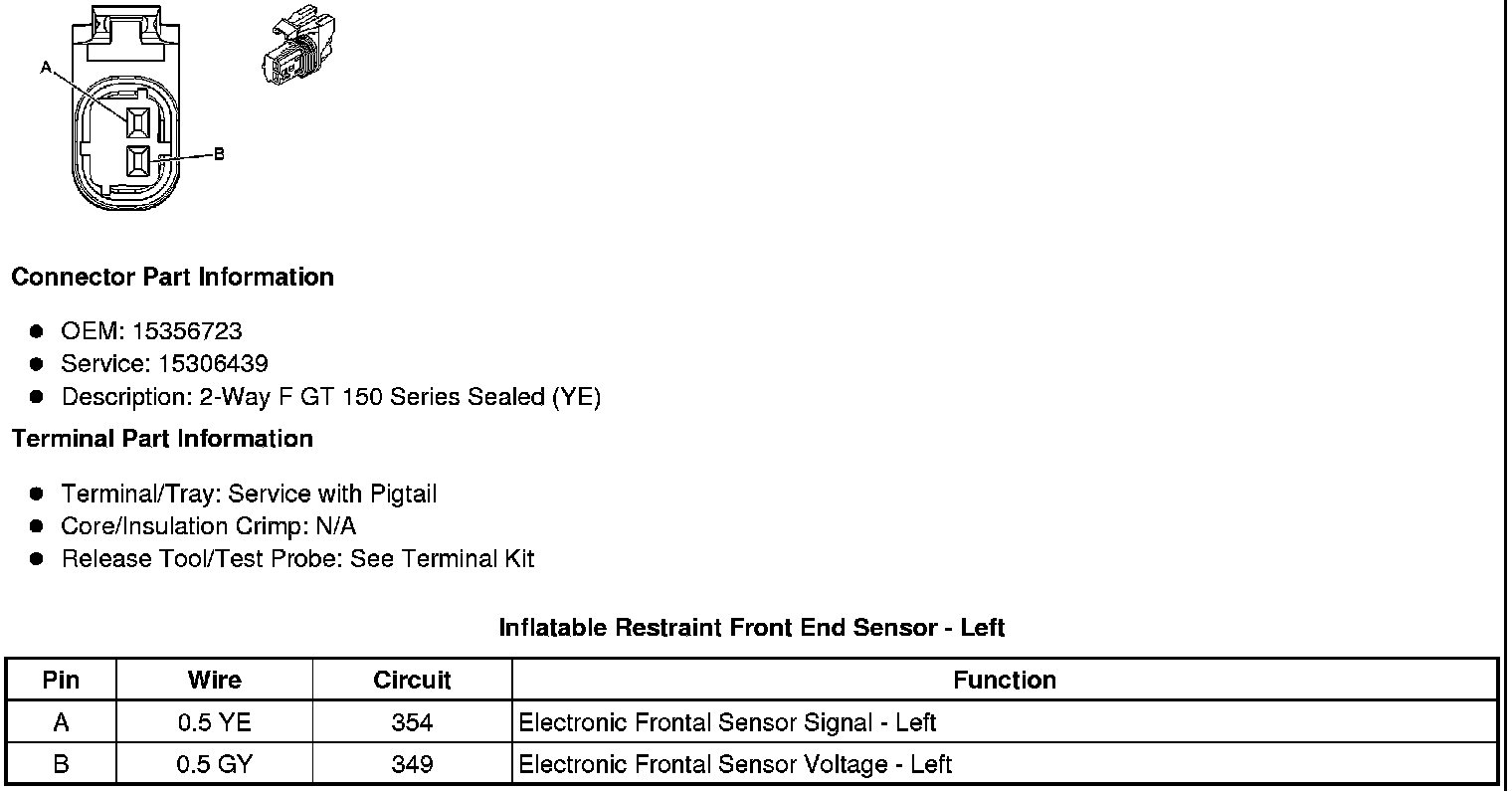

Inflatable Restraint Front End Sensor - Left

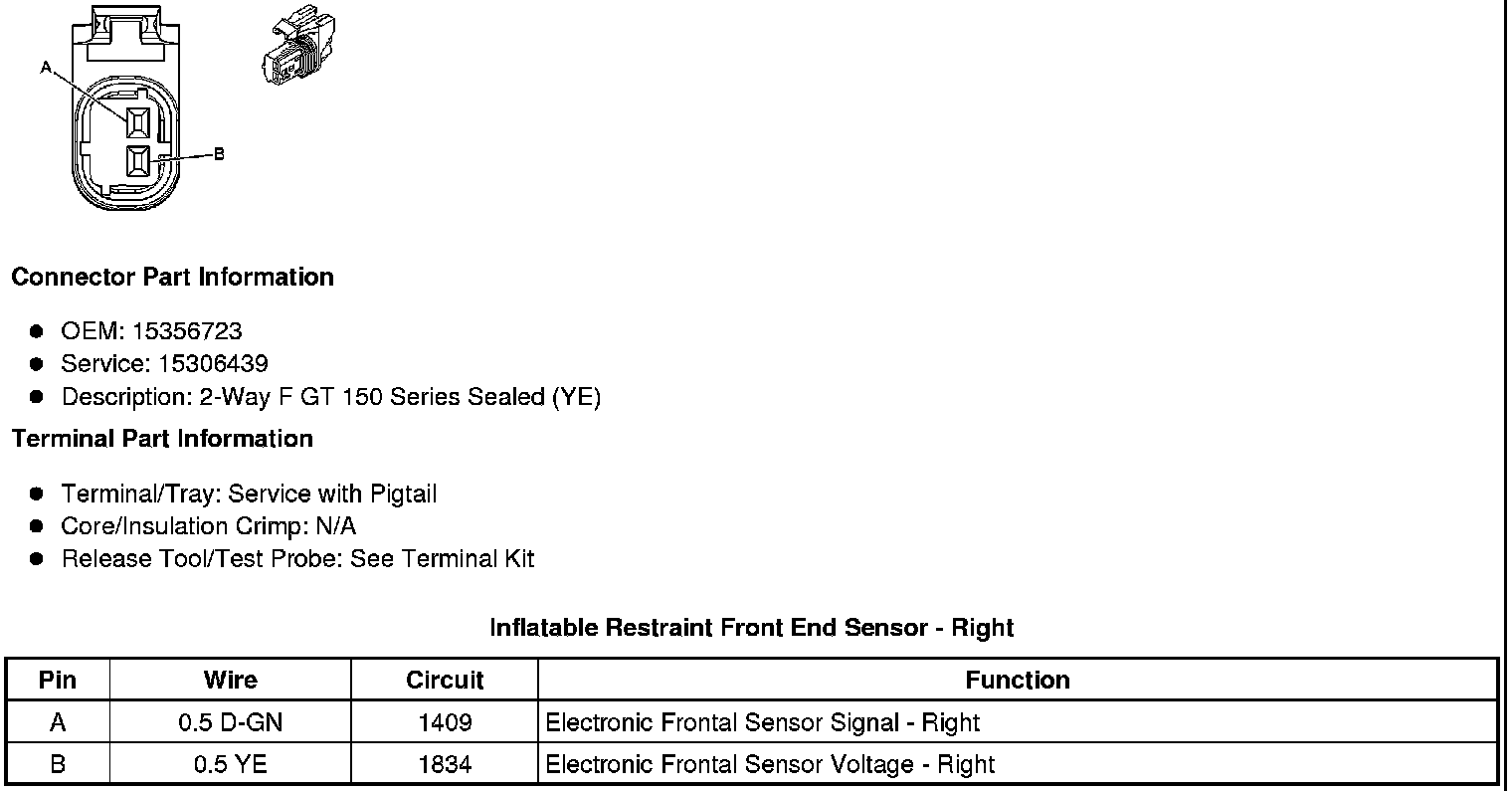

Inflatable Restraint Front End Sensor - Right

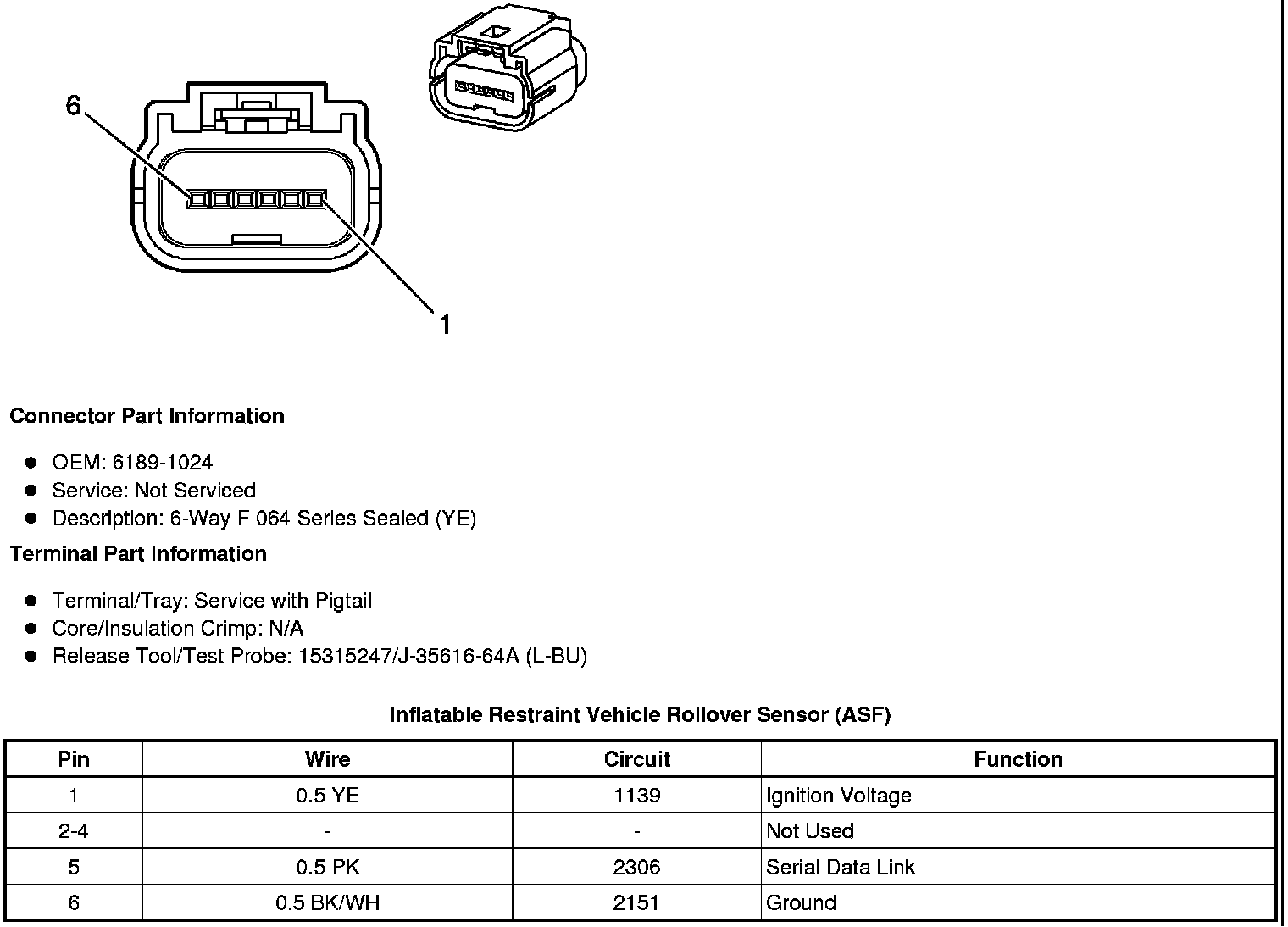

Inflatable Restraint Vehicle Rollover Sensor (ASF)
