Steering Wheel Control Switch Assembly Replacement

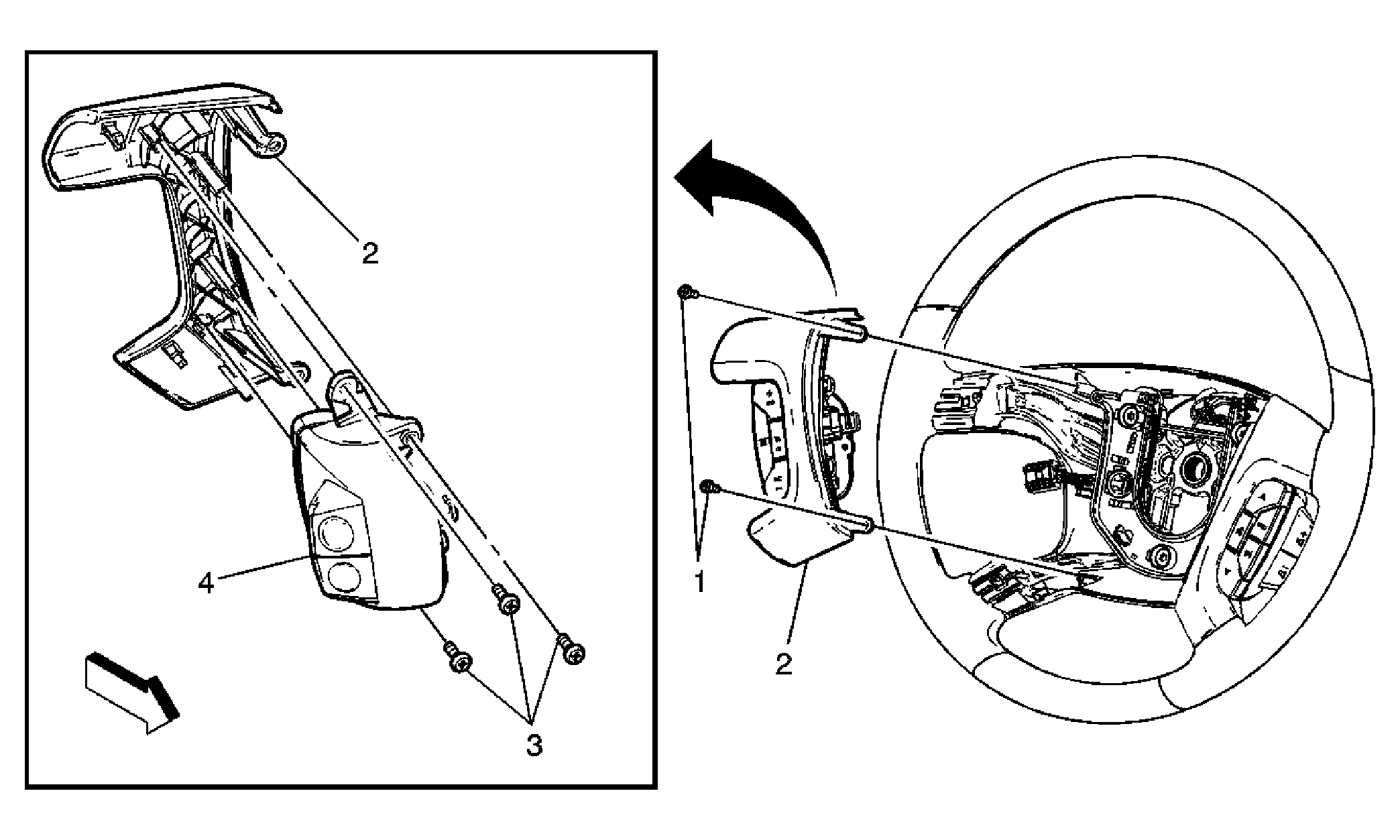

Fig 1: Identifying Steering Wheel Control Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Trim Plate Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Steering Wheel Trim Plate (Qty: 2)
3	Radio Control Screw (Qty: 6) Tighten: 2 N.m (18 lb in)
4	Radio Control Switch Assembly Procedure Disconnect the electrical connector. Make sure the steering wheel control switches are properly seated to the steering wheel trim cover during installation.
