Installation Procedure

    CAUTION: Refer to Fastener Caution .

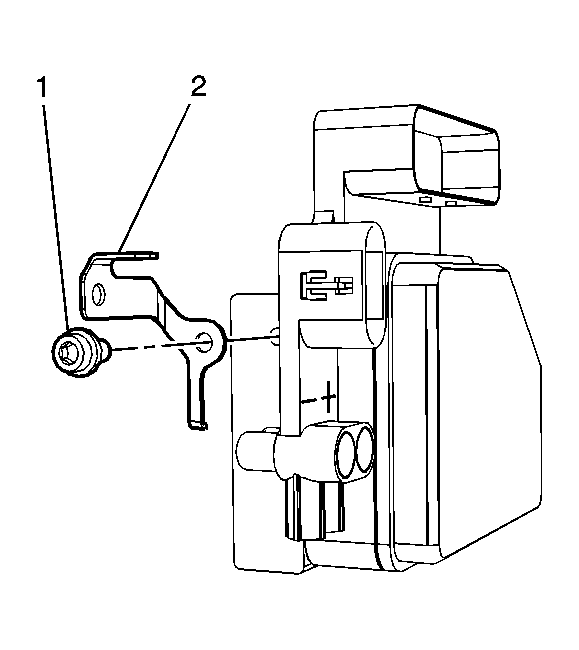

    Fig 1: Identifying Brake Fluid Level Sensor Bracket & Bolt
    GM1977736Courtesy of GENERAL MOTORS CORP.
  1. Install the brake fluid level sensor bracket bolt (1) and bracket (2) to the BPMV module assembly and tighten to 8 N.m (71 lb in).

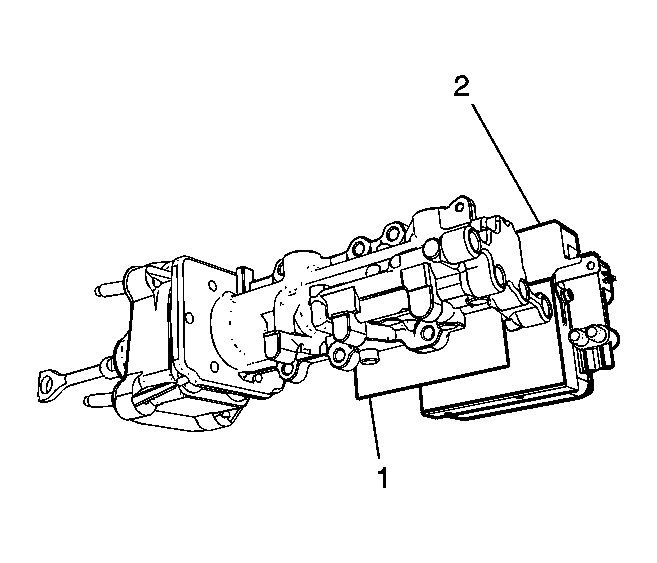

    2. Fig 2: Identifying BPMV Gasket & BPMV Module Assembly
    GM1977794Courtesy of GENERAL MOTORS CORP.
  2. Install a new BPMV gasket (1) and the BPMV module assembly (2).
    3. NOTE: Hand install the BPMV module assembly bolts prior to tightening the bolts to properly locate the BPMV module assembly.

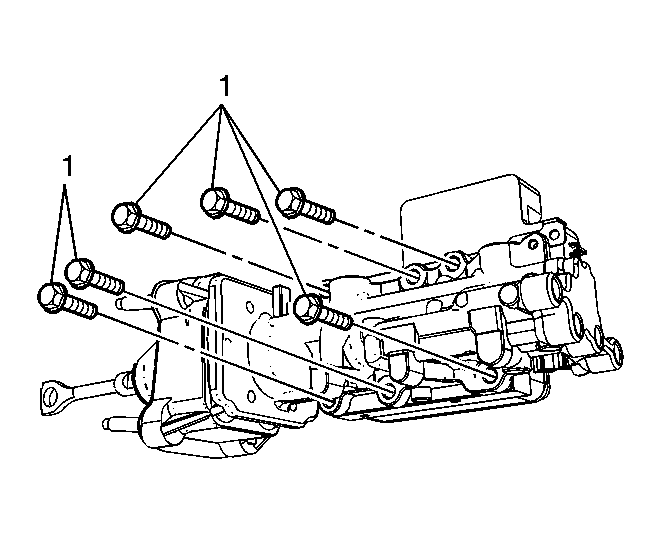

    Fig 3: Identifying Brake Pressure Modulator Valve (BPMV) Bolts
    GM1977793Courtesy of GENERAL MOTORS CORP.
  3. Install the BPMV bolts (1) and tighten to 32 N.m (24 lb ft.

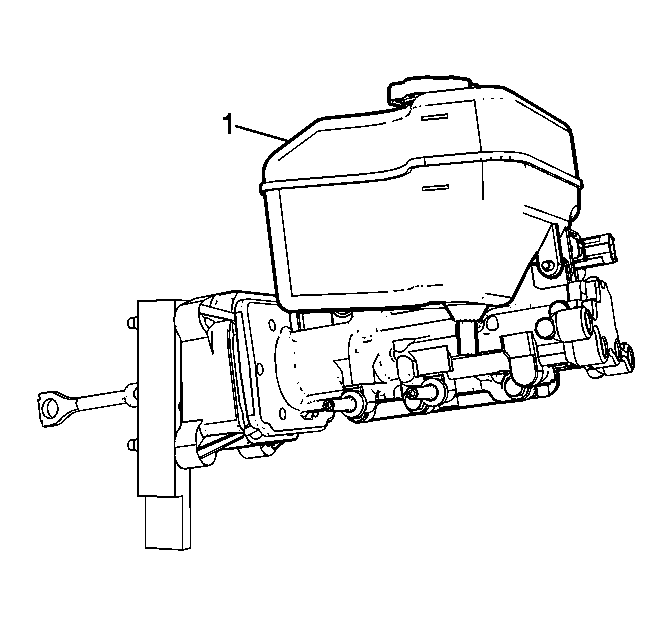

    4. Fig 4: Identifying Master Cylinder Reservoir
    GM1977792Courtesy of GENERAL MOTORS CORP.
  4. Install the master cylinder reservoir (1). Refer to Master Cylinder Reservoir Replacement .

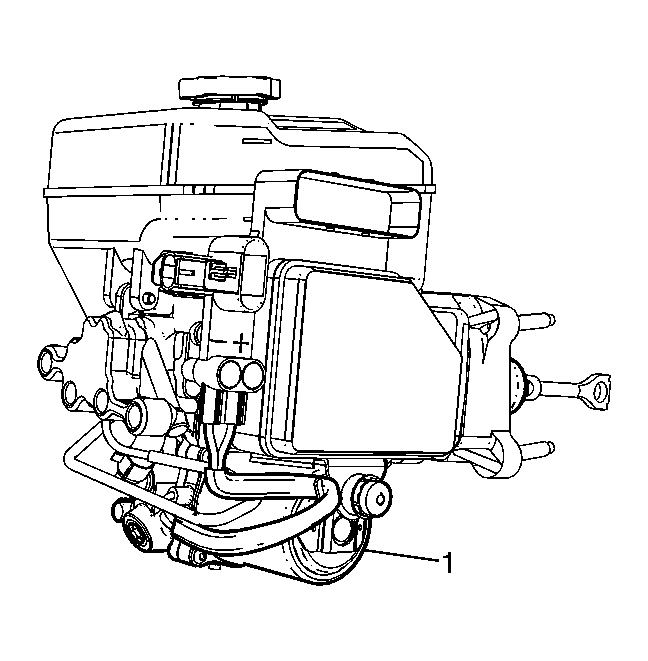

    5. Fig 5: Identifying Power Brake Booster
    GM1977787Courtesy of GENERAL MOTORS CORP.
  5. Install the power brake booster (1). Refer to Power Brake Booster Replacement .

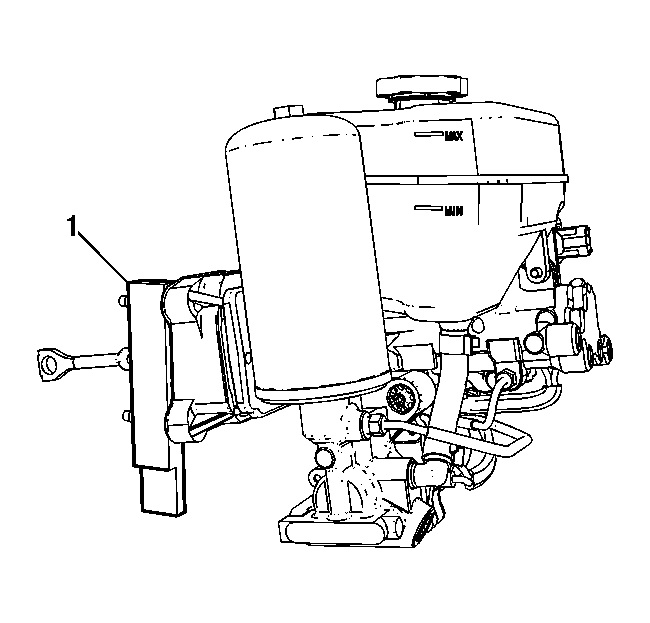

    6. Fig 6: Identifying Holding Fixture On Brake Master Cylinder Assembly
    GM1977780Courtesy of GENERAL MOTORS CORP.
  6. Remove the CH-47830:  Holding Fixture (1) from the master cylinder assembly.
  7. Install the brake master cylinder and power brake booster assembly. Refer to Brake Master Cylinder with Power Brake Booster and Chassis Control Module Replacement .
  8. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Manual) .
  9. Refer to Control Module References for programming and setup information.
