Longitudinal Accelerometer Replacement

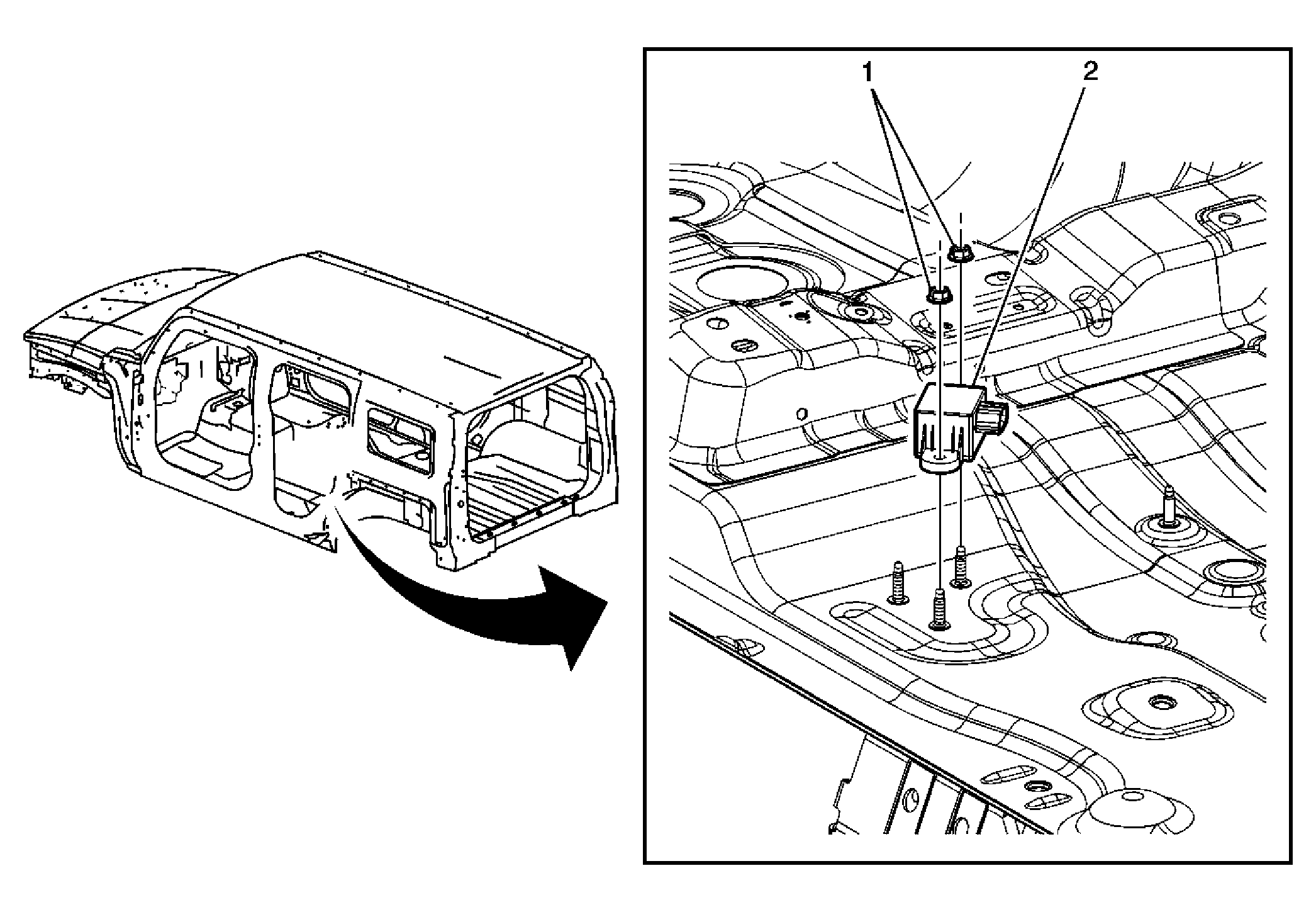

Fig 1: Identifying Longitudinal Accelerometer

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front floor carpet to access the longitudinal accelerometer. Refer to Front Floor Panel Carpet Replacement (SUV and SUT) . Disconnect the longitudinal accelerometer electrical connector.
1	Longitudinal Accelerometer Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Longitudinal Accelerometer

Callout

Component Name

Preliminary Procedures

Remove the front floor carpet to access the longitudinal accelerometer. Refer to Front Floor Panel Carpet Replacement (SUV and SUT) .
Disconnect the longitudinal accelerometer electrical connector.

Longitudinal Accelerometer Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Longitudinal Accelerometer
