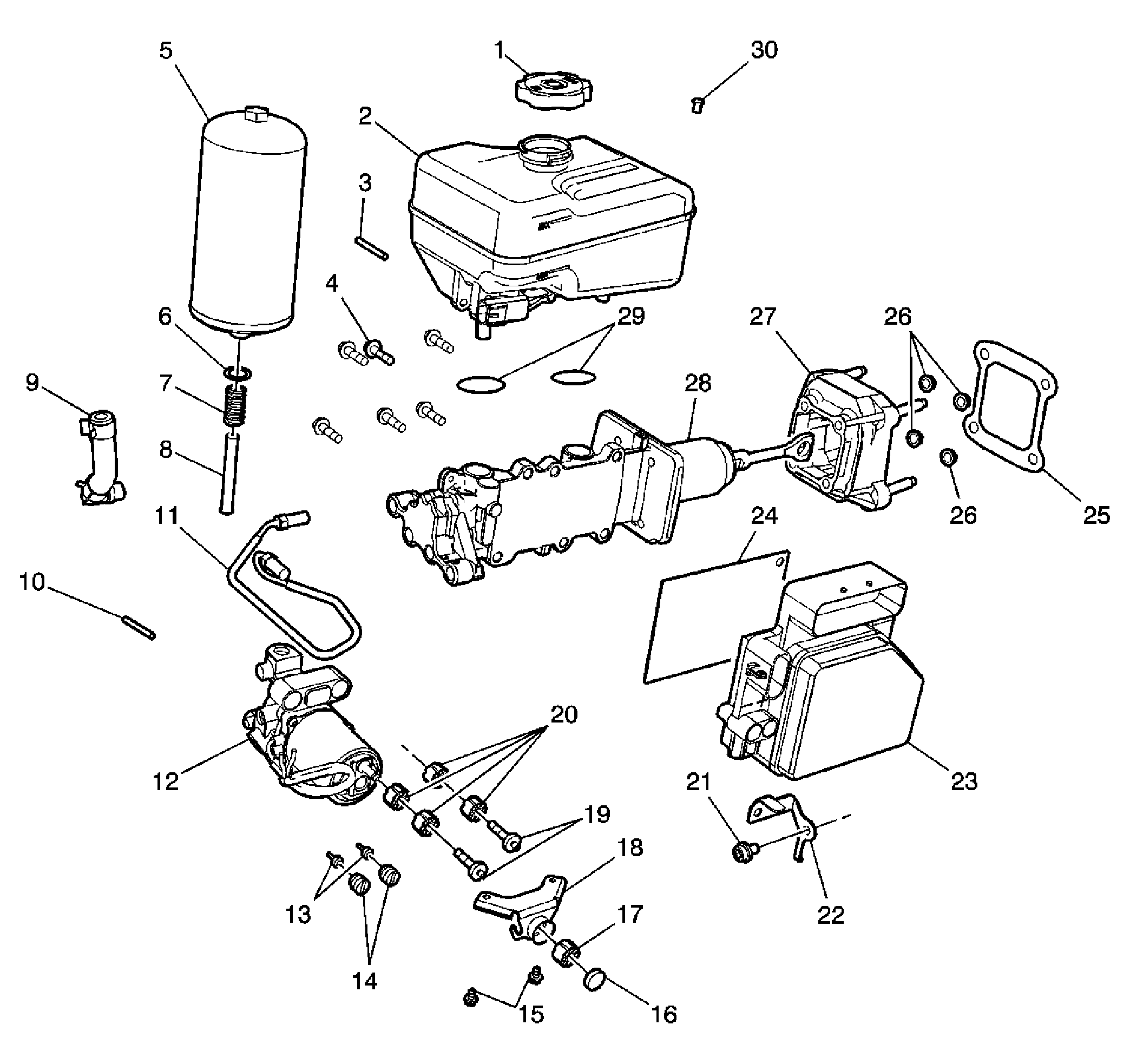

| 1 |
Master Cylinder Reservoir Cap |
| 2 |
Master Cylinder Reservoir |
| 3 |
Master Cylinder Reservoir Roll Pin |
| 4 |
Electronic Brake and Traction Control Module Bolt |
| 5 |
Power Brake Booster Pump Fluid Accumulator |
| 6 |
Power Brake Booster Pump Fluid Accumulator O-Ring Seal |
| 7 |
Power Brake Booster Pump Fluid Accumulator Fitting Spring |
| 8 |
Power Brake Booster Pump Fluid Accumulator Fitting |
| 9 |
Power Brake Booster Pump Fluid Inlet Hose Assembly |
| 10 |
Power Brake Booster Pump Fluid Inlet Hose Assembly Roll Pin |
| 11 |
Power Brake Booster Outlet Front Pipe |
| 12 |
Power Brake Booster Pump Motor |
| 13 |
Power Brake Booster Pump Motor Wire Harness Terminal Screws |
| 14 |
Power Brake Booster Pump Motor Wire Harness Terminal Plug |
| 15 |
Power Brake Booster Pump Motor Bracket Bolt |
| 16 |
Power Brake Booster Pump Motor Bracket Damper Retainer |
| 17 |
Power Brake Booster Pump Motor Bracket Damper |
| 18 |
Power Brake Booster Pump Motor Bracket |
| 19 |
Power Brake Booster Pump Motor Damper Pins |
| 20 |
Power Brake Booster Pump Motor Damper |
| 21 |
Brake Fluid Level Indicator Wire Harness Bracket Bolt |
| 22 |
Brake Fluid Level Indicator Wire Harness Bracket |
| 23 |
Electronic Brake and Traction Control Module |
| 24 |
Electronic Brake and Traction Control Module Gasket |
| 25 |
Brake Master Cylinder with Power Brake Booster and Chassis Control Module Assembly Gasket |
| 26 |
Brake Master Cylinder with Power Brake Booster and Chassis Control Module Assembly Spacer Bolt |
| 26 |
Brake Master Cylinder with Power Brake Booster and Chassis Control Module Assembly Spacer Bolt |
| 27 |
Brake Master Cylinder with Power Brake Booster and Chassis Control Module Assembly Spacer |
| 28 |
Brake Master Cylinder |
| 29 |
Master Cylinder Reservoir Grommet |
| 30 |
Master Cylinder Reservoir Bolt |
