Underhood Fuse Block
Electrical Center Identification Views
Fuse Block - Underhood, Label

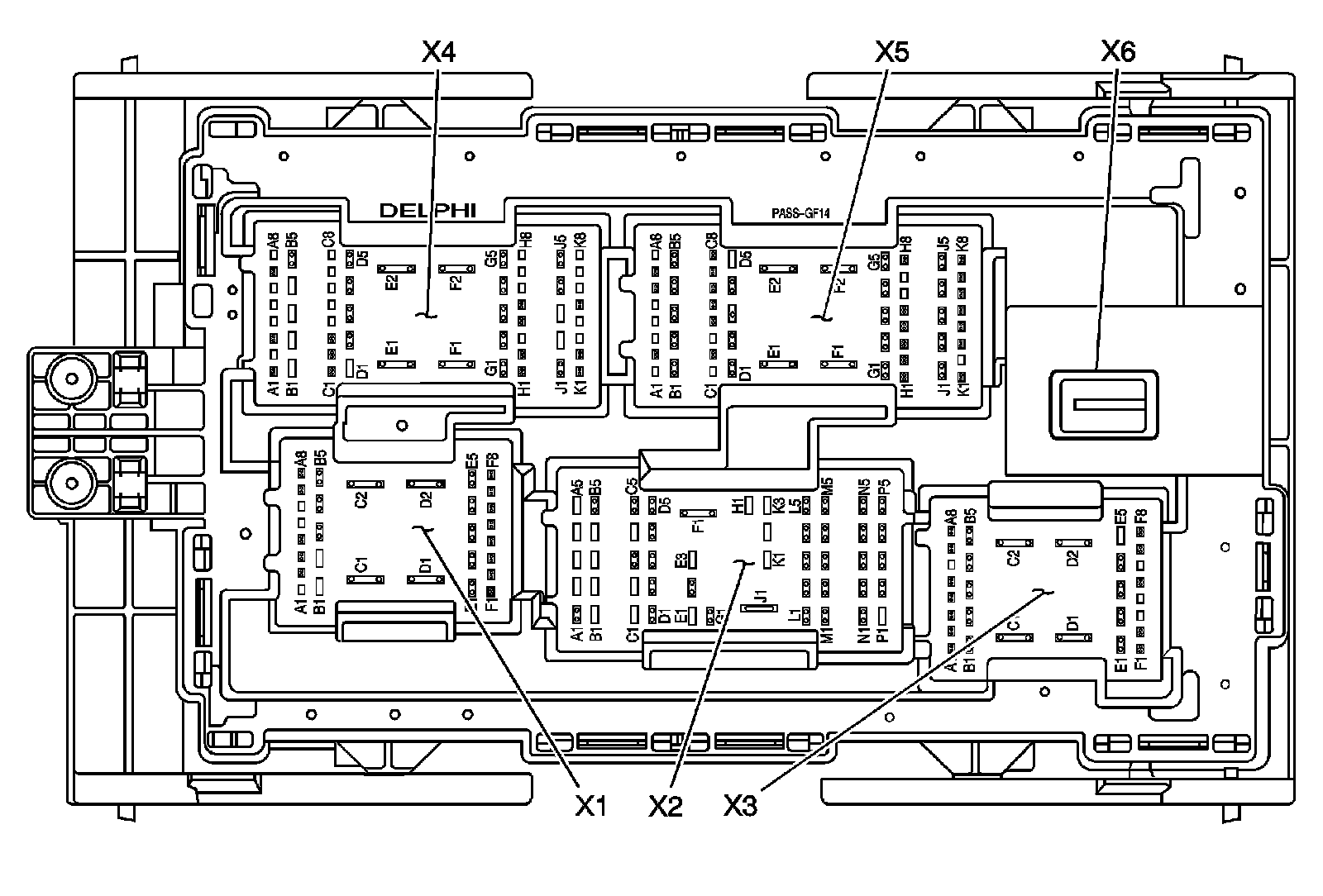

Fuse Block - Underhood, Top View
Fuse Block - Underhood, Bottom View

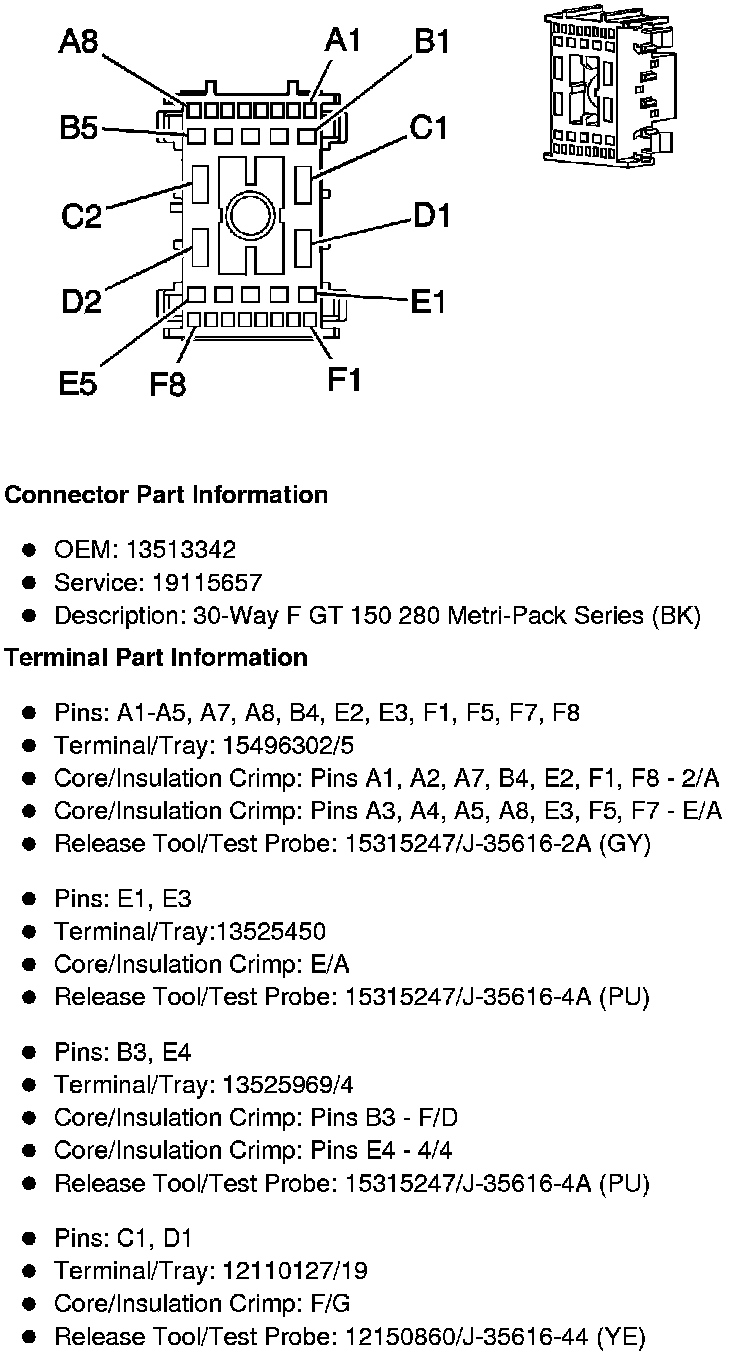

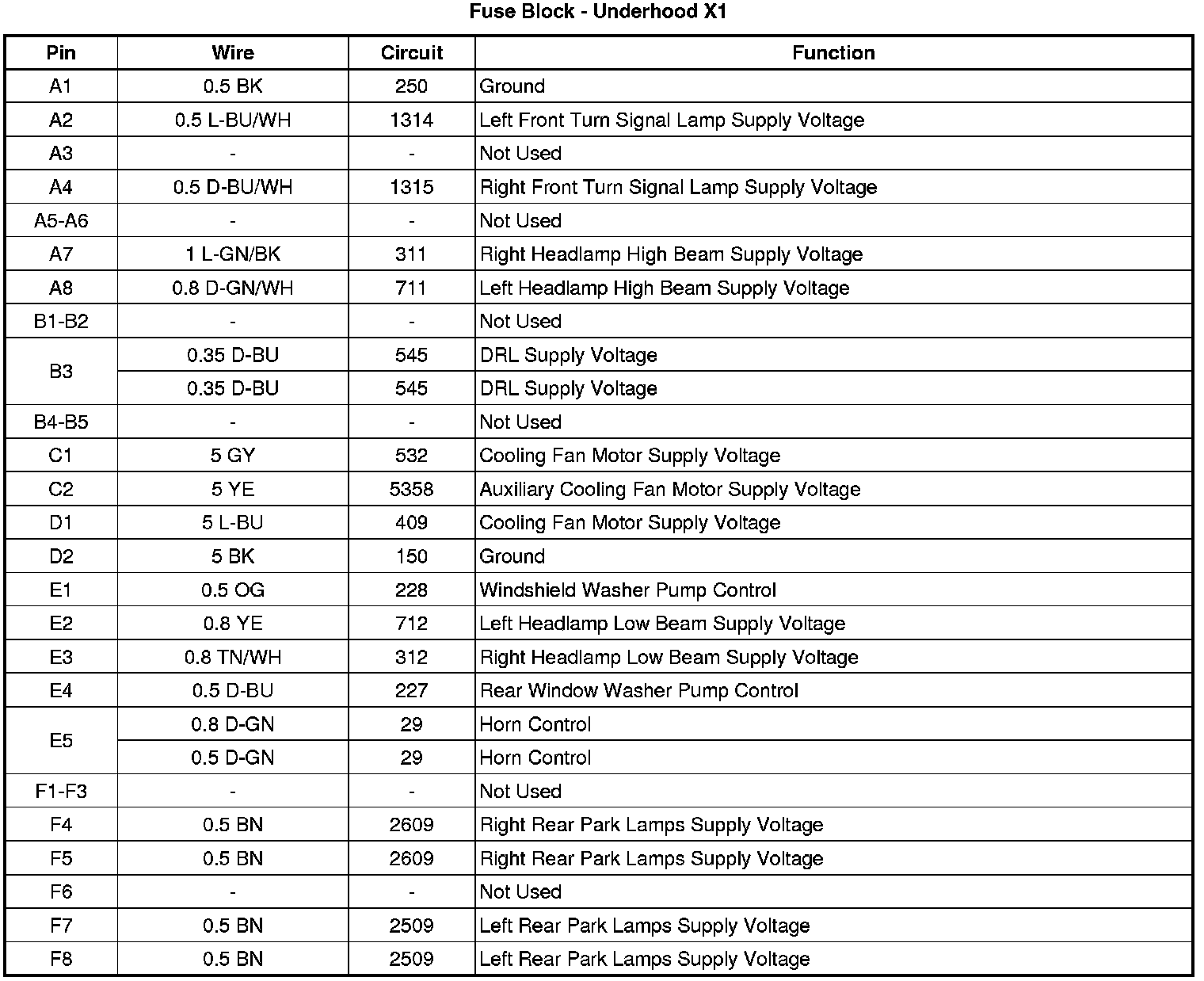

Fuse Block - Underhood X1

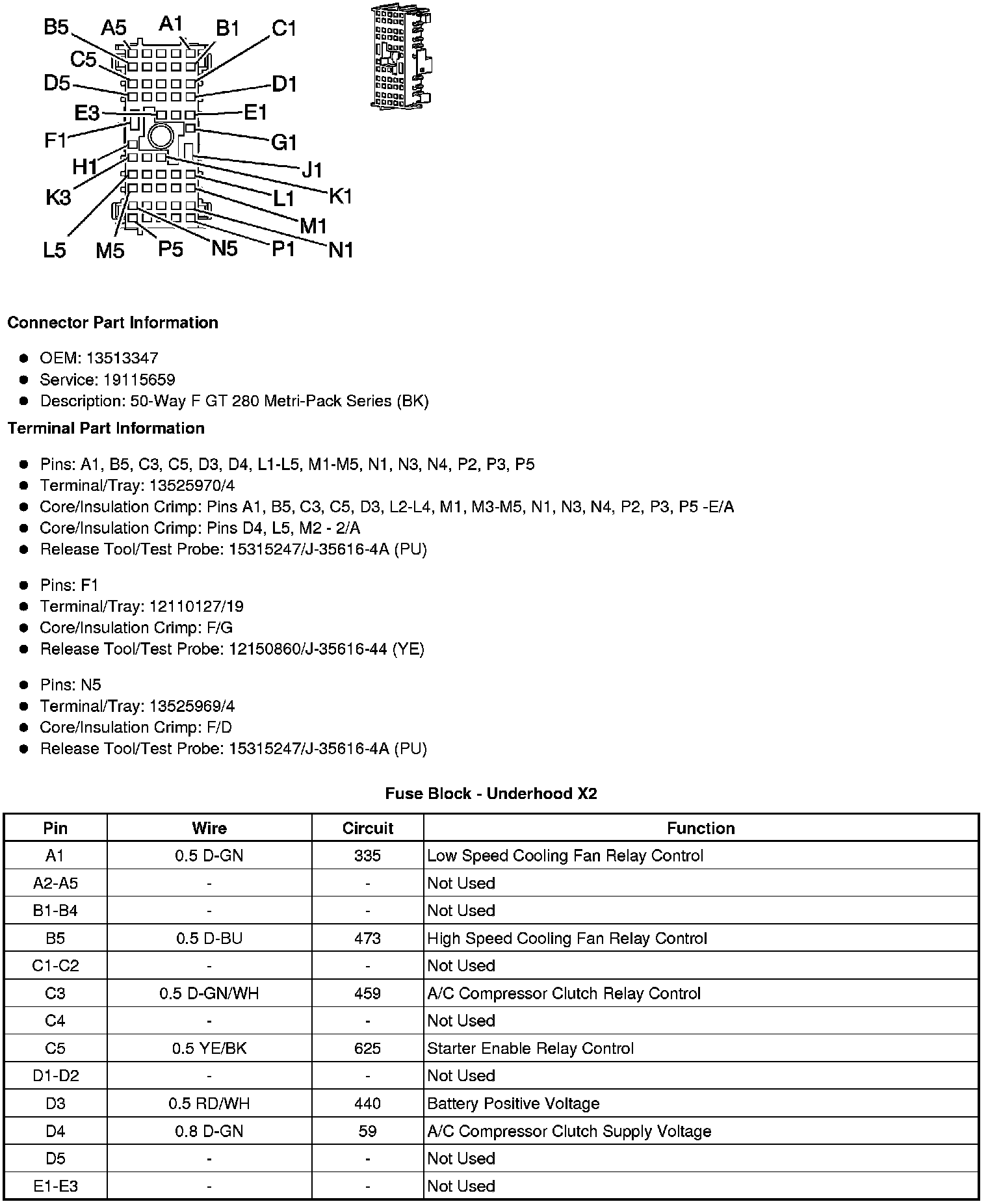

Fuse Block - Underhood X2

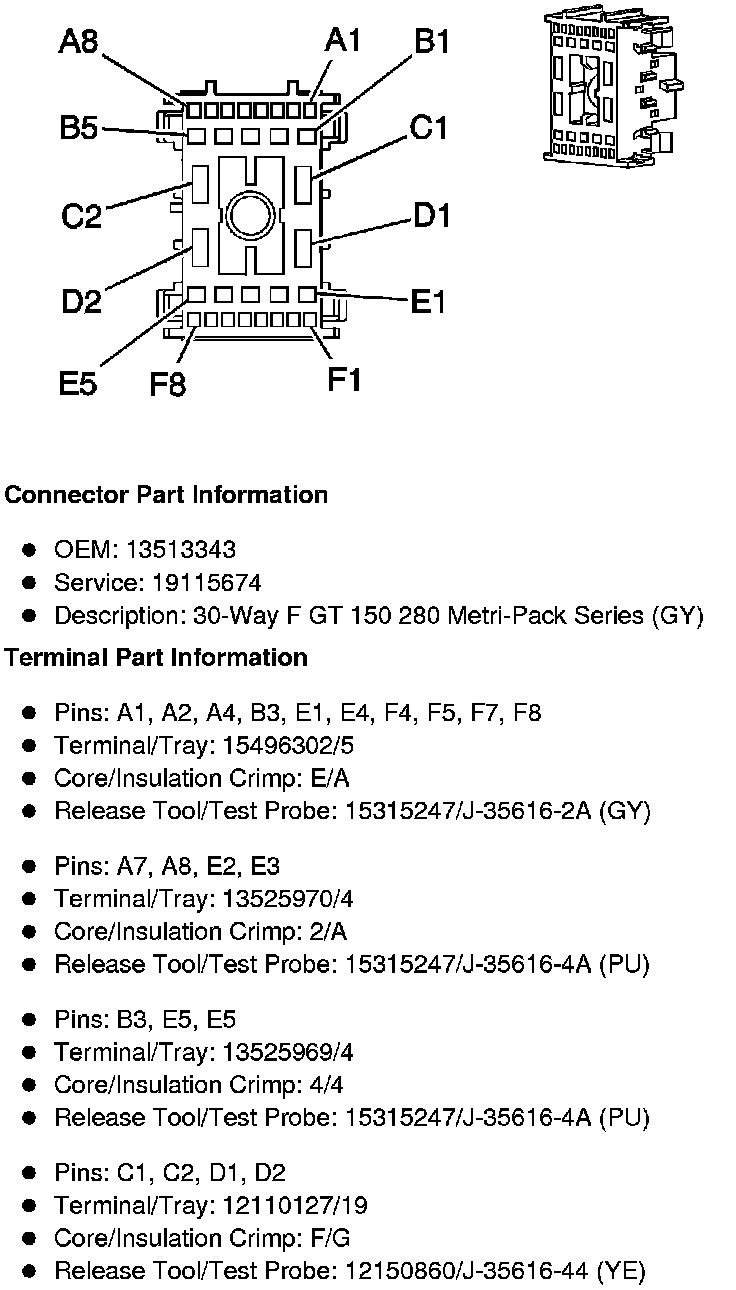

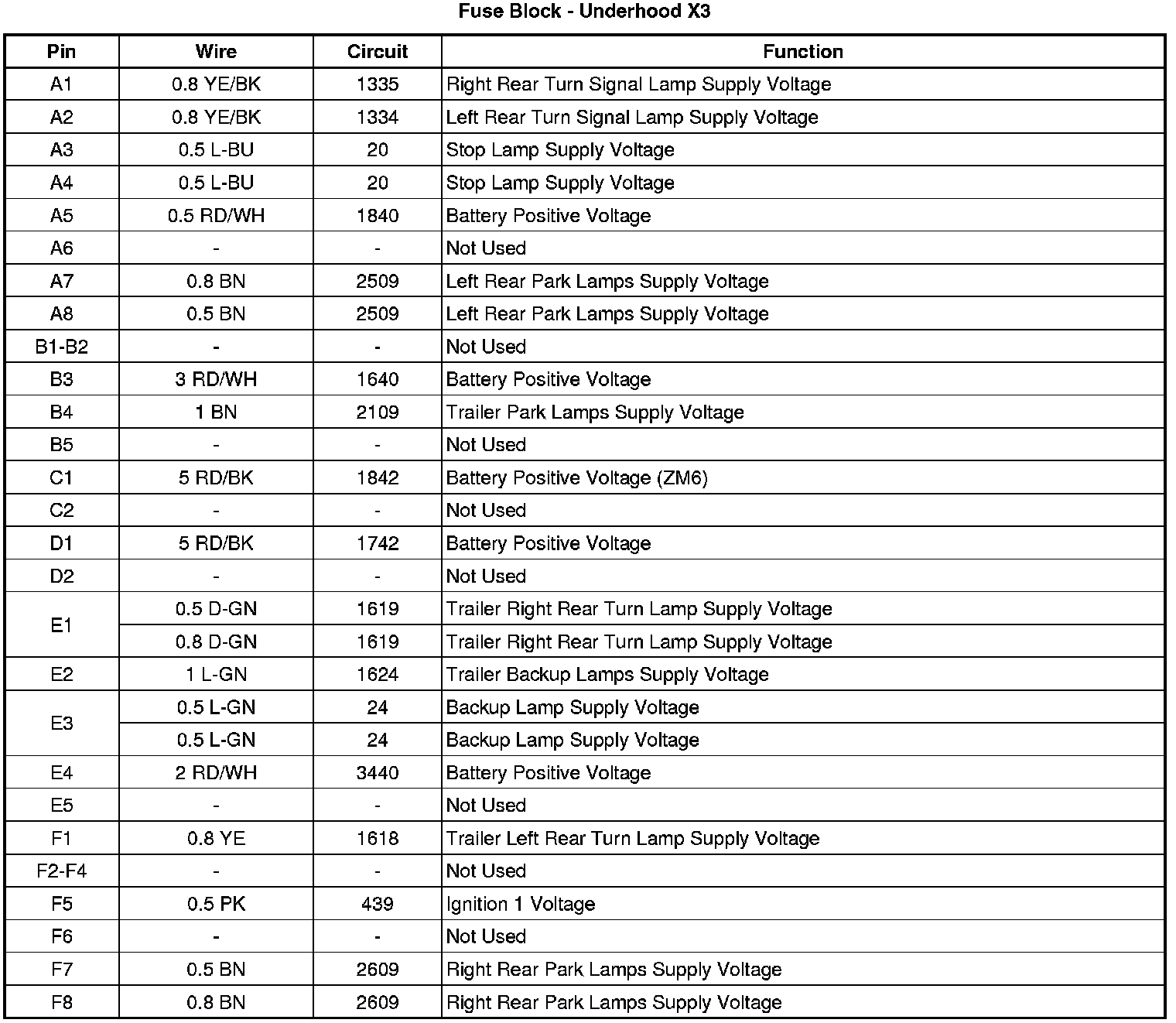

Fuse Block - Underhood X3

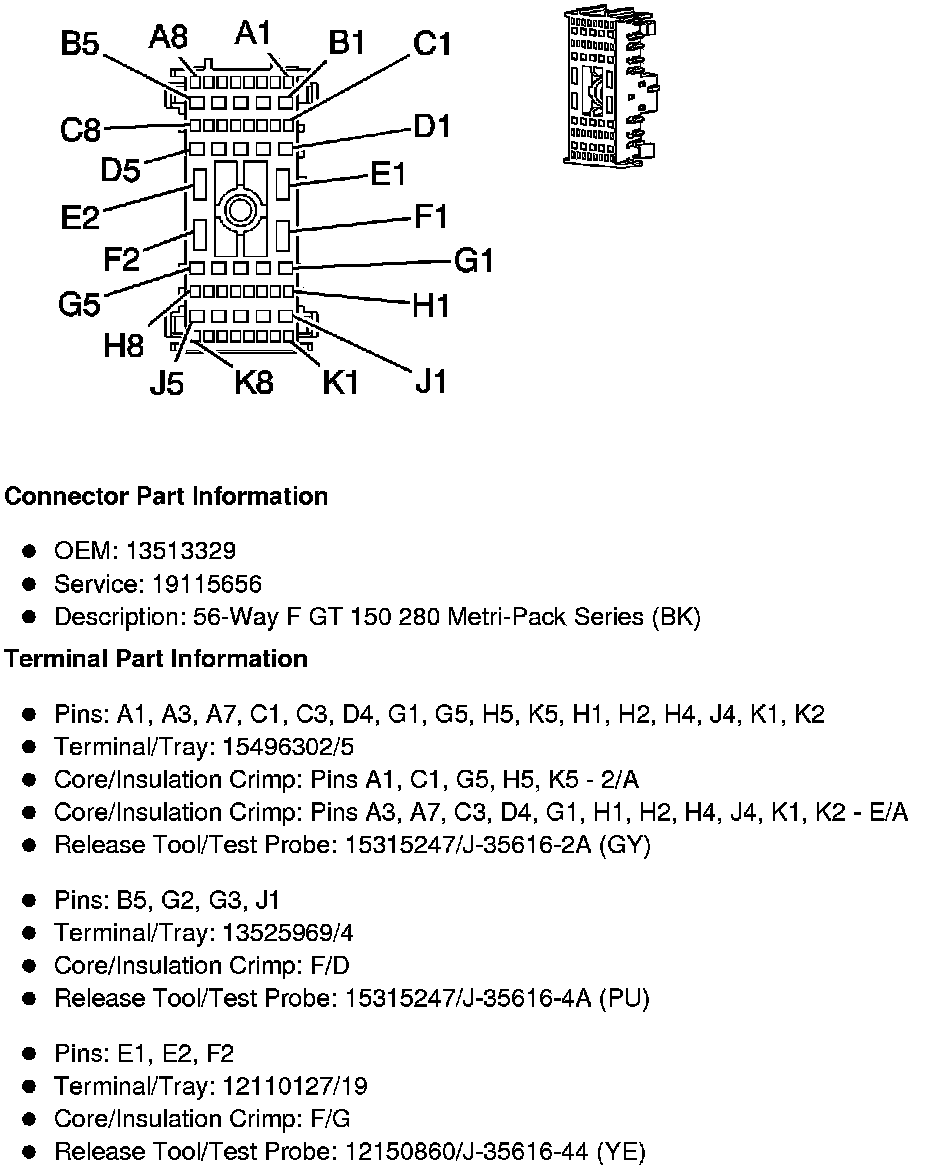

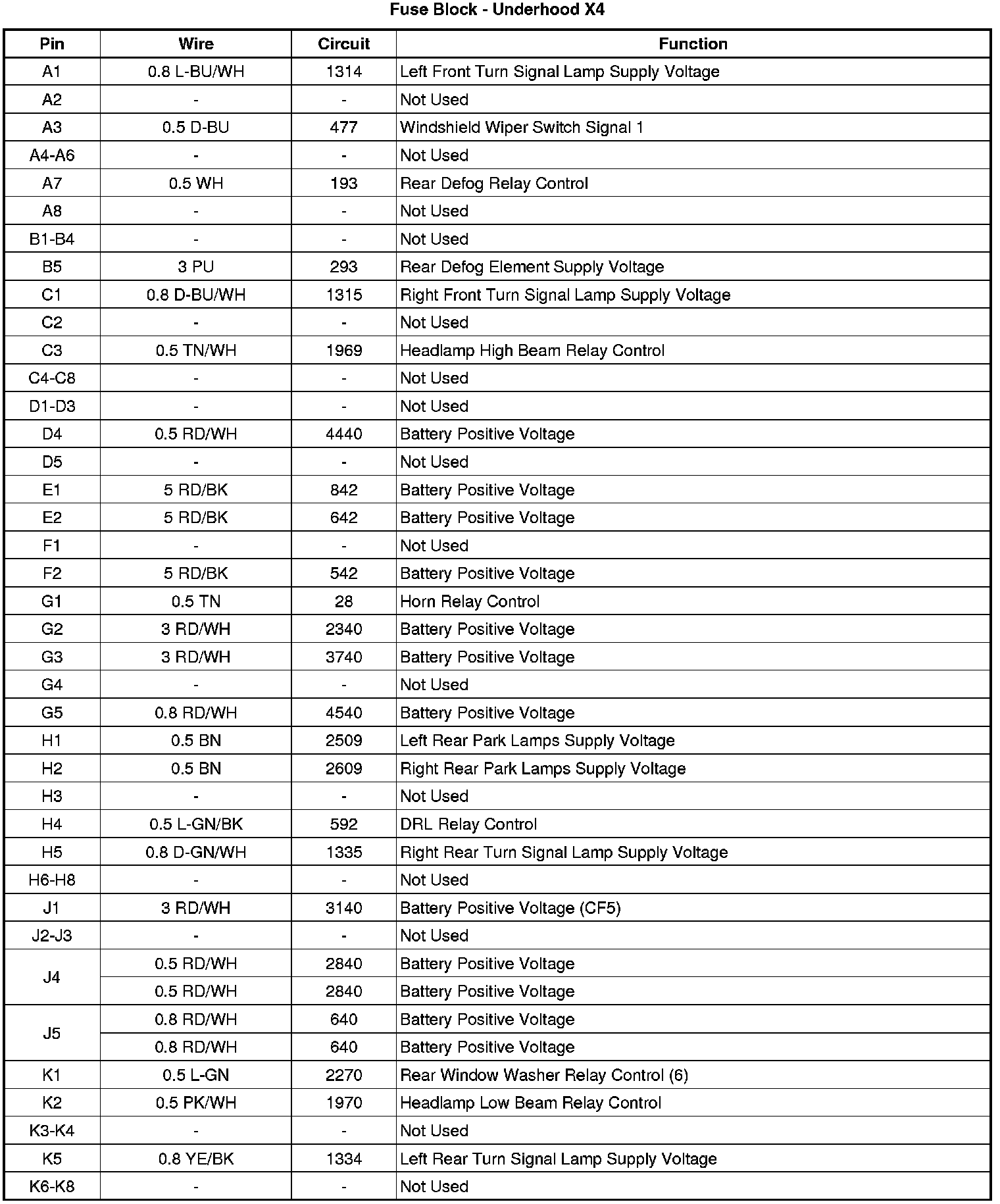

Fuse Block - Underhood X4

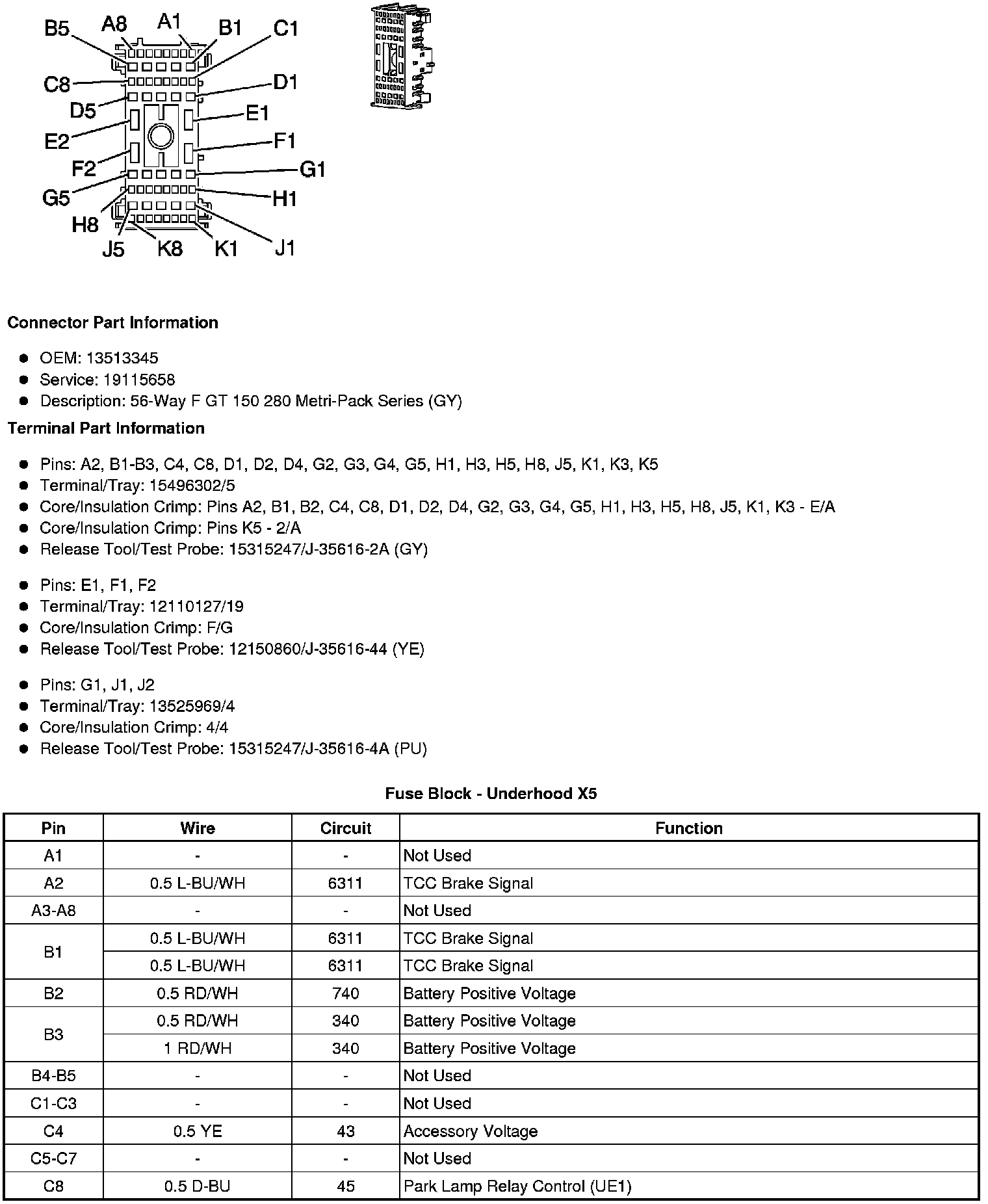

Fuse Block - Underhood X5
Fuse Block - Underhood X6
Fuse Block - Underhood X7
Fuse Block - Underhood X8
