Fuse Block
Electrical Center Identification Views

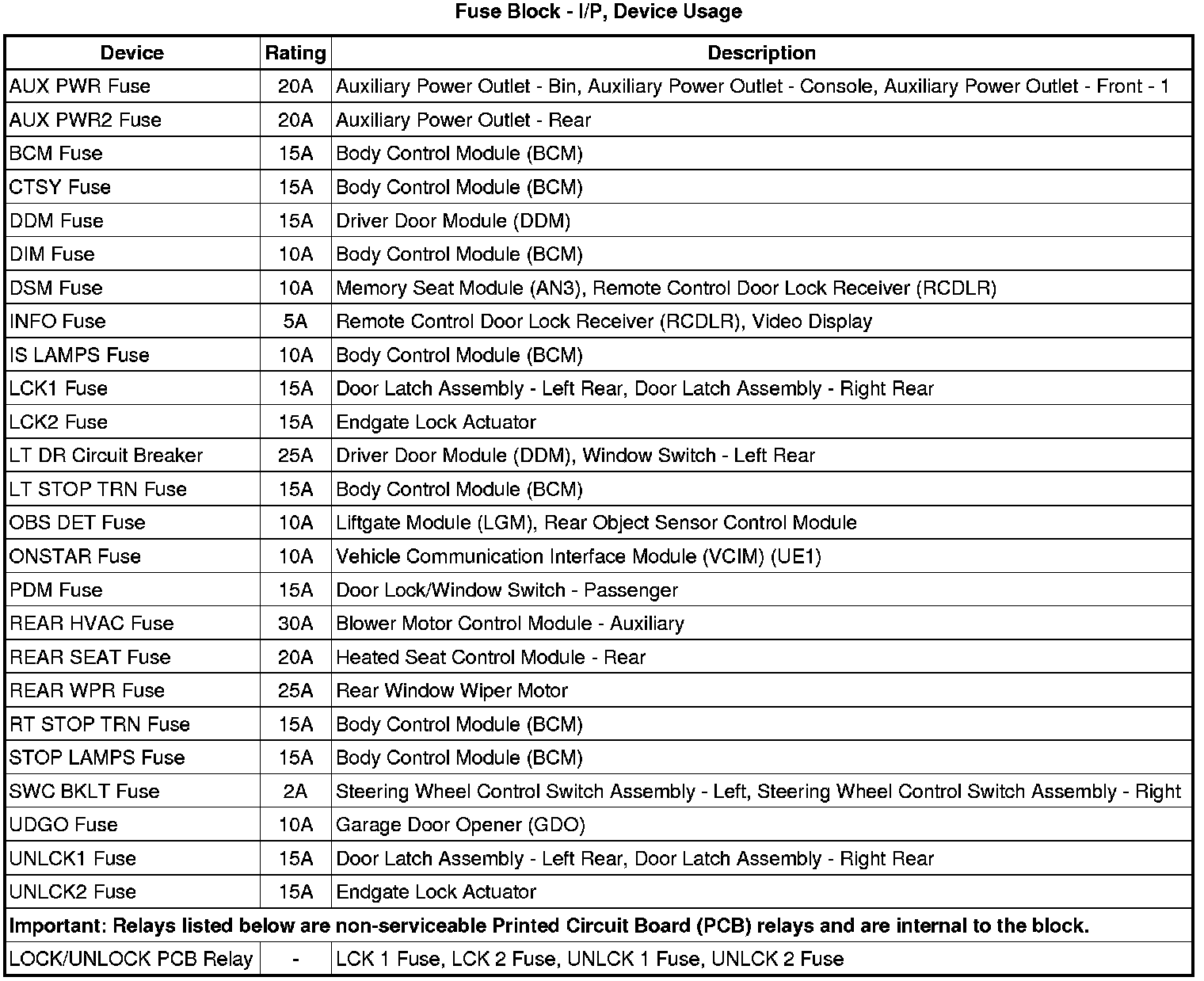

Fuse Block - I/P, Label

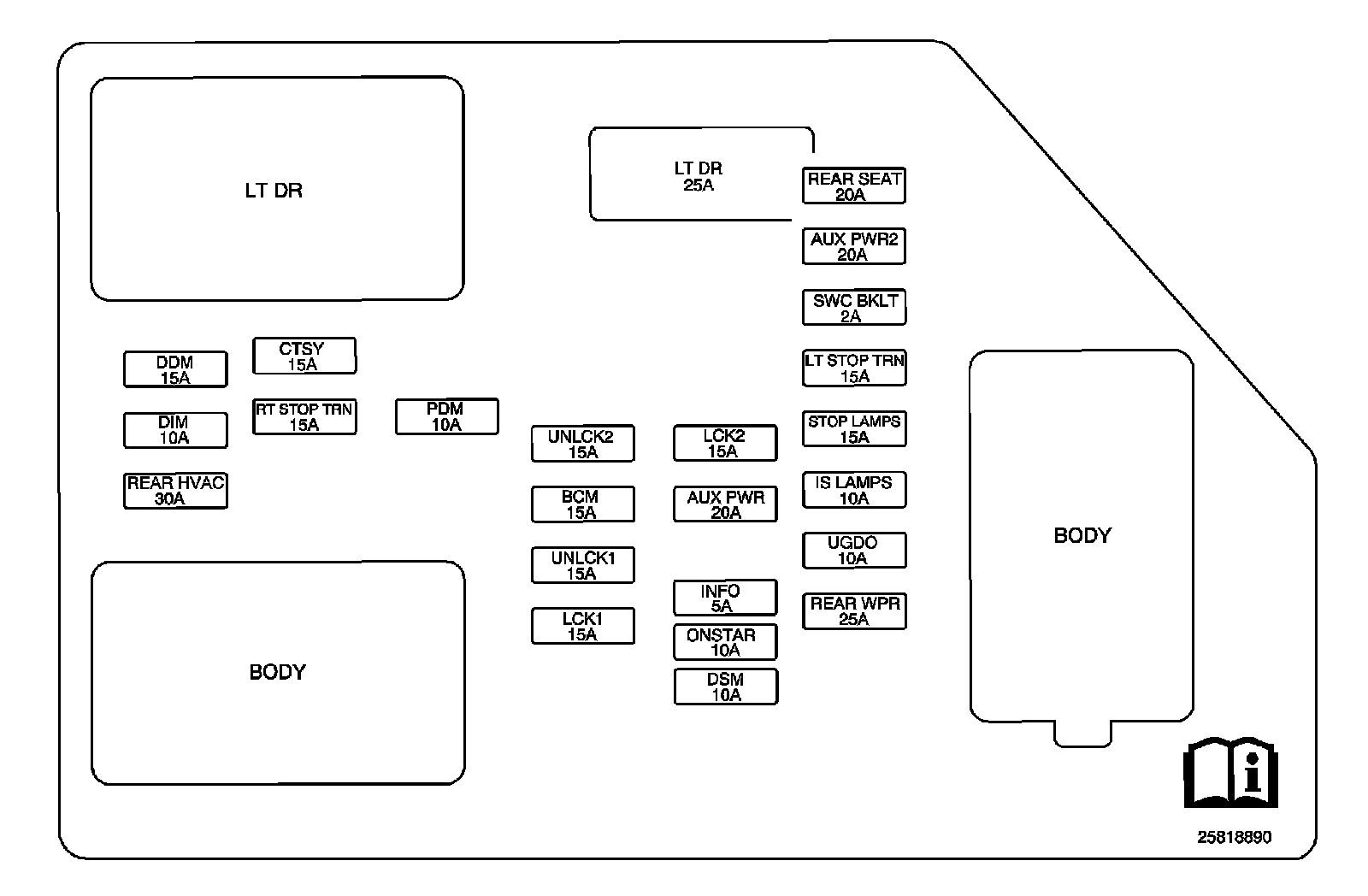

Fuse Block - I/P, Top View

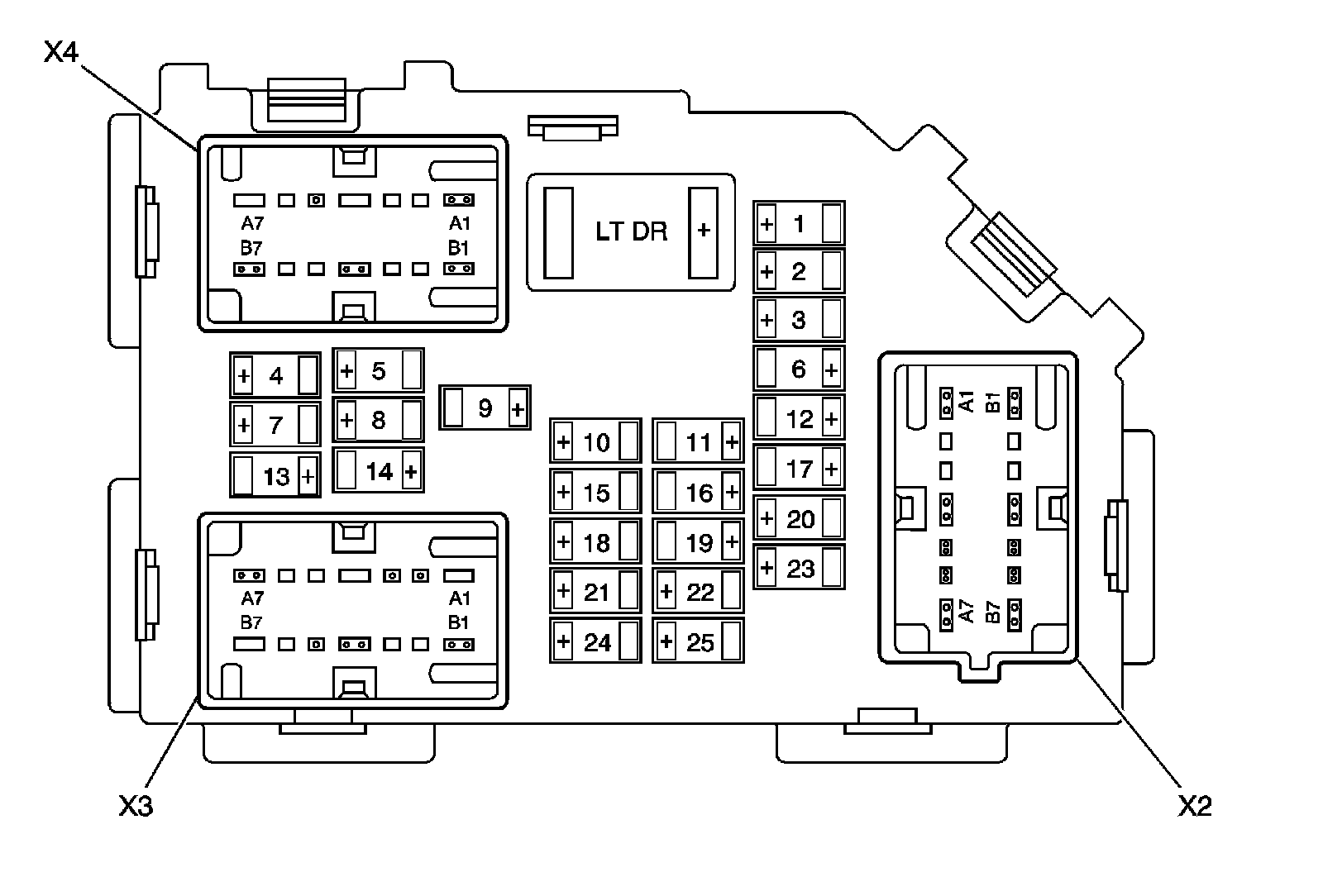

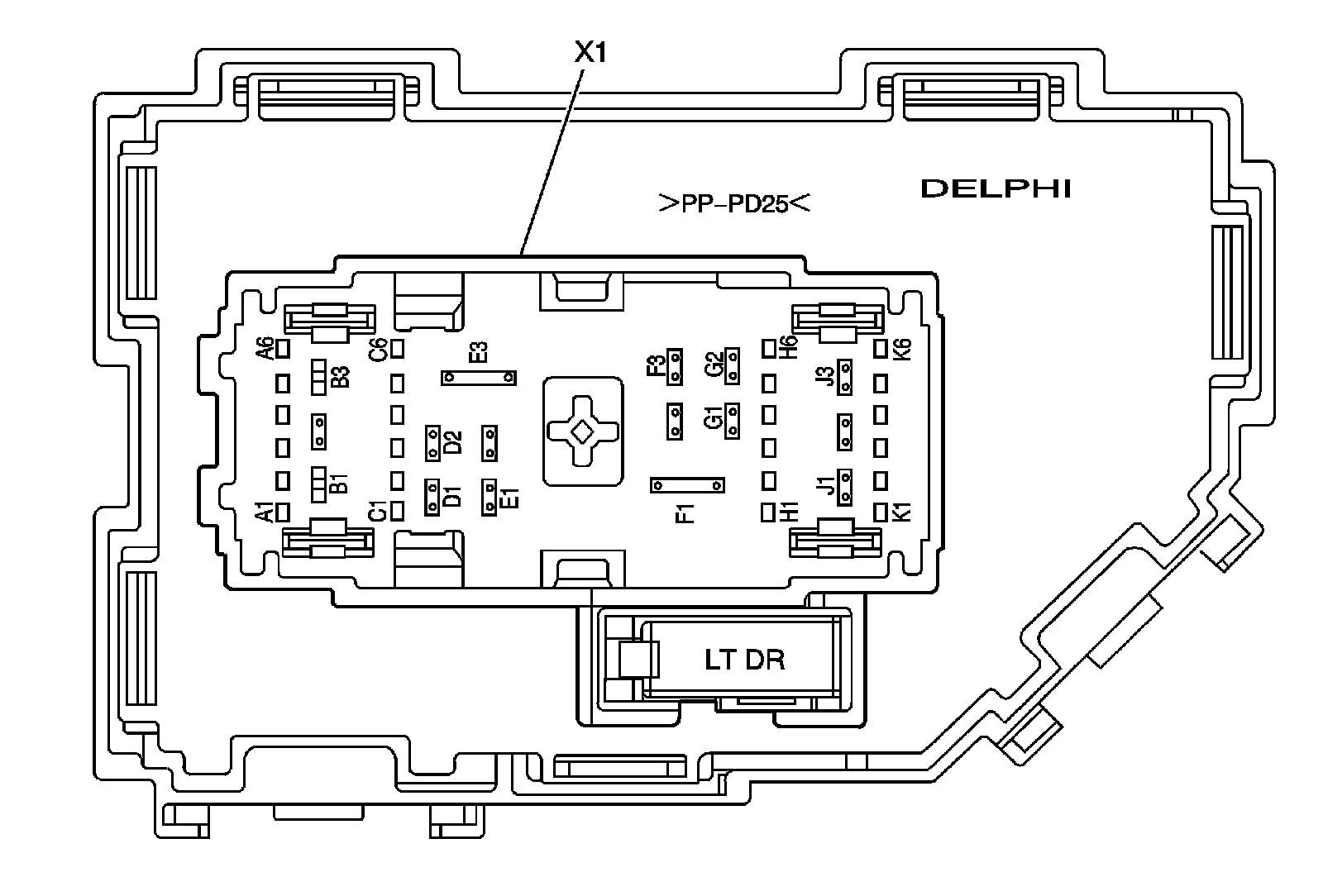

Fuse Block - I/P, Bottom View

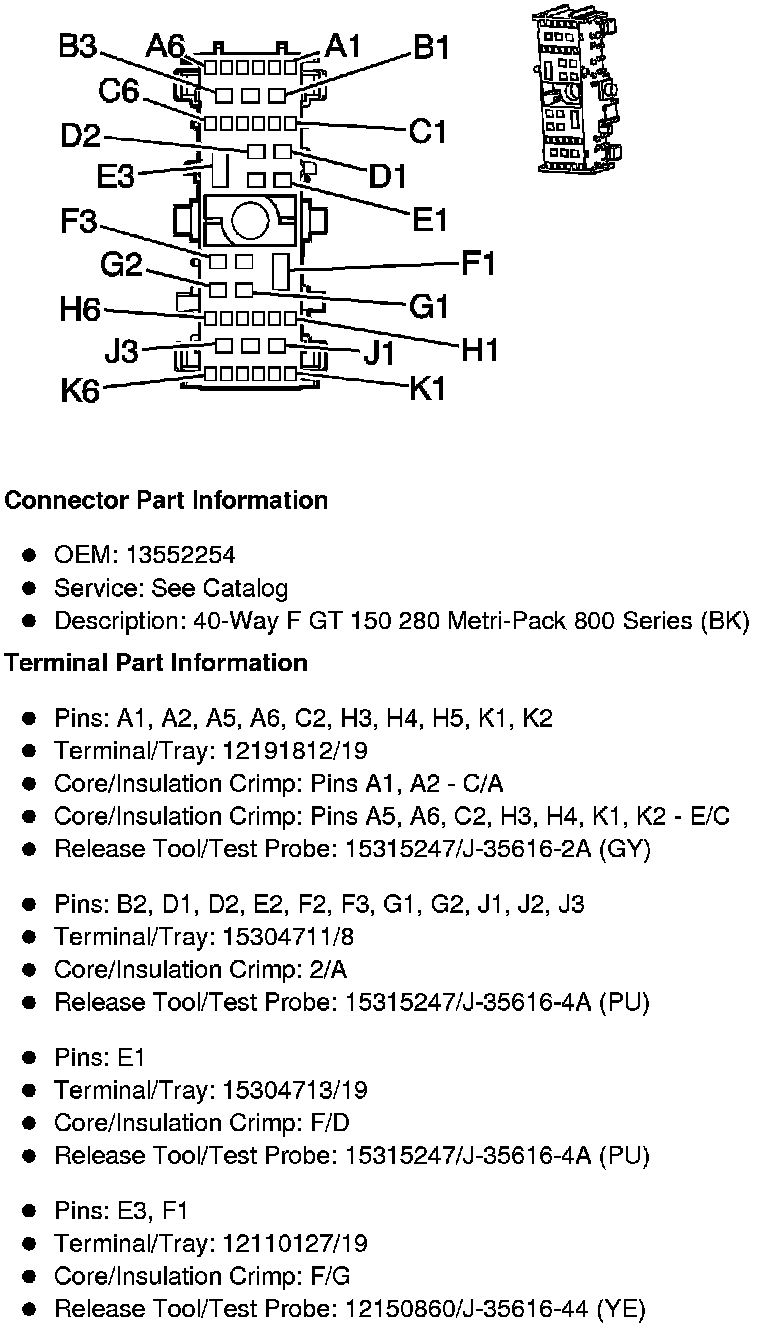

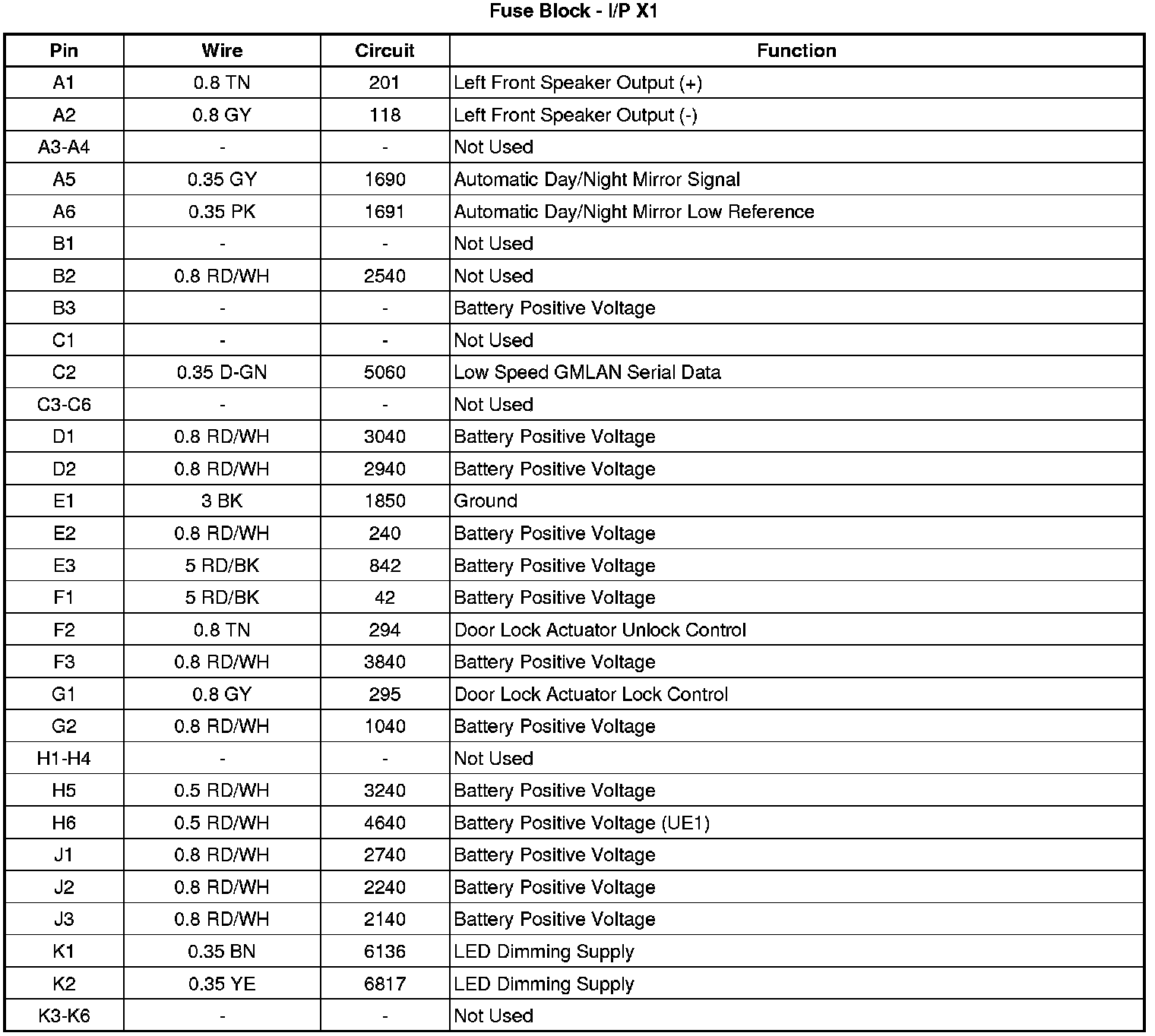

Fuse Block - I/P X1

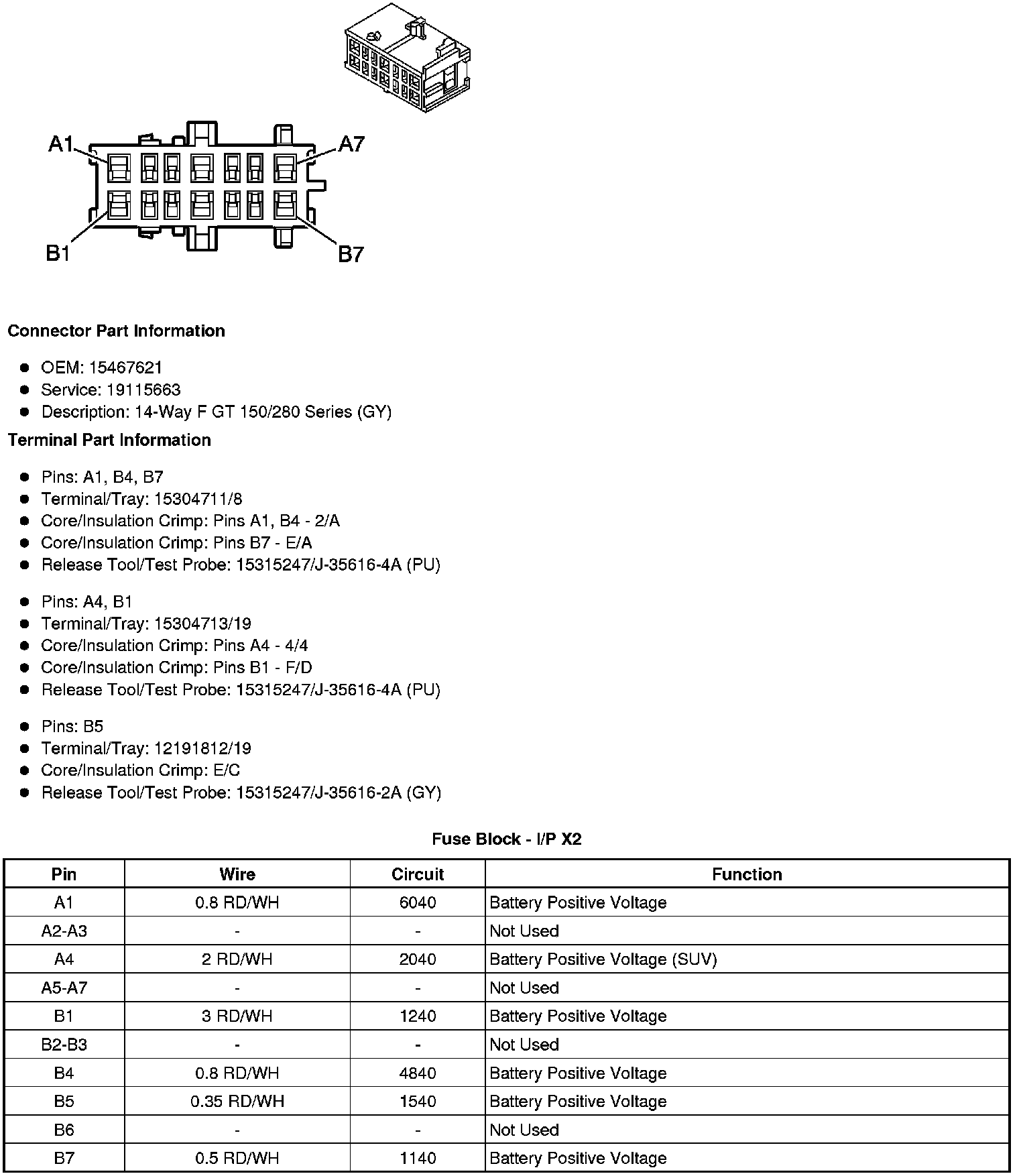

Fuse Block - I/P X2

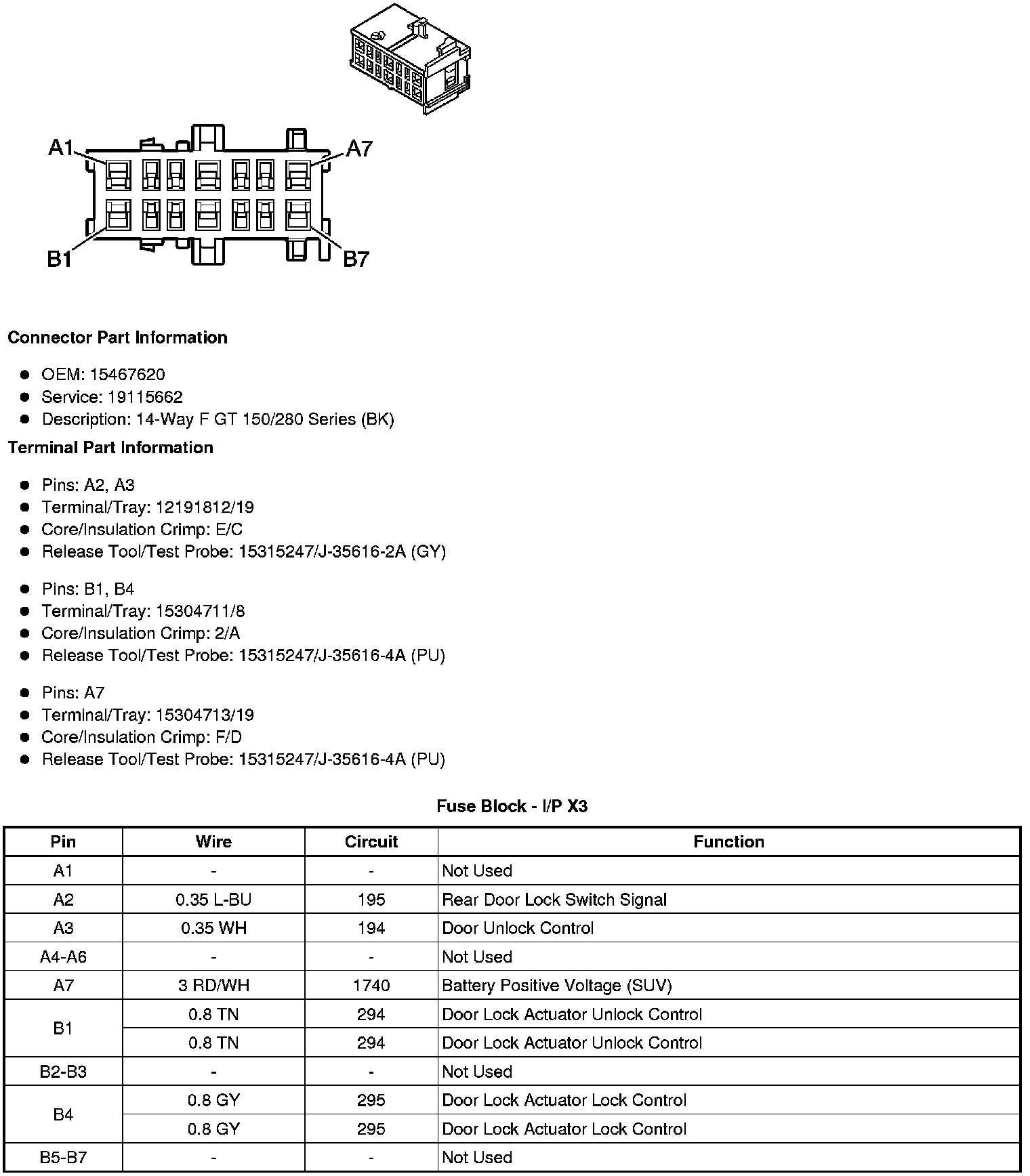

Fuse Block - I/P X3

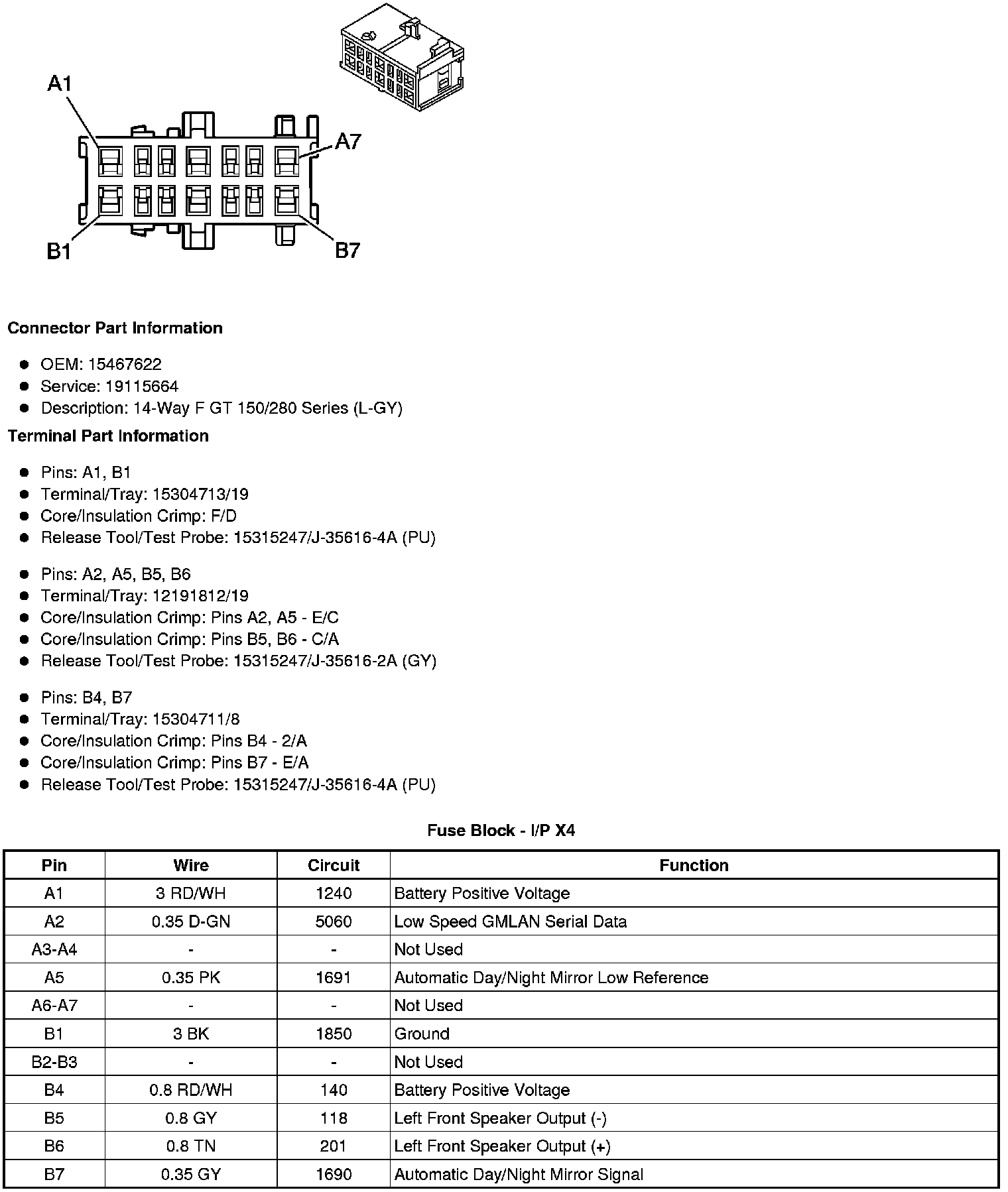

Fuse Block - I/P X4
Electrical Center Identification Views
Fuse Block - I/P, Label
Fuse Block - I/P, Top View
Fuse Block - I/P, Bottom View
Fuse Block - I/P X1
Fuse Block - I/P X2
Fuse Block - I/P X3
Fuse Block - I/P X4
