Generator Bracket Replacement

Generator Bracket Replacement

Removal Procedure

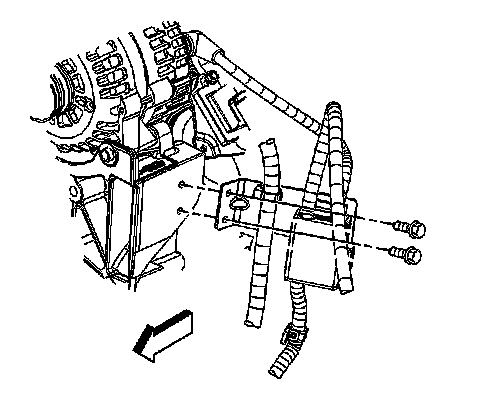

1. Remove the battery cable junction block bracket bolts.




2. Remove the generator. Refer to Generator Replacement (Generator Replacement).
3. Remove the power steering pump. Refer to Power Steering Pump Replacement (Power Steering Pump Replacement).
4. Remove the generator bracket bolts.
5. Remove the generator bracket.

Installation Procedure




1. Install the generator bracket.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the generator bracket bolts.

Tighten the bolts to 50 Nm (37 lb ft).

3. Install the power steering pump. Refer to Power Steering Pump Replacement (Power Steering Pump Replacement).
4. Install the generator. Refer to Generator Replacement (Generator Replacement).




5. Install the battery cable junction block bracket bolts.

Tighten the bolts to 9 Nm (80 lb in).
