Control Module: Service and Repair

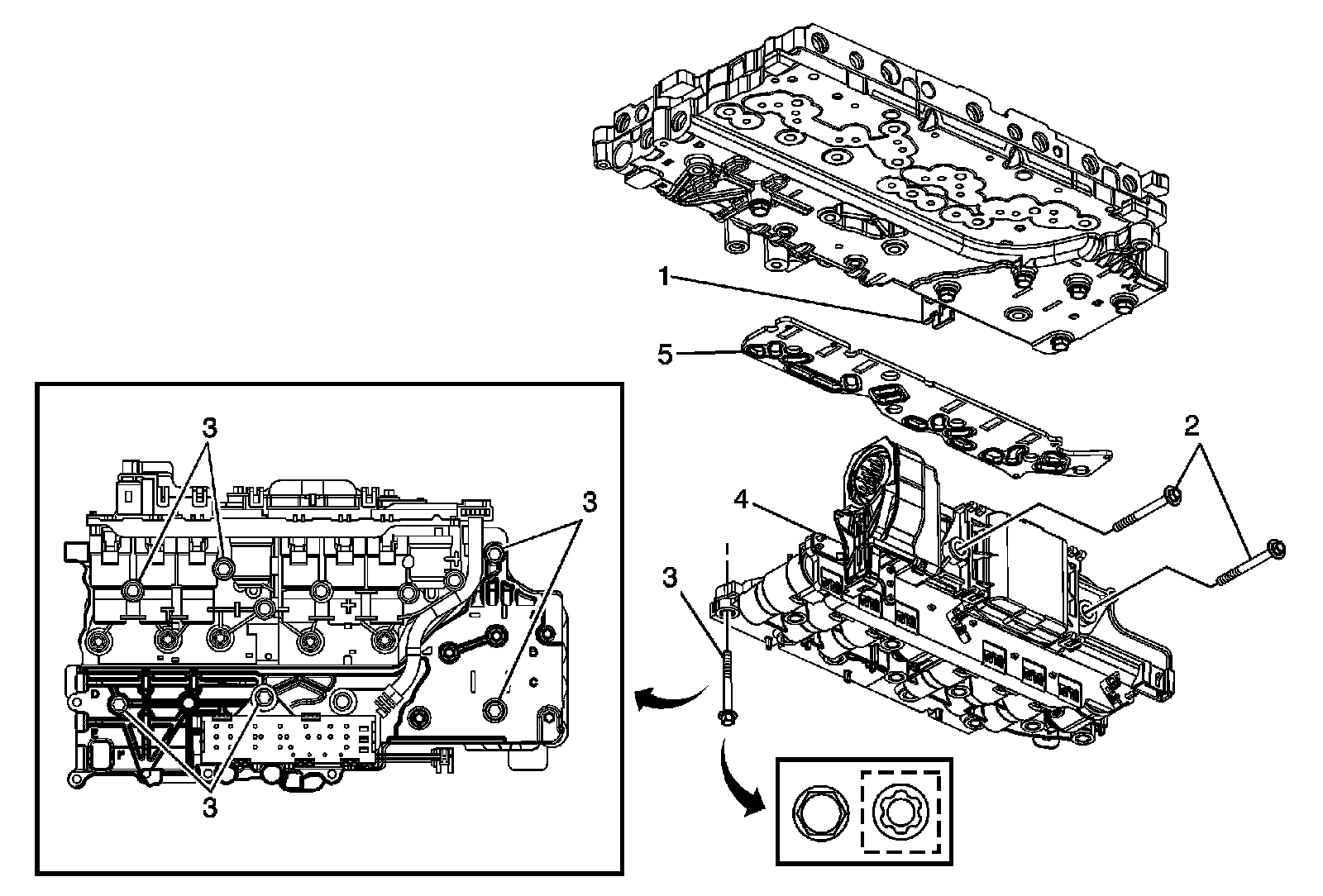

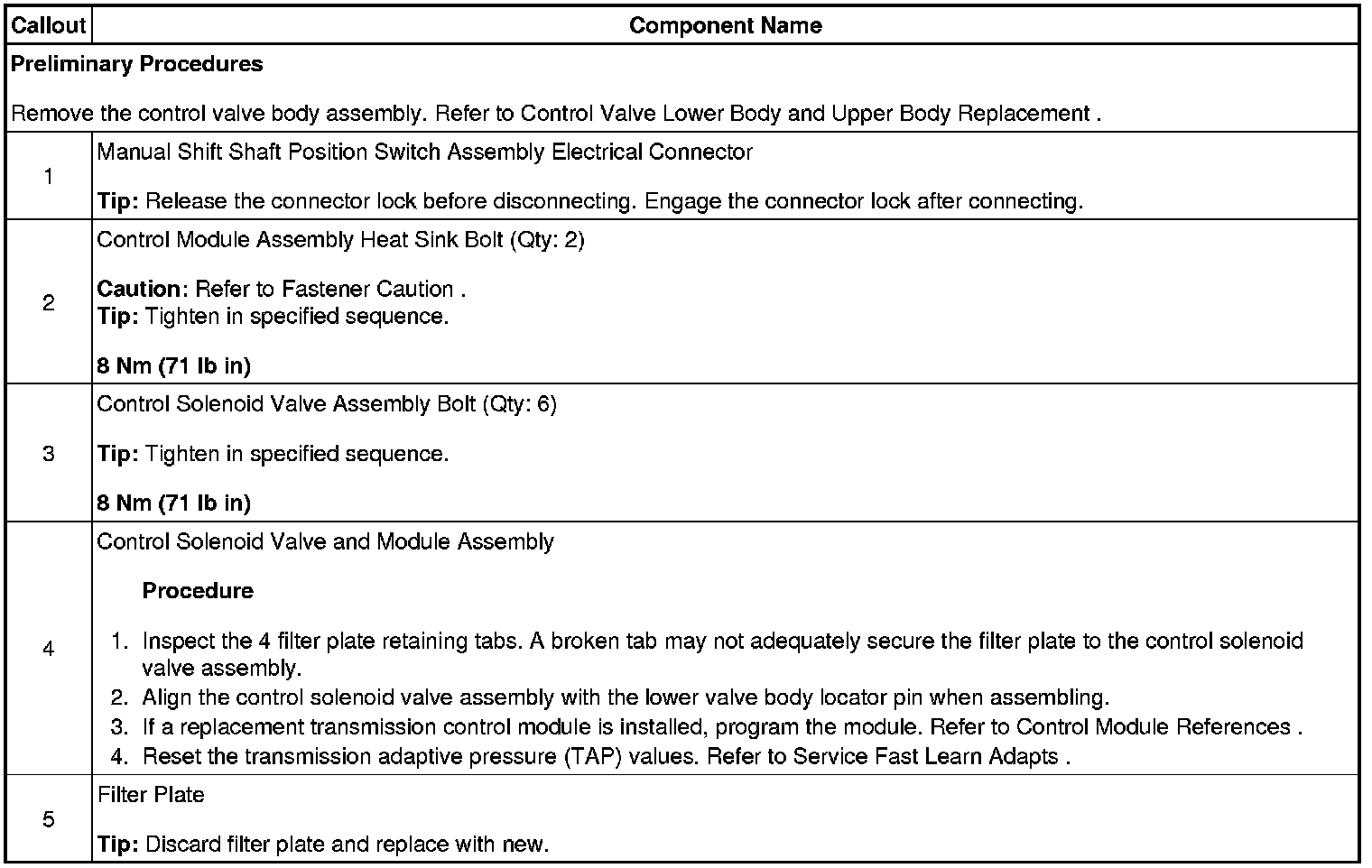

Control Solenoid Valve and Transmission Control Module Assembly Replacement
