Transfer Case Shift Control Module X1 (NQH)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

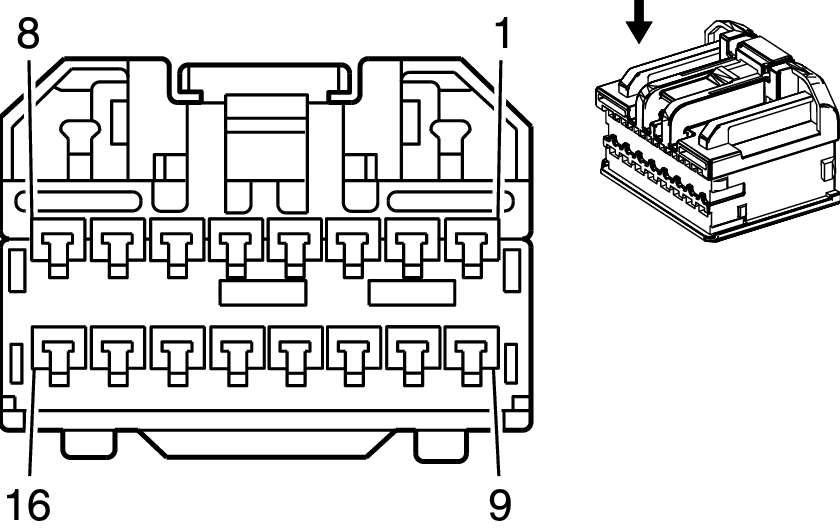

Fig 1: Transfer Case Shift Control Module X1 (NQH) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire Color	Circuit	Function
1	-	-	Not Used
2	0.35 GY	6029	5-Volt Reference
3	0.35 D-BU/WH	7473	Transfer Case Encoder Signal
4	0.5 OG/WH	7477	5-Volt Reference
5	0.35 BN	1560	4WD Neutral Indicator Control
6	0.35 L-GN/BK	1563	2H Indicator Control
7	1 TN	1569	Lock Solenoid Control
8	-	-	Not Used
9	0.35 WH/L-GN	7475	8-Volt Reference
10	0.35 PU	7476	Low Reference
11	0.35 L-BU	1693	Switch Signal
12	0.35 TN/BK	1566	4H Indicator Control
13	0.35 PU/WH	1565	4L Indicator Control
14	0.35 PK	1561	AWD Indicator Control
15	0.35 GY/BK	1570	Axle Actuator - Control
16	-	-	Not Used

Connector Part Information

OEM: 13547237
Service: See Catalog
Description: 16-Way F 1.5 Series (GY)

Terminal Part Information

Pins: 2-6, 9-15
Terminal/Tray: 8240-0127/22
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: 7
Terminal/Tray: 8240-0128/22
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
