Transfer Case Shift Control Module X2 (NQH)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

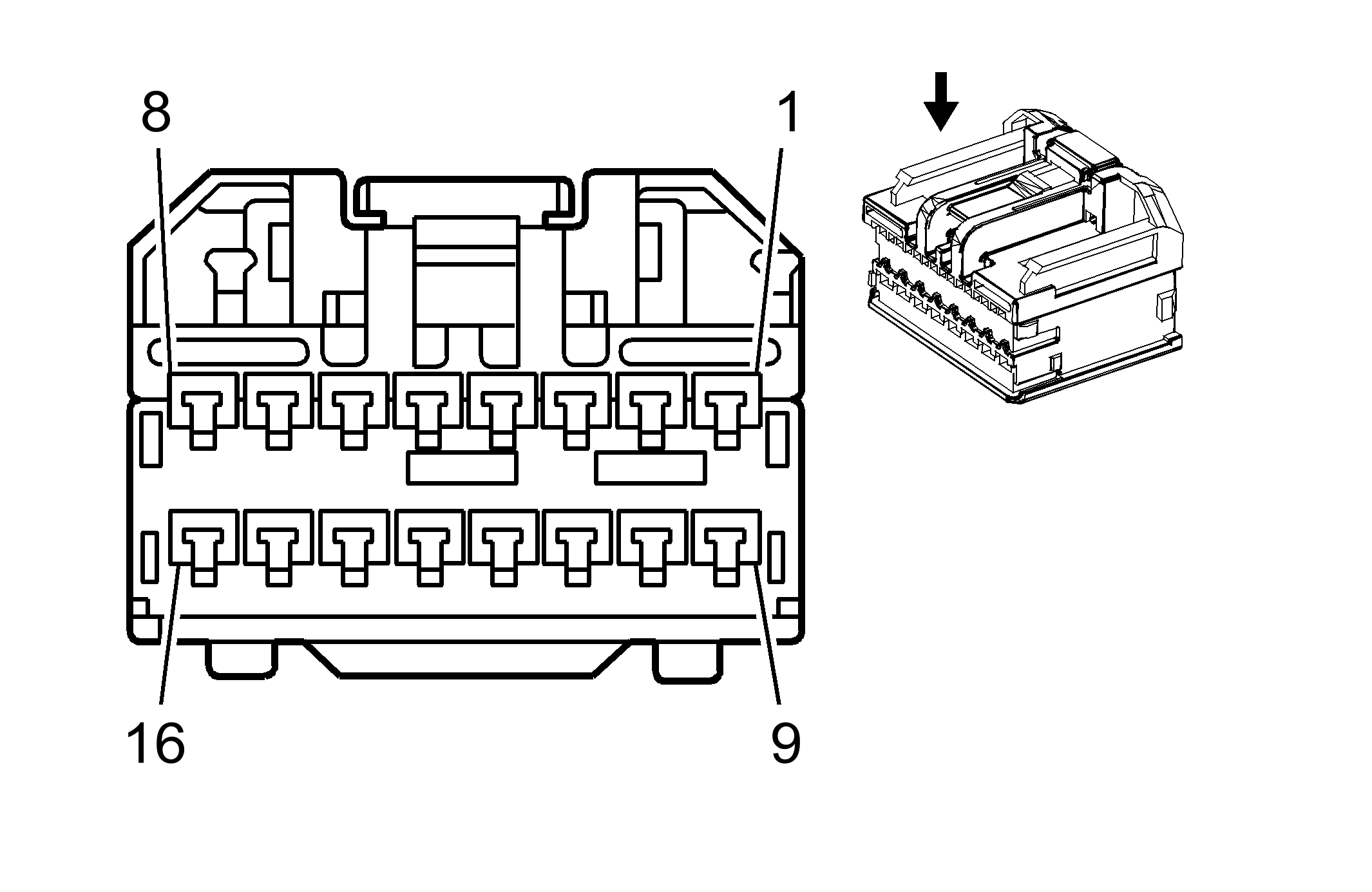

Fig 1: Transfer Case Shift Control Module X2 (NQH) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire Color	Circuit	Function
1-2	-	-	Not Used
3	0.5 TN/WH	1695	Axle Switch Signal
4	0.5 TN	2501	High Speed GMLAN Serial Data Bus -
5	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus +
6	0.35 PK	239	Ignition Voltage
7-8	-	-	Not Used
9	0.5 YE/BK	7478	Low Reference
10	0.35 D-BU	5985	Serial Data Wake-Up Signal
11	0.5 L-GN	7479	Rotational Position Sensor Signal
12	0.5 TN	2501	High Speed GMLAN Serial Data Bus -
13	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus +
14	0.35 YE	7474	Transfer Case Encoder Signal
15-16	-	-	Not Used

Connector Part Information

OEM: 13547238
Service: See Catalog
Description: 16-Way F 1.5 Series (BN)

Terminal Part Information

Terminal/Tray: 8240-0127/22
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
