Input Shaft Assemble

Input Shaft Assemble

Tools Required
* J 36850 Transjel Lubricant
* J 44339 Reverse Synchronizer Installer




1. Install a new input shaft bearing on the input shaft. The bearing retaining ring groove goes forward.

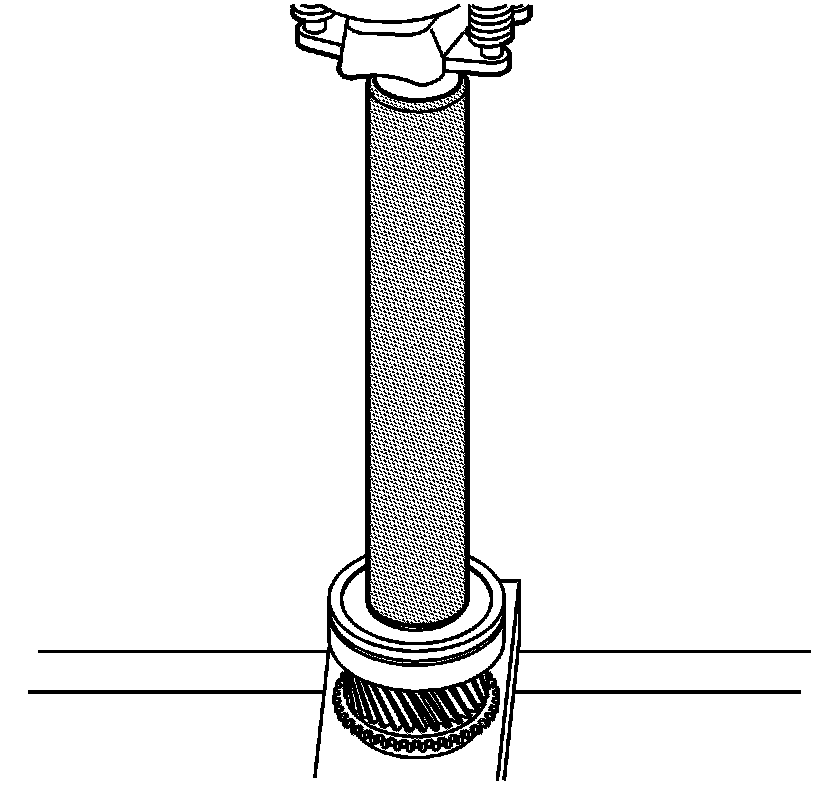

2. Using a hydraulic press and J 44339 , install the input shaft bearing in position.





Important: The retaining ring is a select fit. Always install a new retaining ring.

3. Select the maximum thickness retaining ring for the input shaft bearing, that will fit in the groove. Refer to Input Shaft Bearing Retaining Ring Specifications (Input Shaft Bearing Retaining Ring Specifications).

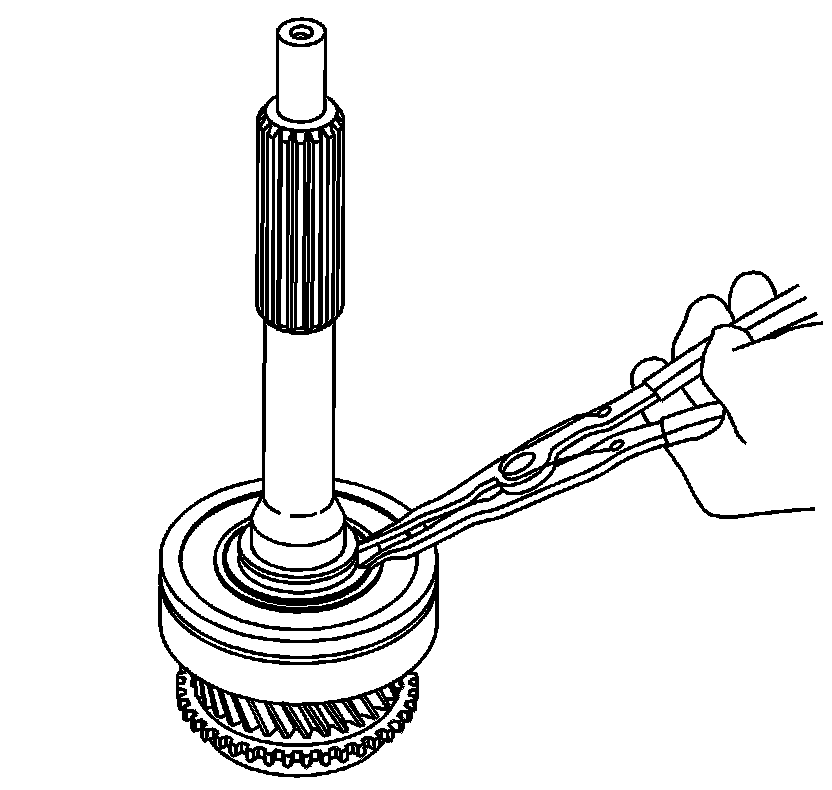

4. Install the input shaft bearing retaining ring.




5. Install the output front support bearing into the input shaft.
6. Fill the bearing with J 36850 .

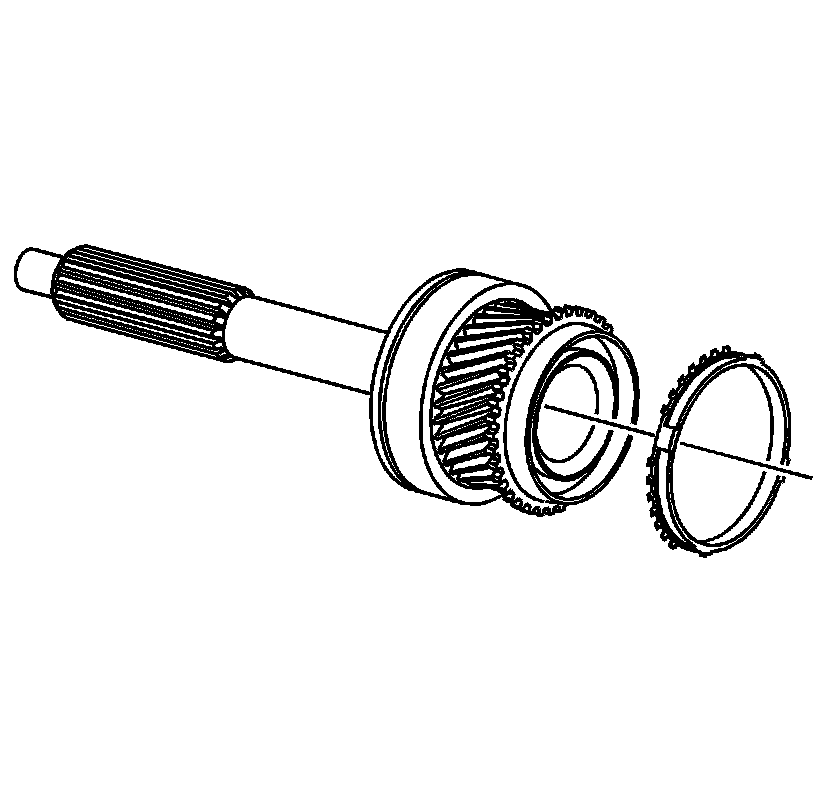

7. Install the 4th gear blocking ring onto the input shaft.
