Dual DVD Headrest System (SPO Accessory- Headrest DVD)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

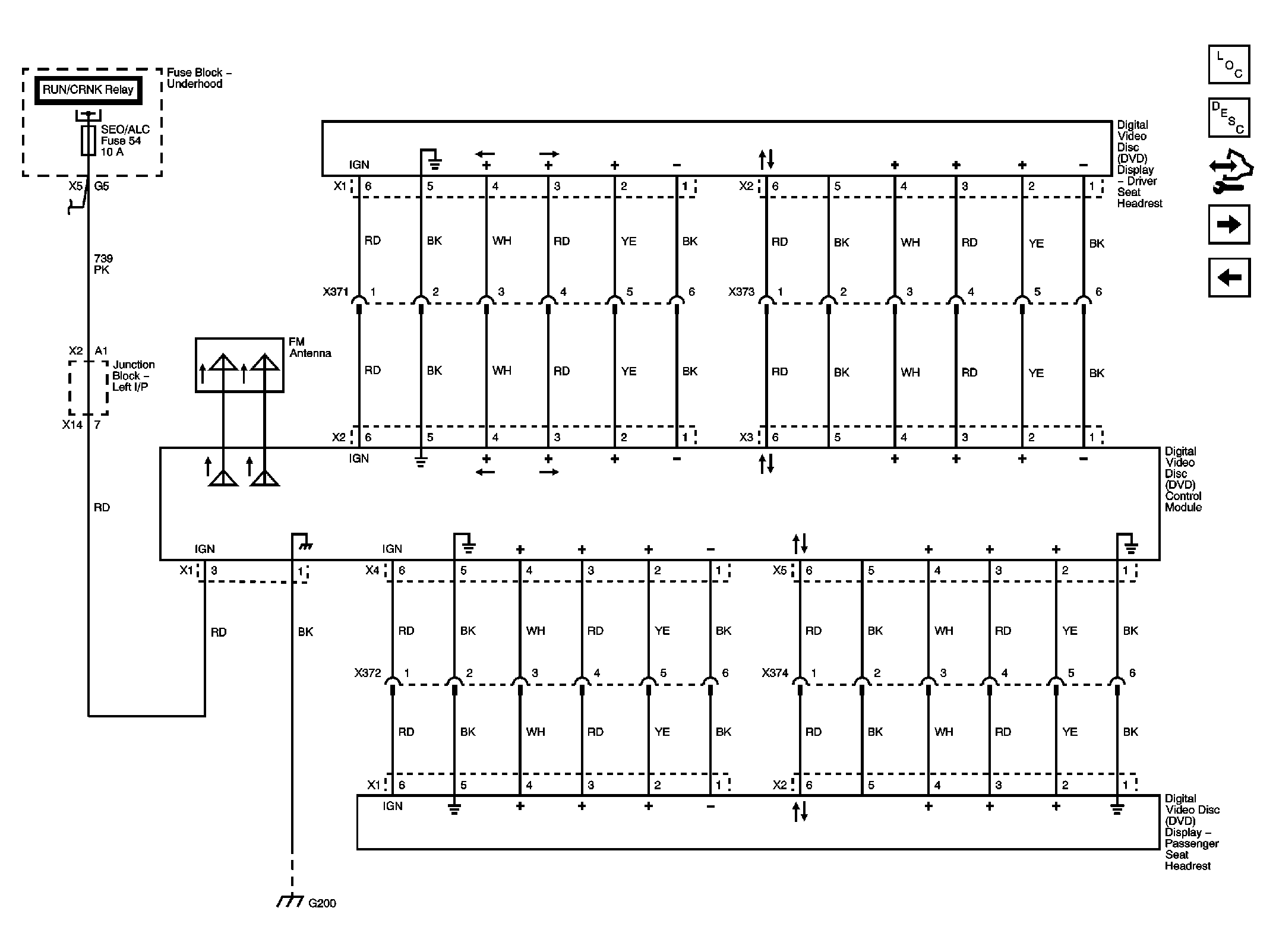

Fig 1: Dual DVD Headrest System (SPO Accessory- Headrest DVD) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
