Engine Controls Schematics

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

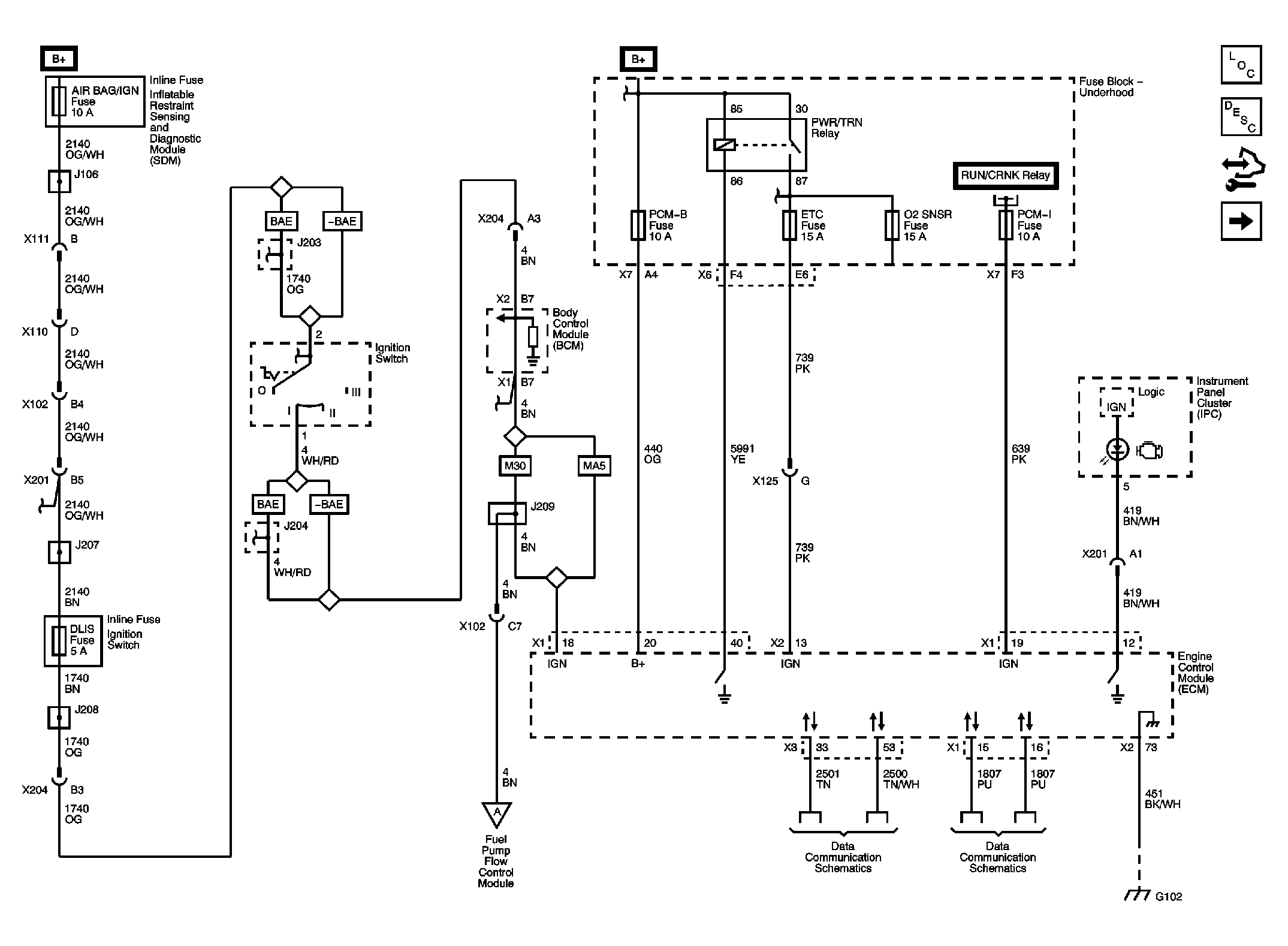

Fig 1: Module Power, Ground, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

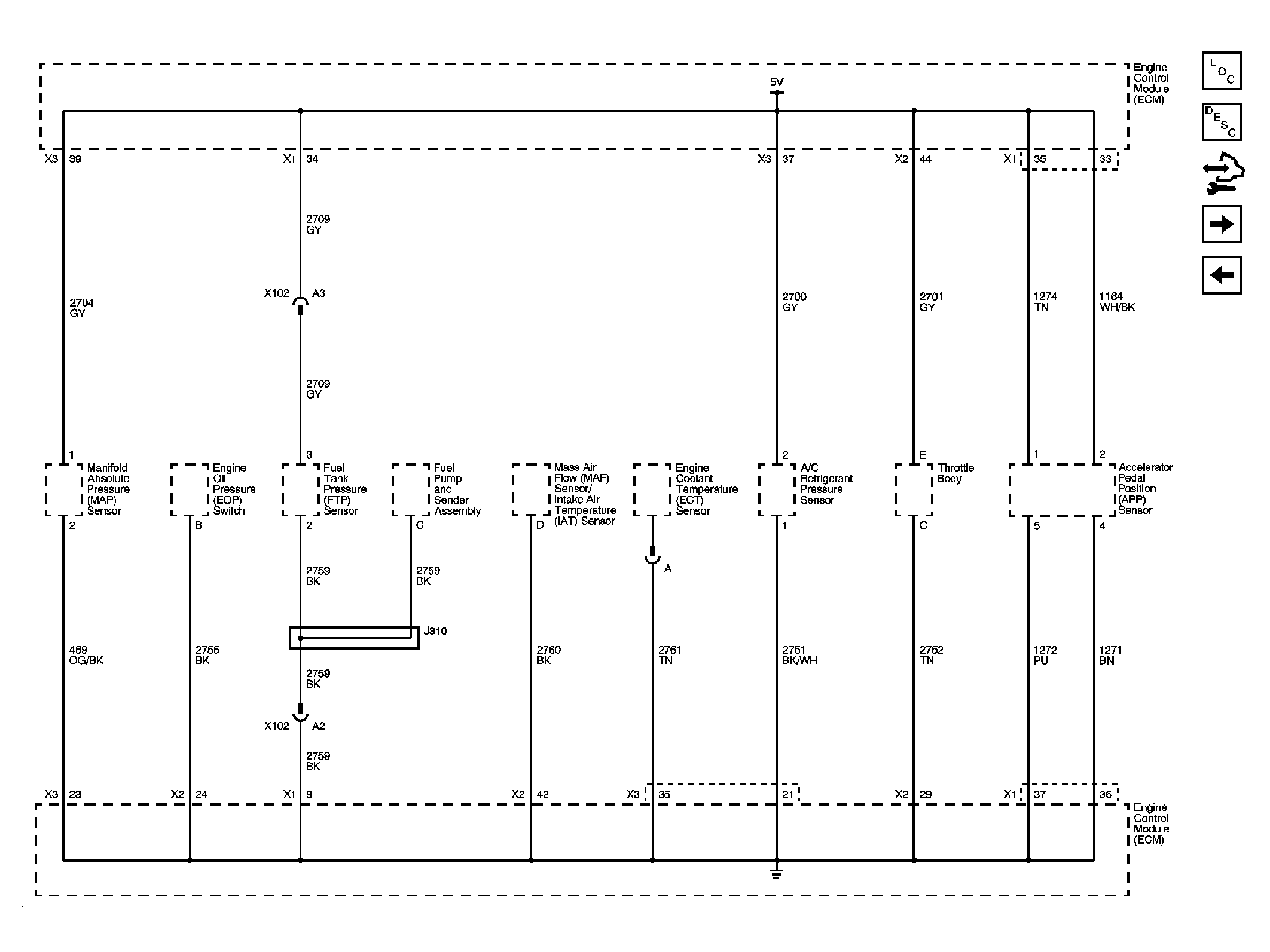

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - Pressure and Temperature Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - Ignition System Coils Schematic

Courtesy of GENERAL MOTORS CORP.

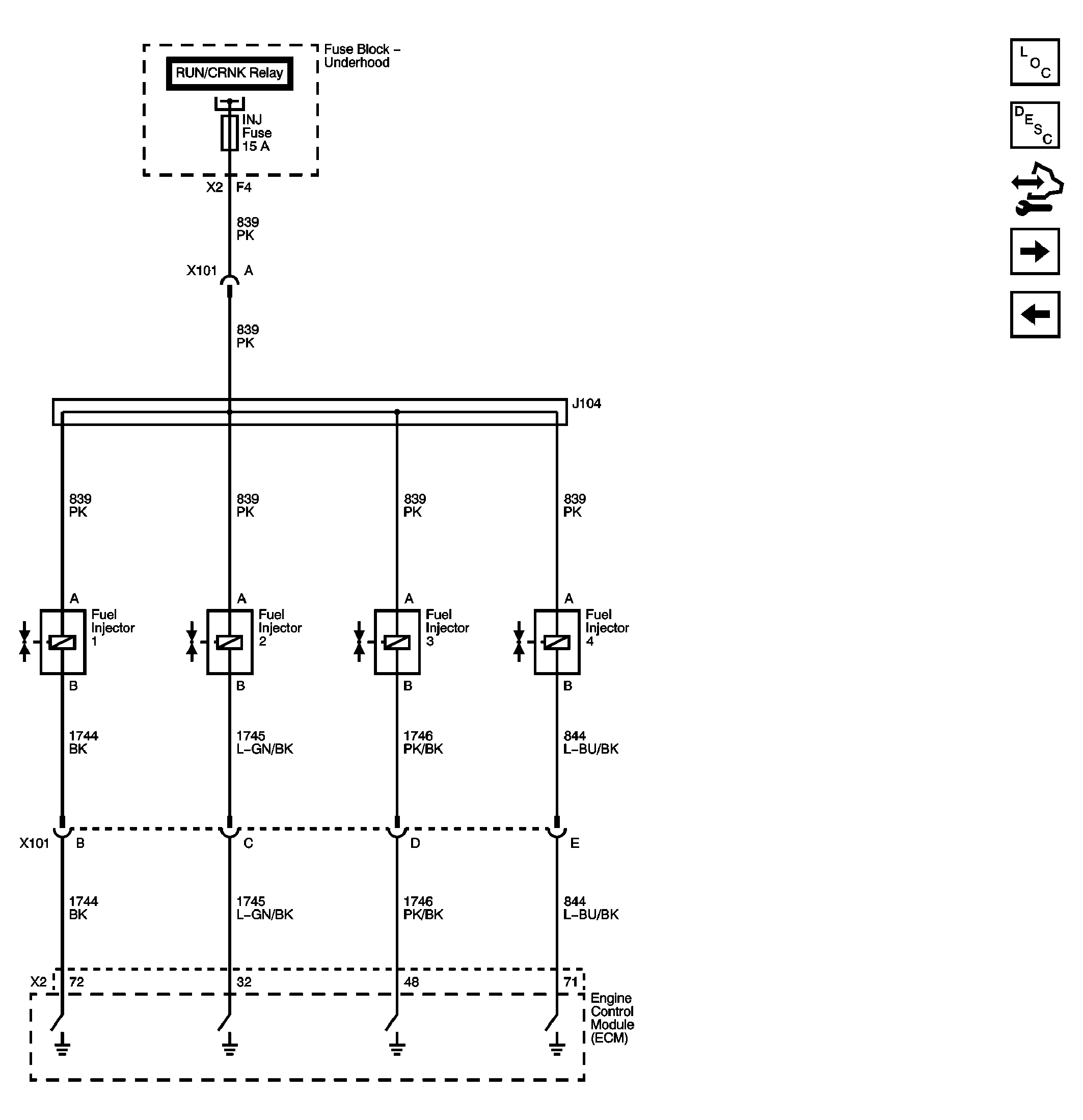

Fig 8: Fuel Controls - Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

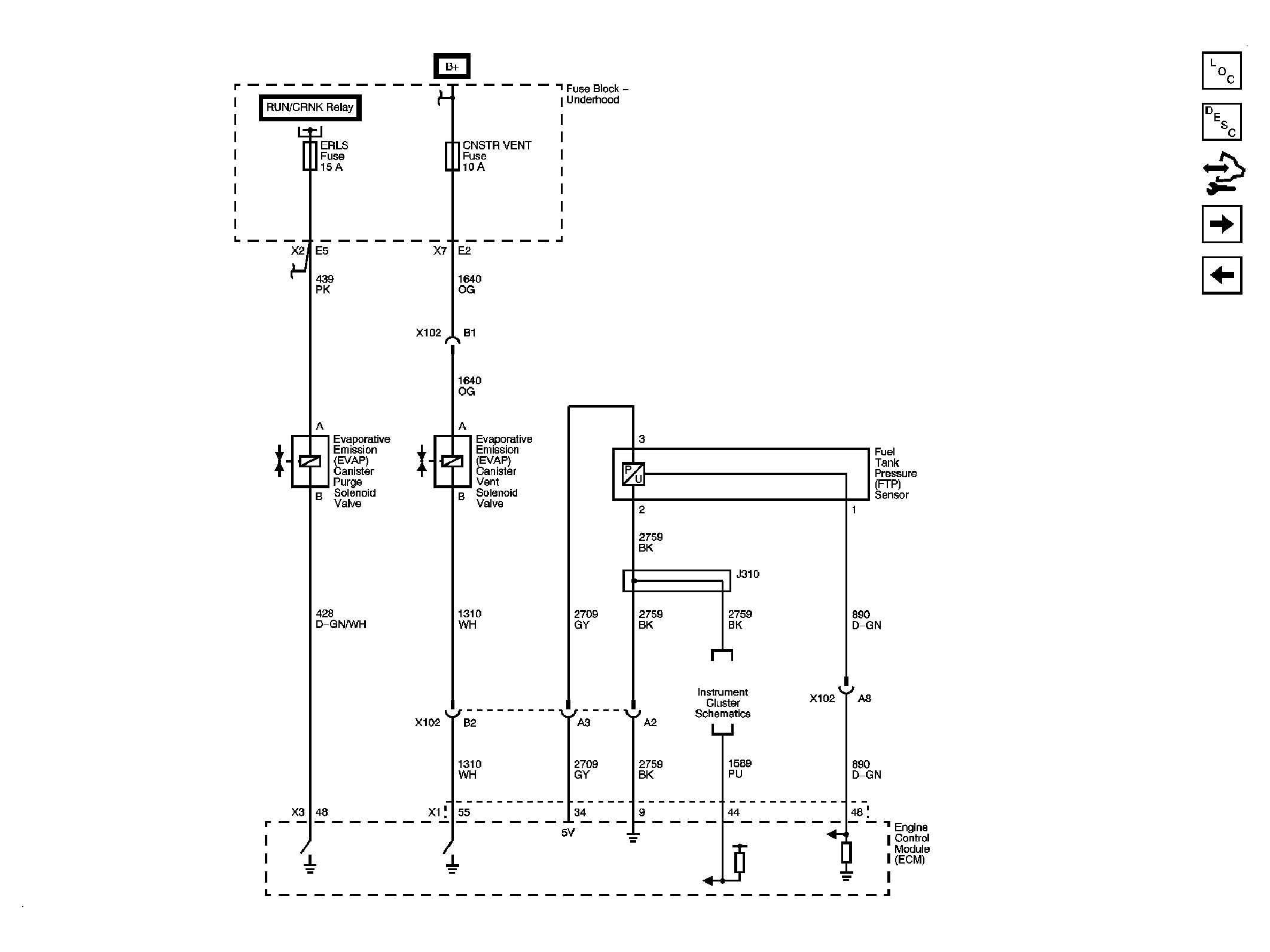

Fig 9: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

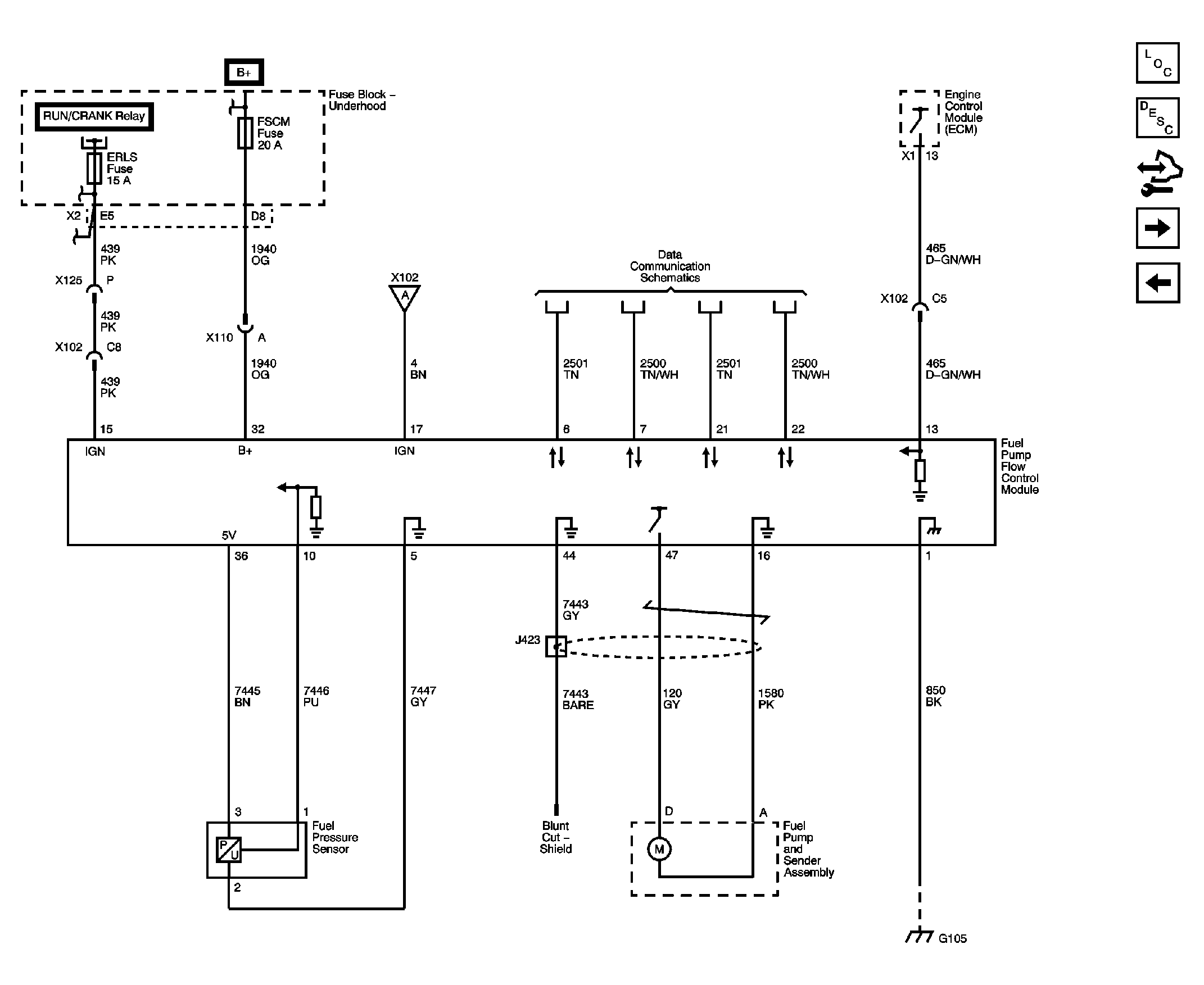

Fig 10: Fuel Controls - Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

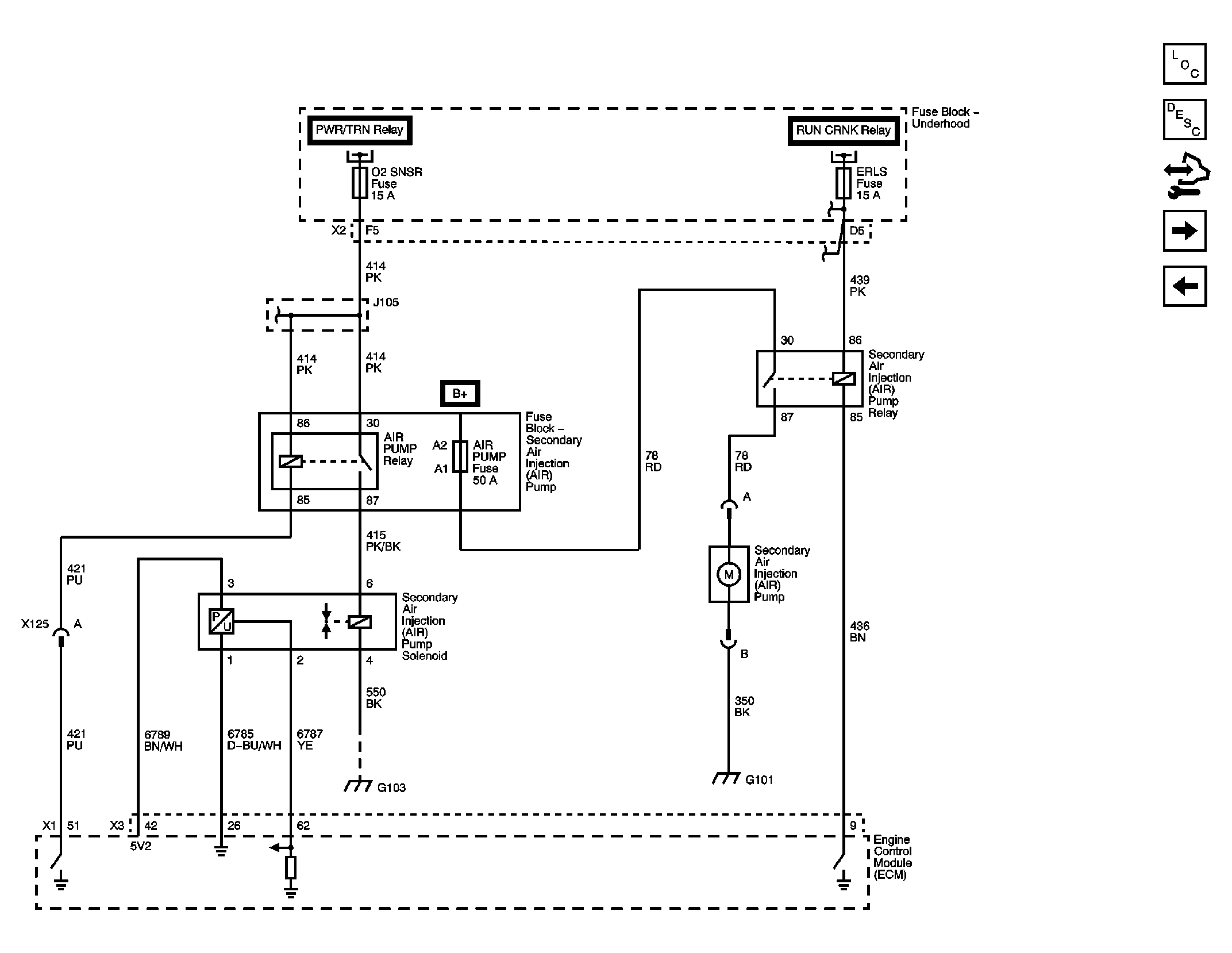

Fig 11: Device Controls - Secondary Air Injection (K18) Schematic

Courtesy of GENERAL MOTORS CORP.

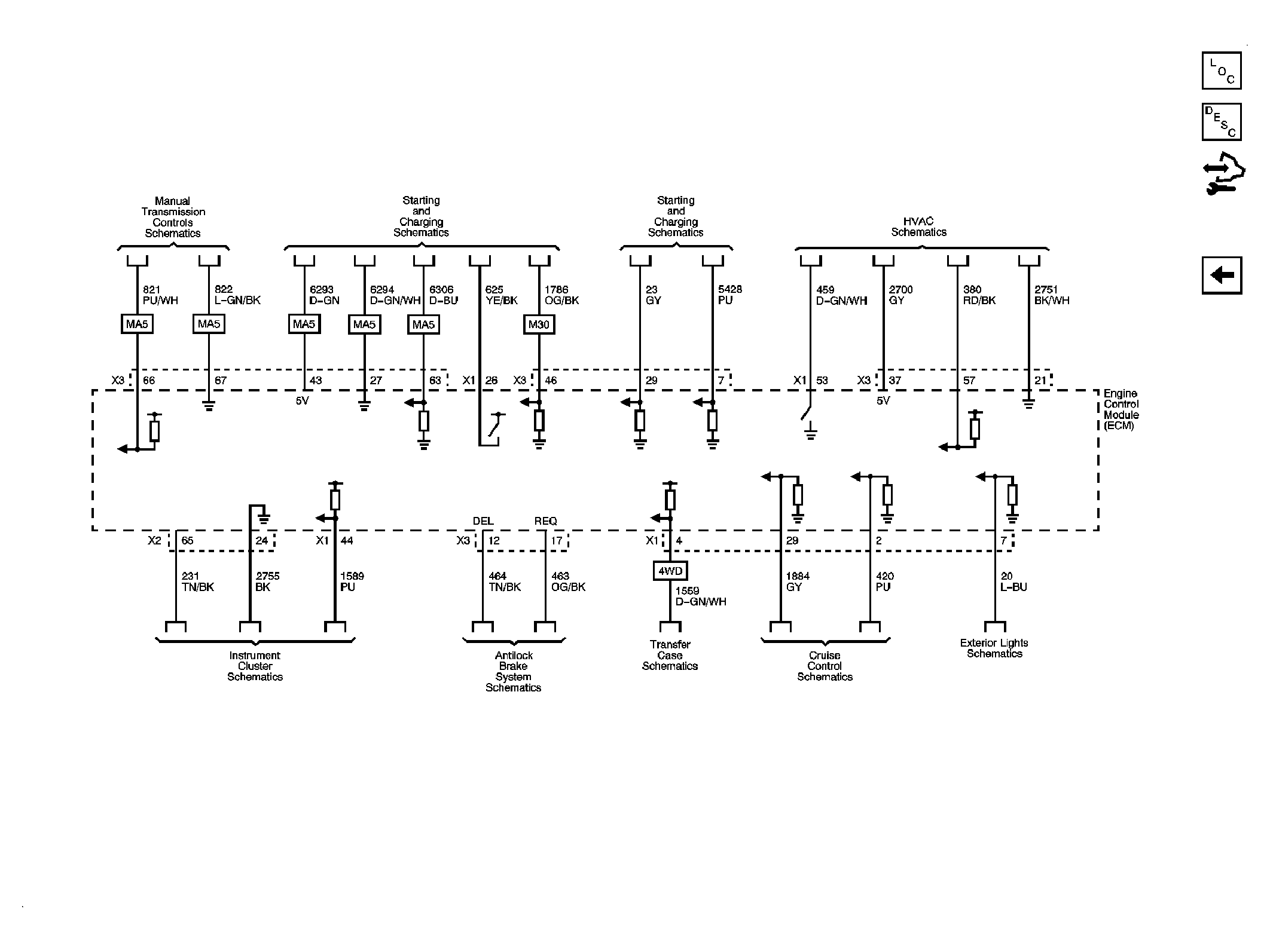

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
