Planetary Gear Assembly: Reassembly

Install end plate to overrunning clutch. Install overrunning clutch to planetary gear assembly with arrow (stamped on outside of overrunning clutch) pointing toward planetary gears. Install end plate and stopper plate. Bend tabs of stopper plate to secure stopper plate to planetary gear assembly.

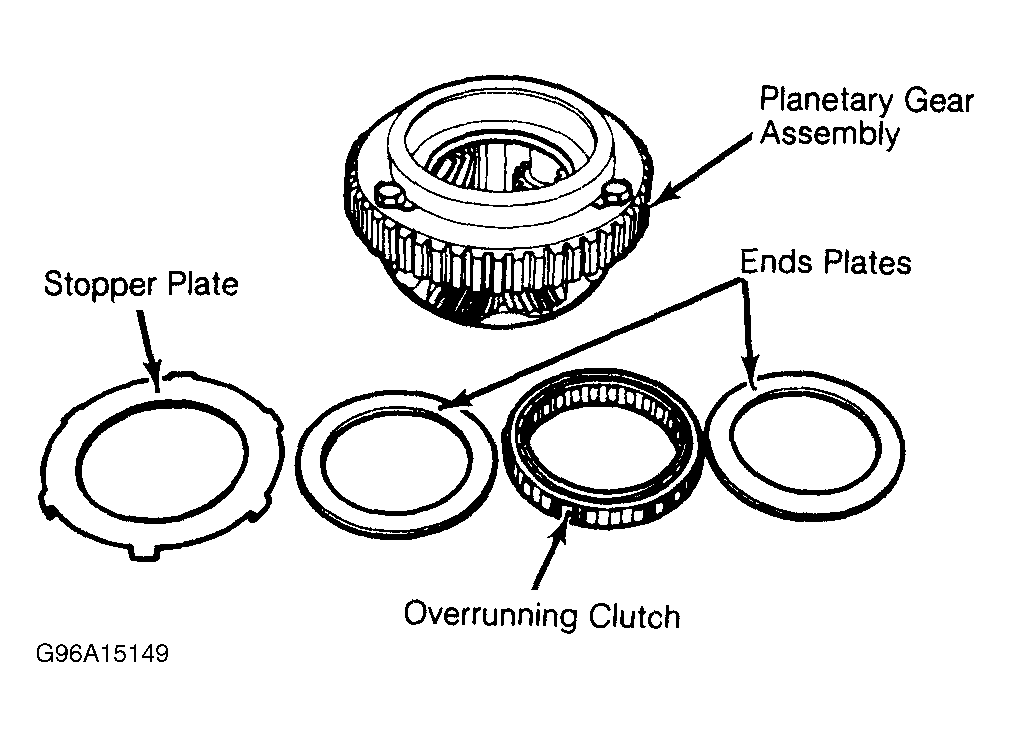

Fig 1: Planetary Gear & Overrunning Clutch
G96A15149Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
