Vehicle Speed Sensor: Testing and Inspection





CIRCUIT DIAGRAM

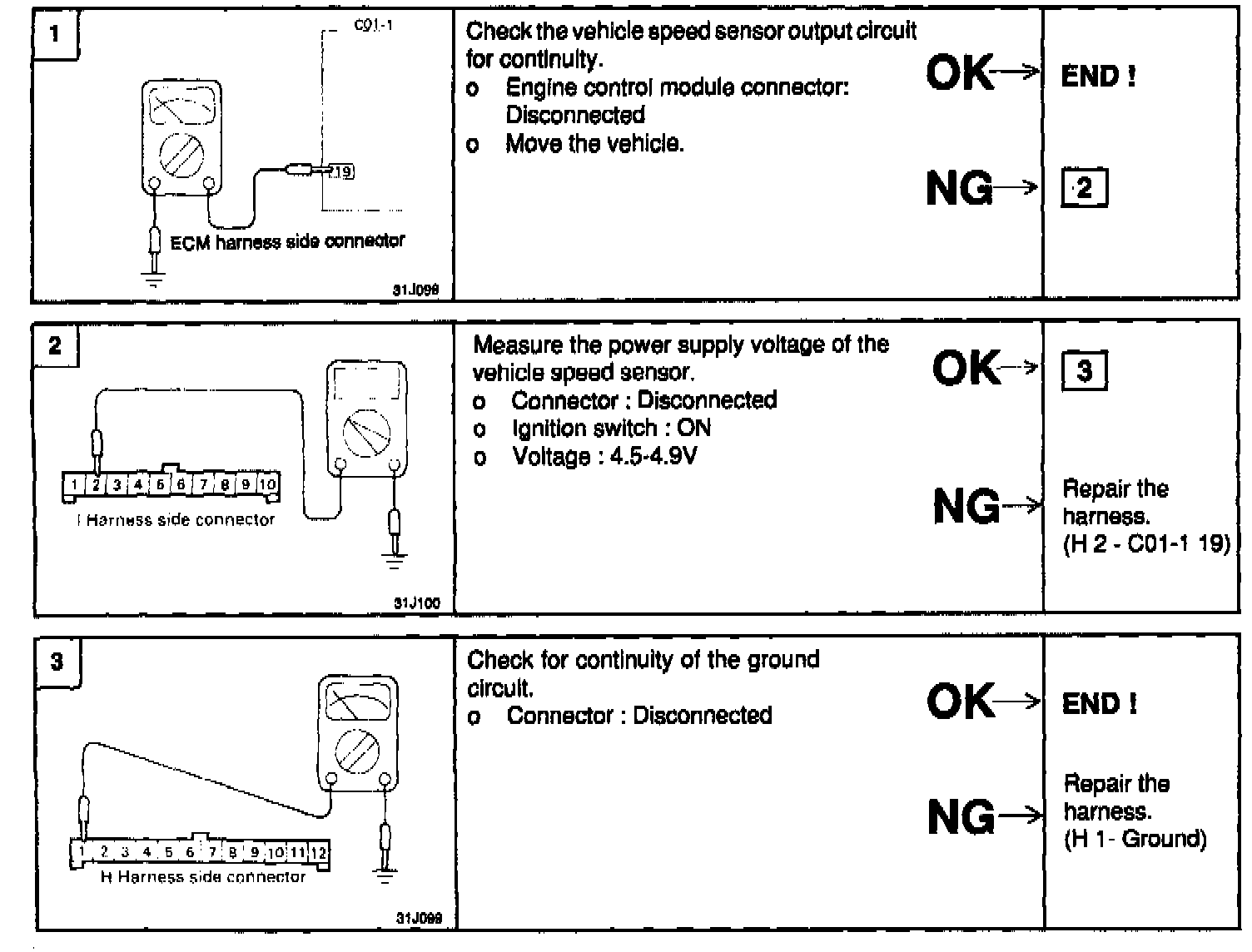

HARNESS INSPECTION PROCEDURE

TROUBLESHOOTING HINTS
If there is an open or short circuit in the vehicle speed sensor signal circuit, the engine may stall when the vehicle is decelerated to stop.
