Diagnostic Procedures

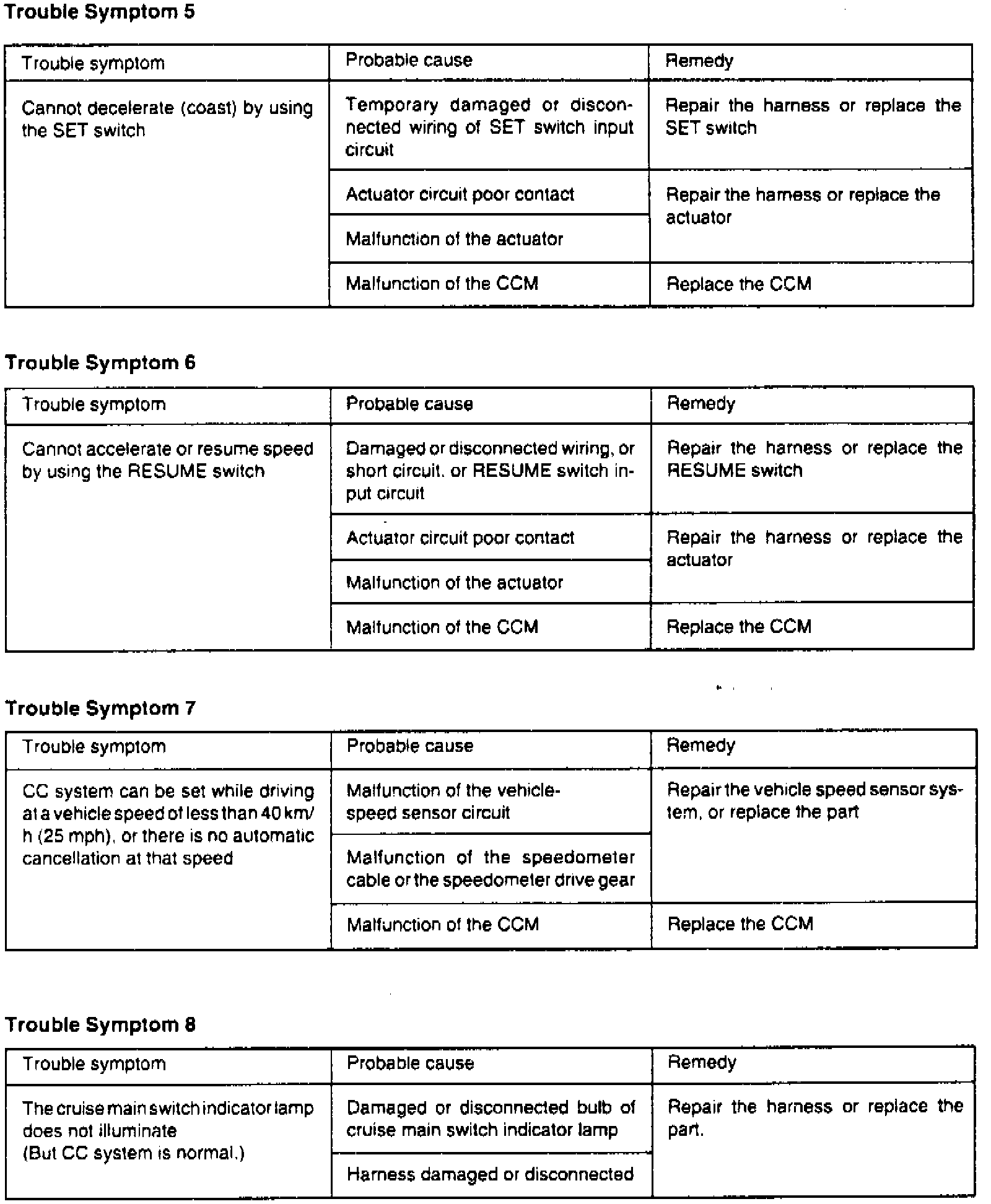

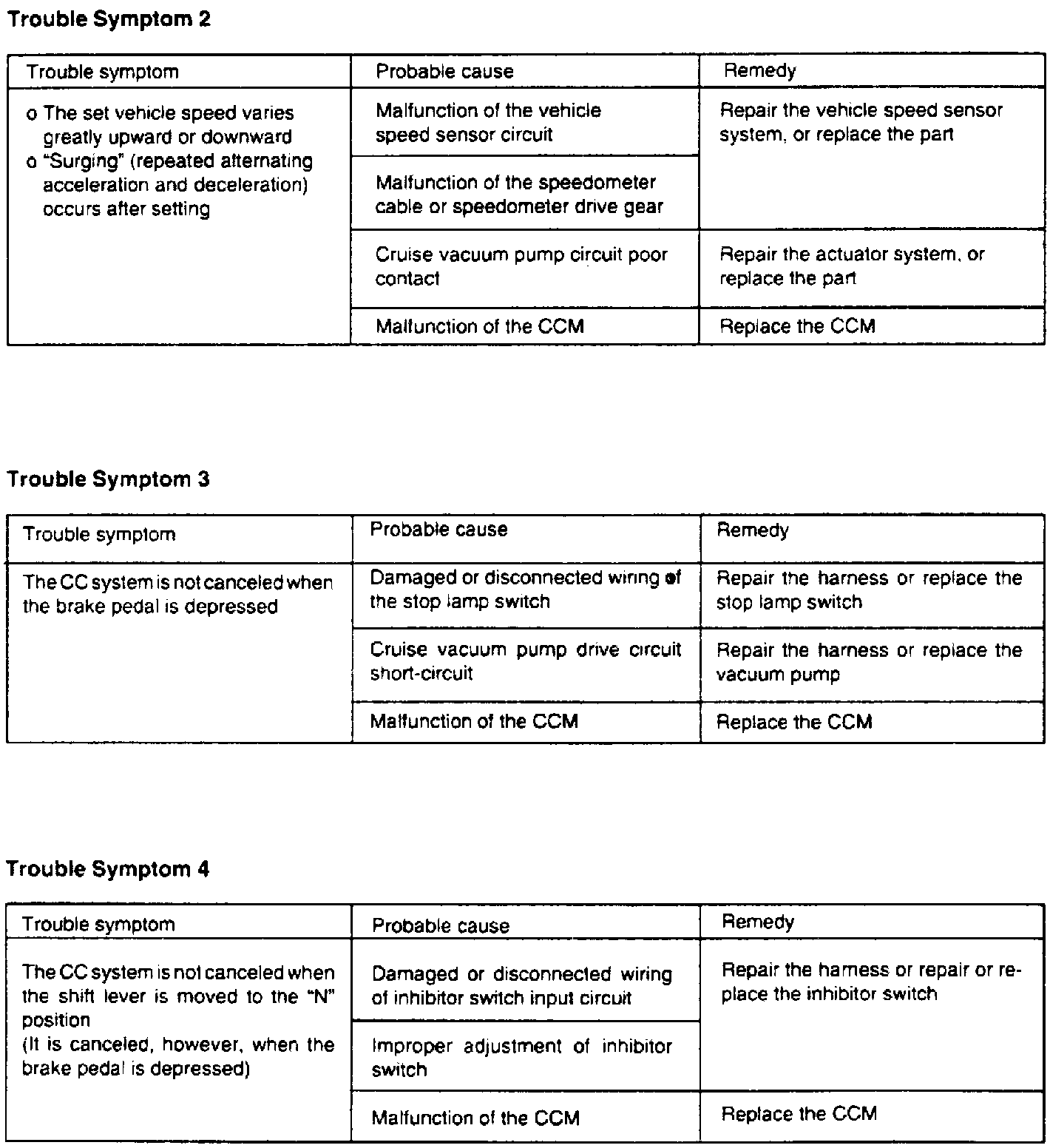

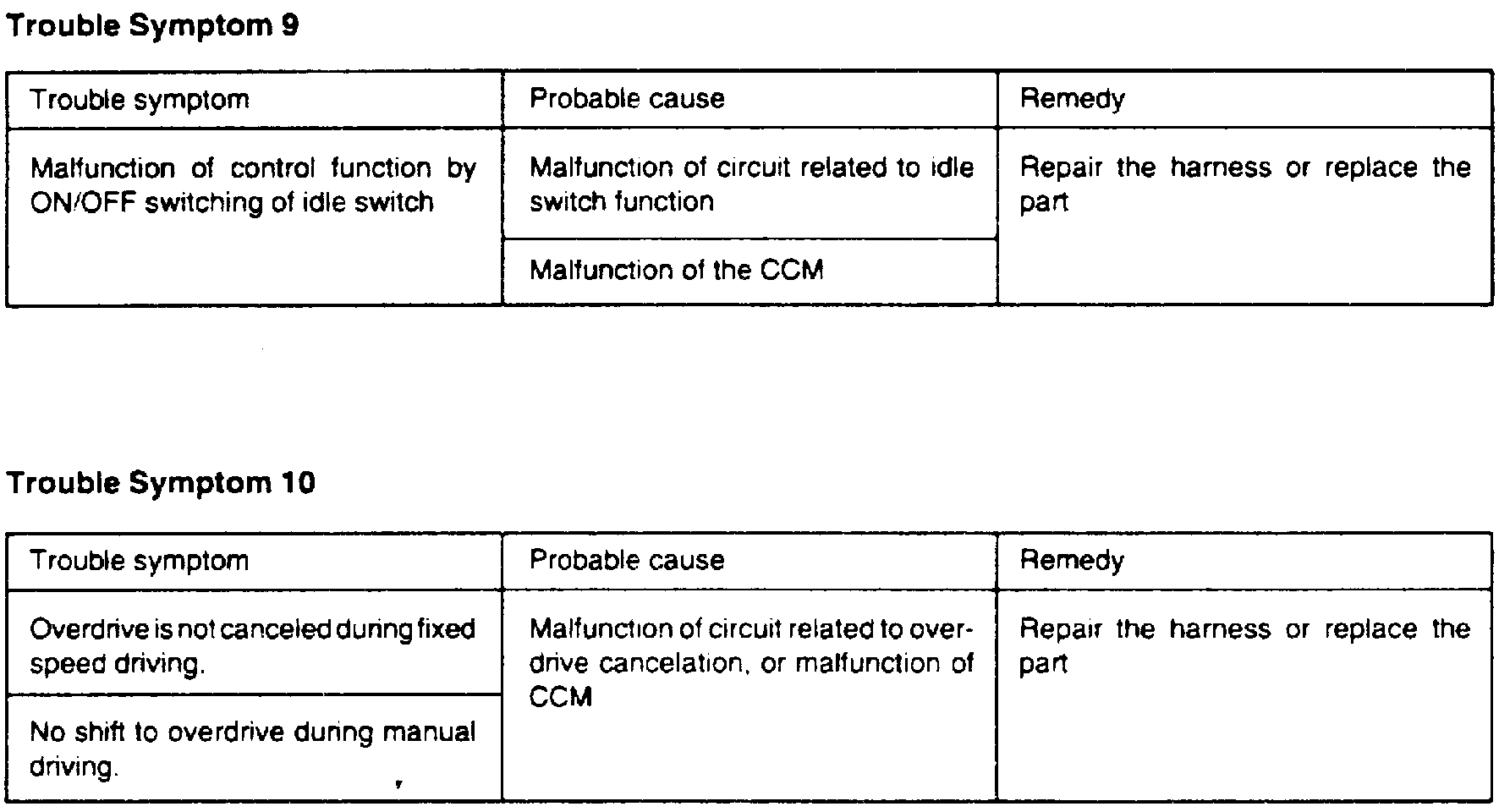

Fig. 9 Speed Control Symptom Chart (Part 1 Of 4):

Fig. 9 Speed Control Symptom Chart (Part 2 Of 4):

Fig. 9 Speed Control Symptom Chart (Part 3 Of 4):

Fig. 9 Speed Control Symptom Chart (Part 4 Of 4):

After stored trouble codes are displayed, refer to trouble code symptom charts, Fig. 9.
