Camshaft Position Sensor: Testing and Inspection

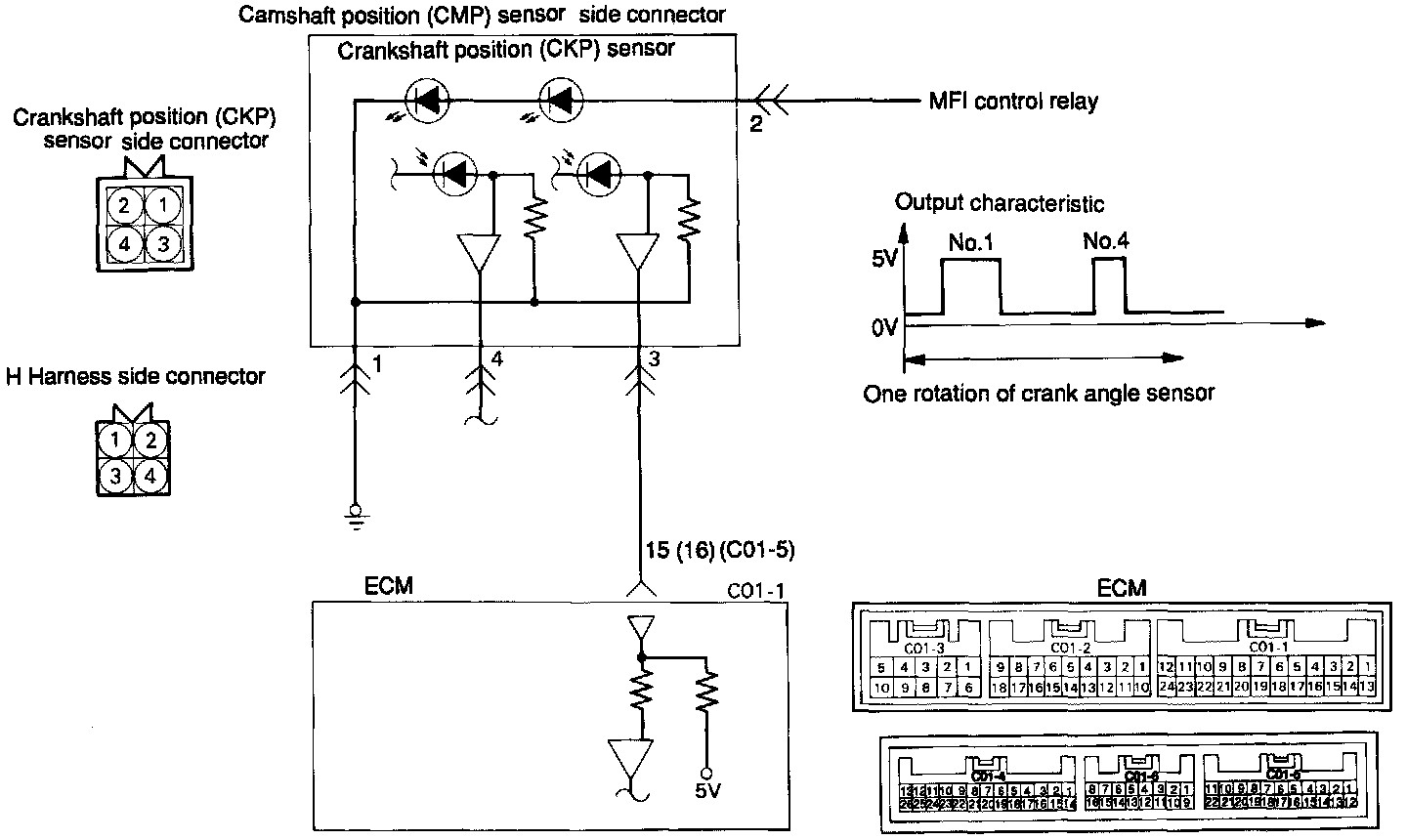

CIRCUIT DIAGRAM

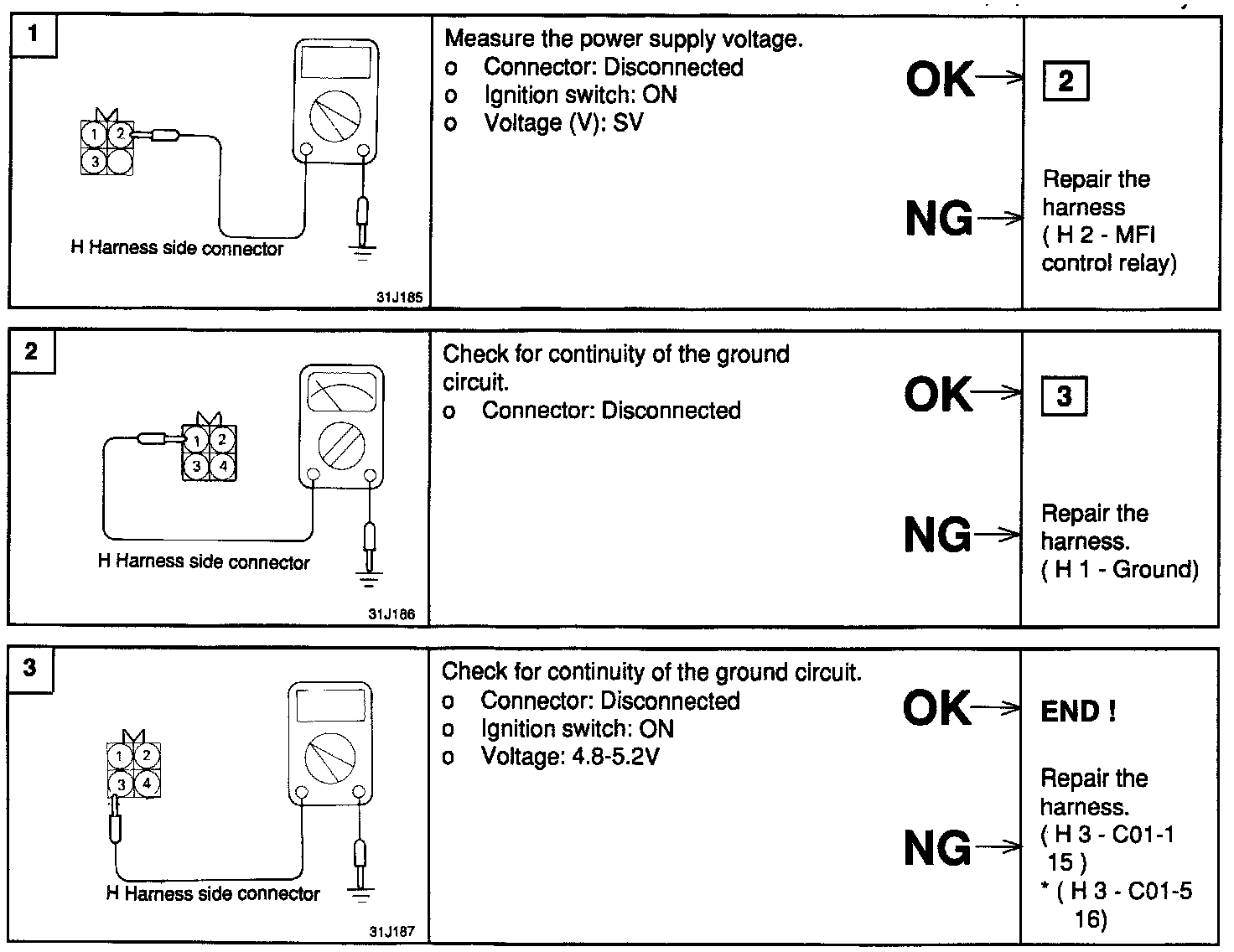

HARNESS INSPECTION PROCEDURE

TROUBLESHOOTING HINTS
If the camshaft position sensor does not operate correctly, correct injection sequence cannot be made so that the engine may stall, run irregularly at idle or fail to accelerate normally.
