Ignition Cable: Service and Repair

CAUTION: Remove cables by pulling on the spark plug boot. If the spark plug cable is removed by pulling on the cable, it may be damaged.

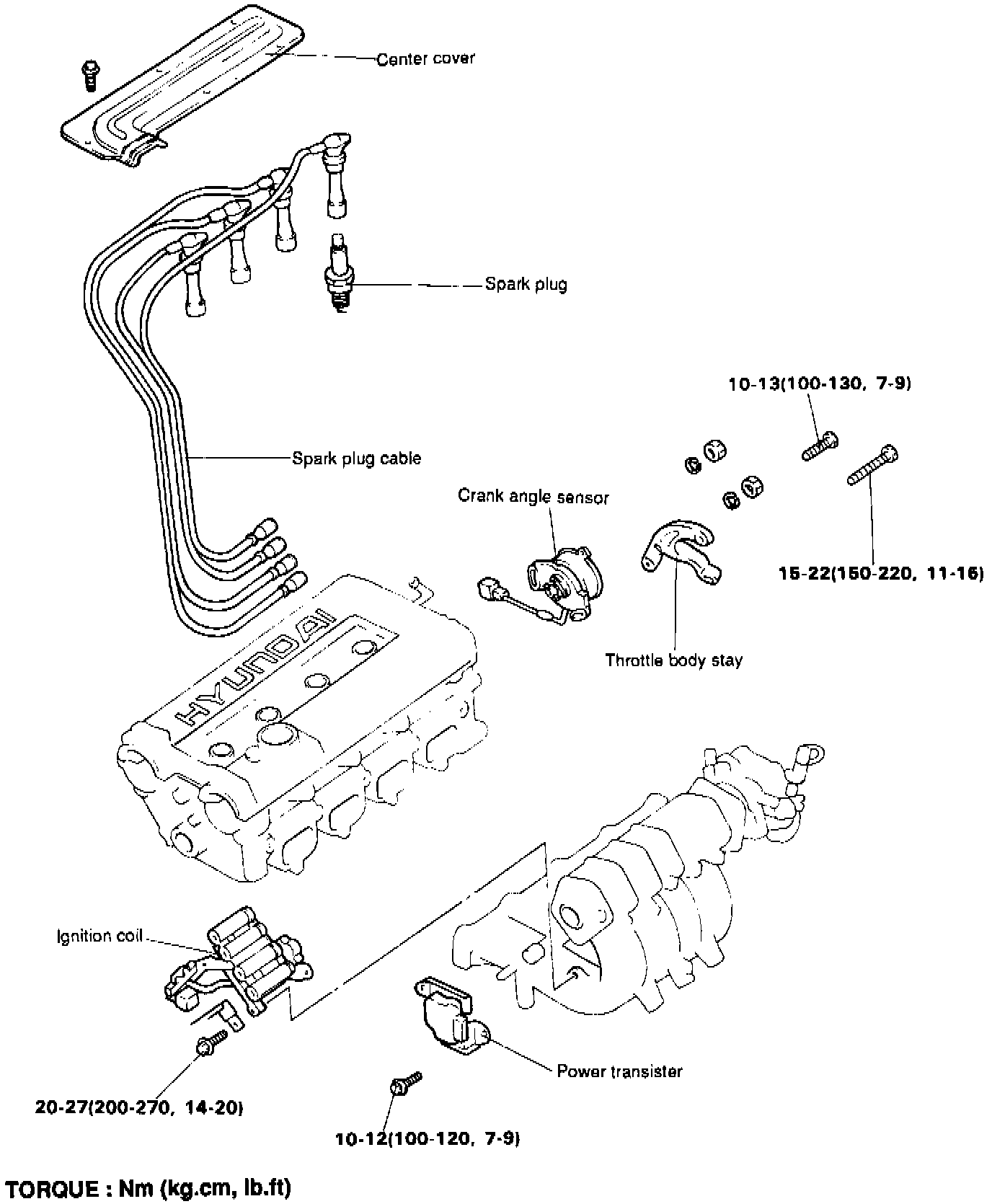

ASSEMBLY

Firing Order:

Install cables according to the engine firing order.

Firing order: 1-3-4-2
