Ignition Coil Resistance

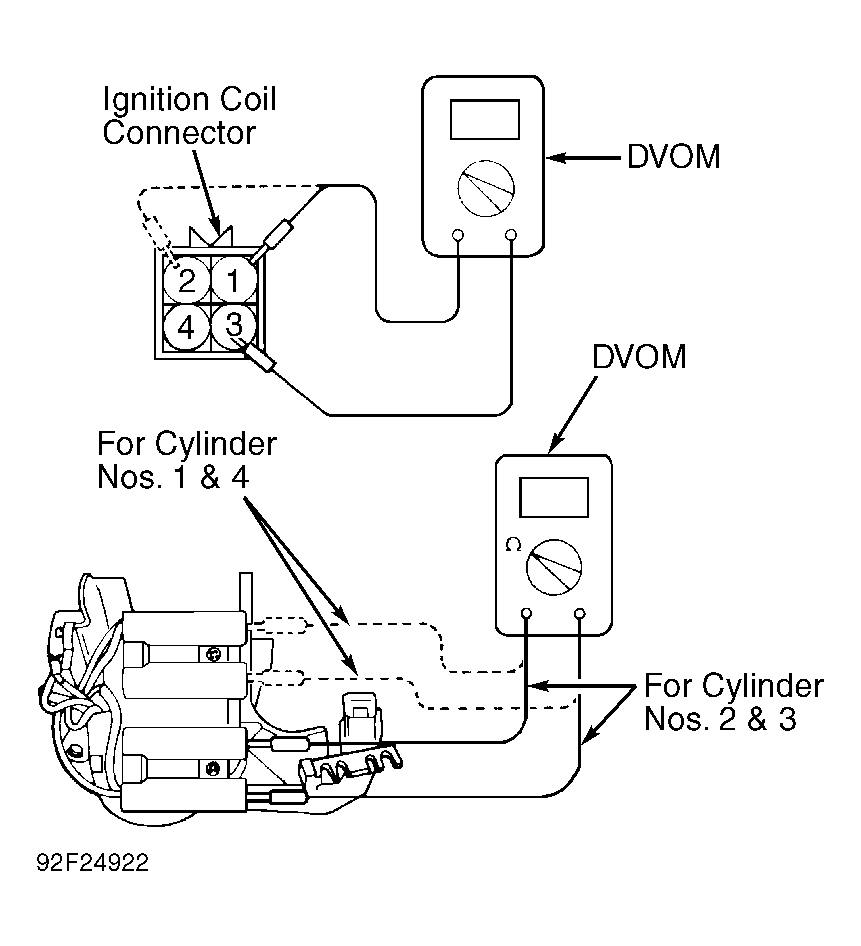

- Using an ohmmeter, check primary coil resistance for cylinders No. 1 and 4 between coil connector terminals No. 1 and 3. Check resistance for cylinders No. 2 and 3 between connector terminals No. 2 and 3. See Fig 1 . See DIS IGNITION COIL RESISTANCE table.
- To check secondary coil resistance, disconnect ignition coil connector. Check resistance between coil towers No. 1 and 4 and between coil towers No. 2 and 3. See DIS IGNITION COIL RESISTANCE table. Replace coil if readings are not within specification.
DIS IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)
| Application | Primary | Secondary |
|---|---|---|
| Elantra | .77-.95 | 10,300-13,900 |
