Harness Inspection

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

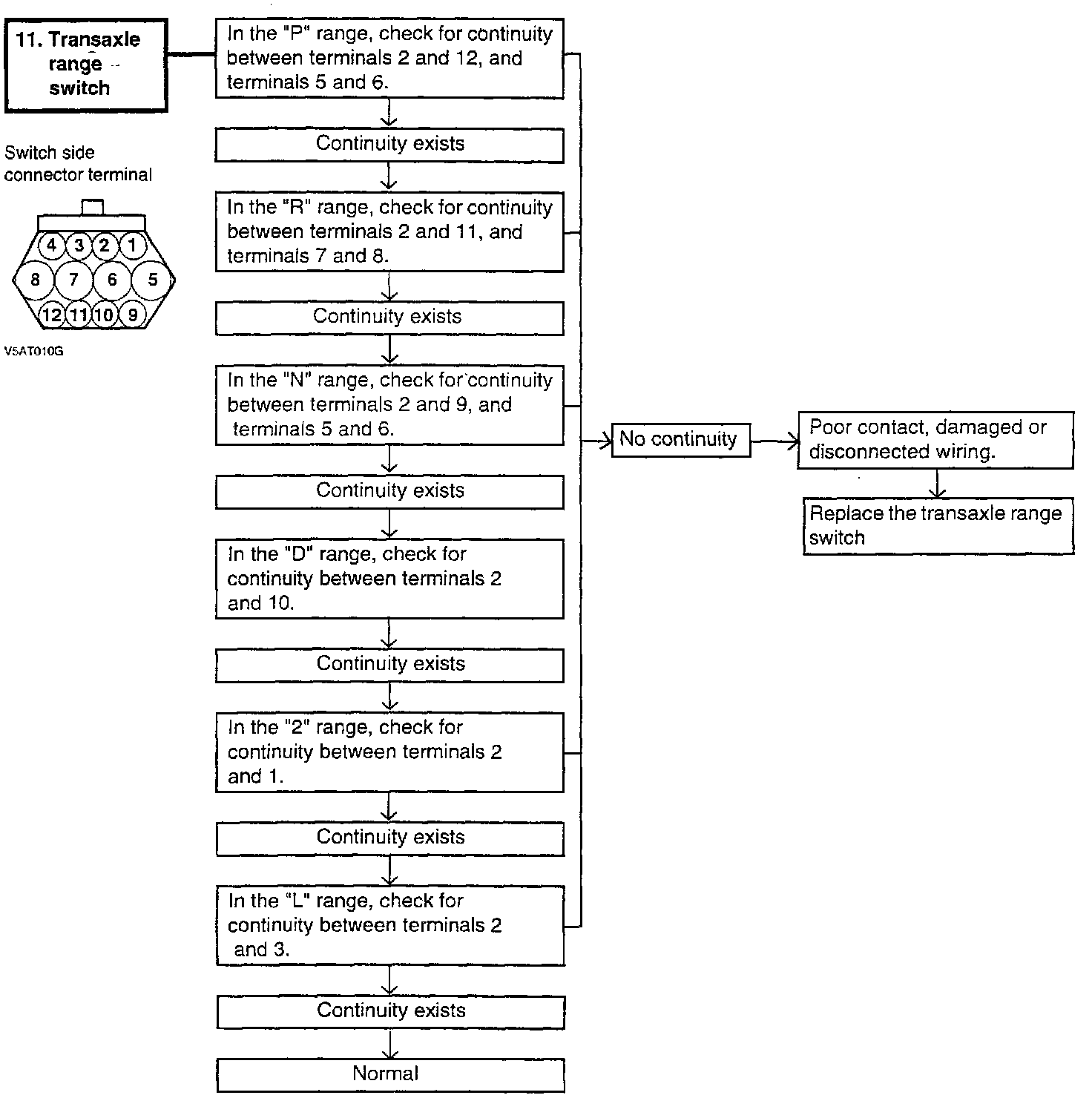

HARNESS INSPECTION

TROUBLESHOOTING HINTS
If the park/neutral position switch harness check is normal but the park/neutral position switch output is abnormal, check the control cable adjustment.
