Tightening Torque Specifications

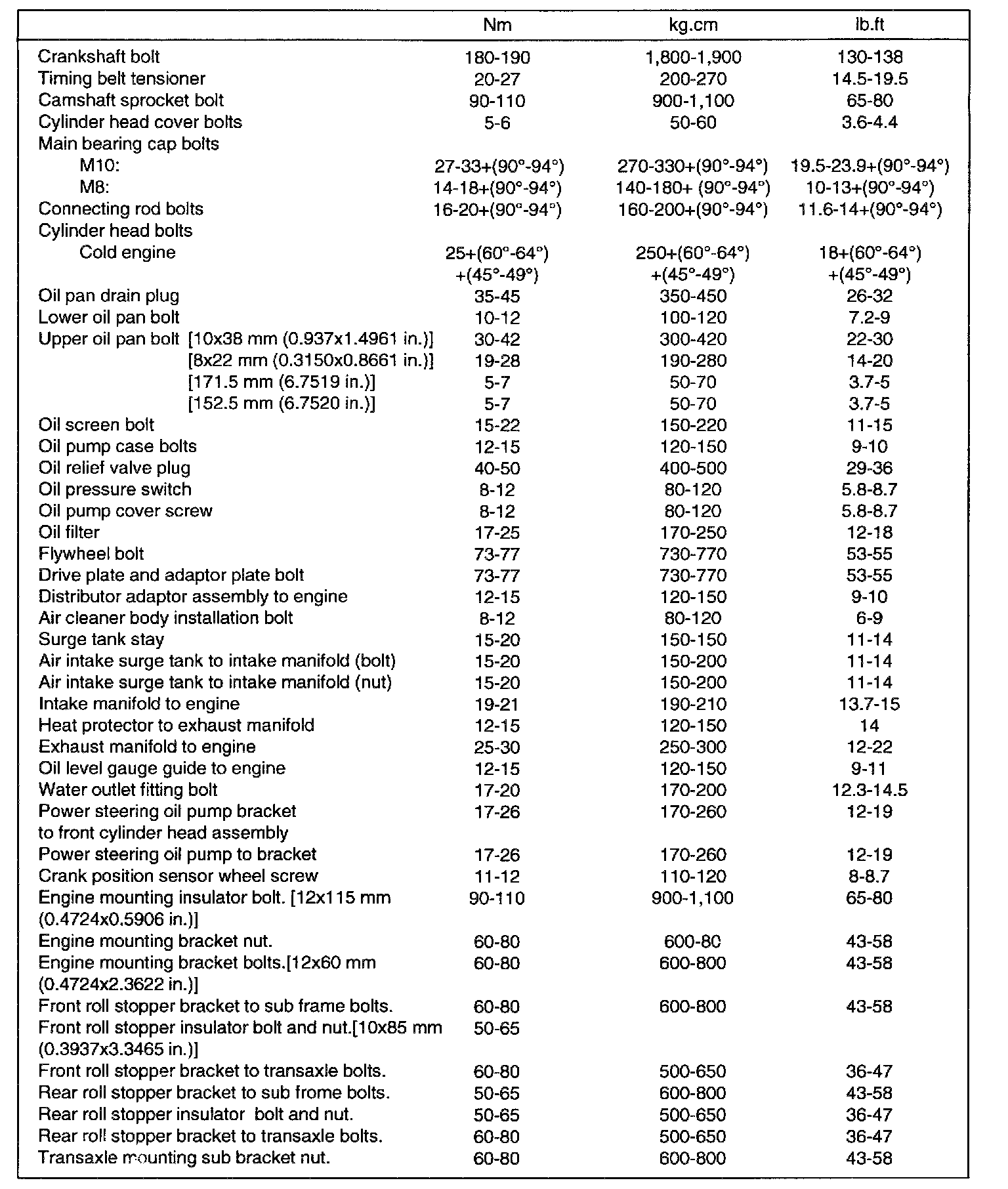

Part 1 Of 2:

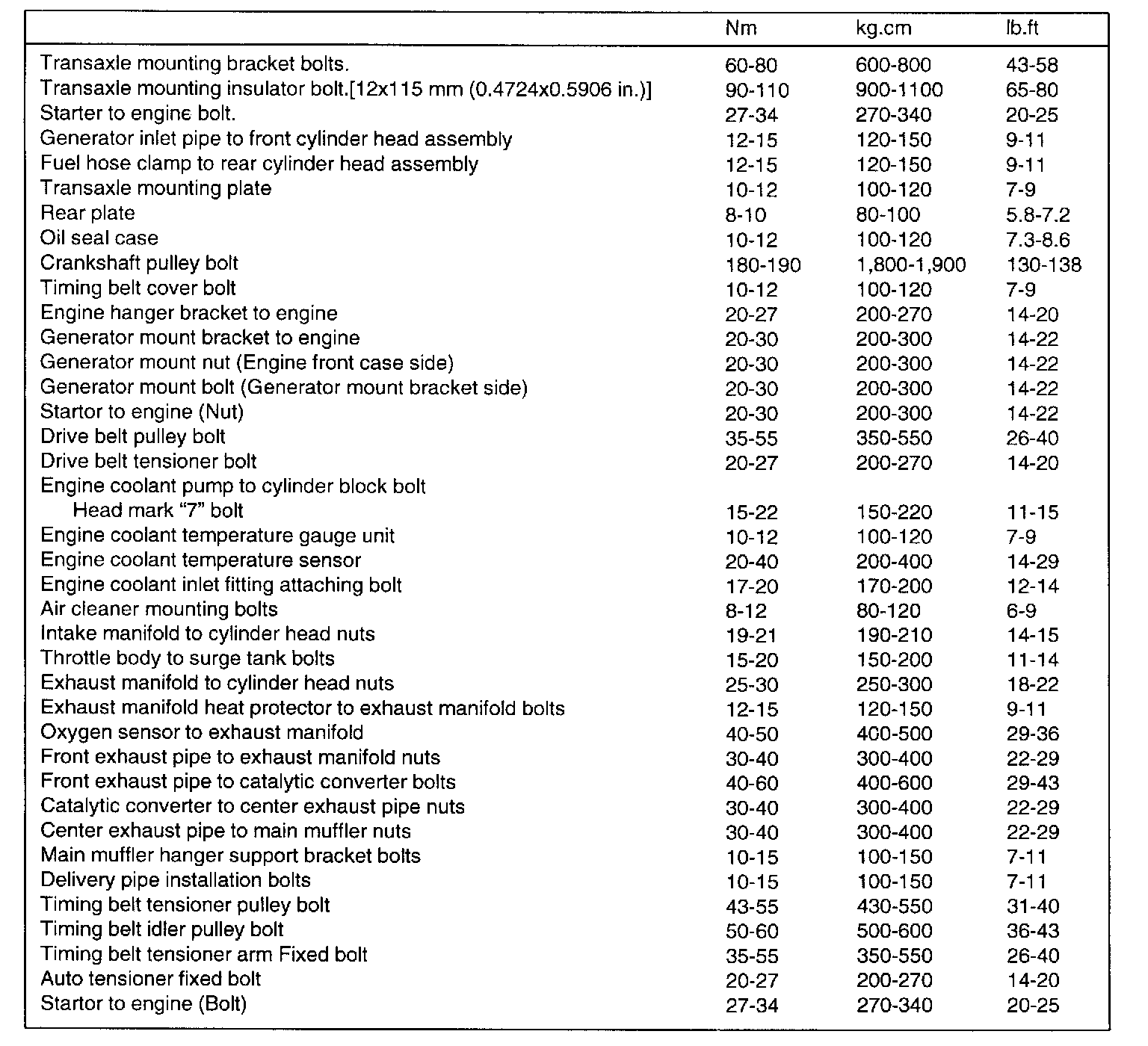

Part 2 Of 2:

TIGHTENING TORQUE SPECIFICATIONS





HEAD BOLT TIGHTENING SEQUENCE





CAMSHAFT BEARING CAP BOLT TIGHTENING SEQUENCE
Tighten the bearing caps to the specified torque in two or three steps as shown.
Tightening torque:
Bearing cap bolt: 10-12 Nm (140-150 kg.cm, 10-11 ft. lbs.)
