Vehicle Speed Sensor: Testing and Inspection

The vehicle speed sensor is a reed switch. The vehicle speed sensor is built into the speedometer and converts the transaxle gear revolutions into pulse signals, which are sent to ECM.

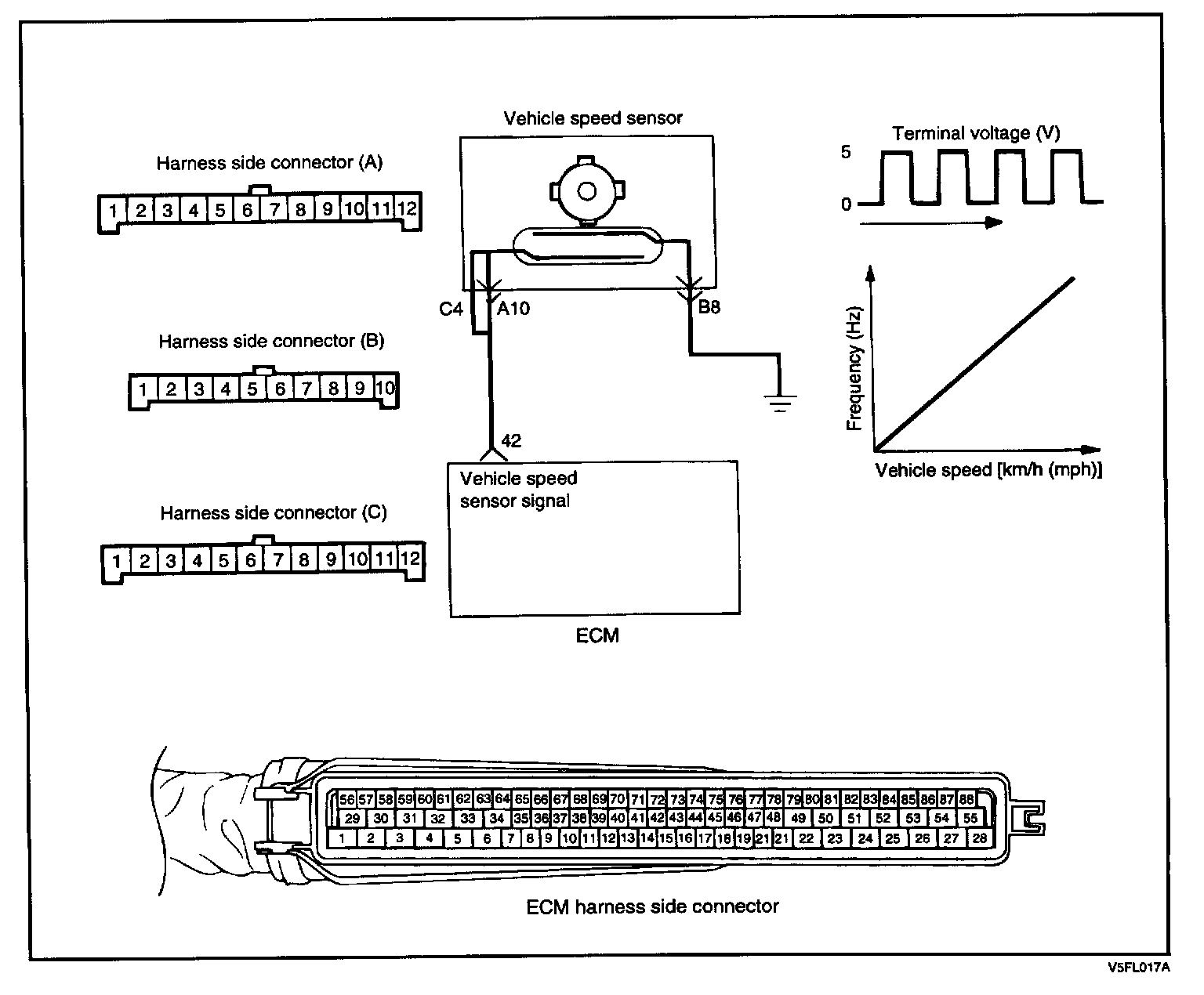

Circuit Diagram:

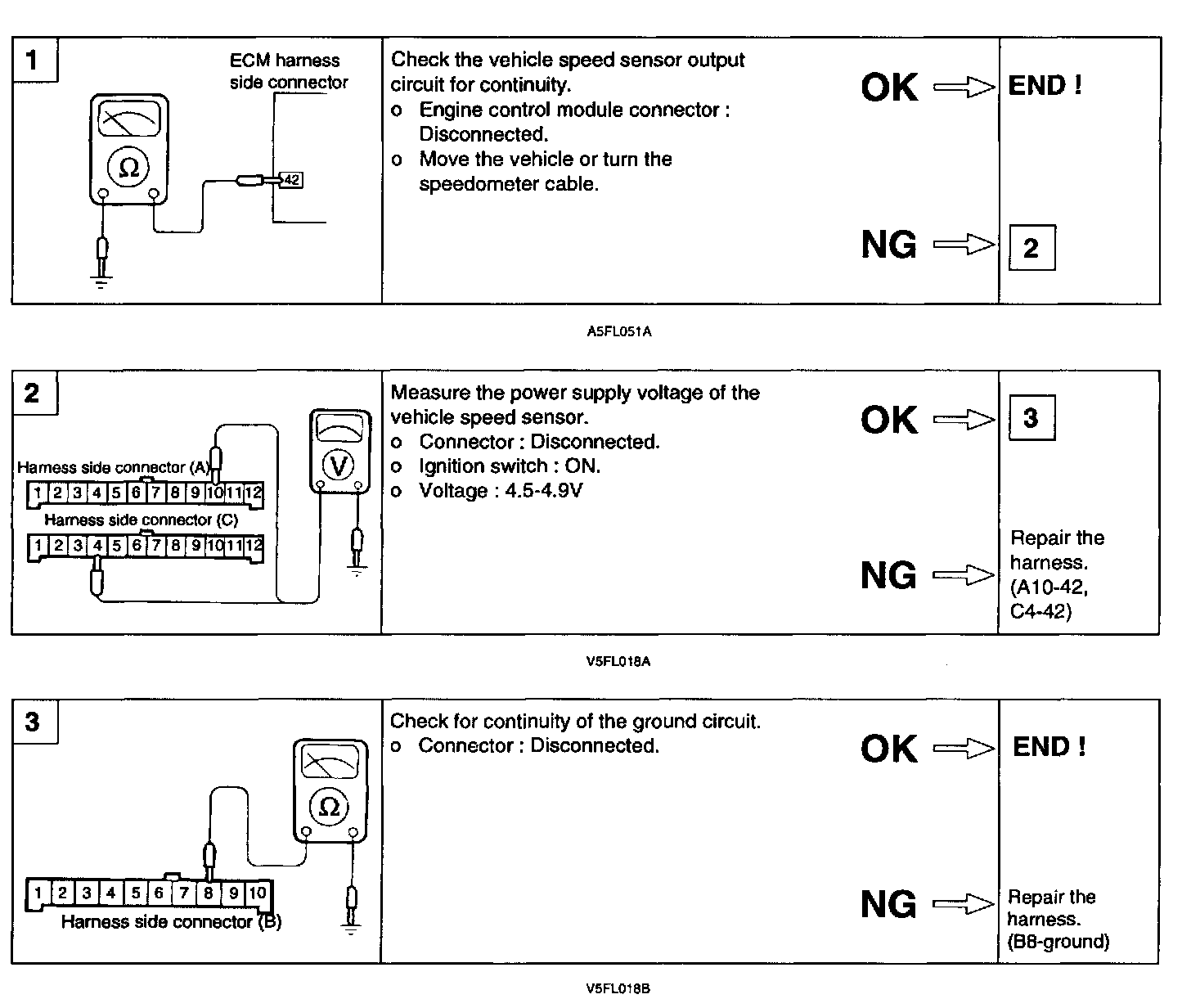

Harness Inspection Procedures (Step 1 - 3):

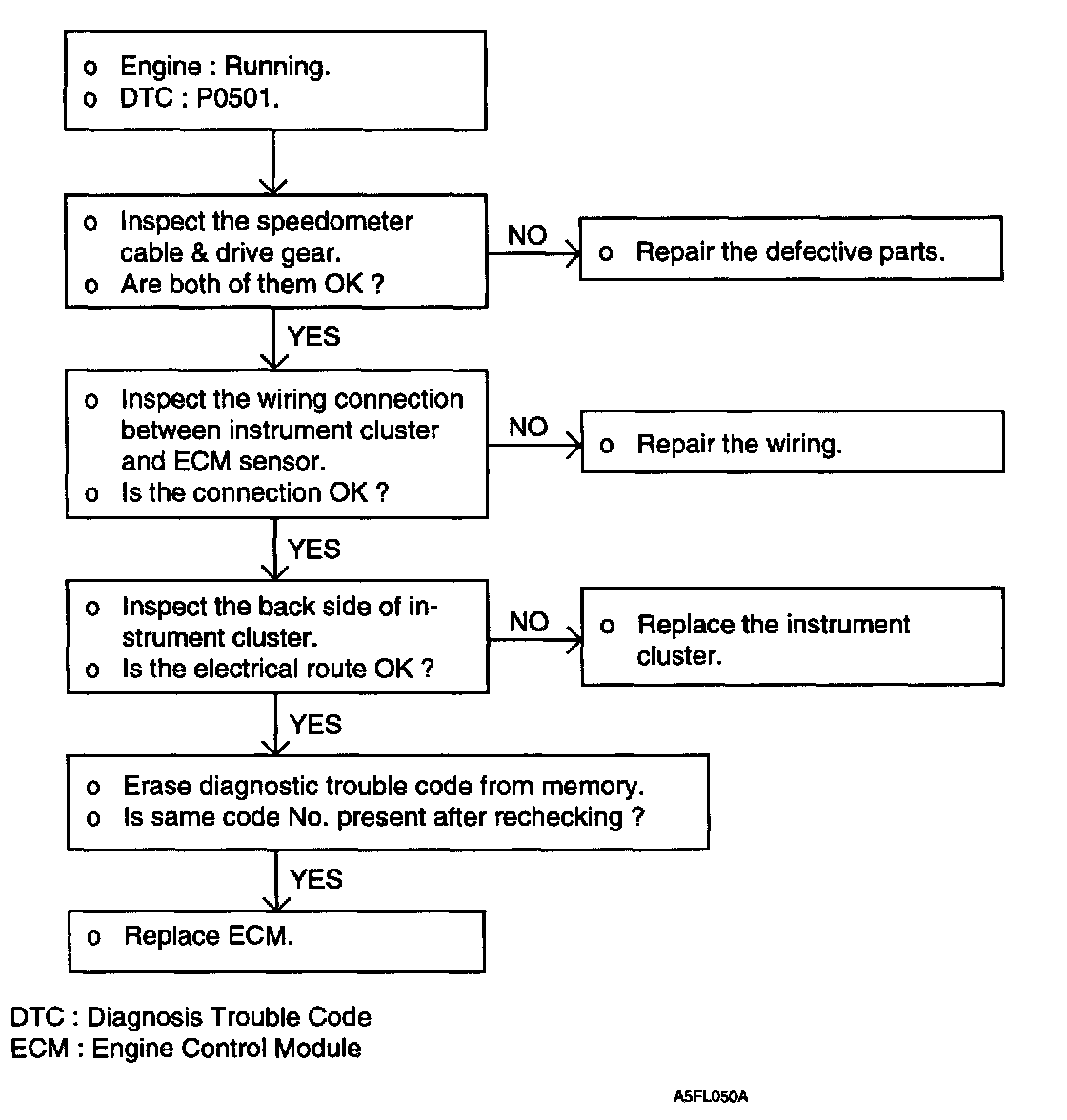

Troubleshooting Procedures:

TROUBLESHOOTING HINTS
If there is an open or short circuit in the vehicle speed sensor signal circuit, the engine may stall when the vehicle is decelerated to a stop.
