Tightening Torque Specifications

TIGHTENING TORQUE SPECIFICATIONS

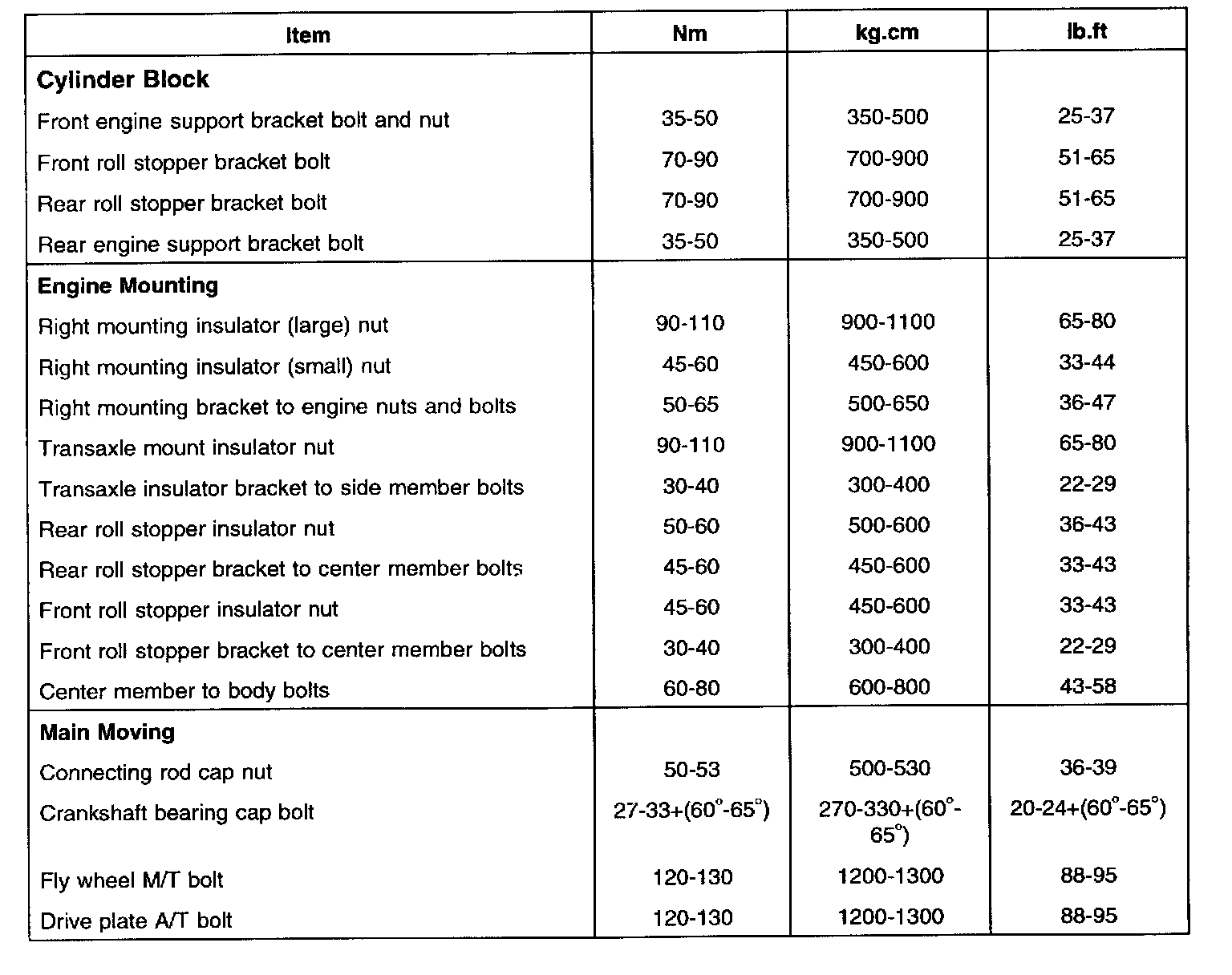

Cylinder Block, Mounting and Main Moving

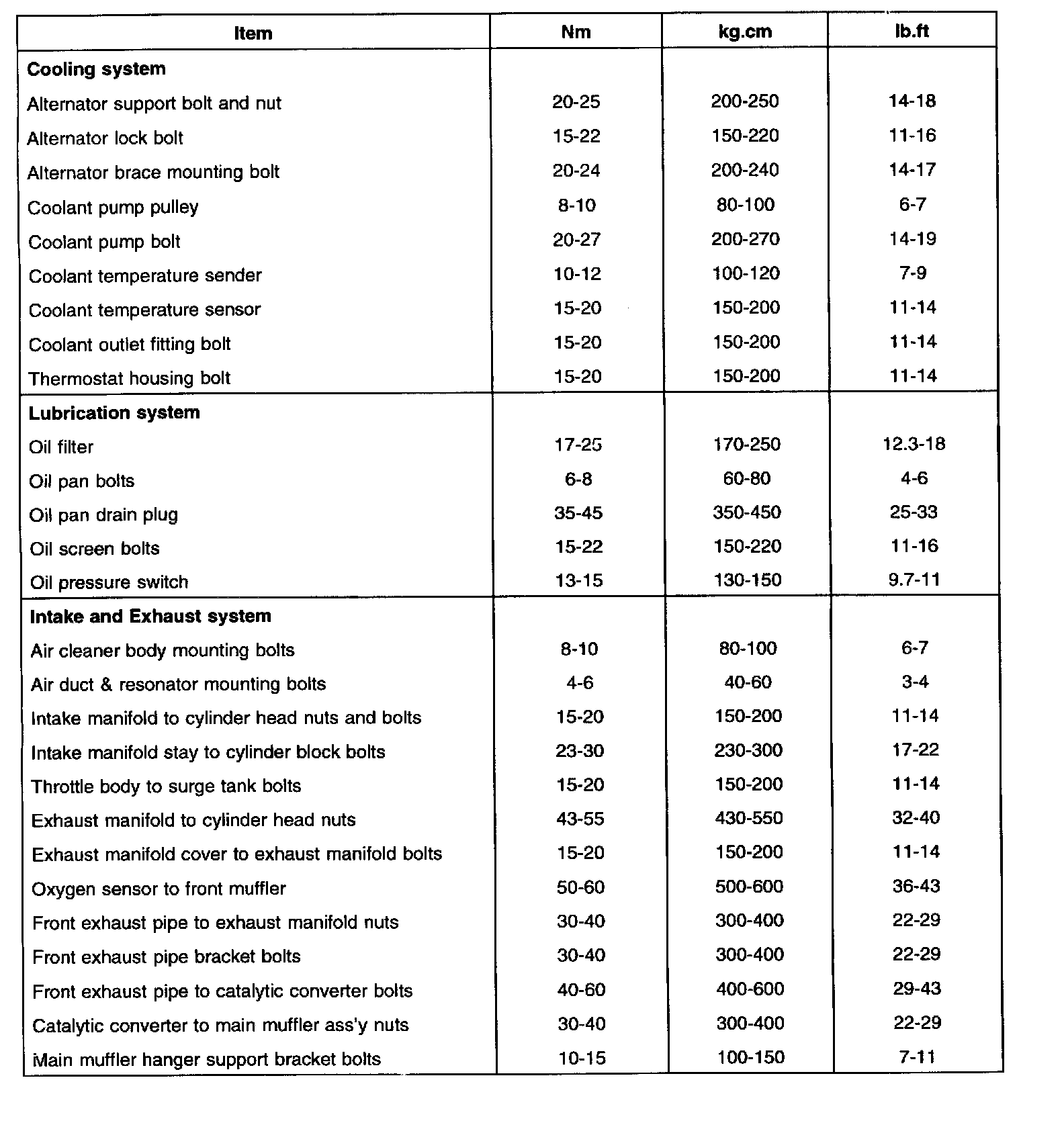

Cooling, Lubrication, Intake and Exhaust

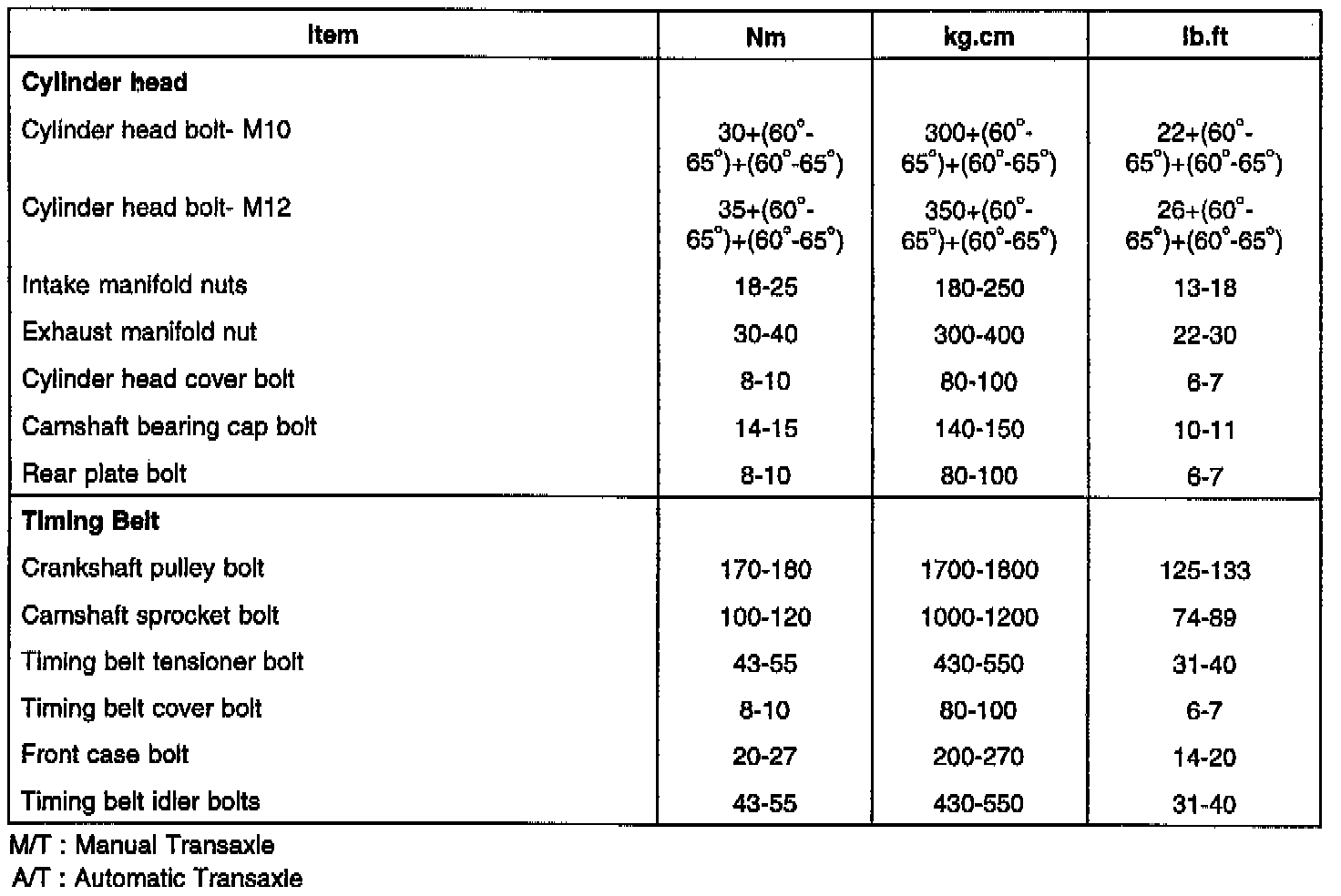

Cylinder Head and Timing Belt

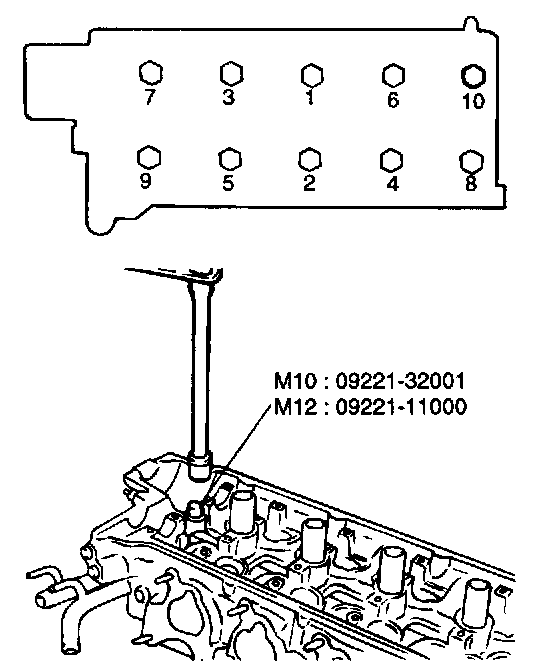

Cylinder Head Bolt Tightening Sequence

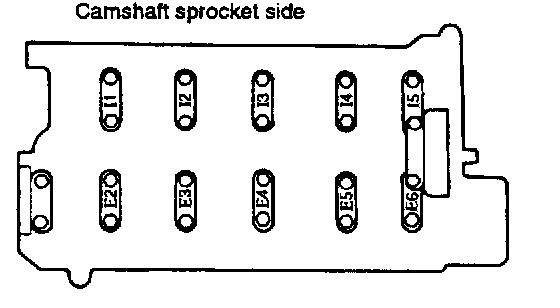

Camshaft Bearing Cap Bolt Tightening sequence
