Connector Terminal Identification

CONNECTOR TERMINAL IDENTIFICATION DIRECTORY

Connector	See
Engine Control Module (ECM)	Fig 1
Heated Oxygen Sensor (HO2S)	Fig 2
Powertrain Control Module (PCM)	Fig 3

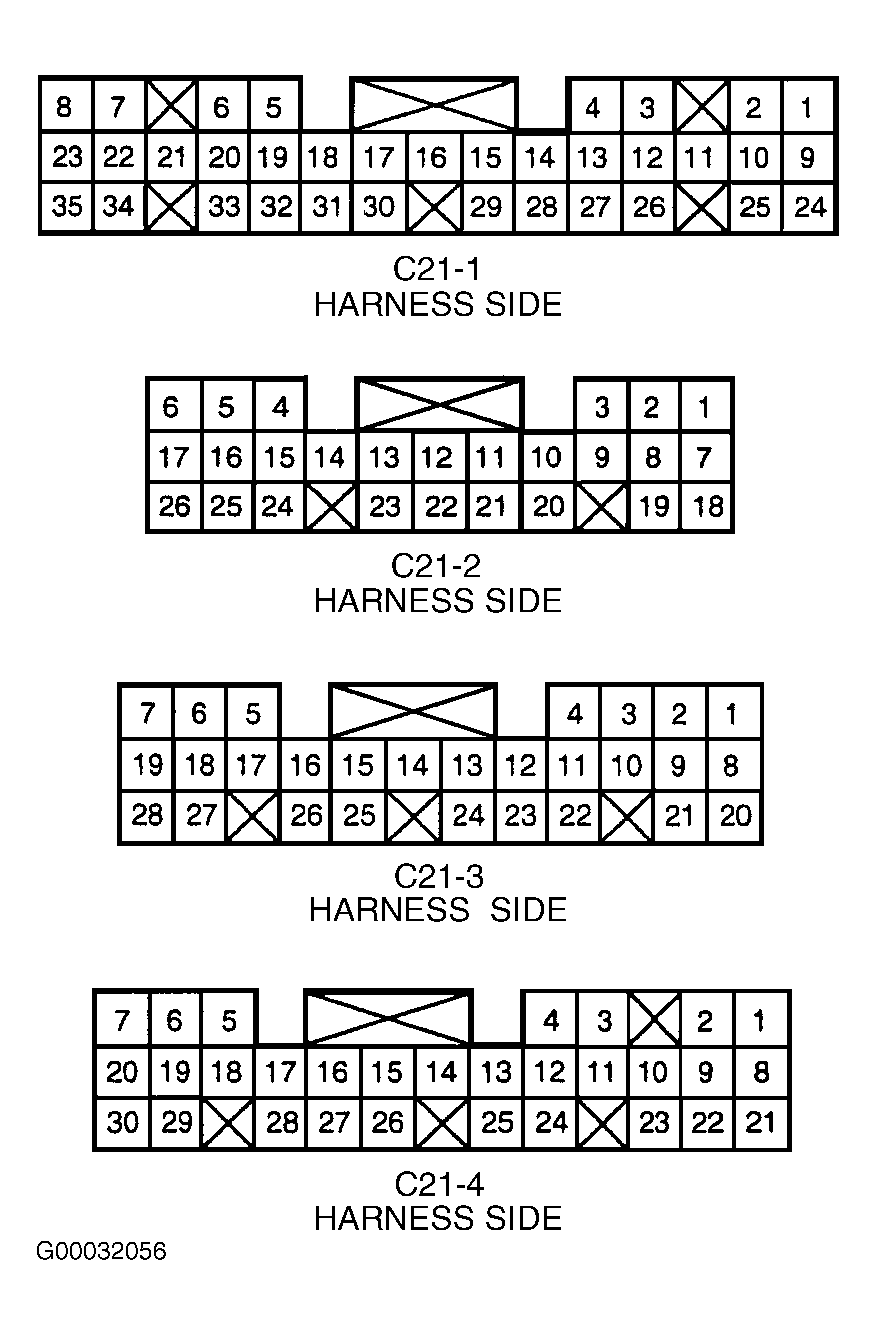

Fig 1: Identifying Engine Control Module (ECM) Connector Terminals (2.4L M/T)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Heated Oxygen Sensor (HO2S) Connector Terminals (Front & Rear)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Identifying Powertrain Control Module (PCM) Connector Terminals (2.4L A/T)

Courtesy of HYUNDAI MOTOR CO.
