Automatic Transaxle Shift Control Components: Notes

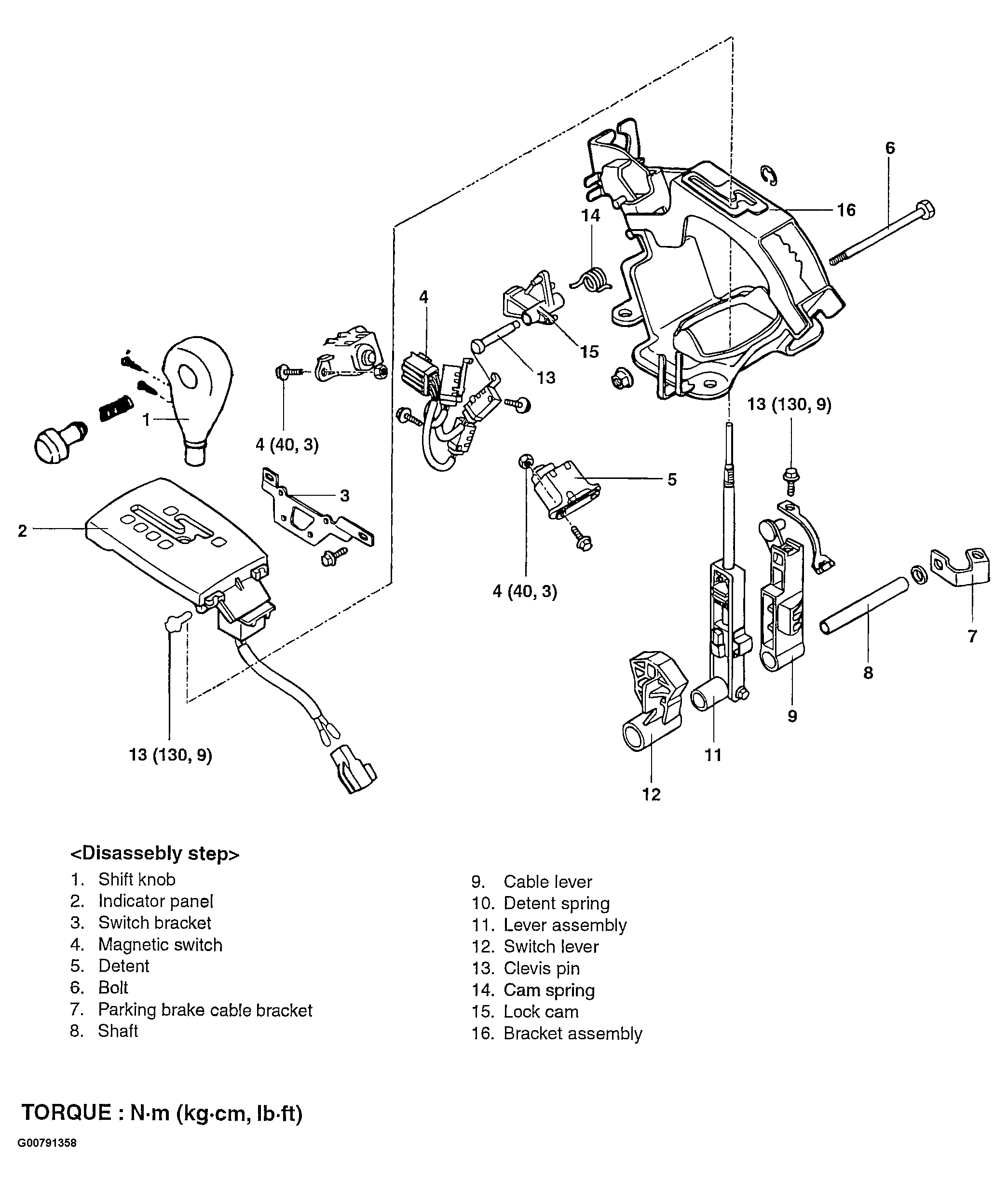

Fig 1: Automatic Transaxle Shift Control Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
