MFI Control System (With A/T)




MFI Control System (With A/T)


C01 - C21-2:




C21-3 - C24-2:

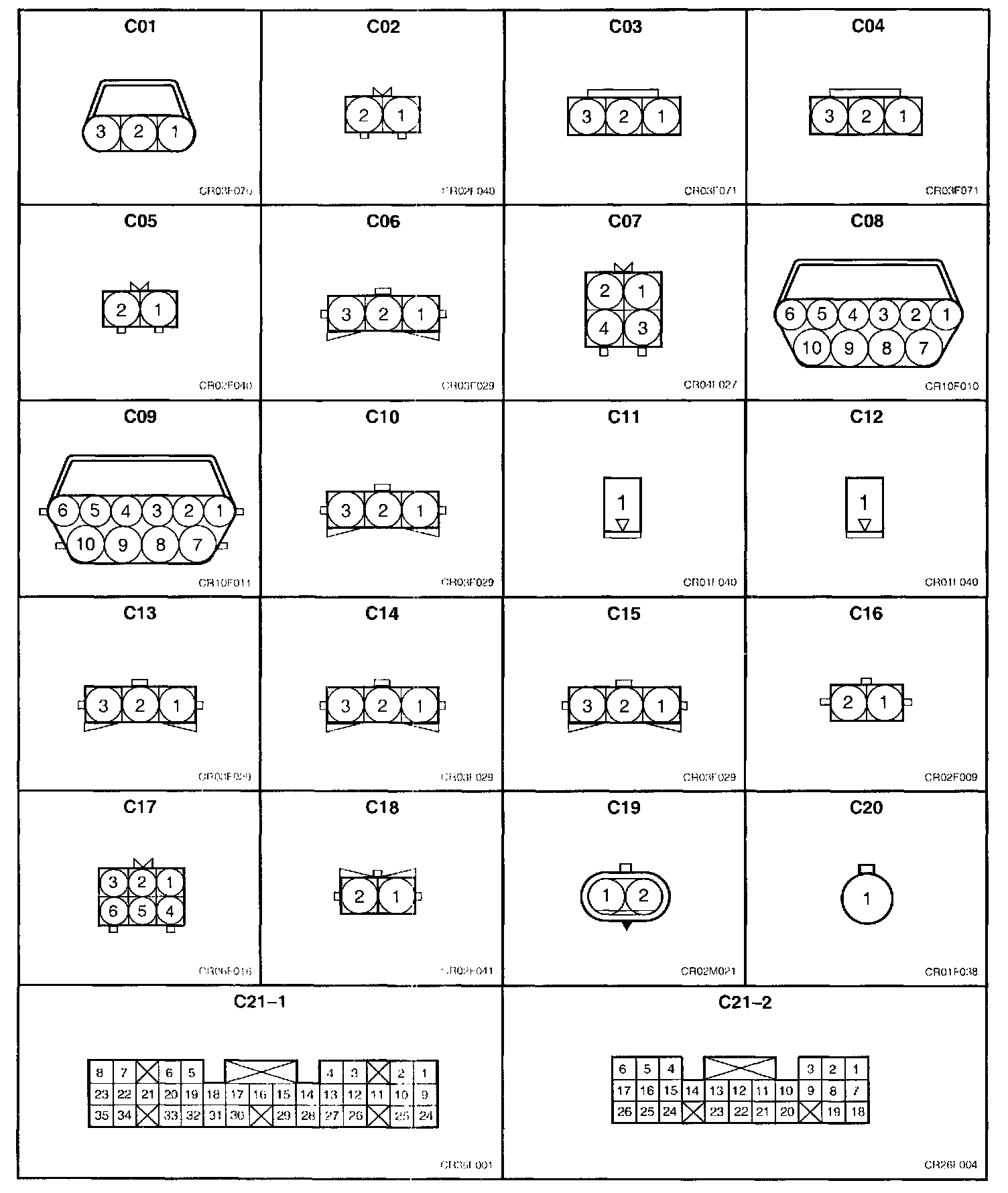

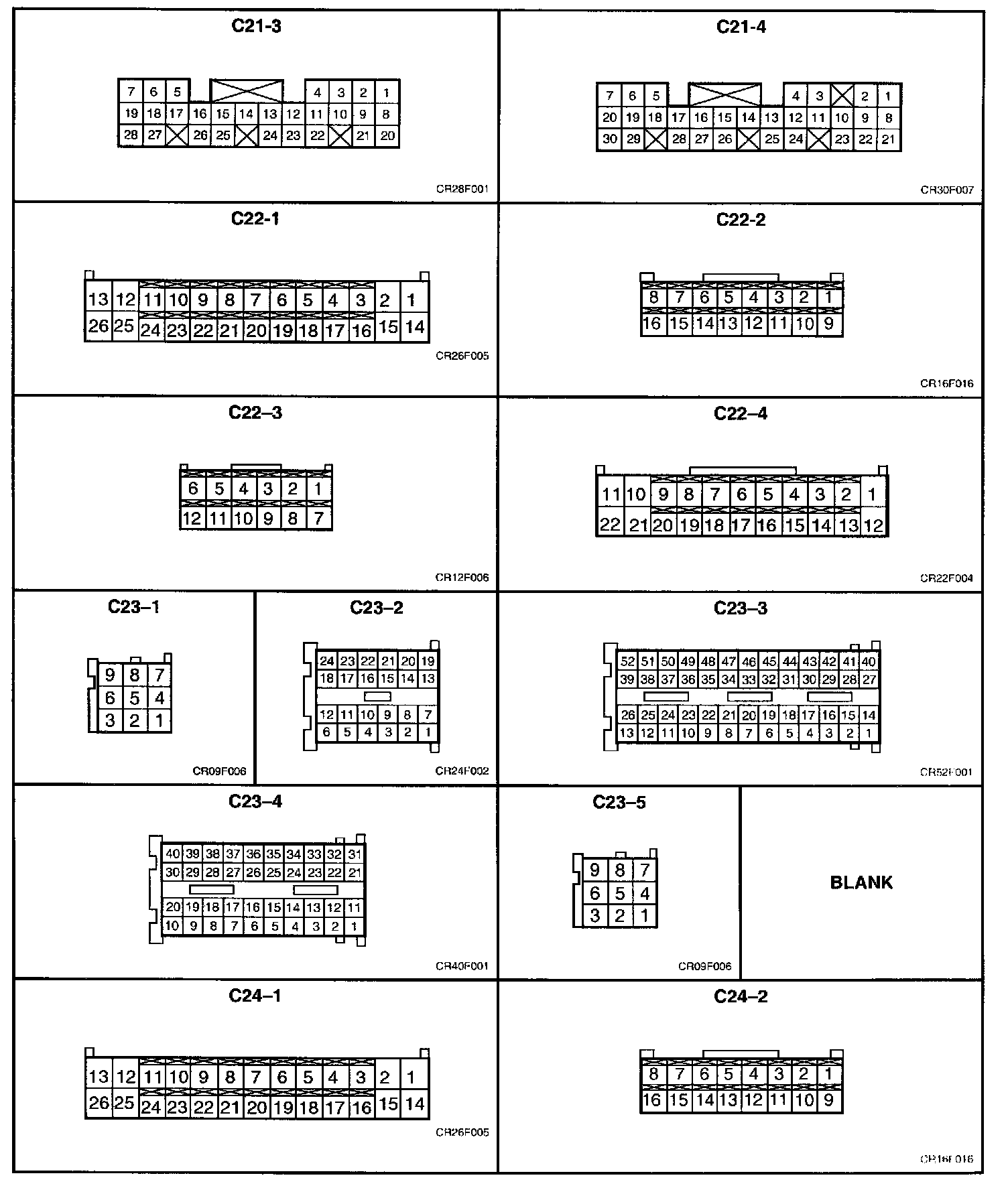

PCM Connector Views C21-1 through C21-4

Note: OE does not have a table that shows pinout descriptions Please use PCM/ECM Electrical Diagrams for pinout Identification Electrical Diagrams
