Electrical Diagrams

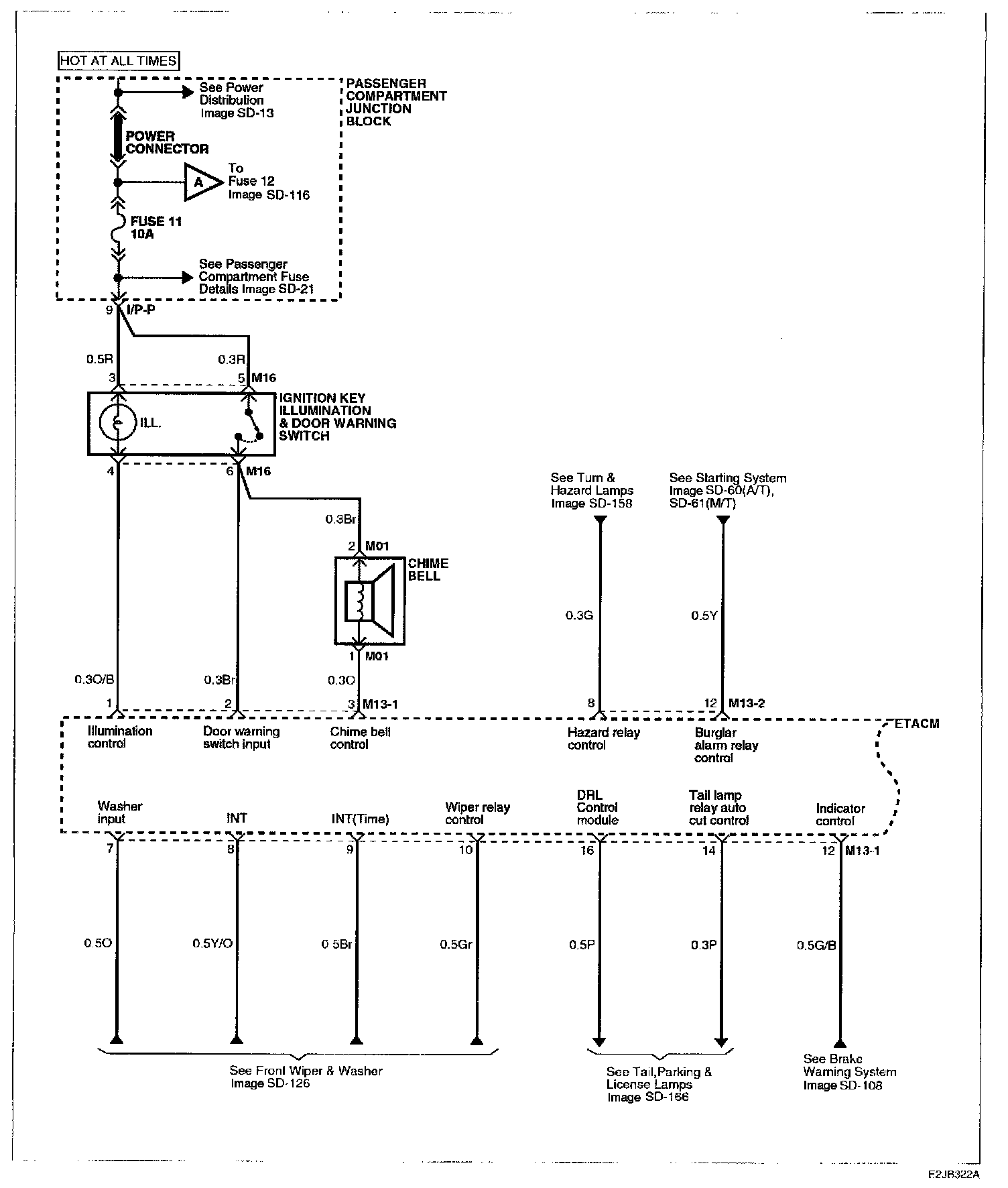

Image SD-114 - ETACS (Electronic Time & Alarm Control System) (1):

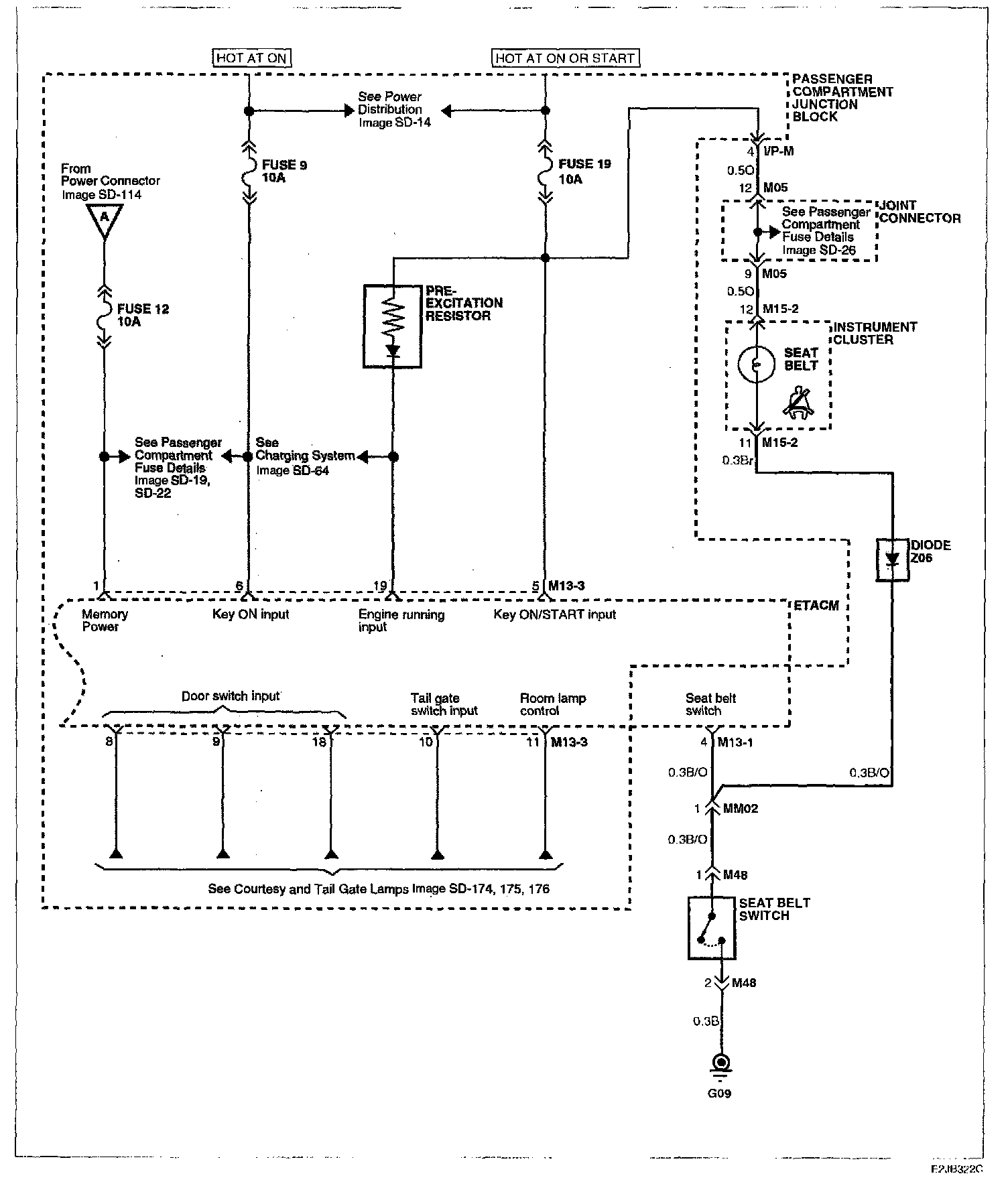

Image SD-115 - ETACS (Electronic Time & Alarm Control System) (2):

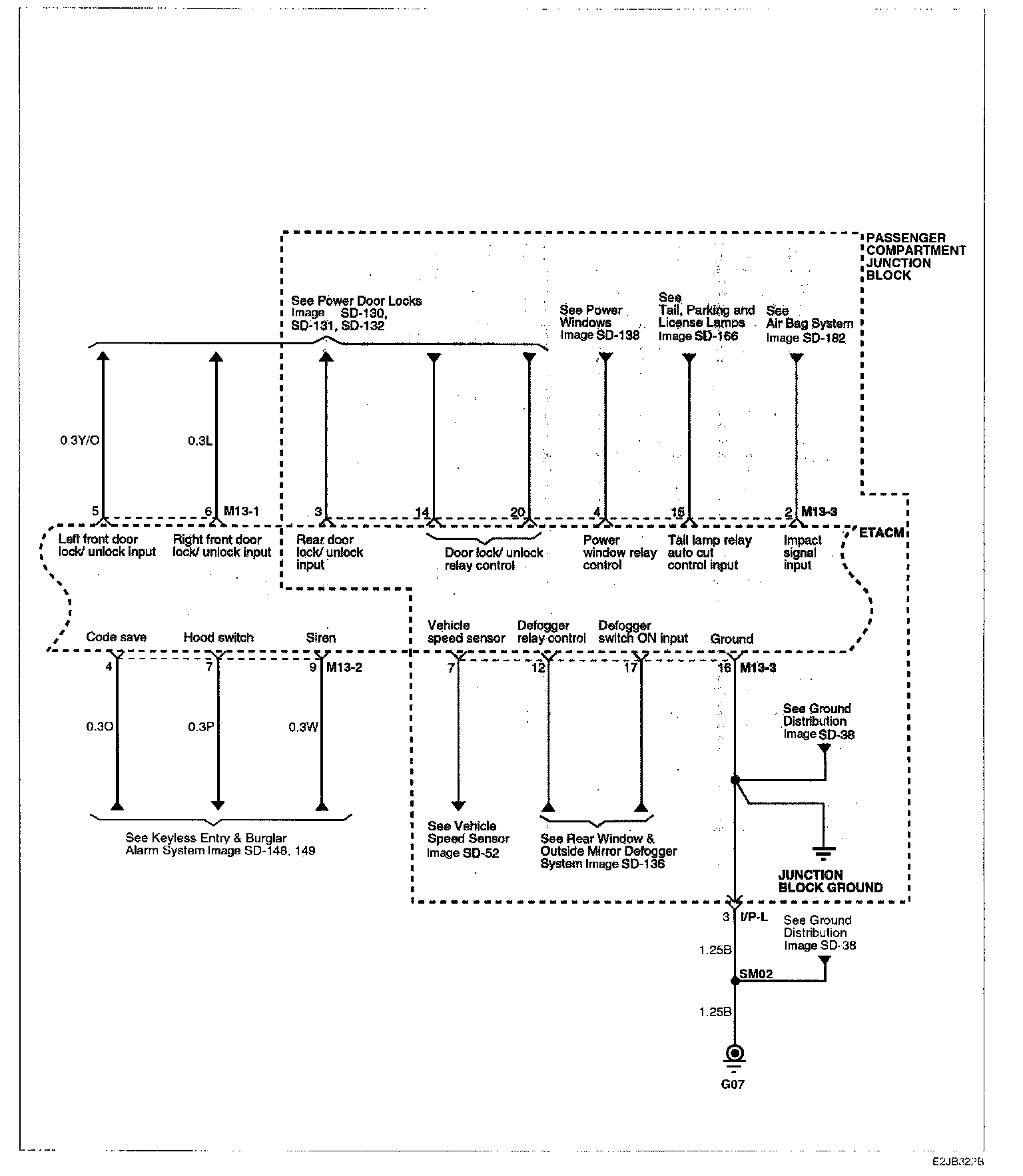

Image SD-116 - ETACS (Electronic Time & Alarm Control System) (3):

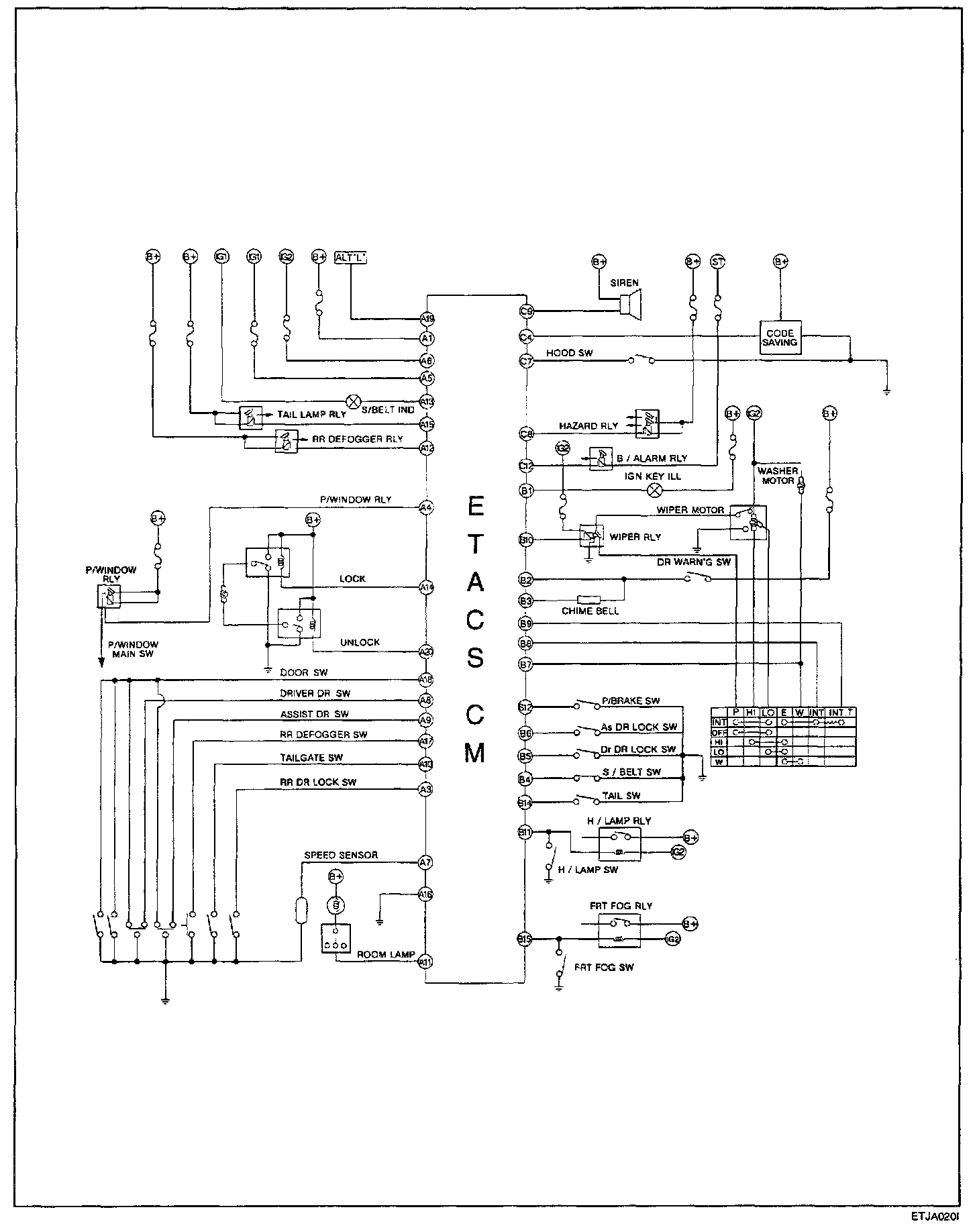

Circuit Diagram:
