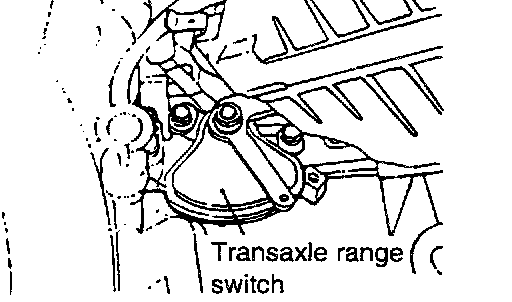

Transmission Position Sensor/Switch: Testing and Inspection

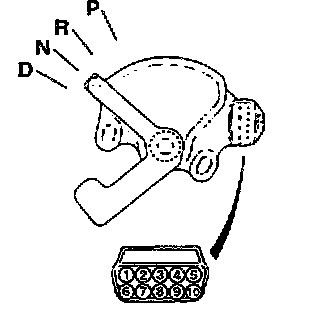

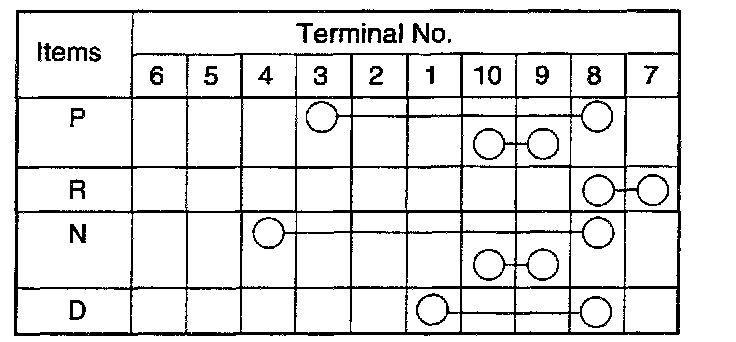

TRANSAXLE RANGE SWITCH CONTINUITY CHECK





1 of 3





2 of 3





3 of 3
