A/T Torque Data

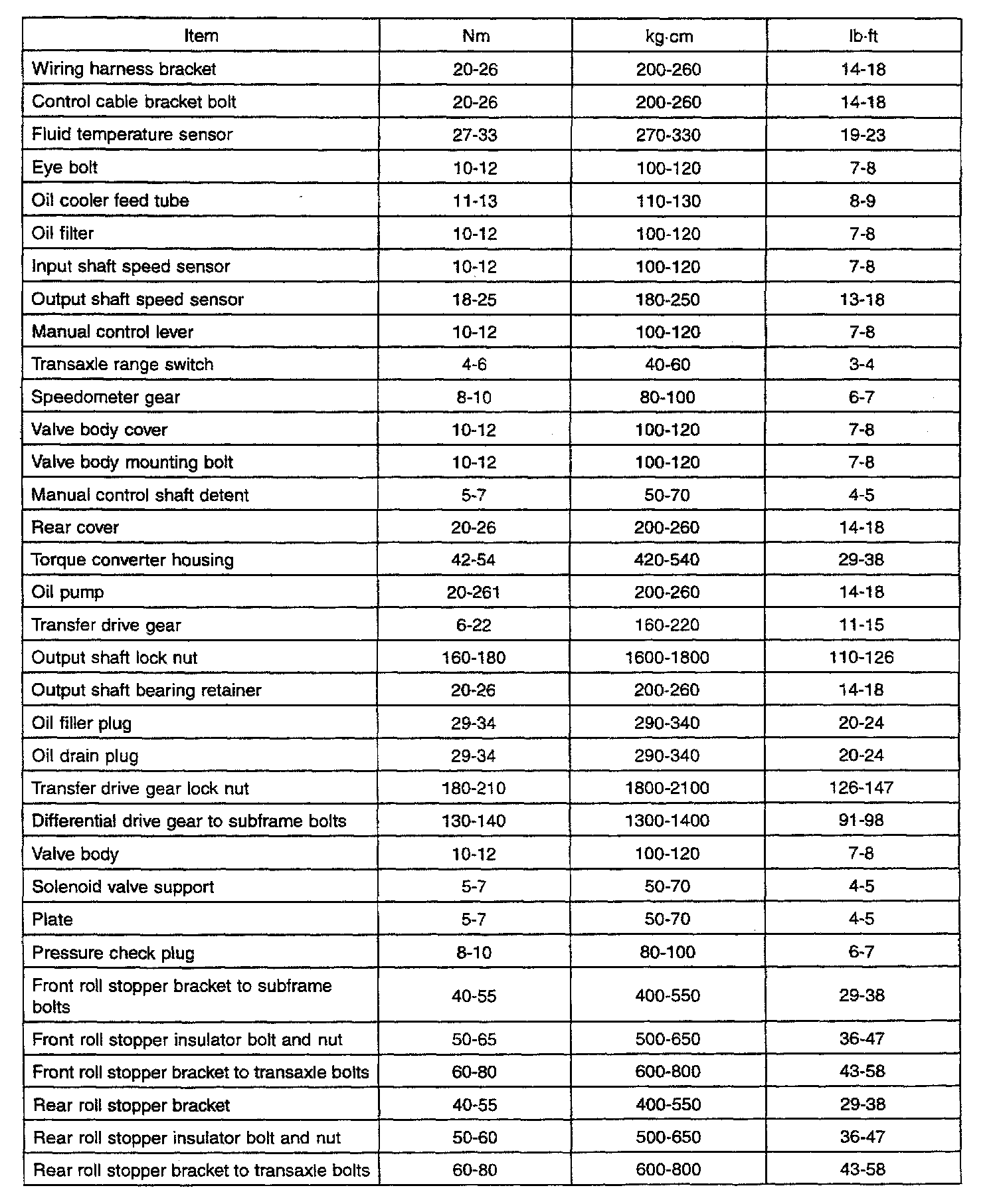

F4A51 4-spd A/T, Transaxle/Transfer/Differential Torque:
Flex Plate
Torque
130 - 140 Nm
