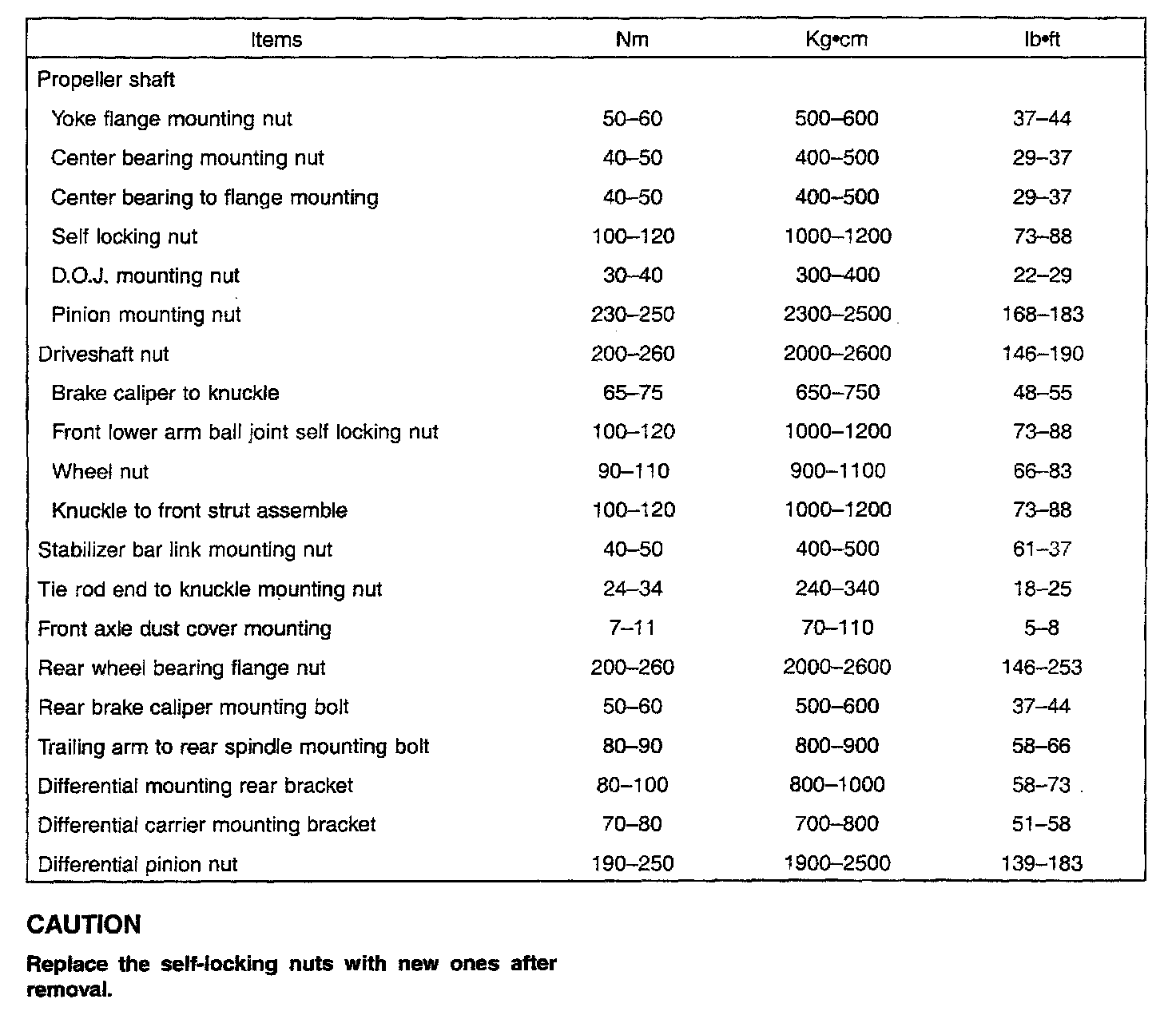

Differential Torque Data
F4A51 4-spd A/T, Transaxle/Transfer/Differential Torque:
M/T & A/T Differential Torque:
