Cylinder Block Specifications

TIGHTENING TORQUE

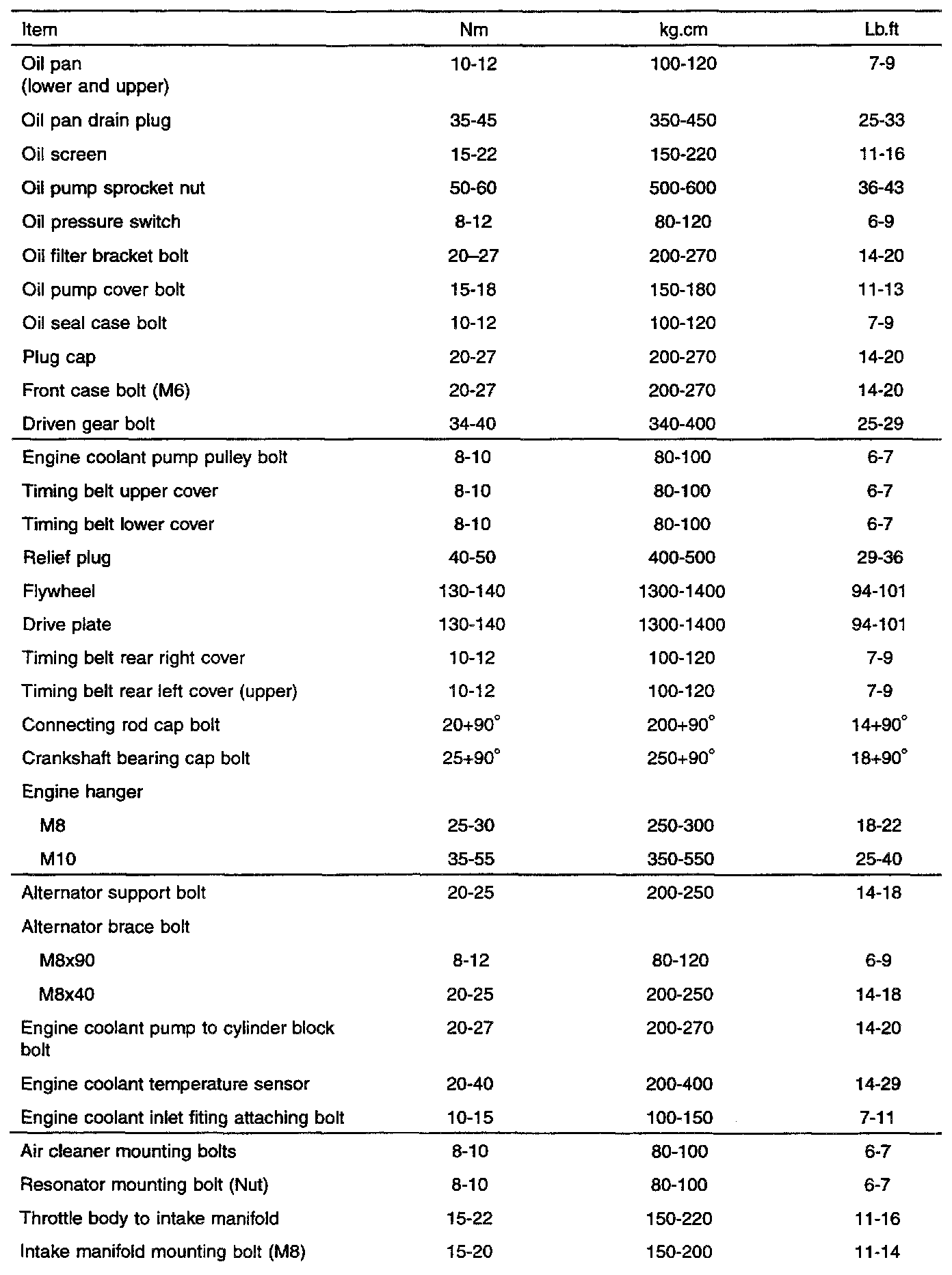

1 of 3

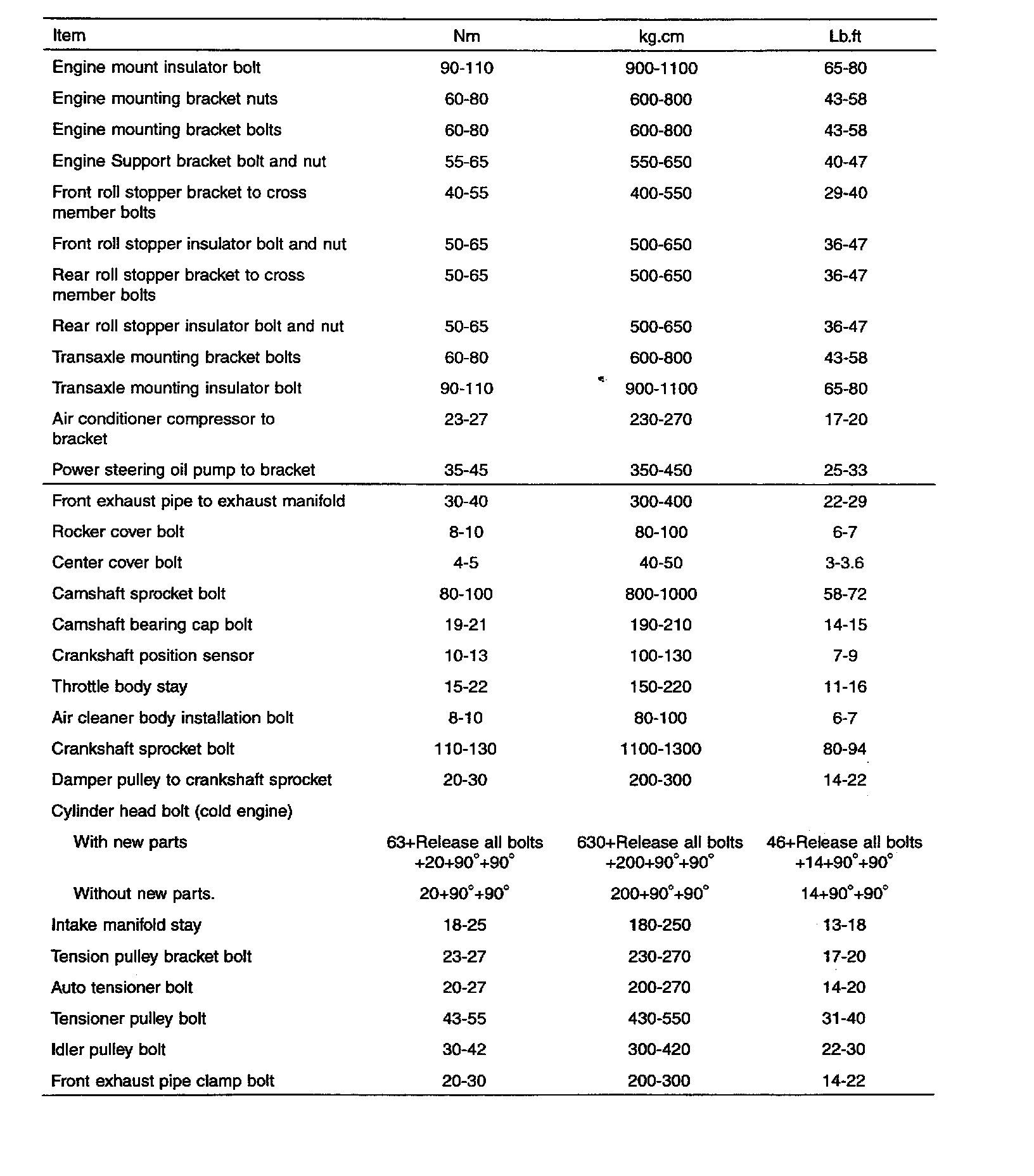

2 of 3

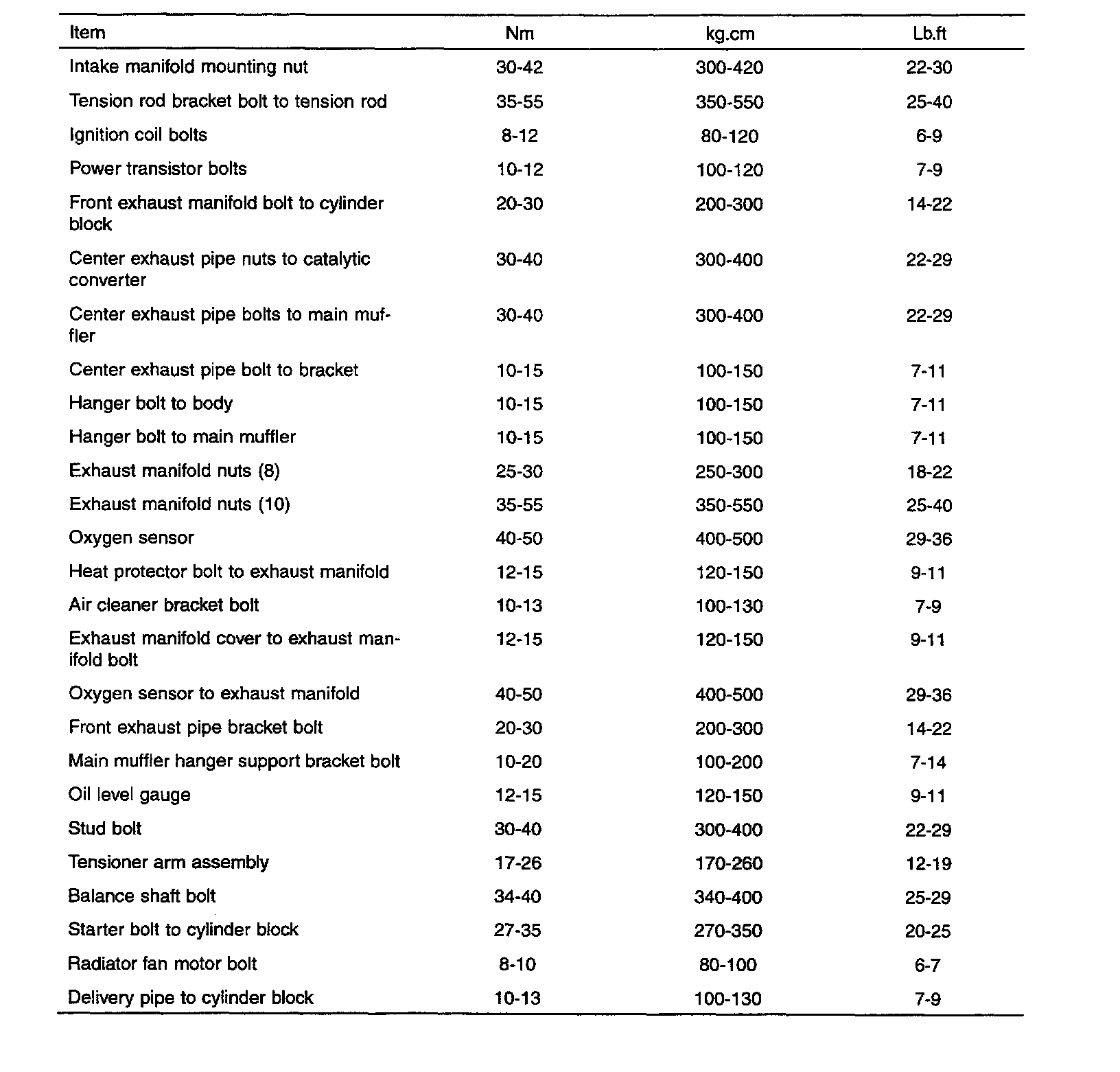

3 of 3

Tightening Sequence:

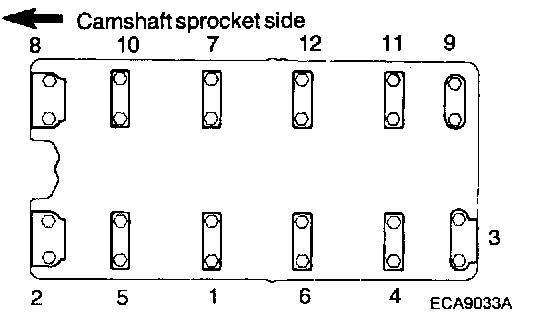

Cylinder Head Tightening Sequence





Camshaft Bearing Cap Tightening Sequence
