Timer/Control Unit, Accessory Control

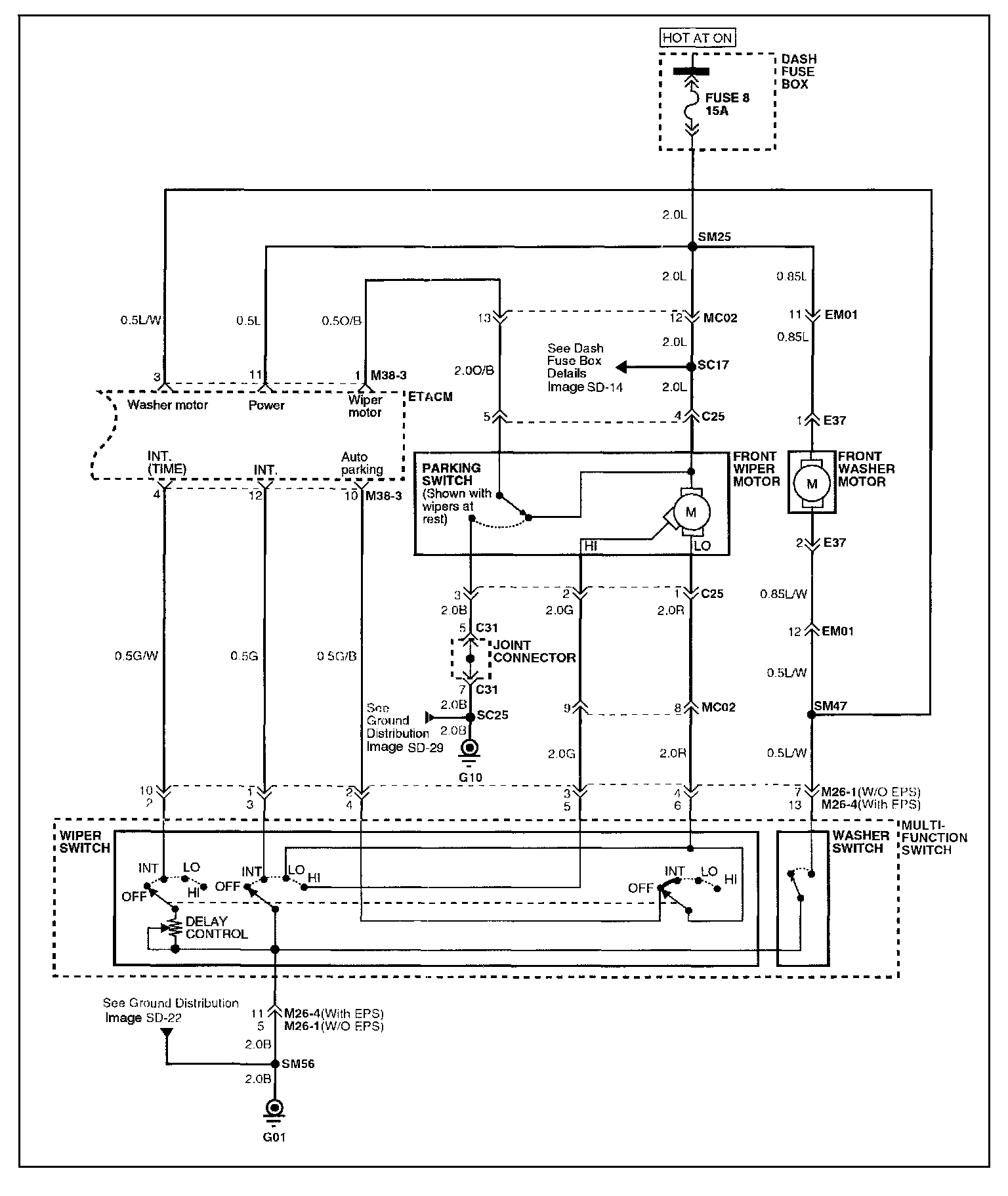

Image SD-76 -- Electronic Time & Alarm Control System (1):

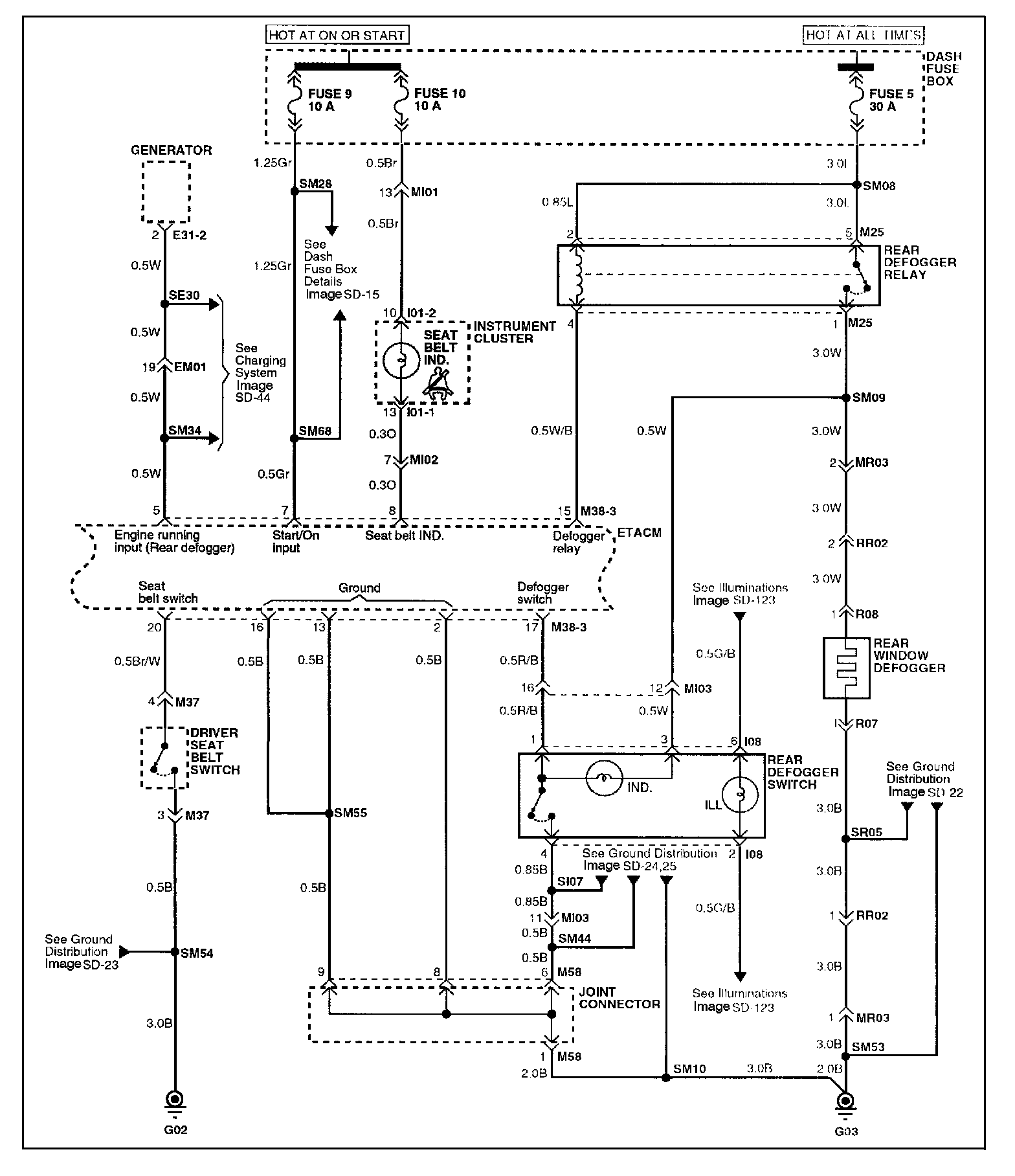

Image SD-77 -- Electronic Time & Alarm Control System (2):

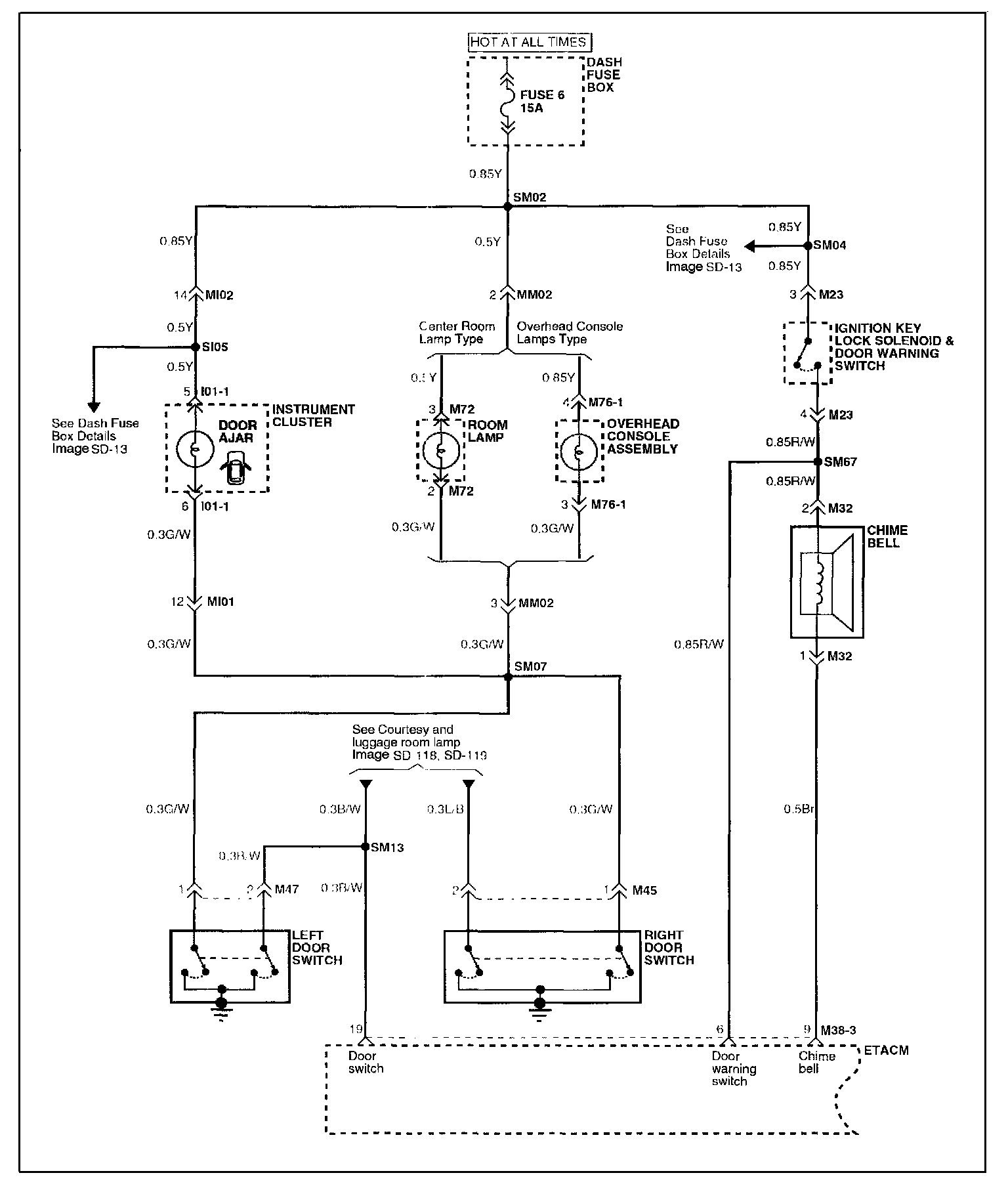

Image SD-78 -- Electronic Time & Alarm Control System (3):

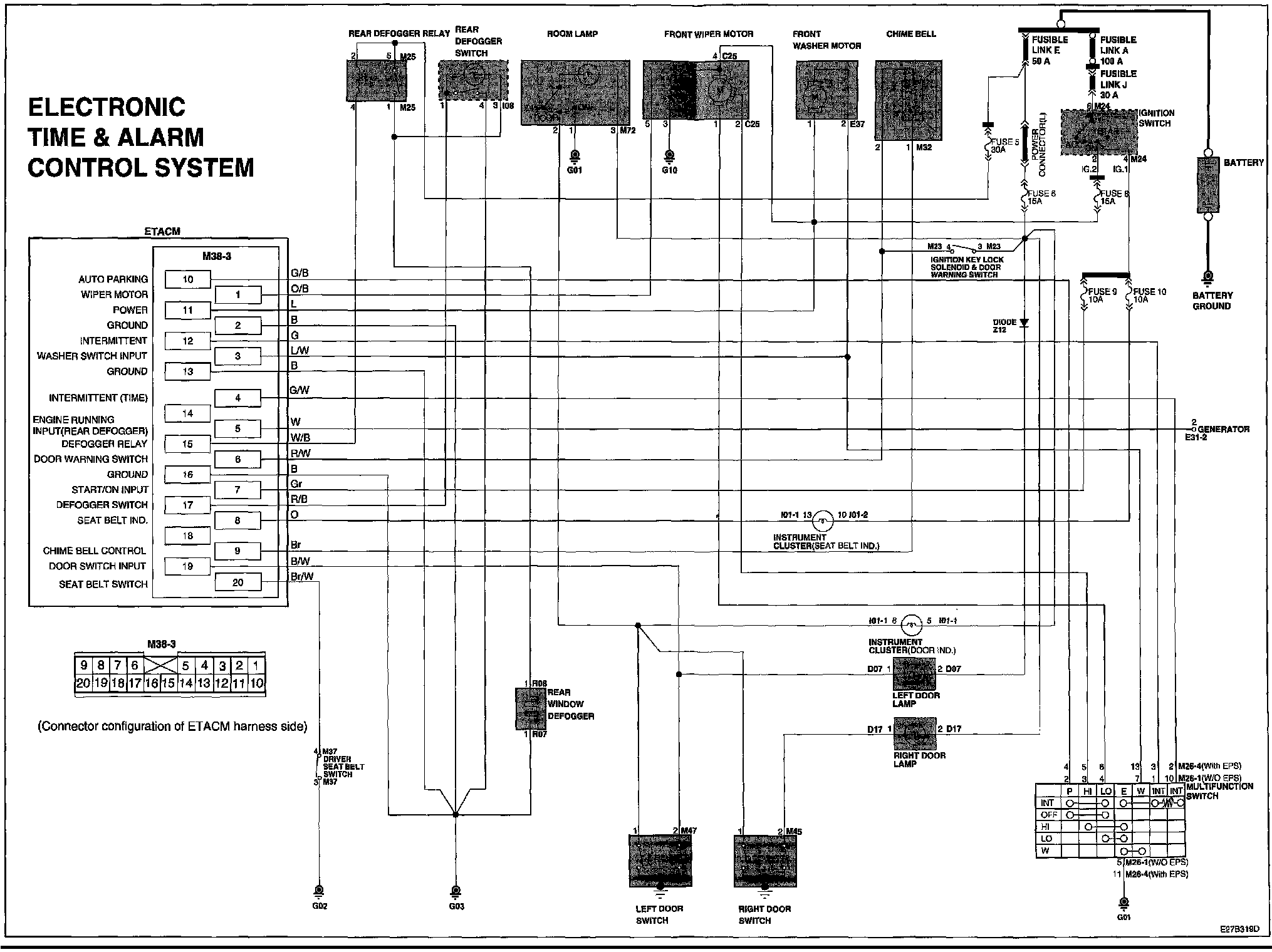

Image SD-78-1 -- Electronic Time & Alarm Control System Overall Diagram:
